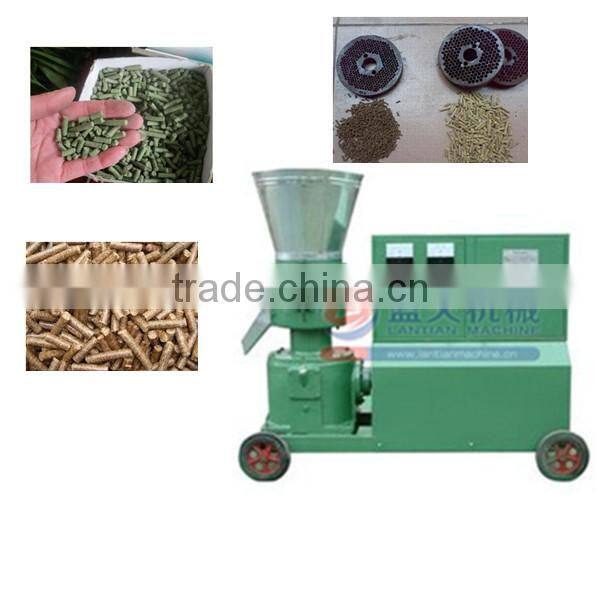

Hot Saling Biofuel Pellet Machine

Hot Saling Biofuel Pellet Machine photo-1
US$ 2,000 - 4,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
lantian
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao lianyungang tianjin
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Henan, China
Brand Name lantian
Model Number lantian
Voltage 220v, 380 v
Power(W) 7.5 kw
Dimension(L*W*H) 1.2*0.8*1.5m
Weight 1t
Certification CE.ISO
Warranty 12 month
After-sales Service Provided Engineers available to service machinery overseas

Specifications

biofuel pellet machine
1.CE certificate
2.Making wood pellets/feed pellets
3.Ring die/flat die
4.Pellet size:2~12m

Hot saling biofuel pellet machine





Hot saling biofuel pellet machine



brief introduction of biofuel pellet machine:
With the rapid development of animal feed industry and utilization of biomass energy biomass wood pellet making machine has become increasingly popular. It not only can process feedstuff for animals such as feed for fish, chickens, pigs, etc., but can also convert waste biomass materials into wood pellets. And the final wood pellets can be burned as green fuel in a pellet stove or boiler. Diesel flat die pellet mill is another one of the most popular pellet mills in the pellet production
biofuel pellet machine:
1. Especially applicable to the owners of feed-process factory and farm-holders to process the feed for rabbits, chicken, sheep, fish, shrimp and so on.
2. The diesel engine is equipped with the clutch and accelerating-decelerating device to change its speed.
3. All bearings are sealed structure that effectively prevent dust, improve the working bearings environment, thus extending bearing life.
4. The pressure is larger and adjustable. So it can make more type of pellets such as sawdust, rice husk, straw, cottonseed husk, weeds and all kinds of crop straw and plant waste.
5. Able to change die and roller faster and easily.
6. Visibility. It is possible to view into the chamber when pelletizing, so you can solve any problems in time.
7. Small and lightweight, making small-scale production possible.
8. High output capacity, low energy consumption and easy   operation.
field, which is especially suitable for small farms in the area of shortage of electricity.


Requirements of biofuel pellet machine:
1. Raw materials need to be crushed and dried.
2. Mix the main material and many other subsidiary materials evenly.
3. Put the powder into the chamber, then the roller presses the powder through the holes in the die to form pellets meanwhile a cutter in the other side of the die cuts and the pellets that has been pressed out from the holes.
4. Make sure the pellets are cooled before the storage.

Hot saling biofuel pellet machineHot saling biofuel pellet machineHot saling biofuel pellet machine





biofuel pellet machine:
Material: Crop straws, household garbage and biomass wastes, hay and grain
Size range of making wood pellets: 6mm, 8mm, 10mmSize range of making feed pellets : 2.5mm, 3mm, 4mm, 6mm, 8mm
Capacity: 30-700kg/h
Quality guarantee: 1 year for main body
Extensive range of pellet plant ancillary machines and spares for your choice

Model No Capacity for wood pellets Capacity for feed pellets Power (HP) Diameter of mould
AMSP-120D 30-50kg/h 50-80 kg/h 8HP 120mm
AMSP-150D 80-100 kg/h 100-150  kg/h 8HP 150 mm
AMSP-200D 100-150 kg/h 200-250 kg/h 15HP 200 mm
AMSP-230D 150-180 kg/h 250-300 kg/h 22HP 230 mm
AMSP-260D 180-230 kg/h 300-400 kg/h 30HP 260 mm
AMSP-300D 250-300 kg/h 400-500 kg/h 55HP 300 mm
AMSP-360D 300-400kg/h 500-600kg/h 55HP 360 mm
AMSP-400D 400-450kg/h 600-700kg/h 55HP 400 mm







































Welcome to visit our factory!



Hot saling biofuel pellet machineHot saling biofuel pellet machineHot saling biofuel pellet machine

Hot saling biofuel pellet machine
