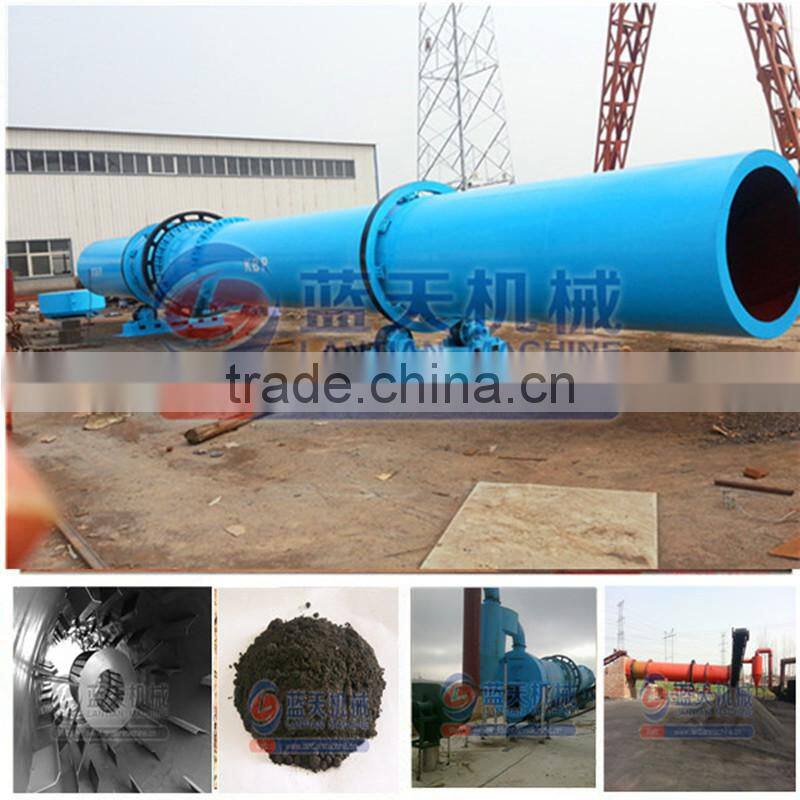

HSM CE approved best selling laboratory freeze dryer vacuum rotary dryer
1.Instruction of laboratory freeze dryer vacuum rotary dryer :
Mainly used for drying wet materials in building construction, metallurgy and chemical industries. Can dry various materials with strong adaptability Besides, it is a common drying device in cement plant with simple and reliable operation Applies the new type scatter plate device and with various functions, such as guide direction, flow on an average, scatter the material and more Can make the material in the thin, average and complete condition Contact the heat airflow completely and use the heat energy fully Moreover, it adopts reasonable operational parameter, and compared with general dryers, it reduces the coal and power consumption above 10 to 15% and increase the output above 10 to 15% At present, it is widely used in cement and mining industries2.Features of laboratory freeze dryer vacuum rotary dryer :
1. Adopt multiple combination scatter device:Overcome traditional dryer "wind hole" phenomenon, high thermal efficiency, coal consumption reduced about 20%.
2. Apply a variety of combustion furnace: high temperature fluidezed bed, grinding coal powder spraying furnace and artificial add stove.
3.Big and small transmission gears adopt pin column replaceable gear, instead of traditional steel casting gear, saving investment cost, and greatly reduce the repair cost and time.
4.Adopt centralized control system, which can realize large-scale enterprise microcomputer central control management.
3.Specifications of laboratory freeze dryer vacuum rotary dryer :
| Model(mm) | Inclination(%) | Rotate Speed(r/min) | Air Inlet Temperature(°c) | Powder(kw) | Production Capacity(t/h) | Weight(t) |
| 600x600 | 3-5 | 3-8 | ≤700 | 3 | 0.5-1.5 | 2.9 |
| 800x800 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.0 | 3.5 |
| 800x1000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.5 | 4.5 |
| 1000x10000 | 3-5 | 3-8 | ≤700 | 5.5 | 1.0-3.5 | 5.6 |
| 1200x12000 | 3-5 | 3-8 | ≤700 | 11 | 2-6 | 14.8 |
| 1500x12000 | 3-5 | 2-6 | ≤800 | 15 | 3.5-9 | 17.8 |
| 1800x1400 | 3-5 | 2-6 | ≤800 | 18 | 5-12 | 22 |
| 2200x16000 | 3-5 | 1.5-6 | ≤800 | 30 | 12-25 | 36 |
| 2400x18000 | 3-5 | 1.5-5 | ≤800 | 37 | 18-30 | 52 |
| 3000x25000 | 3-5 | 1.5-5 | ≤800 | 75 | 32-40 | 86 |
4.Working Principle of laboratory freeze dryer vacuum rotary dryer :
mainly consists of revolution body, raising material board, transmission device, supportive device and sealing ring and more Heat source of the dryer comes from the combustion train, and it adopts down-flow heating methods When the materials enter into the body from the feeding device, it will be pushed back by the spiral raising board As the dryer is placed in an inclined position, the materials will be down to the lower end under the influence of gravity and rotation, but the raising board will be threw them to the upper end for scattering Procession makes the material well-distributed in the body and ensures the full heat exchange with the heat wind After repeated cycle with this procession, the moisture content will be dried
5.Main Features of the Clay Rotary Dryer
1.Adopt multiple combination scatter device:Overcome traditional dryer "wind hole" phenomenon, high thermal efficiency, coal consumption reduced about 20%.
2. Apply a variety of combustion furnace: high temperature fluidezed bed, grinding coal powder spraying furnace and artificial add stove.
3.Big and small transmission gears adopt pin column replaceable gear, instead of traditional steel casting gear, saving investment cost, and greatly reduce the repair cost.
4.Adopt centralized control system, which can realize large-scale enterprise microcomputer central control management.
Gongyi Lantian is a professional manufacturer engaged in briquetting machine like coal briquetting machine, mineral powder briquetting machine, iron powder briquetting machine, coke powder briquetting machine, gypsum briquetting machine, lime briquetting machine, high pressure dry powder briquetting machine and briquetting press, rotary dryer etc.
The products are widely sold in over 20 provinces and regions in China and exported to India, Malaysia, Vietnam, Philippines, Indonesia, Thailand, Russia, The North of Ireland, Australia, Oman, Egypt, Israel, Africa, South America, Europe, USA. Our products enjoyed a high reputation in these fields and won the favorable comments and deep trust from new and old customers at home and abroad.
