Rotary Compound Fertilizer Dryer
Application or the rotary compound fertilizer dryer:
small drum dryer also called rotary drum dryer, mainly composed of rotary body, lifting blade, driving device, supporting device, and sealing ring. widely used in sawdust, wood chips, bamboo shavings, wood shavings, barley straw, oat straw, wheat straw, rye, straw, rice straw, sorghum straw, stalk and building materials, metallurgy, chemicals, industrial drying slag, cement limestone, coal, slag, clay, etc.

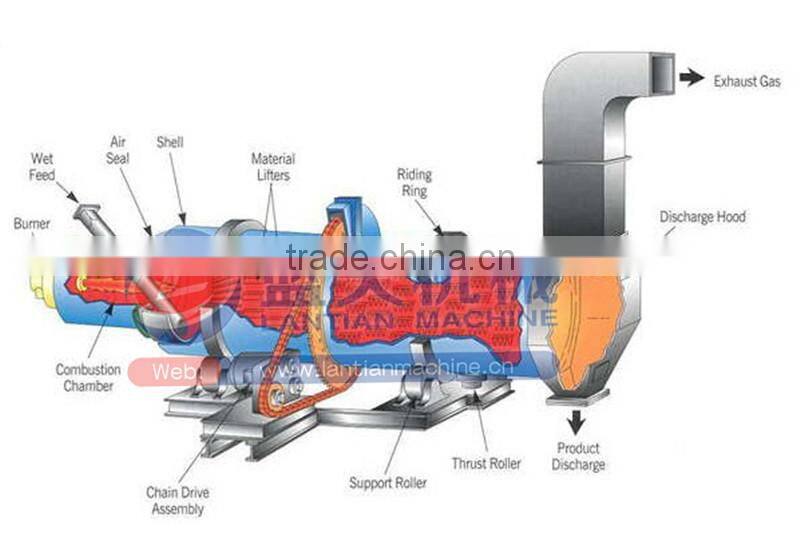

components of rotary compound fertilizer dryer:
1. Shell
2. back and forth supporting wheel
3. feeding and discharging unit
4. gear cap
the accessories which are not in the scope of this machine include firebox. feeding and discharging equipment, dust catcher, etc.
Working Principle of rotary compound fertilizer dryer :

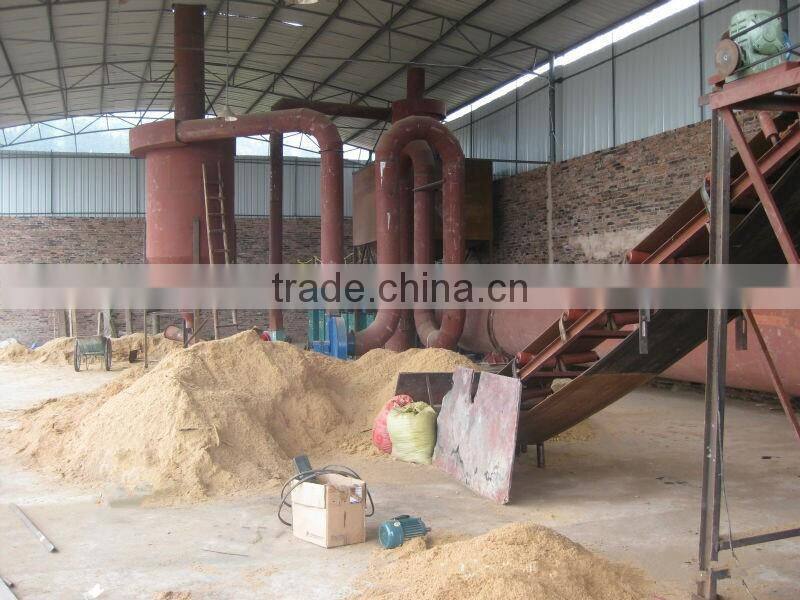

Wet material are sent to hopper of rotary compound fertilizer dryer by belt conveyor or bucket elevator, then though the hooper feeder and feeing tube into the fed end, feed pipe slope should be greater than the natural inclination of material, so that the material flow into the dryer smoothly. Dryer clinder is horizontal line sightly tilted into the rotation of the cyclinder. the inclination is approx 5(°), the sugar cane pith enter the dryer installed with slope to horizontal line from the high er side, the hot air enters the barrel from the lower side, and then material and hot air mix together, material go to the low side by gravity when the dryer is rotationg, inside the cyclinder wall with copy board( inside flight), its role is to put the material copy up and again, the contact surface is increased and the air flow of material, in order to improve the drying rate and promote the material progress. heating medium is generally divided into the hot air and flue gas, etc, after heating medium by the dryer, generally need to cyclone with material in the gas trap. For further reducing exhaust dust content, but also put again after a bag filter or wet precipilator emissions.
Features of rotary compound fertilizer dryer :
1. Adopt multiple combination scatter device: Overcome traditional dryer "wind hole"phenomenon, high thermal efficiency, coal consumption reduced about 20%.
2. Apply a variety of combustion furnace: high temperature fluidezed bed, grinding coal powder spraying furnace and artificial add stove.
3.Big and small transmission gears adopt pin column replaceable gear, instead of traditional steel casting gear, saving investment cost, and greatly reduce the repair cost and time.
4. The diameter of the small drum dryer depend on the moisture content of the raw material, the length of the sugar cane pith dryer depend of the capacity.
5. can drying the material from MC50% to 10%, high capacity, continuous working.
6. the temperature can reach 1000-1300 ℃.
Technical Parameters of rotary compound fertilizer dryer:
| Model | Inclination(%) | Rotate speed(r/min) | Airinlet temperature(°C) | power(kw) | Production capacity(t/h) | Weight(t) |
| 600x6000 | 3-5 | 3-8 | ≤ 700 | 3 | 0.5-1.5 | 2.9 |
| 800x8000 | 3-5 | 3-8 | ≤ 700 | 4 | 0.8-2.0 | 3.5 |
| 800x10000 | 3-5 | 3-8 | ≤ 700 | 4 | 0.8-2.5 | 4.5 |
| 1000x10000 | 3-5 | 3-8 | ≤ 700 | 5.5 | 1.0-3.5 | 5.6 |
| 1200x12000 | 3-5 | 3-8 | ≤ 700 | 11 | 2-6 | 14.8 |
| 1500x12000 | 3-5 | 2-6 | ≤ 800 | 15 | 3.5-9 | 17.8 |
| 1800x14000 | 3-5 | 2-6 | ≤ 800 | 18 | 5-12 | 22 |
| 2200z16000 | 3-5 | 1.5-6 | ≤ 800 | 30 | 12-25 | 36 |
| 2400z18000 | 3-5 | 1.5-5 | ≤ 800 | 37 | 18-30 | 52 |
| 3000z25000 | 3-5 | 1.5-5 | ≤ 800 | 75 | 32-40 | 86 |
Our Promise about rotary compound fertilizer dryer:
1. Product quality assurance
Our company strictly follow the national quality management system and"Shougang corp" production standard system. From raw material choose, part fabrication to the whole machine leave from the factory, all has carried on the comprehension supervision
and inspection.
2. Product warranty guarantee
We provide three respects of guarantee. We will pack and send it to you, repair it for free, provide technology support, install and adjust for you. All the customers can enjoy one year warranty, lifelong maintenance service rely on the user warranty card.
3. Door-to-door service commitment
For all customers, no matter what time is, as long as you need, a call to us, we guarantee to send professionals reach to the scene within two days to solve all the problems in time,and make your productions operations can be sustained.
4. Price supply of spare part
Our company produces long-term supply of spare parts. Just a call, my company can deliver the spare to your home accurately and timely through the logistics delivery channels.
FAQ of rotary compound fertilizer dryer:
1- control the temparature of hot gas ----Operation cabinet is displayed on the instrument, the temperature by increasing the air flow or temperature adjustment
2- control spead of dryer rotatation ----motor speed control
3- control the spead of fan---controlled by the operation cabinet
4- Alarming system for fire spark.... There is Line safety protection device in operation cabinet
If you are interested in our products, pls contact me:
wechat: 18738127720
