recycling Equipment / How dismantling reuse waste engine oil filter

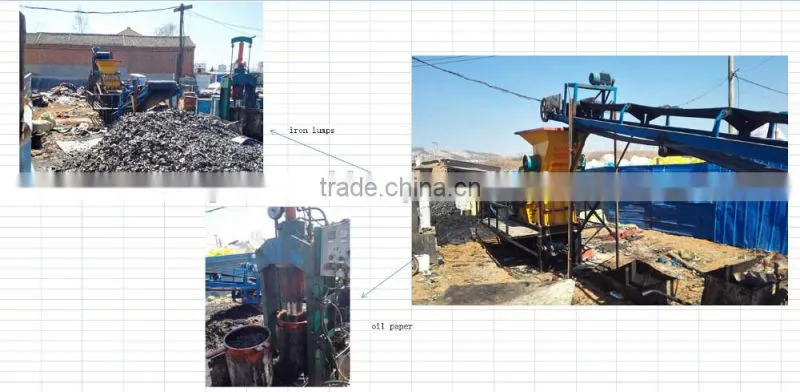

Process Flow
1. Crushing waste engine oil filter and meanwhile separating out metal lumps by installing a magnetic separator at the discharging belt .
2. pressing those paper element in a bucket type hydraulic press filter for collecting waste oil .
Remark: for those metal lumps , and that is possible for you to sell them to big steel mill , as I know , usually it cost higher than the ones in big volume .
for those waste engine oil you got , there are two ways for recycling , one is refinement firstly and then readd new annexing agent ; the other one is used as vessel fuel .
Specifications of waste engine oil filter dismantling reuse equipment

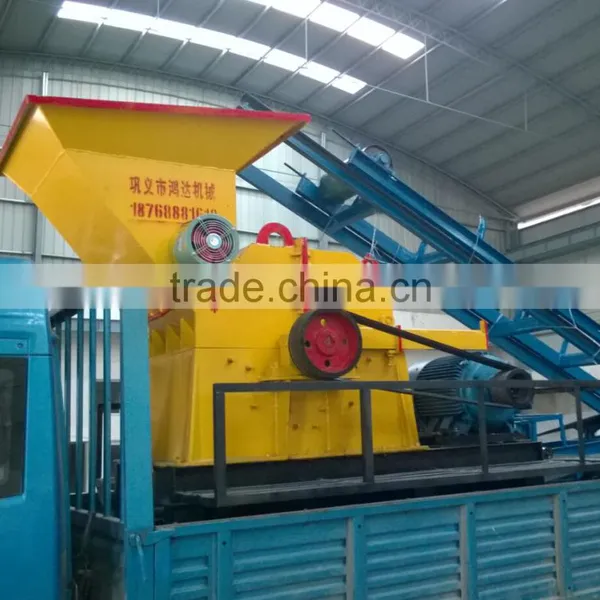

Waste Engine Oil Filter Crusher
| Model | machine size | weight | handling capaciy | power | rotating speed |
| HDFS-700 | 2.8*2*2.5M | 3ton | 2ton/h | 45KW |
motor:1470r/min rotation plate :800r/min |
| HDFS-900 | 2.8*2.2*2.5M | 4.5ton | 3ton/h | 55KW |
Belt Conveyor
feeding belt conveyor : length 10M & 3KW motor
discharging belt conveyor : length 6M & 0.75kw motor
Remark: belt width for aboved two both kind are 500mm .
Hydraulic Press :
size: 1.8*0.8*2.75M
weight : 1400kgs
handling capacity : no exact data , but as testing , per ton can get near 200kgs waste engine oil .
power:3kw
max working pressure :40Mpa
pressing time for one barrel :20-30 minutes
material: carbon steel and common iron
barrel size :425mm dia. * 680mm height
steel plate :24pcs
oil contained in paper residue cake :2%
If you have great interest on our waste engine oil filter dismantling reuse equipment , pls contact me as following info :
