Help CenterHot Air Rotary Cylinder Dryer for Sawdust/limestone/clay/slag
Related Products
-
Widely-used Rotary-drum Dryer With Good PriceNegotiableMOQ: 1 Set -
Rotary Drum Type Hot Air Drying Equipment With Biomass Waste HeatingNegotiableMOQ: 1 Set
-
Grain Seeds Drying Machine With Sawdust Burner Heating DesignNegotiableMOQ: 1 Set
-
Low Price Stainless Steel Hot Air Circulation Drying OvenUS$ 3,500 - 13,333MOQ: 1 Set
-
Industrial Fruit Slice Dehydration MachineUS$ 3,500 - 13,333MOQ: 1 Set
Structure of Rotary Cylinder Dryer
Drier also named as Drying Machine and Rotary Drier.Mainly it is consist of rotary body, raw material feeding plate, driving and supporting device, etc
Features of Rotary Cylinder Dryer
Most raw material is wet and with causticity, so the blade of rotary dryer is stainless steel
Working principle of rotary cylinder dryer
Its principle of operation: the raw material plate which is arranged reasonably with changeable angles in order,
throws moisture materials into the rotary cylinder. Then water will be separated from the materials by hot airflow
andchanged into vapour to be discharged into the atmosphere. Then the materials would be dried.
structure photo for a Whole set rotary cylinder dryer
1.Rotary Dryer Drum
2.Rotary Dryer Lifters
3.Rotary Dryer Riding Rings
4.Rotary Dryer Trunnion Rollers
5.Rotary Dryer Feed Chute
6.Combustion Chamber(optional)
7.Rotary Dryer Discharge Chute
8.Rotary Dryer Discharge Seals
Technical Parameter for our rotary cylinder dryer :
| Model | Capacity(M3) | Power(KW) |
| Dia0.8*8M | 4.02 | 4 |
| Dia1*10M | 7.85 | 5.5 |
| Dia1.2*10M | 11.3 | 11 |
| Dia1.5*12M | 21.2 | 15 |
| Dia1.8*14M | 48.22 | 30 |
| Dia2.2*12M | 45.59 | 37 |
| Dia2.4*18M | 81.39 | 45 |
Application of Rotary Cylinder Dryer
for handling a mass of materials. Due to its running is reliable, its operating flexibility is big, its adaptability is strong and its handling capacity is large, so it is widely used in many industries like metallurgy, building materials, food, light inductry, chemical industry, coal medicine and mineral product. Generally speaking, rotary drum dryer is adapt to granular materials, it also can be used to dry stick and cream materials or the materials with high quantity water through the method of blending metarials partly. It is usually sued for drying sand, mineral powder, coal slurry, chicken manure, cattle manure, etc.

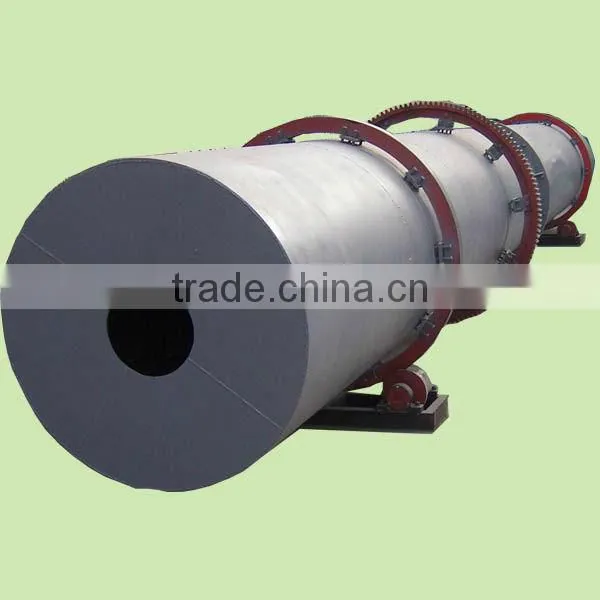

Detailed photo shows:
