Grain Seeds Drying Machine
Structure of Grain Seeds Drying Machine
Drier also named as Drying Machine and Rotary Drier.Mainly it is consist of rotary body, raw material feeding plate, driving and supporting device, etc
Features of grain seeds drying machine
Most raw material is wet and with causticity, so the blade of rotary dryer is stainless steel
Working principle of grain seeds drying machine
Its principle of operation: the raw material plate which is arranged reasonably with changeable angles in order,
throws moisture materials into the rotary cylinder. Then water will be separated from the materials by hot airflow
andchanged into vapour to be discharged into the atmosphere. Then the materials would be dried.
structure photo of a Whole set grain seeds drying machine
1.Rotary Dryer Drum
2.Rotary Dryer Lifters
3.Rotary Dryer Riding Rings
4.Rotary Dryer Trunnion Rollers
5.Rotary Dryer Feed Chute
6.Combustion Chamber(optional)
7.Rotary Dryer Discharge Chute
8.Rotary Dryer Discharge Seals
Technical Parameter of Grain Seeds Drying Machine :
| Model | Capacity(M3) | Power(KW) |
| Dia0.8*8M | 4.02 | 4 |
| Dia1*10M | 7.85 | 5.5 |
| Dia1.2*10M | 11.3 | 11 |
| Dia1.5*12M | 21.2 | 15 |
| Dia1.8*14M | 48.22 | 30 |
| Dia2.2*12M | 45.59 | 37 |
| Dia2.4*18M | 81.39 | 45 |
Application of grain seeds drying machine
for handling a mass of materials. Due to its running is reliable, its operating flexibility is big, its adaptability is strong and its handling capacity is large, so it is widely used in many industries like metallurgy, building materials, food, light inductry, chemical industry, coal medicine and mineral product. Generally speaking, rotary drum dryer is adapt to granular materials, it also can be used to dry stick and cream materials or the materials with high quantity water through the method of blending metarials partly. It is usually sued for drying sand, mineral powder, coal slurry, chicken manure, cattle manure, etc.

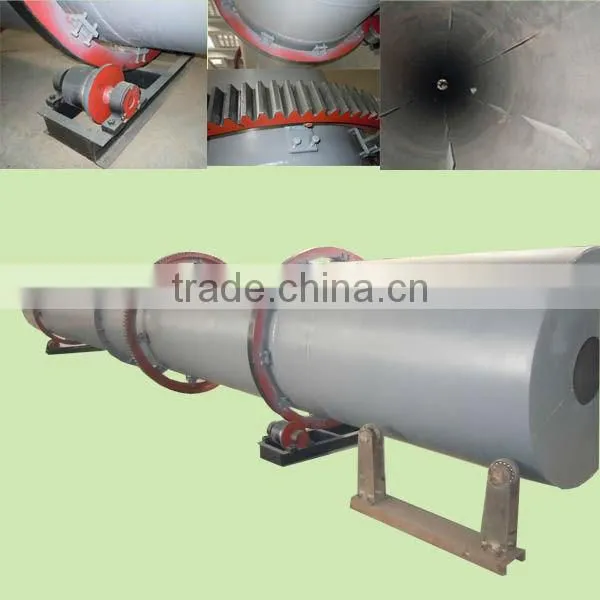

Detailed photo shows:
