Clay Brick Extruding Machine,Vacuum Clay Brick Machine,Coal Gangue Brick Machine, Hollow Block Making Machine , Clay Brick Making Machine , clay brick extruder
Main Features of Clay Brick Extruding Machine
First, The trowel of this machine uses wear-resistant metallization technology; mixer shaft in above stage, main shaft of trowel and the body of machine are worked over by the aging, quenching and tempering;
Secondly, Gears of reducer are hard tooth surfaces; clutch adopts screw press patented technology, which improves the service life of our equipments.
Third, At the same time, with reasonable design, compact structure, this machine can operate stably without having to install anchor bolt and greatly reduce the power consumption in the operating process due to shave. Utilizing the equipment and technologies can make the waste profitable as well as saving energy with obvious economic and social benefits.
Application and Raw Material
To produce various solid and hollow brick by use ofShale,coal ganue, coal ash , industrial tailings,
sandy soil and river silt and etc to meet the need of reforming wall materials.
Using this device technology, we can change waste into treasure and save energy consumption,
it will do much to economy benefit and social benefit

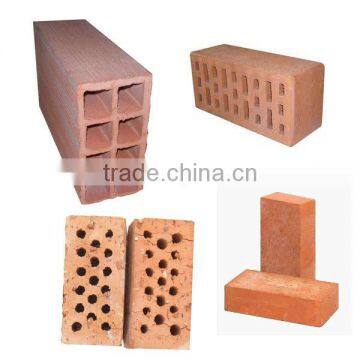

Photos of finished brick
Detailed photo of clay brick extruding machine
Specifcations of vacuum clay brick machine
| Model | capacity (piece/hr) | power (KW) | Rotate speed of principal axis | Exterior Dimension (L*W*Hmm) |
| JKB50/50D-35 | 12000-16000PCS | 55KW+132KW | 38/25 turn/m | 4850*5250*2600mm
|
Business Card
Work Flow Diagram
Clay/ fly ash/ shale, etc. (raw materials) —box feeder —Belt conveyor —Roll crusher — Double shaft mixer
— Belt conveyor —JZK series double stage vacuum brick machine (can be chosen according to your annual capacity)
— Full-automatic brick cutting machine — Brick setting machine — Tunnel kiln
Notice
above production line is standard, some machines will be added or deleted according to your soil condition.
So we suggest you can inform us your soil condition when you contact us , thank you.
Services:
Before-sale
(1) tell customer how to build a brick plant, the complete plant including three parts, brick shaping machinery, drying and firing.(Confirm clay,power electricity,water,land area, fund)
(2) Guide customers to choose the best and economic plant, recover the investment within short time.
(3) site inspection
(4) We are responsible for the offer, flow chart, and detail specification of each machinery.
In-sale
(1)Quality control must be inspected strictly
(2)In accordance with the agreements stipulated in the contract
After-sale
(1) We will send the technicians to guide with device installation, debugging and training operators until customers are fully satisfied.
(2) Guarantee for machinery, materials and equipment supplied under this quotation are valid for a period of 12 months after commissioningor 16 months after delivery whichever is earlier. Warranty shall cover manufacturing defect in material and workmanship but exclude:
- Daily wear and tear 2.mishandling or improper operation3. Incoming power supply fluctuation
- Consumable and spare parts.
(3) Regular visit customer, consult with the customer feedback, come true with the customer's two-way communication
