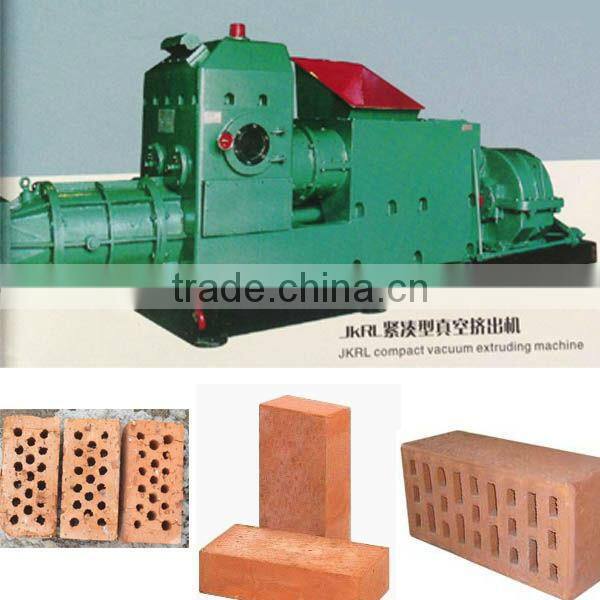

Cellbrick Vacuum Extruder , Burnt Brick Making Machine, Red Brick Machine , clay brick extruder
Feature of Cellbrick Vacuum Extruder
- The drift of brick vacuum extruder uses the wear-resisting metal powder froth spray coating technology.
- The speed reducer gear is the hard tooth face.
- This two-stage vacuum brick extruder series are all welded by high quality steel,and to remove the welded stress by heat treatment
- Use floating trowel,wear-resistant lining ,design the applicable trowel according to the raw material to ensure the high output,low energy consumption,low maintenance and other advantages of the equipment.
- Rollers.steel.axles, gear and other important spare parts which are made by carbon steel and alloy steel through modulation or quench’s heat treatment procession so as to extend the service life.
Application and Raw Material
To produce various solid and hollow brick by use of shale , coal ganue, coal ash , industrial tailing , sandy soil and river silt and etc to meet the need of reforming wall materials.
Using this device technology, we can change waste into treasure and save energy consumption,
it will do much to economy benefit and social benefit
Samples of the finished block
Our service
1. Provide customers with various brick making equipments,
2. provides services like process design, kiln design, workshop design
3. Also,we have a professional team of engineers to do clay brick machine installation,
training workers ,imparting technical instruction to our buyers,
4. After brick machine running, we have special aftersales service department to provide
spare parts, machine problem fixing.
Detailed photo
Specifcations
| Model | capacity (piece/hr) | power (KW) |
Rotate speed of principal axis |
Exterior Dimension (L*W*Hmm) |
| JKB50/50D-35 | 12000-16000PCS | 55KW+132KW | 38/25 turn/m |
4850*5250*2600mm
|
Business Card
Work Flow Diagram
Notice
Theabove production line is standard, some machines will be added or deleted according to your soil condition.
So we suggest you can inform us your soil condition when you contact us , thank you.
The development history of vacuum brick extruder
- Single stage
The primary extruder is without mixing system.This machine is also single stage structure which makes the whole
set compact and reasonable.Mixing by machine saves time and effort.The raw materials agitation is relatively
uniform which makes the end bricks color and quality of qualitative improvement.
- Compact stage
Simple extruder with mixing box or not belongs to the first generation.The next stage came with the application
of vacuum technology.A vacuum chamber is added before extruded portion.The operators can see the internal
workings via the side observation room.This is a true stage of quality improvement.After vacuum stage,
the intensity of the mud is much strengthened.Soft mud pieces need second setting but the bricks made by the
vacuum extruder can burned directly after cutting.This is also a milestone of reducing the production cost.
- Double stage
Double stage is another upgrade of clay brick extruder.You can combined it into T structure or straight
structure.The auger of the machine is coated with wear resistance metal.This machine is suitable for
producing all kinds of cellbrick with material of gangue,shale,fly ash as well as clay.
