Specifications
hollow block maker1.low cost,easy operation and maintance, Quick profit return
2.Technical guidance for installation
Hollow Block Maker, Cement Brick Making Machine , Baking-free Block Maker, Concrete brick machine factory, Block Machine,Brick Molding Machine, Concrete Brick Production line, Baking-free brick machine

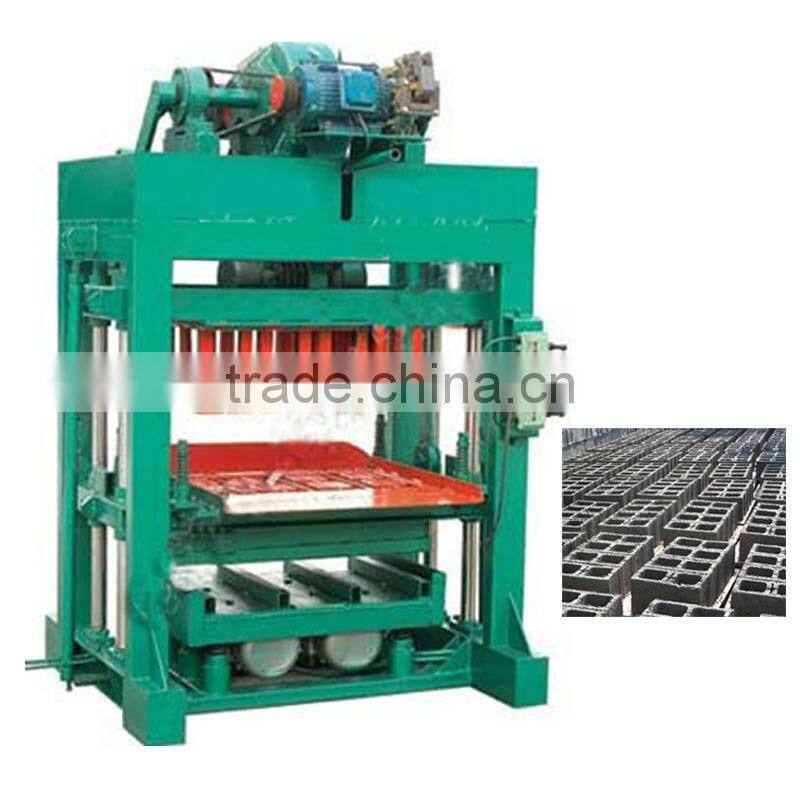

Introduction of Hollow Block Maker
QMJ4-35 is a manual blocking machine, it adopts the motor mechanical driver and it can produce the concrete road pavers, concrete hollow bricks and all kinds of wall bricks, when it's equipped with 350 type standing mixer, it can build an economic concrete block production plant. The performance of the whole equipment are stable and efficient.
Features of Hollow Block Maker
1. This machine is made according to our original medium and small-scale hollow block molding machine,which changes from uniaxial into biaxial, so it is more stability and anti-wear.
2. In the under model we adds a vibrator, so with bigger vibrating pressure, guaranteeing bricks with good quality, large density, and high strength.
3. Electricity push-pull mould and automatic scraping the material greatly improves the production efficiency and saves much time and effort.
4.semi-automatic block making machine(semi-automatic means that the machine is operated by one worker through some handles. But all processes are finished by the machine itself.) The moulds can be customized according the demand of customers. QMJ4-35(4 stands for the production of hollow blocks like 390*190*190 is 4pieces every mould, and 35 stands for every cycle needs 35 seconds).
Components of Hollow Block Maker
1)Classic vibration mode, particularly suitable for production of high-strength blocks, such as standard bricks. Short molding cycles, and high efficiency
2)Vibration machine for efficient vibrator, exciting force powerful, the density effect of better products.
3)Forming large area, can produce a variety of cement products, a wide range of production.
4)Compulsory mechanical positioning, infantry expected rapid, uniform and manufactures precision, consistency, good.
5)PLC automatic control systems, interactive user interface, the control system, security configuration logic control, production procedures and fault diagnosis display.
6)The low cost of production, raw materials, make full use of sand, stone powder, flour, coal ash, slag, and other residue.
Details photo of Hollow Block Maker

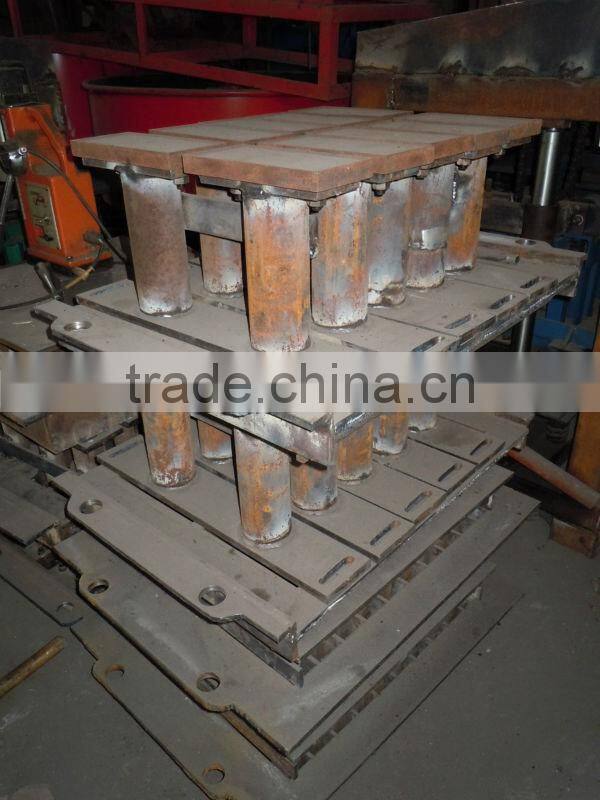

replaceable mould
These shape are all available just need to change the mould ,we can design per your request
Contact Info:
The procedure
1.blending the mixture which we provide the exact ratio of raw material after you place the order
2. transport the mixture into hopper of brick machine by a conveyor belt or feeding by worker hand
the mixture into various shape you need under high vibrating and large force.

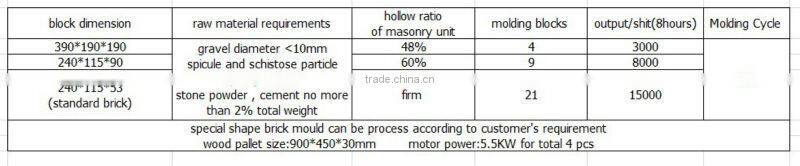

Specifications
