800kva soundproof Mitsubishi silent generator in China

800kva soundproof Mitsubishi silent generator in China

Silent generator Specifications:

1) Output range: 640KW/800KVA

2) Engine models: Mitsubishi, Japan

3) Alternator: Stamford, Marathon, Engga with Brushless and "H" Class Insulation.

4) Water-cooled

5) 8hrs operation base tank

6) Key start / auto start

7) Sound-proof / weather-proof canopy is optional

8) 230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wires alternating current output

9) Frequency: <3%

10) Frequency at stable state: <0.5%

11) Frequency deviation at instantaneous state: ≤+10%

12) Frequency return time: ≤3s

13) Voltage deviation at stable state: ≤±1%

14) Voltage deviation at instantaneous state: ≤+20%

15) Voltage return time: ≤4s

16) Voltage modulation: ≤0.3%

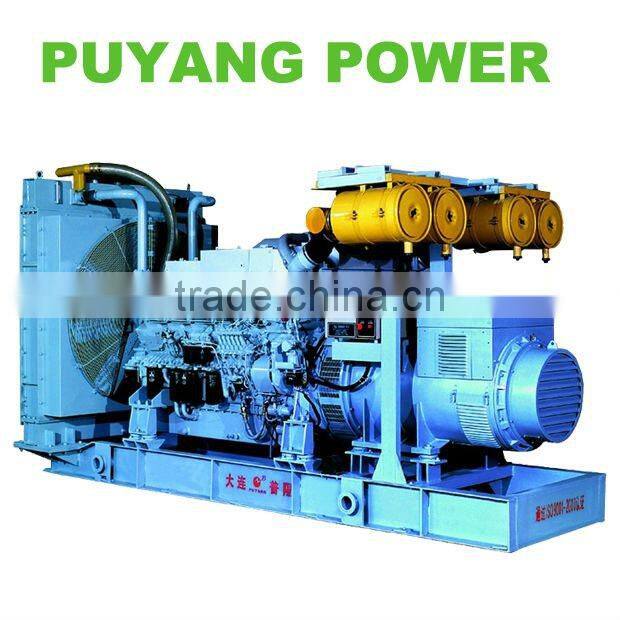

17) Standard configuration of gensets:

a) Engine: Mitsubishi series diesel engine

b) Engine type: water-cooled, in line four-stoke, Humit cylinde liner, direct injection

c) Alternator: Brushless and self-excitation alternator

18) Control system

a) Automatic alarm system:

the unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current

b) Operation display:

i) Unit voltage, tri-phase load current and frequency display

ii Water temperature, oil pressure display

iii) Fuel level, fuel temperature display

iv) Audible and visual alarm lamps and buzzers

19) Starting system: DC alternator is used to start engine

20) Short circuit protection: MCCB air switch

21) Cooling system: combined cooling water tank fitted to meet the requirement of radiation at ambient temperature 40°C

22) Filter system: oil, fuel and air filter

23) Accessories: exhaust elbow, bellow, muffler

24) Supply standard collocation:

a) Diesel engine with all accessories, 3 filter, electric systems

b) Alternator

c) Steel structure

d) Fan and water tank cooling system

e) Flange connector

f) 12 / 24V starting motor and charge engine

g) Air cleaner, fuel cleaner, oil cleaner

h) On-board control panel

i) MCCB air conservation switch

j) 12 / 24V starting accumulator and Battery line

k) Set shock absorber

l) High-efficient silencer

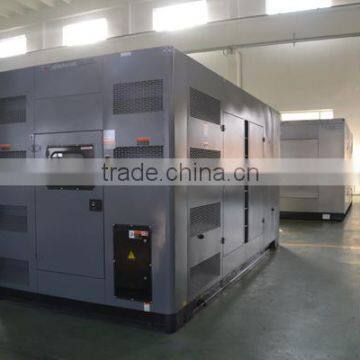

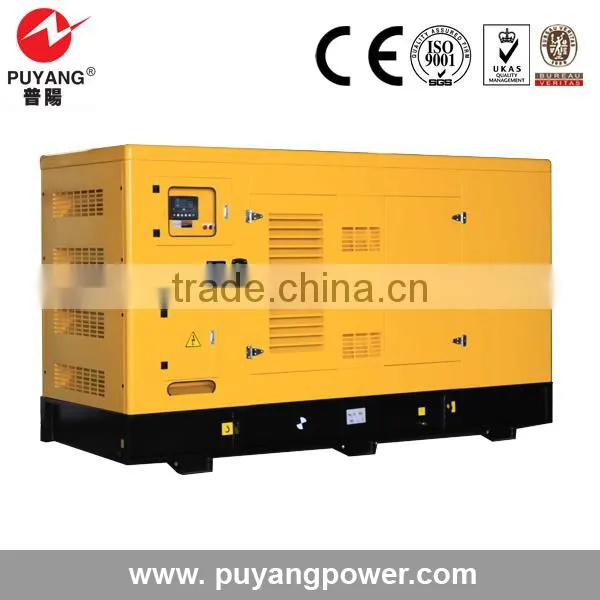

Sound proof canopy:

* With special treated steel sheet

* Stainless steel locks

* Control panel viewing window for monitoring the status of the generator set

* Good ventilation system and anti-heat radiation struction

* Effective anti-vibration devices to ensure the geneartor set run steadily

* Super silent materials inside to ensure the noise lower than 68 dB 3 meters away

* Emergency stop button mounted outside

* Side lockable door easy for maintenance and installation

* Lube oil and cooling water drains piped to exterior of the canopy

Packing: plywood case, plastic wrapping

Warranty: We provide guarantee for 500 running hours or 6 months for range from the min to 50kW (including 50kW) genset; 1000 running hours or 12 months for range from 50kW to the max genset (whichever comes first). Warranty doesn' t cover spares such as filters, V-belt, etc. Malfunctions caused by misoperation and careless maintenance will not be considered by us

Certificate: ISO, CE, GOST

Package: plastic wrapping or plywood case

Delivery time: 20~30 days

Payment: By telegraphic transfer: 30% deposit on signing of sales contract; and balance 70% before dispatch.
