Specifications

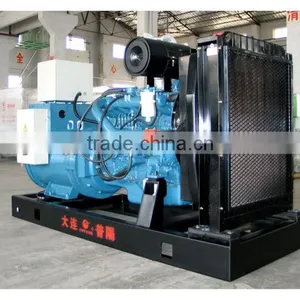

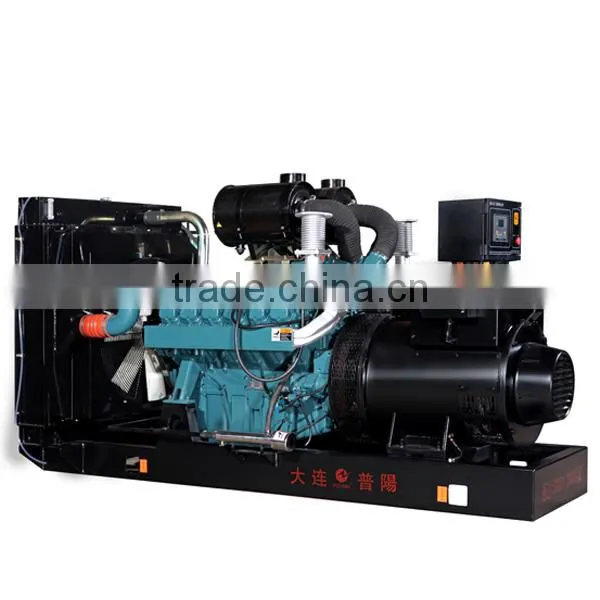

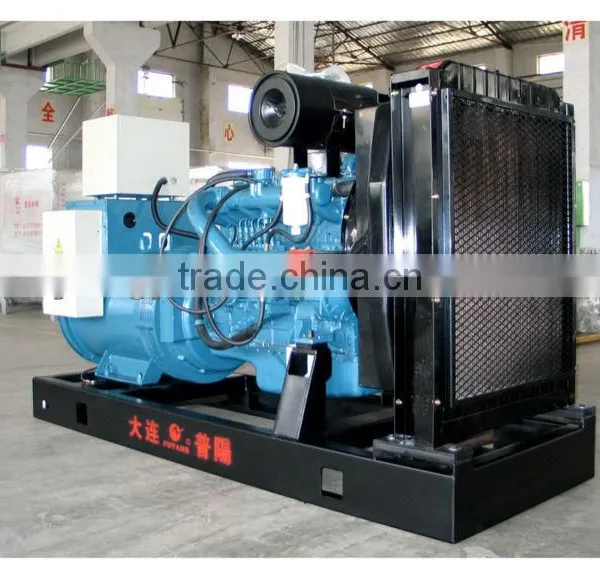

diesel generator silent1. Advanced engine in Korea
2. 24 years manufacturer
3. China factory
4. 1year warranty
Generator set Features:
1. Doosan diesel engine: 64-600kw/80-750kva
2. Radiator 40°C max,fans are driven by belt, with safety guard
3. Choice of manual/auto and AMF control panels and protection systems
4. Digital auto-start panel
5. Anti Vibration Suspension Absorber
6. Dry type air filter, fuel filter, oil filter
7. Mould case circuit breaker
8. 24V DC start motor and storage battery
9. Ripple flex exhaust pipe, exhaust siphon, flange, and muffler
Engine:
Brand ; Doosan
Type: water cooled, four stroke, direct injection, natural or turbocharged
Cooling method: closed water-cooled
Starting method: electrical start
Speed governor: electronic governor
Alternator:
Brand: Leroy somer
Rated output: 20kw-1000kw
Excitation method: brushless
Voltage regulation: AVR
Protection class: IP22
Insulation class: H
Standard configuration list:
1. Brand new Doosan engine with all accessaries.
2. Brand new Leroy somer AC brushless alternator
3. Steel base
4. Radiator: fans with water tank,40°C max,fans are driven by belt, with safety guard
5. Standard Control Panel (with the dispaly of current, voltage, frequency, coolant temp, oil pressure, starting key, emergency stop)
6. 24V DC starting motor
7. MCCB air circuit breaker
8. Rubber isolator for engine, alternator and control panel
9. Battery cable, Battery tray and necessary accessaries
10. Ripple flex exhaust pipe, exhaust siphon, flange, and muffler
11. Generating set Technical Operation and Maintenance Manual, Random documents,
12. Gen-set ex-factory testing report, standard spare parts, standard tool kits.
Optional device:

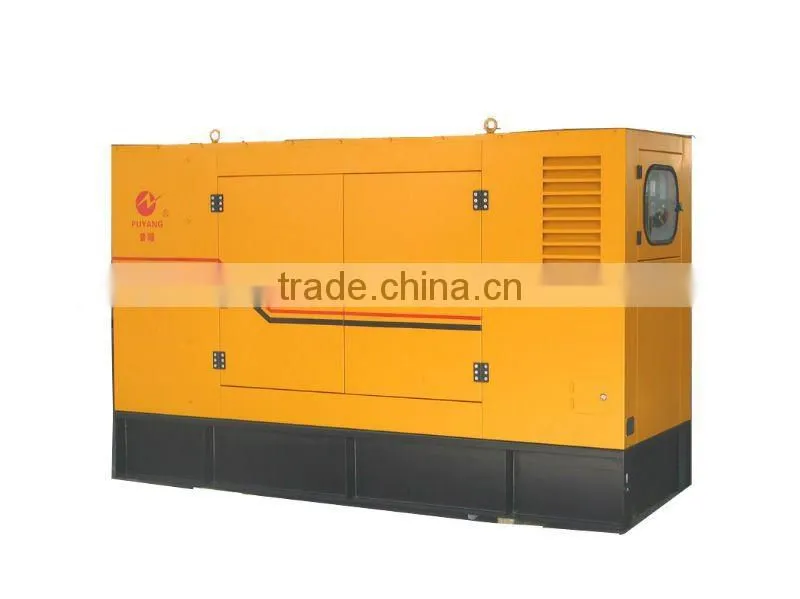

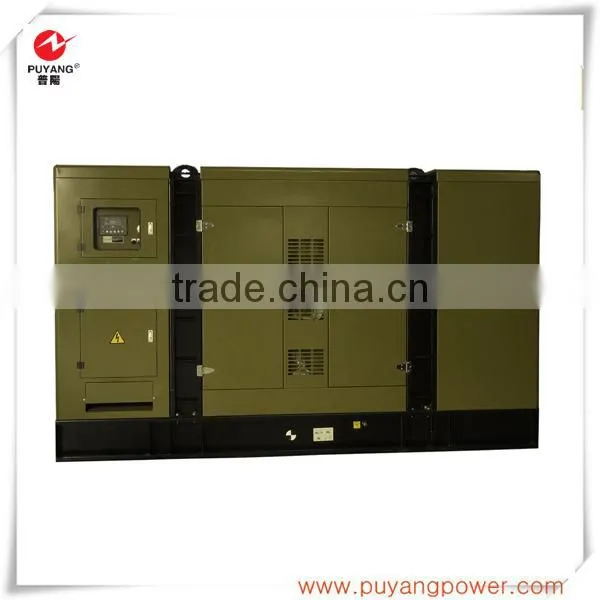

1. Soundproof canopy /silent type(75db @7m)
2. Container type
3. Trailer type (4 wheels)
4. ATS (automatic transfer switch)
5. Oil heater, coolant heater
6. Parallel system
.
