Specifications
30kva generator set1.China weichai engine
2.stamford or Marathon alternator
3.24kw30kva
4. CE/ISO approved

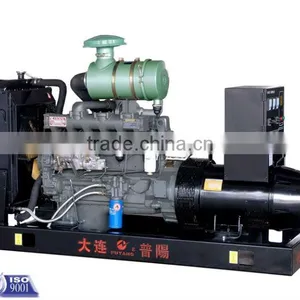

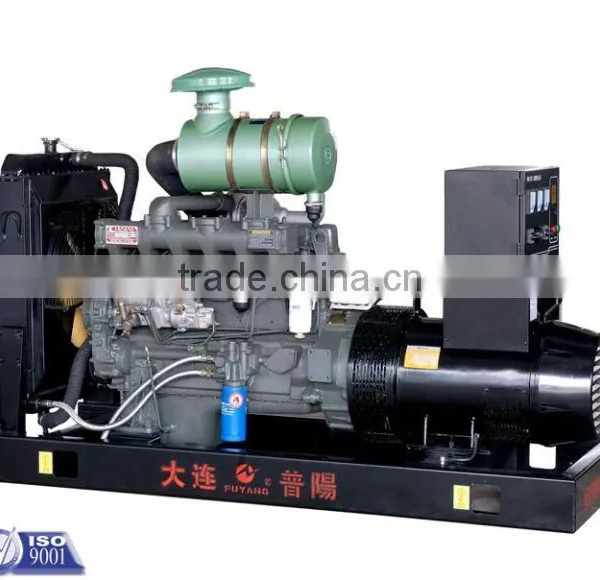

Made in China Weichai silent 30kva generator set with electric start
| Diesel Generator specification | ||
| 1 | Model Number | PF24GF |
| 2 | Output Type | AC Three Phase |
| 3 | Speed | 1500rpm |
| 4 | Frequency | 50hz |
| 5 | Rated Power | 24kw/30kva |
| 6 | Rated Voltage | 400/230v |
| 7 | Rated Current | 43A |
| 8 | Certification | CE,ISO |
| 9 | Basic infornation | 230 / 400V AC, 0.8pF three-phase and four wires alternating current output |
| 10 | Color | Red,black,yellow,gray,blue |
| 11 | Protection Grade | IP21/23 |
| 12 | Insulation Grade | H/H |
| 13 | Regulator | AVR |
| 14 | Frequency at stable state: | <0.5% |
| 15 | Frequency deviation at instantaneous state: | ≤+10% |
| 16 | Frequency return time: | ≤3s |
| 17 | Voltage deviation at stable state: | ≤±1% |
| 18 | Voltage deviation at instantaneous state: | ≤+20% |
| 19 | Voltage return time: | ≤4s |
| 20 | Voltage modulation: | ≤0.3% |
| 21 | Short circuit protection: | MCCB air switch |
| 22 | Filter system: | oil, fuel and air filter |
| 23 | Delivery time: | 7--30 days |
| 24 | Warranty: | 1000hours/ 1 year |
| 25 | Package: | Plastic wrapping(FREE)/plywood case |
Engine and Alternator specification | ||
1 |
Engine |
Weichai |
2 |
Engine type: |
in line four-stoke, wet cylinde liner, direct injection |
3 |
Cooling system |
water cooling |
4 |
Start |
Electric start |
5 |
Alternator |
Marathon,stamford,engga, |
6 |
Alternator type |
brushless, self-excitation,50Hz, 1500rpm |
7 |
Excitation |
self-excitation |
Supply standard collocation:
a) Diesel engine with all accessories, 3 filter, electric systems
b) Alternator
c) Steel structure
d) Fan and water tank cooling system
e) Flange connector
f) 12 / 24V starting motor and charge engine
g) Air cleaner, fuel cleaner, oil cleaner
h) On-board control panel
i) CHNT air conservation switch
j) 12 / 24V starting accumulator and Battery line
k) Set shock absorber
Optional:
1. Trailer type
2. Soundproof / water proof
3. ATS (automatic transfer switch)
4. Parallel system
5. Remote system
PMC System:
1. Standard 23 pitch windings avoid excessive neutral current
2. Permanent magnet generator system provides constant excitation under all condition
3. Optional accessories available for easy paralleling with mains or other generators
4. AVR auto voltage regulation, auto exciter, auto adjustment

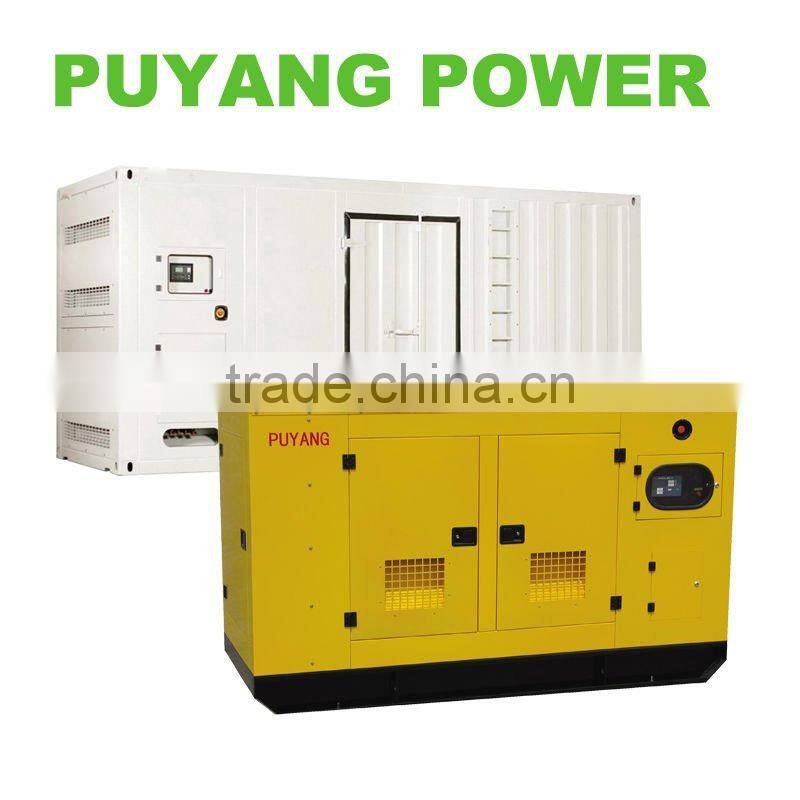

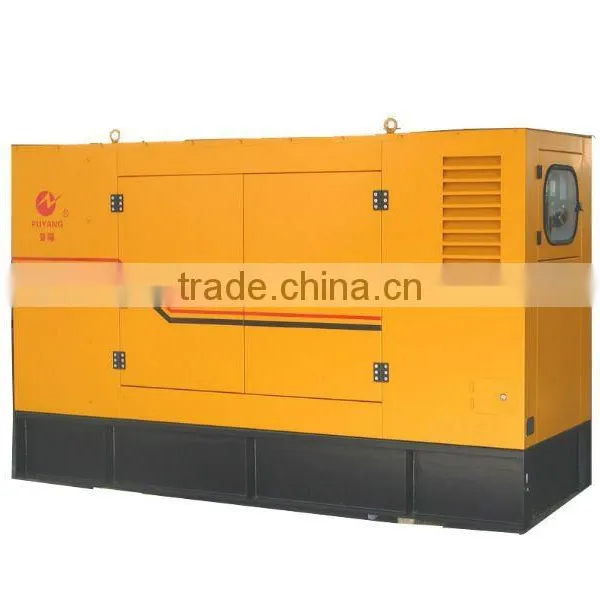

Sound proof canopy:
* With special treated steel sheet
* Stainless steel locks
* Control panel viewing window for monitoring the status of the generator set
* Good ventilation system and anti-heat radiation struction
* Effective anti-vibration devices to ensure the geneartor set run steadily
* Super silent materials inside to ensure the noise lower than 68 dB 3 meters away
* Emergency stop button mounted outside
* Side lockable door easy for maintenance and installation
* Lube oil and cooling water drains piped to exterior of the canopy
