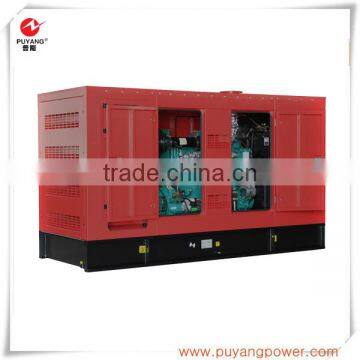

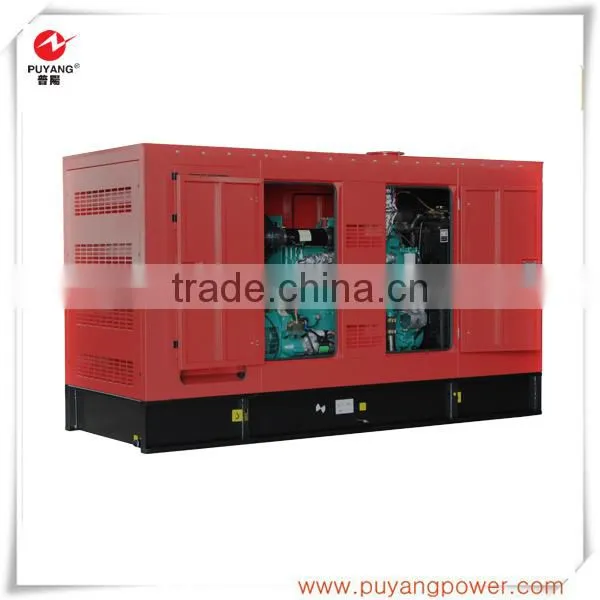

Water cooled low noise cummins diesel 1000kva generator China OEM
Technical data | |
Genset Model |
PFC1000 |
Prime Power |
1000kva/800kw |
Rated Voltage |
400/230V |
Frequency |
50Hz |
Power Factor(COS) |
0.8(lagging) |
Dimension (L×W×H) (mm) |
4150×1810×2460mm |
Genset weight (kg) |
8700 |
Diesel Engine | |
Brand |
Cummins |
Model |
KTA38-G5 |
Number of Cylinders |
12 |
Rotating Speed |
1500RPM |
Cylinder Arrangement |
V |
Cycle |
Four stoke |
Aspiration |
Turbocgarged air-air cooled |
Bore×Stroke(mm) |
159×159 |
Displacement(L) |
38 |
Compression Ratio |
N/A |
Speed Governor |
Electrical |
Cooling System |
Water-cooling |
Speed Stability (%) |
≤5% |
Total Lubrication System Capacity (L) |
135 |
Coolant Capacity (Inc. Radiator) (L) |
306 |
Fuel Consumption at 100% Load |
209.0L/hr(at 1500RPM) |
Starting Method |
DC24V Electrical starting |
Alternator | |
Brand |
Leroy somer |
Number of Phase |
3 |
Connecting Type |
3 Phase and 4 Wires,"Y" type connecting |
Number of Bearing |
single |
Protection Grade |
IP22 |
Altitude |
≤1000m |
Exciter Type |
Brushless ,Self-exciting, AVR automatic voltage regulating |
Warranty: We provide guarantee for 500 running hours or 6 months for range from the min to 50kW (including 50kW) genset; 1000 running hours or 12 months for range from 50kW to the max genset (whichever comes first). Warranty doesn' t cover spares such as filters, V-belt, etc. Malfunctions caused by misoperation and careless maintenance will not be considered by us
Certificate: ISO, CE, GOST
Package: plastic wrapping or plywood case
Delivery time: 20~30 days
Payment: By telegraphic transfer: 30% deposit on signing of sales contract; and balance 70% before dispatch.
