Specifications
electricty generator1.Marathon alternator
2.cummins engine
3.450kva/360kw
4. China manufacturer

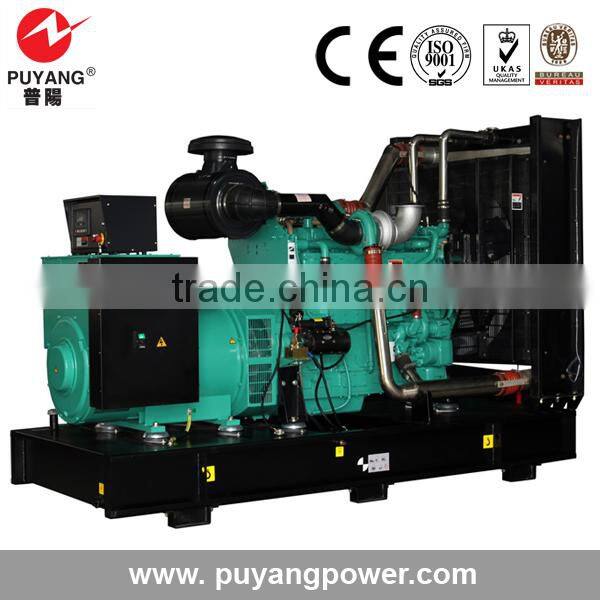

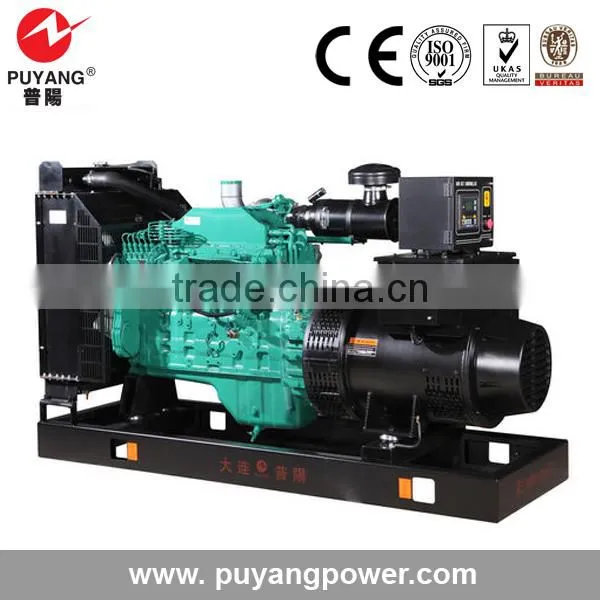

China generator supplier 450kva silent electricty generator
Diesel engine:
*Heavy load durable, four-stroke, water cooled engine
*Excellent transient response
*Four valves per cylinder, stainless steel crankshaft, bolt, cast iron steel, replaceable humid cylinder liner
*24V DC safe isolate valve
Alternator:
*Brushless, four-pole revolving field, single bearing and drop proof screen protected.
*Class H insulation
*IP21-IP23 protection standard
*Dynamically balanced rotor
*If need Stamford Original, please contact us for further prices Control system: Cummins standard control module
*Completed gen-set parameter display, perfect protection and control function
*Excellent anti-jamming function, adapt to extreme condition.
*Independent over-load protection
*Unique sensors protection, adapt to all sensors

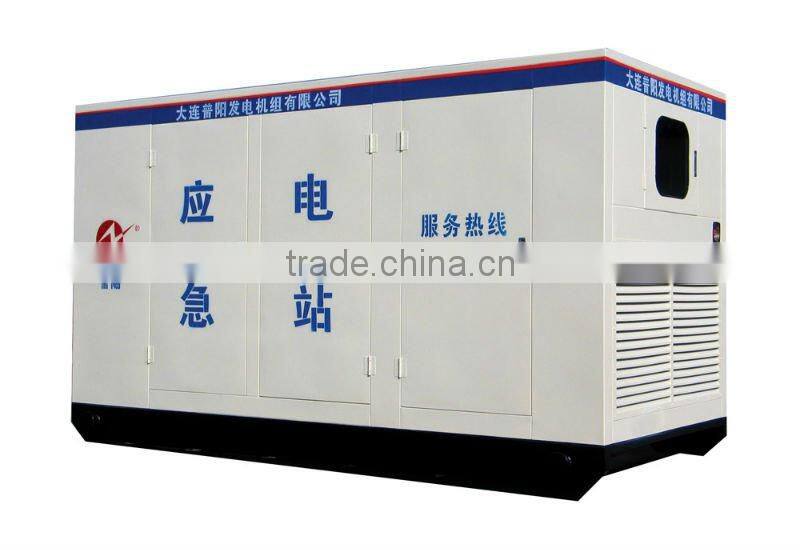

Sound proof canopy:
* With special treated steel sheet
* Stainless steel locks
* Control panel viewing window for monitoring the status of the generator set
* Good ventilation system and anti-heat radiation struction
* Effective anti-vibration devices to ensure the geneartor set run steadily
* Super silent materials inside to ensure the noise lower than 68 dB 3 meters away
* Emergency stop button mounted outside
* Side lockable door easy for maintenance and installation
* Lube oil and cooling water drains piped to exterior of the canopy
GENERATOR SET | |
Genset model | PFC450 |
Prime power (KW/KVA) | 360kw/450kva |
Standby power (KW/KVA) | 400kw/500kva |
Frequency & voltage | 400V, 50HZ |
No. of Phase | 3 |
Genset type | Open set |
Reference Dimension & Weight (W*H, mm)/KGS | 3270*1360*1990; 3850kgs |
DIESEL ENGINE | |
Engine brand & Model | Cummins, KTA19-G3A |
Rated output | 448KW |
Rated Speed | 1500RPM |
Engine Type | In-line, direct injection, four stroke |
No. of cylinder | 6 |
Bore*stroke | 159*159mm |
Aspiration method | Naturally |
Governor | Mechanical/Electrical |
Starting method | Electric starting |
Cooling method | Forced water cooled |
Displacement | 19L |
Fuel consumption | 97L/H |
Rotation direction of crankshaft | Counter clockwise(face to flywheel end) |
ALTERNATOR | |
Alternator brand & model | Marathon |
Type | Brushless & self-excited |
No. of phase | 3 |
Volatage | 400V |
Frequency | 50HZ |
Power Factor | 0.8 |
Insulation Grade | H |
Protection Grade | IP21 |
Altitude | ≤1000m |
