Home > Products > Diesel generator set > Small 230V 20kW/25kVA Silent Type Diesel Generator For Nigeria

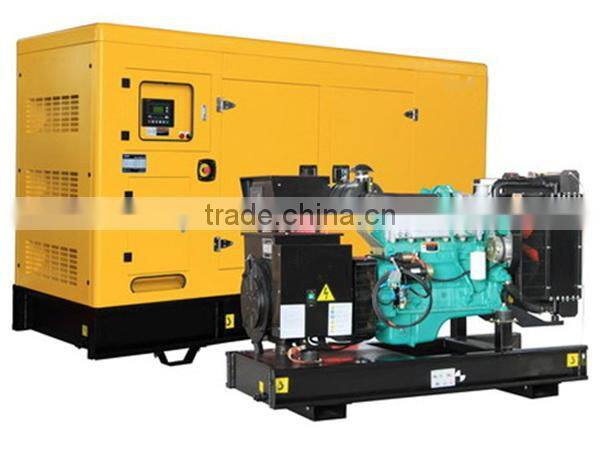

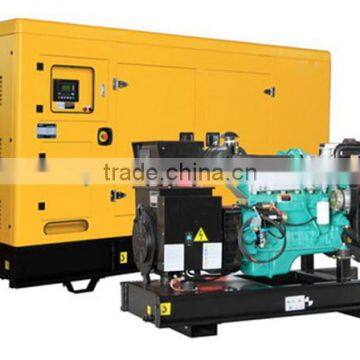

Small 230V 20kW/25kVA Silent Type Diesel Generator For Nigeria
US$ 5,000 - 10,000
/ Set
1 Set(Min. Order)
- Dalian
- T/T
You May Like
-
Water Cooled Low Hour Diesel Generator Sets For Boat With Radiator
-
Doosan Vertical Alternating Motion Generating Electric Generator 80kVA For Ireland
-
Customized AC Slient Undermounted Refrigerated Generator For Lorry
-
OEM Manufacturer Silent And Fully Encased Diesel Generator Set China Made
-
Light Diesel Generators And Gasoline Generators In Turkey Market
-
ISO9001/CE Approved 300kW Diesel Generator Price With ATS Panel
Product Details
| Place of Origin | Liaoning, China | Brand Name | Puyang | |
| Model Number | PFC25 | Output Type | AC Three Phase | |
| Speed | 1500rpm | Frequency | 50Hz | |
| Rated Power | 20kW/25kVA | Rated Voltage | 230V | |
| Rated Current | N/A |
Product Description
Specifications
Silent Type Diesel Generator1.Cummins Engine
2.AC Three Phase
3.20kW/25kVA Power
4.China Supplier
Small 230V 20kW/25kVA Silent Type Diesel Generator For Nigeria
| Main Features of the Silent Type Diesel Generator |
| Brand Name | Puyang |
| Genset Model | PFC25 |
| Prime Power(kW/kVA) | 20/25 |
| Standby Power(kW/kVA) | 22/28 |
| Output Type | AC Three Phase |
| Genset Type | Open |
| Noise Level | 70-85dB at 7m |
| Color | Customized |
| Certification | CE /ISO |
| Warranty | 12 Months |
| Engine Specification | |
| Engine Brand | Cummins |
| Diesel Engine Model | 4B3.9-G1 |
| Cycle | 4-Stroke |
| Nos. of Cylinder | 4 |
| Bore*Stroke(mm) | 102*120 |
| Displacement | 3.9L |
| Lub. Oil Capacity | 5.1L |
| Coollant Capacity | 11L |
| Cooling System | Water Cooling |
| Rotating Speed | 1500rpm |
| Starting Method | Electric |
| Alternator Specification | |
| Alternator | Marathon/Engga/Stamford |
| Connecting Type | 3 Phase 4 Wires |
| Rated Voltage | 400/230V Adjustable |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Excitation Type | Brushless Self-excitation |
| Voltage Control | AVR |
| Insulation Grade | H |
| Protection Grade | IP21/23 |
Warranty
Package:plastic wrapping or plywood case
Delivery time: 20~30 days
Payment: By telegraphic transfer: 30% deposit on signing of sales contract; and balance 70% before dispatch.
Warranty: We provide guarantee for 500 running hours or 6 months for range from the min to 50kW (including 50kW) genset; 1000 running hours or 12 months for range from 50kW to the max genset (whichever comes first). Warranty doesn' t cover spares such as filters, V-belt, etc. Malfunctions caused by misoperation and careless maintenance will not be considered by us
