Specifications

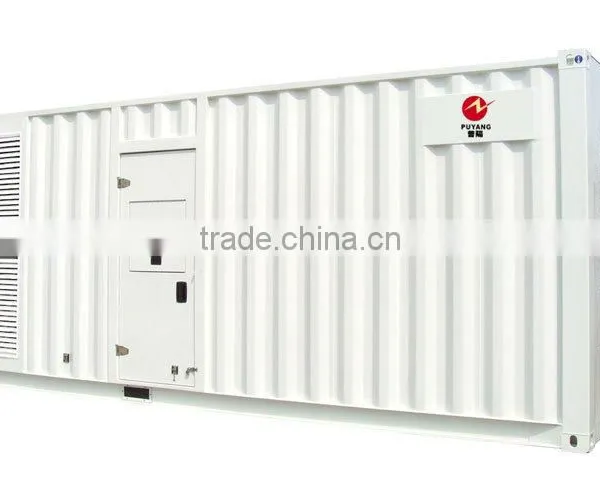

Fully Encased Diesel Generator Set1.Cummins Engine
2.Containerized Generator
3.ISO/CE Guaranteed
4.Soundproof Canopy
OEM Manufacturer Silent And Fully Encased Diesel Generator Set China Made
General Features
1.Assembled by Cummins Engine , Leroy Somer and Deep Sea Control Panel
2.Cylinders arranged by “V”
3.Radiator and Fan as Safety Guard
4.Protection Grade IP23 and Insulation Class H of Alternating Current Three Phase Alternator
5.Strong Load Resistance Base Frame and 8hours Continuely Working Fuel Tank
6.Starting System including 2 sets of Battery
7.Optional Jacket Heater,Air Preheat ,Fuel Haeter etc
| Parameters of Fully Encased Diesel Generator Set | |
| Genset | PFC800 |
| Diesel Engine | KTA38-G2A |
| Alternator | Leroy Somer |
| Control Panel | Deep Sea |
| Prime Power | 800kVA/640kW |
| Standby Power | 875kVA/700kW |
| Diesel Consumptiom | 149.3L/h |
| Cylinder Number | 12 |
| Bore*Stroke | 159*159 |
| Volume | 38 |
| Dimension(mm) | 4250*1650*2200 |
| Weight(kg) | 6600 |
| Connceting Type | 3 Phase 4 Wires |
| Rated Voltage | 230/400V adjustable |
| Frequency | 50Hz |
| Voltage Regulation(steady state) | ≤ ±1% |
| Voltage Regulation(transient state) | ≤ +20% -15% |
| Frequency Regulation (steady state) | ≤ ±1% |
| Frequency Regulation (transient state) | ≤ +10% -7% |
| Sudden Voltage Warp | ≤ 1% |
| Frequency Waving | ≤ 1% |
| Voltage Stable Time(sudden) | ≤ 1s |
| Frequency Recovery Time(sudden) | ≤ 3s |
| Wave Warp | ≤ 5% |
We will use plastic wrapping or plywood case to make sure the safety of the generator set. Meanwhile we will also deliver the product as soon as possible.
Sold products "3 packets" regulation: the machine shall be the responsibility of the complete plant, diesel engine, generator by their respective manufacturers, in addition to the machine warranty for one year, the other the other damage, auxiliary parts 3 packets of period for three months.
Dalian Puyang International Trade Co.,Ltd was established in 2005,which is the subsidiary of Puyang Group.Puyang company is a comprehensive and international trade company that mainly deals with industrial and construction machine.Depending on all staff ¹s talent,diligent and convenient transportation,we have already obtained the substantial development during the past yaers.Now our catalogue is expanding larger and larger ,such as :generator sets,construction machine,agricultural field.Thus we can make sure that we will give the cutomer the high-quality product and good service.
