Specifications
Reefer Small Diesel Generator Set1.Laidong Engine
2.Reefer Genset
3.Reasonable Price
4.ISO/CE Approved

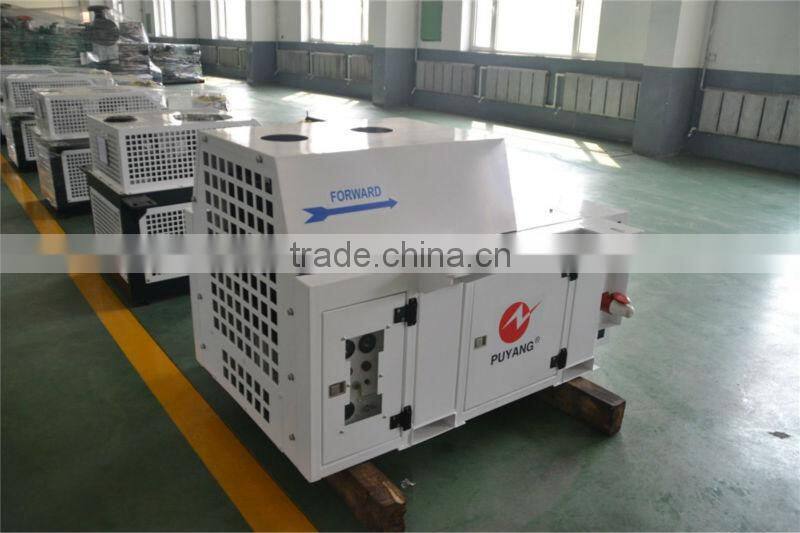

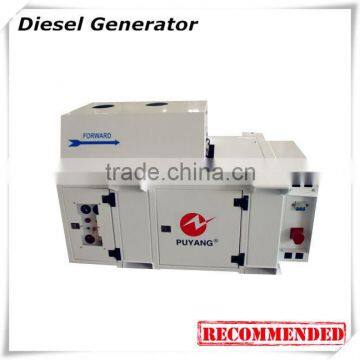

15kW Small Diesel Generator Set For Reefer Container
CLIP-ON generator set is designed for mounting to the upper front structure of an ISO reefer container. The design incorporates quick connection to the upper container corner castings. Additional attaching points on the container vertical structural members provice a secure mounting arrangement. It is a completely welded steel structural assembly designed to withstand minimum 3g’ s acceleration forces in all directions.
| Engine | Laidong 4L22BD-4 |
| Nos.of Cylinder | 4 |
| Bore*Stroke(mm) | 85*95 |
| Displacement | 2.156L |
| Cooling Method | Water Cooling |
| Starting Method | Starting Motor 12V |
| Alternator | Marathon GM-16-4 |
| Rated Voltage | 440V |
| Rated Power | 15kW/19kVA |
| Frequency | 60Hz |
| Speed | 1800rpm |
| Rated Current | 25A |
| Dimension(mm) | 1360*560*885 |
| Weight(kg) | 420 |
| Protection Grade | IP22 |
| Insulation | H/H |
| Excitation | Self-excitation |
| Control Panel | Amartgen |
| Instrument | LCD Display |
| Advantage | Low Oil Consumption High Coollant Temperature |
| Usage | Installed under refrigerated truck or in the cooling container |
| Warranty | 5000 running hours/half year |
1.We have the professional group and engineers to provide We can supply detailed technical parameters of the genset , optimized factory design and installation guidance for our customers.
2.We can provide the omni-directional after sale service which includes follow-up service ,periodical returning visit ,quality tracking,permanent maintenance.
3.We have various optional parts to make the genset more efficient and reliable.
4.We offer good after-sales service If the problem is caused by our technology,we will be responsible for that,even we can send the replacement to your or send our enginer to your country if it is serious.If your quantity is enough large,we can send engineer to your country to help you such as installment or teach you some maintenance knowledge and how to solve some problems that you frequently meet. For the parts, we will give you a reply as soon as possible after receiving your request.
5. OEM is also welcomed.
