Specifications

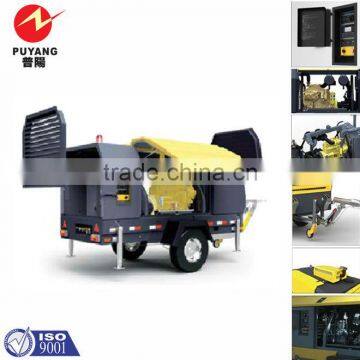

air compressor diesel engineAir cooling compressor
The engine adopts four-stroke water-cooling diesel engine
low noise
Specification
Porduct Model | PYR120-10 |
Nominal Power [KW] | 30 |
Flow [m³/min] | 3.6 |
Flow [cfm] | 127 |
Rated Pressure [barg] | 10 |
Rated Pressure [psig] | 145 |
Engine Model | 4D2.3A-C41 |
Engine Speed [RPM] | 3000 |
Struct | road Standard |
Control System | PLC |
Features & Benefits
Features | Benefits |
Air cooling compressor designed under 45°C environmental temperature is suited to 0~45ºC working environment | Meet the requirement of all-weather running |
Integrating all core components and basic optional parts, and integrated unit is formed | Complete supply, low cost, easy installation
|
400V/230V±10% 3PH 50Hz, international standard design meets IEC60038 | |
The machine is equipped with engine and compressor coolant | |
IP55 three-phase induction motor | Strong rain-proofing and dust-proofing capabilities, stable performance
|
The engine adopts four-stroke water-cooling diesel engine | |
The principal machine adopts twin-screw rotor, and it is directly connected with diesel engine by highly flexible coupling | Reliable assurance, able to be used under extreme conditions in an efficient and energy-saving way
|
Two-level air filtration system with safety filter | |
The rate of flow is measured as per the standard stated in ISO 1217 appendix C (the third version) | |
Manual or PLC-5000 intelligent controller is provided with such functions as multi-data display and monitoring, which can be viewed from 45°angle | Simple and easy operation
|
The moving speed for road standard can reach 80km/h or less, while for off-road standard, the speed is 20km/h | |
Auxiliary equipment space is reserved | Easy to operate and maintain
|
Whole set of handbook: installation manual, operation manual, components and parts manual, circuit diagram | |
Whole set of handbook: installation manual, operation manual, components and parts manual, circuit diagram | |
Soundproof box, the design of centrifugal fan, air flue and sound-proofing cloth can effectively reduce noise | Low noise, no any harmful impact on the environment
|
Anti-twist and drainage prevention design is displayed in the chassis, no pollution on the ground | |
Optional parts for energy recovery | Personalized custom-made compressor is available by adding optional parts according to the need
|
Standard optional parts can be equipped by your needs |
