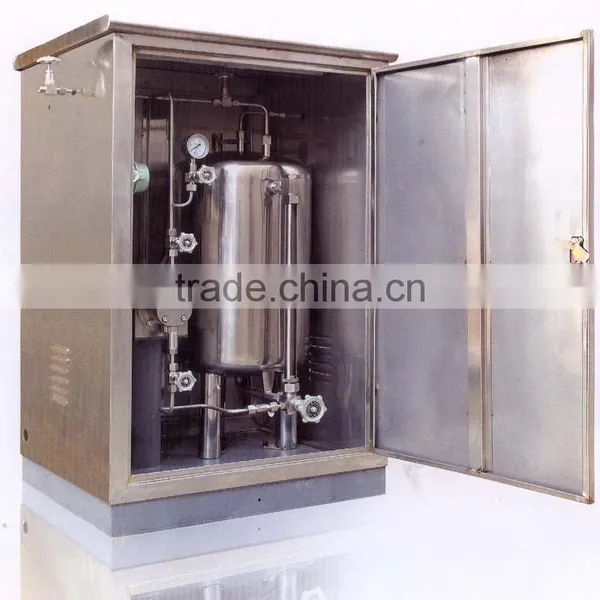

Gas Odorizing System

Shandong Jiahe Machinery Co., Ltd.

US$ 10,000 - 30,000 MOQ: 1 Unit

Key Specifications

Business Type:

Manufacturer, Trading Company

Year Established:

2008

Factory Size:

5,000-10,000 square meters

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Seaport

Delivery Detail:

Delivery time depends on order quantity.

Specifications

Gas Odorizing System

1, Products Character

* Odorizing controlled by MCU

* Range of gas flow: 0~ 10 x 10⁵m³/h

* Proportionate injection according to gas flow, concentration equality

* has the function of monitoring output and alarm

* Working data can be transferred to computer.

* Indicating quantity of odorizing, automatic accumulative total, fixed timing print

* Accept multiple flow signals, able to control odorizing for multiple spot

* Automatic running/fixed-frequency running

* Using diaphragm pump, airtight working, no leakage, suitable to work for long term

* High accuracy: ±1%

* Easy installation and maintenance, low running cost

* Suitable to all kinds of odorant

2, Technical Specifications

Model No		QST-1x1-AQ1.5/1.6
Control unit		MCU
Working power		220V, 50Hz, AC
Quantity of flow signal		1
Model of injection pump		WJ55
Running mode		Stand-alone running
Pressure range of output		0~1.6MPa
Output of Single travel		0.05~0.50ml
Measuring accuracy		±1%
Working frequency		0~50 per minute
Max output		1.5L/h
medium		8# hydraulic oil driven
Connecting dimension with pipe		PN1.6MPa DN20 Flange
Outside dimension		900x700x1400
Anti-explosion rate		Do II CT6
Weight		130KG
Volume of odorant tank		60L
Form of odorant tank		Vertical or horizontal
Working pressure of odorant tank		0~90KPa
Working environment	Temperature	-30Deg. ~ +55Deg.
	Humidity	85%
	Altitude	2000m
	Outside disturbing	No strong magnetic fields disturbing
	Installation site	Outdoor installation
