diamond blade cutting rock hydraulic equipment
newly developed
BS-600TM/BS-500TM
diamond blade cutting rock hydraulic equipment

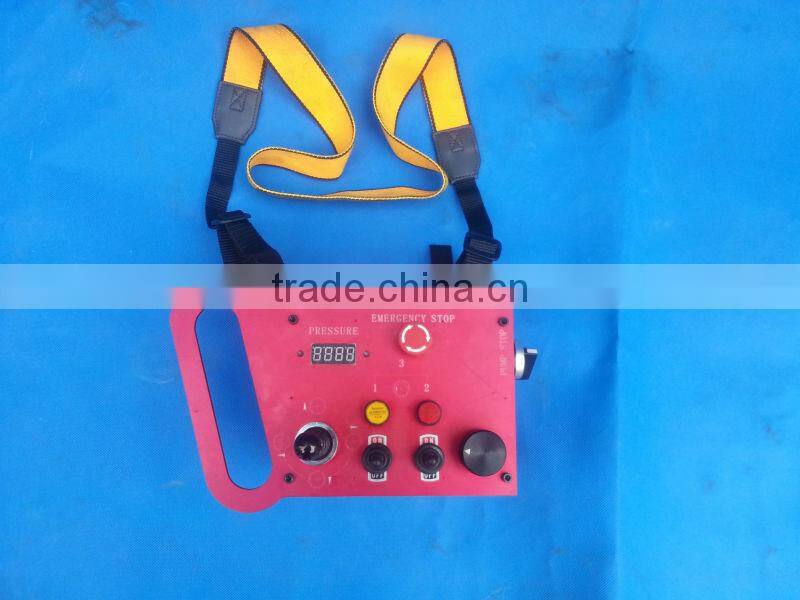

Remote control
introduction
BS-500TM/600TM wall saw machine is widely used inmineral mining(cave mining) , civil engineering construction and demolition. It is also an indispensable tool in construction, river dredging, salvation etc.
technical data:
model |
HWS-500TM | HWE-600TM |
| rated input | 30HP(22KW) | 34HP(25KW) |
| voltage | 380V/400V,3-phase,50HZ | 380V/400V,3-phase,50HZ |
| current | 43A | 48A |
|
weight hydraulic power unit incl.oil |
170kg | 175kg |
| dimension of power unit | 650*550*1000mm | 650*550*1000mm |
| max.operating pressure | 200bar | 240bar |
| max starter blade | 800mm | 800mm |
| blade diameter range | 800-1400mm | 800-1600mm |
| max. cutting depth | 620mm | 730mm |
| weight of saw head | 34kg | 32kg |
| control type | hydraulic auto | hydraulic auto |
| blade rotational speed | 900rpm | 400/860/1200rpm |
as to wall concrete cutting machine , we have two model :500TM and 600TM for ur choice.
whichever model is suitable for u, pls contact us freely, and we will offer a very competitive price for you.

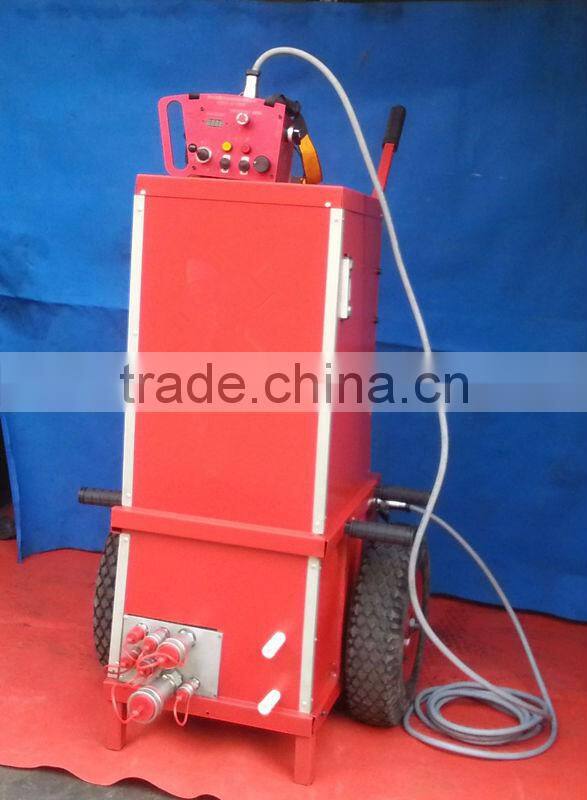

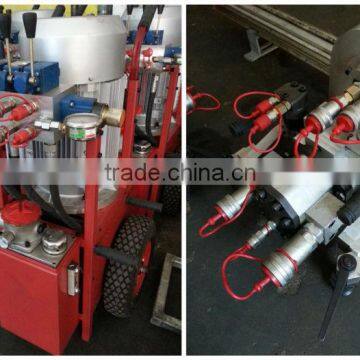

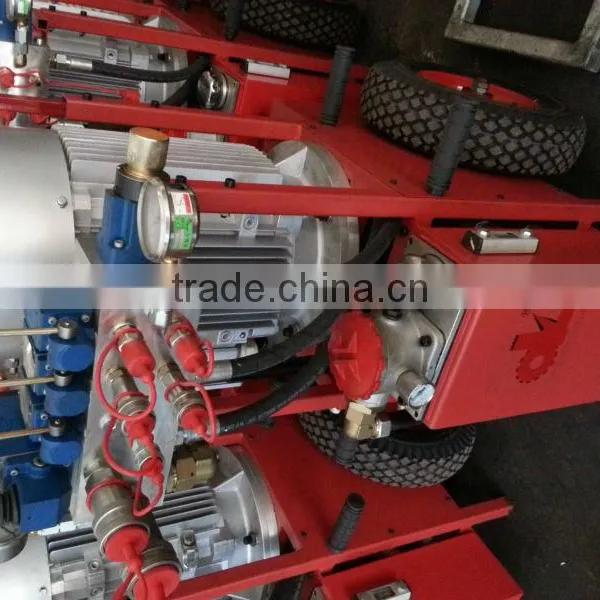

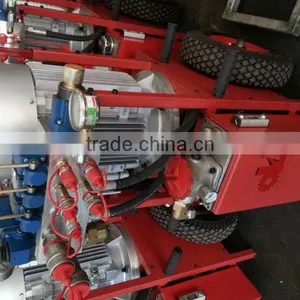

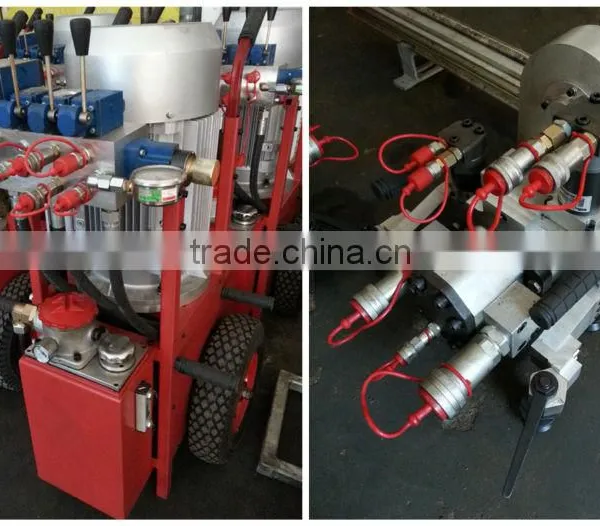

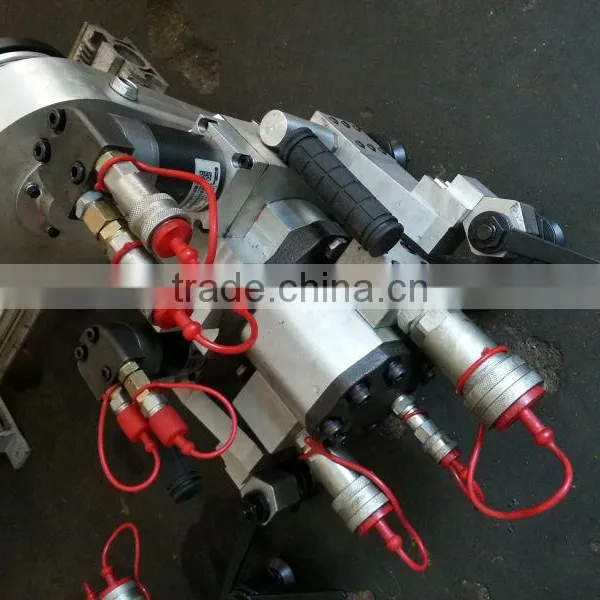

part pictures:

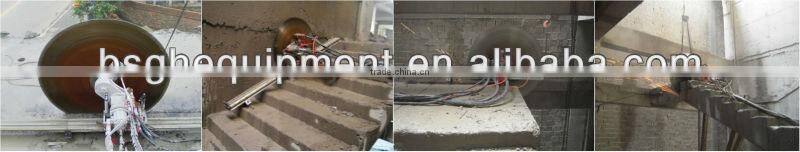

project case for reference:
one year worranty for our all machines
payment terms:
1) 100% T/T in advance for amout less than
USD10000.00
2) 30% payment paid by T/T in advance and 70%
payment paid by T/T befor delivery for amout more
than USD10000.00
