30tpd., 50tpd, 100tpd durum and soft wheat mill for fine wheat flour
- 50 Set / Sets per Month
- Qingdao or Shanghai
- T/T
- Automatic Maize Flour Mill Wheat Corn Flour Milling Machine Maize Mill
- Automatic 20tpd Wheat Maize Corn Semolina Rice Roller Flour Griding Machine Wheat Flour Mill Milling Machine
- Wheat Rice Grain Grinder Flour Mill Milling Machine For Home Use
- Widely Used Wheat Rice Grain Grinder Flour Mill Milling Machine
- Small Scale Corn Grinder Mill Machine Grain Crusher Mill Making Machine
- High Quality Grinding Mill Machine for Maize Wheat Soybean
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | Chuanyue |
Model Number: | 6FYDT-40 | Production Capacity: | 40T/24hours | Voltage: | 380v |
Power(W): | 128.6kw | Weight: | According to configuration | Dimension(L*W*H): | 20*7*7.5M |
Certification: | CE ISO9001 | Warranty: | 1 year for free | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
30tpd, 40tpd,50tpd,100tpd wheat mill brief introduction
1.The flour milling plant fits for the production of tailored flour and all-purpose flour.
2.The flour mill is with advanced technical process and flexiable adjustment. It can produce grade flour and special flour. The finished flour is usually used to produce bread, biscuit, spaghetti, instant noodle, etc

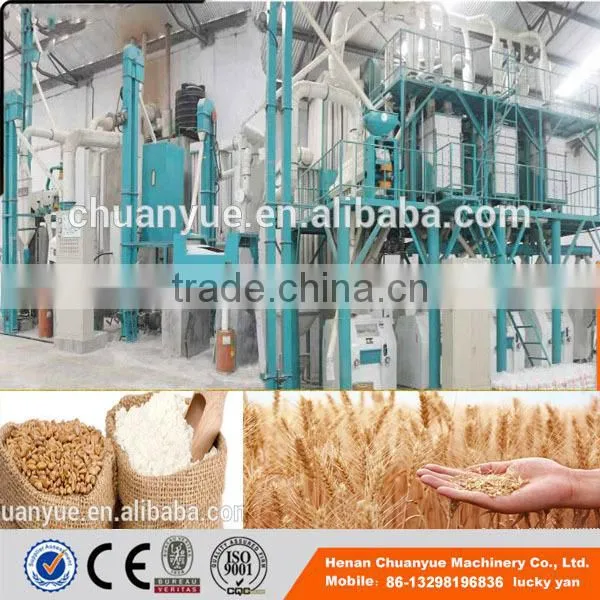

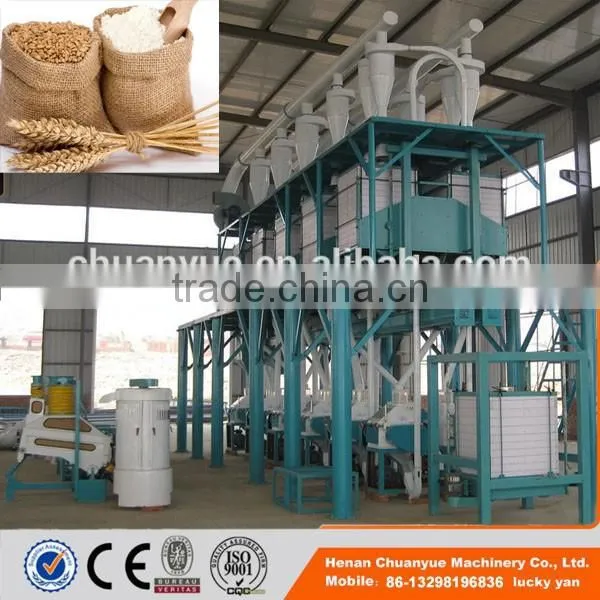

Wheat mill preview
Characteristics of our wheat mill:
1.The machine adopts full steel structure, featuring handsome appearance, easy installation and small occupation.
2 . it has stable performance and high flour yield, The flour screening adopts efficient double bin plansifter; the screen adopts stainless steel wire mesh, difficult for blocking.
3.The whole machine adopts pneumatic and negative pressure transmission, not only preventing smell from leakage, but also reducing workshop dust and drying the flour in this process.
4.The air outlet of the blower can be equipped with pulse deduster, making your working environment cleaner.
5.The plpe all adopts Φ precast pipe. In every floor of pipe all set sight glass and inspection door; In each lifting pipe set sight glass far from the platform 150mm.
Type | Power (kw) | Line Dimensions(m) | Brief process |
6FYDT-30 | 87.2 | 16*7*7 | Cleaning part: 2 siftings--2 scourings--1 destoning ---1 washing--2 magnetic separations;
Milling part: 3 hulling and 3 wheat core millings, separating wheat skin from wheat core to grind them partly.
|
6FYDT-40 | 128.6 | 20*7*7.5 | Cleaning part: three sieves, two beating, two removing stone, One washing and three magnetic selecting
Milling part: eight milling, two six-bin square sifter, one purifier and two bran finishers making up "4B,7M, 1S, 2T" process .
|
6FYDT-50 | 135.5 | 28*7*7.5 | Cleaning part: One screen, two scour, two destoner, one damper, and one magnetic separator.
Milling part: Four sets of double roller mill, three sets of Double-section high efficiency square sifter consist of the milling technology of four break, three reduction, one scratch ,one bran brusher |
6FYDT-100 | 300 | 35*7*15.7 | Cleaning part: 4 break-5 reduction-1 scratch-1tail-2 purifying-1 inspection-2 bran brushing
Milling part: 3 sifting-2 scouring-2 destoning-3 magnetic separating-1 washing-2 dampening |

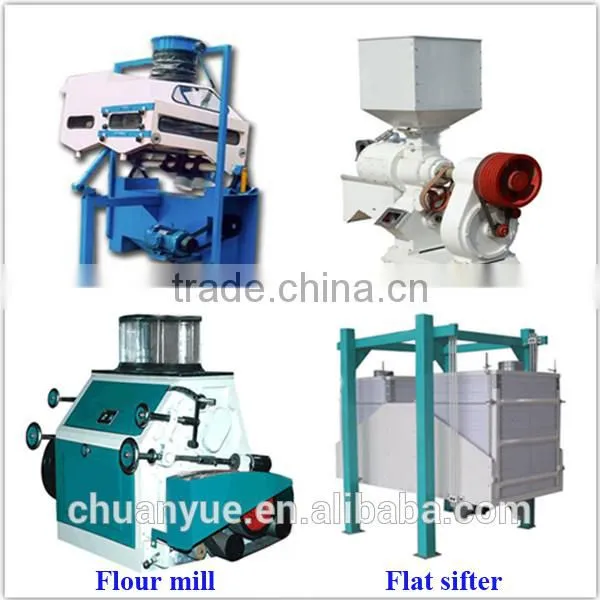

1.Triple cleaning sieve: Through the beat function of the wheat scourer, brusher to remove dust sand small seed, bacterial count and insect seed.
2.Damper: Dampening the wheat bran before mill to ensure the bran's integrity during the milling processing, avoid the bran going into the flour to keep flour quality.
3.Wheat scourer: clean the surface of the wheat, ensure that the play ash content of wheat finished points can reach to the standard.
4.Destoner: Mainly remove stone in the wheat to protect them milled into the flour and also protect the roller on the milling process.
5.Rotary sieve classifier: through value drive shaft makes the sifter planar rotating to separating the impurities from the grains.
6.Mill: Mill the wheat to break the integrity by the roller moving
7.Double-plan sifter: To separate the flour and bran, also separate large size and small size to enssure flour quality.
8.Wheat bran brushing machine: separate the fine particle from the surface of wheat bran. Thus reducing the rate of the bran, enhance the rate of the powder.
9.High pressure fan: offer wind force, wind pressure
1. Raw wheat storage(silo or warehouse)
2. Cleaning system(sifter, destoner, magnetic separation, scourer)
3. Milling system(roller mill, plansifter, purifier, impact detacher)
4. Flour packing and stacking
We offer the technology flow chart
Packing and loading
Established friendship with our customers
How to choose a flour mill?
Two of the features that affect prices are the material of the flour mill, the noise level and their adjustability. Generally, our turn-key project of flour mill is made of stainless steel, operate with low noise level, have lower heat production, generate less dust in the air.
Our work includes:
1.Series of corn product line ( flour ), ( Grits, flour ) ,( flour,grits,germ ) , (flour,germ)
2.Wheat flour milling production line ( fine wheat flour ) ( whole wheat flour )
3.Buckwheat processing line
4.Corn gluten flour production line
