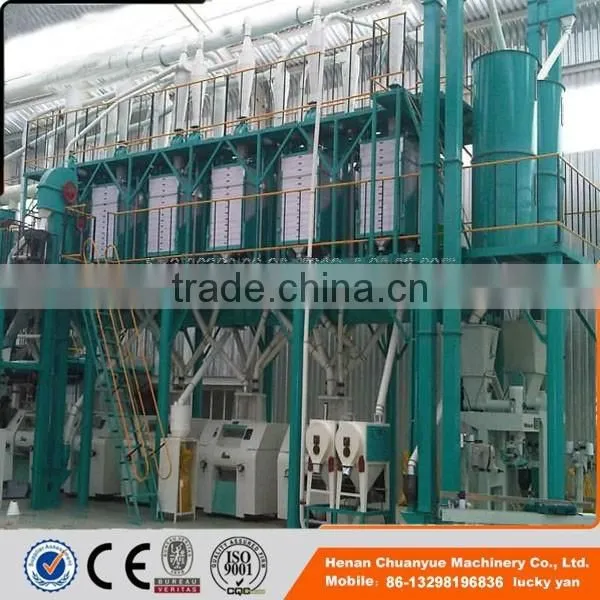

150tpd maize flour plant for maize grits and flour
Maize grits and flour milling plant processes raw maize into grad maize grits, flour, feed meal by cleaning, measurement, hulling, polishing, corn grits, flour milling. When we design the processing craft, fully considering our customer’s practical processing requirement, ensuring the quality of finished products and the continual operation of device to optimize device combining form, decrease power consumption, reduce device operation and finished products packing labor, decrease production management cost, maximum customer’s interests.
Installation structure: The line has simple structure, high adjustability for the field area and the workshop, no special requirements. Effectively cut down the fixed investment; Simple installation, fast construct progress, short construction period, allow our clients to meet the benefits in the shortest possible.
Type | Power (KW) | Power Cost (KW/H) | Weight | Size Requirement (L*W*H)m | Output |
SC-100 | 312.6 | ≤66 | 100 | 24*7*9 | Maize grits: 42-50% Maize flour:25-30% Maize feed meal:22-30% |
SC-150 | 478.34 | ≤54 | 150 | 32*7*9.5 | |
SC-200 | 768.14 | ≤62 | 200 | 38*7*9.5 |
The process of maize flour grits and flour milling
Core machine of the production line: high efficient vibrating sifter, gravity destoner, manetic selector, corn hulling machine, corn polishing machine, fine corn grits machine, milling machine, square plantisifter, low and high pressure fan, plus dust collector....
1. Raw maize primary cleaning: sifting, measurement; equipped with 1 set of dust catching air net to ensure having a good work environment. (According to customer’s requirement to choose it or abandon it.)
2. Raw maize cleaning: sifting, 2 destoning, magnetic separating; equipped with 2 or 3 sets of dust collecting wind net, ensuring to finish production craft and dust catching.
3. Hulling, polishing, corn grits, flour milling: hulling, 2 polishings, corn grits crushing, bran suction and millings, siftings.
1) Hulling: clean out dust one the surface of corn and skin of crushed corn
2) Polishing: clean out micro skin on the surface of embryo and germ in the corn;
3) Corn grits: Crush big particle embryo into medium, small particles
4) Sifting: To grade according to the size of material particles, sifting qualified flour
5) Bran suction: According to gravity of material, separating micro skin from grade grits through air;
6) Milling: Mill material into qualified fineness flour, sifting by plansifter;
4. Measurement and packing: Add storage before measurement, manual and automatic electronic packing.
Core machines in the 150tpd maize flour mill

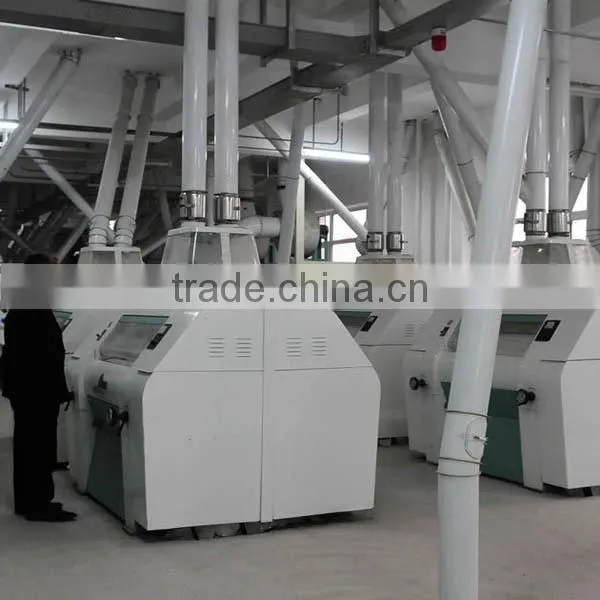

1.MSD/Q series Electric/ Pneumatic milling machine
Model | Outline Size (mm) | Weight (kg) | Feed Inlet Outer Diameter (mm) | Feed Inlet Inner Diameter (mm) |
MSD/Q125X30X2 | 2060X1676X2005 | 4650 | φ160 | φ150 |
MSD/Q100X30X2 | 1810X1676X2005 | 3950 | φ160 | φ150 |
MSD/Q100X25X2 | 1810X1526X1955 | 3250 | φ160 | φ150 |
MSD/Q80X25X2 | 1610X1526X1955 | 2850 | φ160 | φ150 |
2.YZSJ Fine corn grits machine
Parameter | Rotor Diameter | Mainshaft Speed | Mating power | Air Volume | Output | Overall Size |
Model | (mm) | (r/min) | kw | m3/h | (t/h) | L×W×H(mm) |
YZSJ50×25 | 500 | 2970 | 15 | 1300 | 2—4 | 1520×555×1080 |
YZSJ56×30 | 560 | 2970 | 22 | 1500 | 4—6 | 1520×615×1080 |
YZSJ56×36 | 560 | 2970 | 30 | 1700 | 6—8 | 1560×615×1080 |
YZSJ56×40 | 560 | 2970 | 37 | 1900 | 7—10 | 1580×615×1080 |
3.Dehulling machhine
4. Destoner
5.Polisher

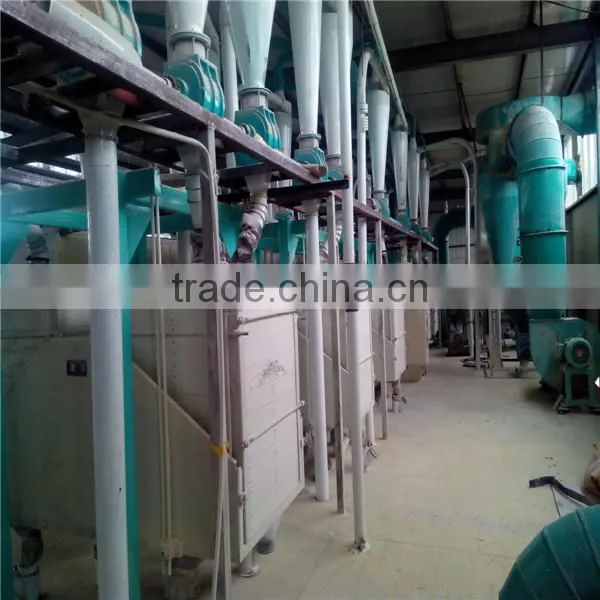

6.Double-bin plansifter

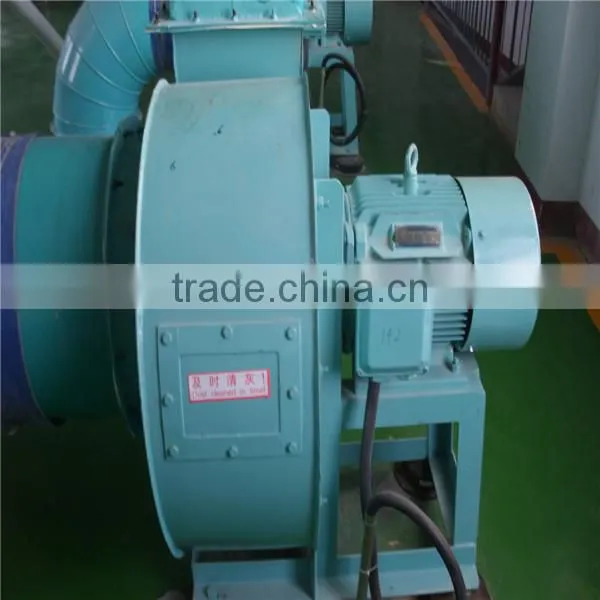

7.High-pressure network
Corn grits and corn flour:
Eatabishing friendship with our customer
We also offer the follwing production line
10t/d-2000t/d series of corn product line (flour)
Series of multi corn product line (grits, flour, germ)
Series of dual corn product line (germ, flour)
Corn gluten meal production line
Wheat flour milling production line
Whole wheat flour milling production line
Buckwheat processing line
....
King Shine Machinery is one professional cereals processing equipment manufacturer and supplier with 20 years experience in design, manufacture, installation, commissioning and training of cereals processing equipment. We keep invest in most advanced equipment and keep upgrading and maintaining the facilities we have had. We can provide our customers with high quality products by combining modern equipment with advanced processing technology and perfect Quality Control System.
Based on Reliable Quality, Reasonable Price, Perfect Service, we have made our equipment enjoy high prestige in the market of Africa, America, Europe and Asia. We have designed and installed our equipment in Tanzania, Ethiopia, Uganda, Bangladesh and etc.
