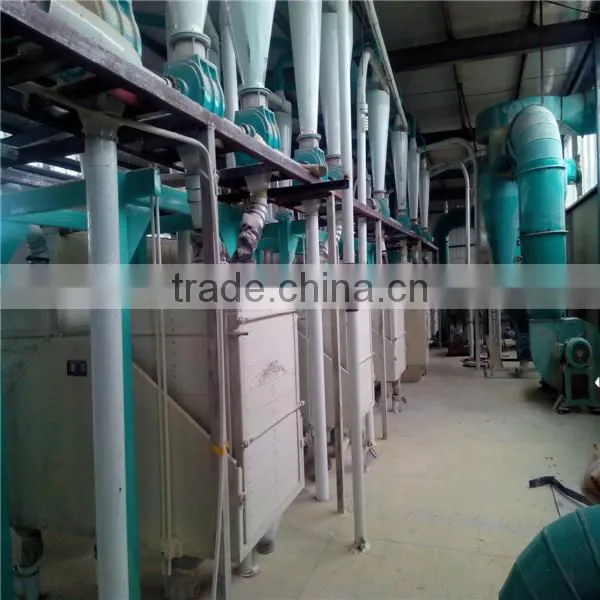

Full automatic 150tpd maize mill machine of uganda for maize grits and flour

Specifications

1. 150tpd maize mill machine of uganda
2.dry milling
3. including cleaning, milling, packing
4. CE, ISO



150tpd maize mill machine of uganda for maize grits and flour





Maize grits and flour milling plant processes raw maize into grad maize grits,  flour,  feed meal  by cleaning, measurement, hulling, polishing, corn grits, flour milling.



When we design the processing craft, fully considering our customer’s practical processing requirement, ensuring the quality of finished products and the continual operation of device to optimize device combining form, decrease power consumption, reduce device operation and finished products packing labor, decrease production management cost, maximum customer’s interests.





Installation structure: The line has simple structure, high adjustability for the field area and the workshop, no special requirements. Effectively cut down the fixed investment; Simple installation, fast construct progress, short construction period, allow our clients to meet the benefits in the shortest possible.



Type	Power (KW)	Power Cost (KW/H)	Weight	Size Requirement (L*W*H)m	Output
SC-100	312.6	≤66	100	24*7*9	Maize grits: 42-50% Maize flour:25-30% Maize  feed meal:22-30%
SC-150	478.34	≤54	150	32*7*9.5
SC-200	768.14	≤62	200	38*7*9.5





The process of maize flour grits and flour milling



Core machine of the production line: high efficient vibrating sifter, gravity destoner, manetic selector, corn hulling machine, corn polishing machine, fine corn grits machine, milling machine, square plantisifter, low and high pressure fan, plus dust collector....





1. Raw maize primary cleaning: sifting, measurement; equipped with 1 set  of dust  catching  air net to ensure having a good work environment. (According to customer’s requirement to choose it or abandon it.)



2. Raw maize cleaning: sifting, 2 destoning,  magnetic separating; equipped  with 2 or 3  sets  of dust collecting wind net, ensuring to finish production craft and dust catching.



3. Hulling, polishing, corn grits, flour milling: hulling, 2 polishings, corn grits crushing, bran suction and millings, siftings.



1) Hulling: clean out dust one the surface of corn and skin of crushed corn



2) Polishing: clean out micro skin on the surface of embryo and germ in the corn;



3) Corn grits: Crush big particle embryo into medium, small particles



4) Sifting: To grade according to the size of material particles, sifting qualified flour



5) Bran suction: According to gravity of material, separating micro skin from grade grits through air;



6) Milling: Mill material into qualified fineness flour, sifting by plansifter;



4. Measurement and packing: Add storage before measurement, manual and automatic electronic packing.



Core machines in the 150tpd maize mill machine of uganda

1.MSD/Q series Electric/ Pneumatic milling machine



Model	Outline Size (mm)	Weight (kg)	Feed Inlet Outer Diameter (mm)	Feed Inlet Inner Diameter (mm)
MSD/Q125X30X2	2060X1676X2005	4650	φ160	φ150
MSD/Q100X30X2	1810X1676X2005	3950	φ160	φ150
MSD/Q100X25X2	1810X1526X1955	3250	φ160	φ150
MSD/Q80X25X2	1610X1526X1955	2850	φ160	φ150



2.YZSJ Fine corn grits machine



Parameter	Rotor Diameter	Mainshaft  Speed	Mating power	Air  Volume	Output	Overall Size
Model	(mm)	(r/min)	kw	m3/h	(t/h)	L×W×H(mm)
YZSJ50×25	500	2970	15	1300	2—4	1520×555×1080
YZSJ56×30	560	2970	22	1500	4—6	1520×615×1080
YZSJ56×36	560	2970	30	1700	6—8	1560×615×1080
YZSJ56×40	560	2970	37	1900	7—10	1580×615×1080

3.Dehulling machhine

4. Destoner

5.Polisher

6.Double-bin plansifter

7.High-pressure network

Corn grits and corn flour:

 Packing and shiping



Eatabishing friendship with our customer





We also offer the follwing production line



10t/d-2000t/d series of  corn product line (flour)

Series of multi corn product line (grits, flour, germ)

Series of dual corn product line (germ, flour)

Corn gluten meal production line

Wheat flour milling production line

Whole wheat flour milling production line

Buckwheat processing line

....



If you need more technical information and exactly price, please contact with us freely. Our professional technique team will give you the best service.

Warmly welcome friends come to china to visit our factory!
