Specifications
PS (polystyrene) Foam Lunch Box Making Machine1.PS foam sheet extruder machine
2.vacuum forming machine
3.recycling machine

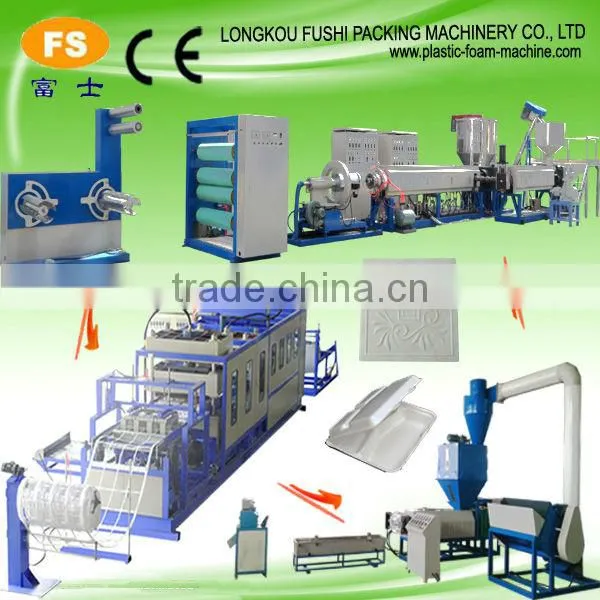

PS (polystyrene) Foam Lunch Box Making Machine
1. PS foam sheet extruder machine : make PS foam sheet from raw material.
2. vacuum forming and cutting machine: make PS sheet to finished products, such as PS foam lunch box/tray,food container etc (we can design mould according to customer requirements).
3. ps foam scrap recycling and pelletizing machine: recycle waste products to granules, the can mix with new material and put into PS foam sheet extruder again.
1.PS foam sheet extruder machine
This PS foam sheet extruder machine produce PS foam sheet, which is a kind of new-type packing with the features of shock proofing, sound insulating, heat preservation, damp proof, safety, and good plasticity. It is used widely in the packing of food, fruit, electronic product, daily necessities, hardware product, advertisement plate, etc.
This machine includes three types as follow :
Item no |
Output (kg) |
Thickness (mm) |
Width (mm) |
Foaming rate |
Total power (kw) |
|
FS-FPP70/90
|
60-95 |
0.8-3.0 |
540-1080 |
12-20 |
140 |
|
FS-FPP100/120
|
150-200 |
1.0-4.0 |
540-1080 |
12-20 |
200 |
|
FS-FPP120/150 |
220-320 |
1.2-5.0 it can produce single foam sheet |
1080 |
12-20 |
260 |
|
1.0-3.0 it can produce double foam sheet |
1080 |
2.Automatic vacuum forming and cutting machine
This type of developed by combining the domestic equipment and advantages, is a set of hydraulic pneumatic servo drive for an automatic forming cutting seek and it can be used for hot forming process PS foam sheet into food container,lunch box,plates,tray,etc.
The biggest advantage is forming cutting integration, reduce work link, produce the product directly, it can be collected in stacking area of work to save time, save the production base and greatly reduces the working intensity save artificially
The Technical Specification
a. Max forming area: 1100mm*1200mm
b. Max forming depth : 130mm
c. Forming mode: Vacuum forming, press forming, mould forming, comprehensive forming
d.Forming pressure: 20t (adjustable)
e.The production efficiency:3- 5 seconds/mould
3. PS scrap recycling and pelletizing machine
This recycling and pelletizing machine is designed to reclaim the foamed polystyrene and polyethylene materials almost identically to new ones with its own superior filtering performance
