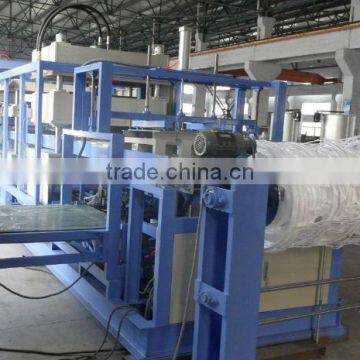

Full-Automatic PS disposable fast food box vacuume forming machine with CE certificate

Specifications

Full-automatic forming punching machine, collect directly,
less work process, high efficiency!

Automatic Vacuum Forming Machine & Cutting Machine & Stacking machine



Best Price and Hot Product!



Product Features:

1. The biggest advantage of this machine is forming cutting integration, reduce work link, the product can be produced directly, it can be collected in stacking area of work, save time and less labor, the layout in factory is compactly as a whole.

2.  PSP, PVC, PE, PP, PET, HIPES ,etc of packaging products can be foramed.

2. Main parts are with CE certificate, and pumps are imported from Japan or Germany, so the machine can be used for 10 years, operation reliable and safety.

3. Production capacity:

    Big food box 10800pcs/Hour ( 23.5×33.5cm),

    Small food box  21600pcs/Hour ( 24×17cm)



Model	FS-FM-200

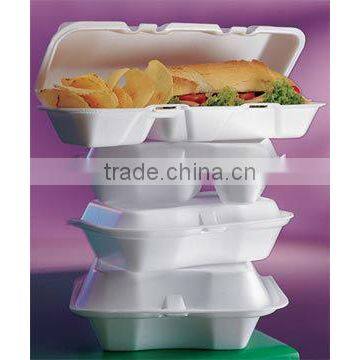

Products	lunch box, disposable food container, take-away food box, hamburger box, fruit tray, etc.
Materials	PS, PP, PVC, PET, PE
Forming Type	Vacuum, Press, Mold & Comprehensive forming
Control Type	Automatic / PLC Control
Heating Type	Ceramic Heating Panels
Sheet thickness (mm)	0.5-5.0
Max. Forming area (mm)	1000*1200
Max.Forming Depth (mm)	80
Production efficiency	3-8 Seconds/Mold
Max. Forming pressure (Ton)	15
Max. Punching Pressure (Ton)	60
Charging Drive	AC servo motor/step motor
Installed Power (KW)	160
Dimension (L*W*H) (M)	12x2x2.6
Total Weight (APPR.) (Ton)	16









After testing and QC inspection, the machine will be packed in plywood cases, and into container directly for shipping.





Company Profile:



1. Specializing in producing fast food box forming machine for 20 years.



2. Strong R&D force, strict & effective quality control system, outstanding workers, and excellent after-sales service department, sincerely welcome you to contact with us and develop together.



3. Fushi high quality products have been exported to more than 30 countries and regions, continuously improving is our quality policy, so any good suggestions will be highly appreciated! Thank you.



Looking forward to your inquiry, we will reply you within 24 hours.
