Principal Feature:

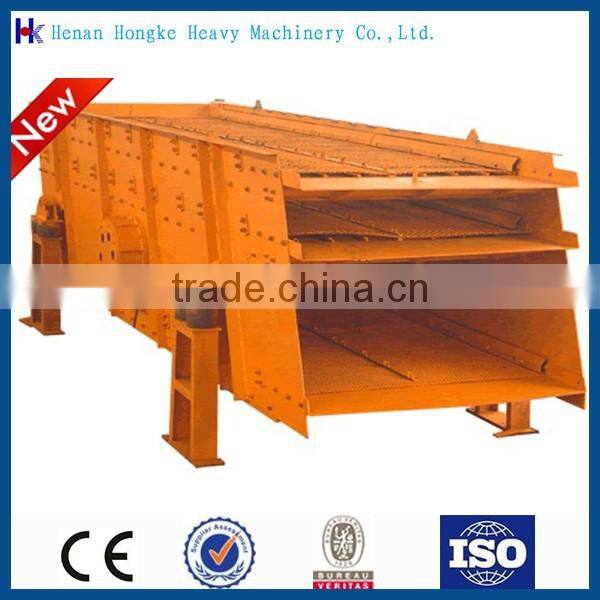

The YK circular vibrating screen is adopted imported advanced technology from abroad to manufacture screen machine which cn be applied to screen various dry materials in coal, metallurgy, traffic, ore dressing, construction, power, chemicals industry ect.
This vibrating screen , belong to customed circle center style of vibrating screen, uses eccentric sgafts type vibrator, bearing of ample clearance and oil lubrication to make noise lowest and service life longest. It's components have characteristic of strong universal and convenient maintenance. Rotary motion of the vibrator is dragged by V-shape belt connected with belt wheel driven by the motor. The frame of screen box adopts looping rivet connections to make structure advanced, firm, durable.
2. Vibrating Screen Working Principle:

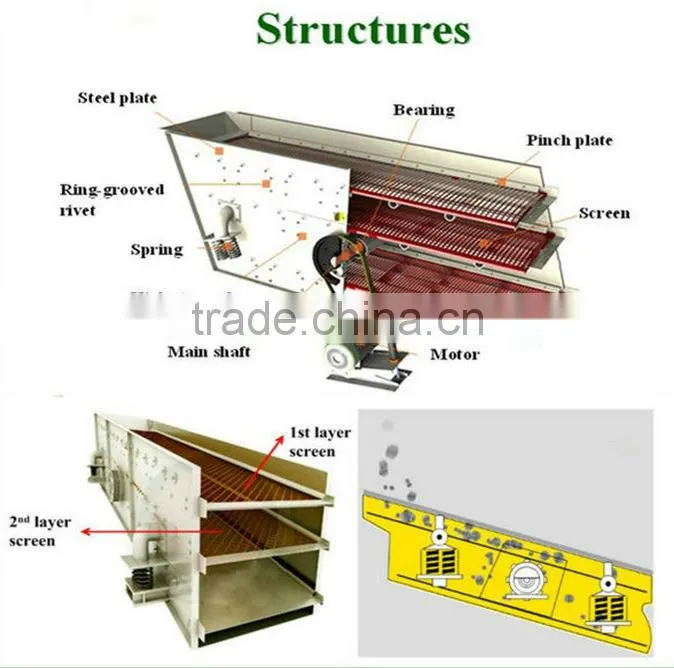

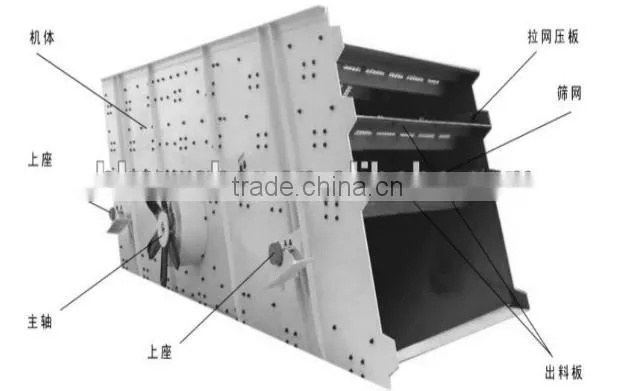

The vibrating screen consists of screen box, supporting device, vibration exciter, transmission part, etc. The motor
makes the exciter rotate speedily through the v-belt. The continuous forced circular motions of sieve box were
achieved through the powerful centrifugal force. Under the influence of sieve box, the materiel are tossed forward
successively on the mesh. They were classified as thrown up, and the particles smaller than the mesh size were
sieved out during the falling process, so that the classification of material could be achieved.
3. Vibrating Screen Features:
1. Exciter of external eccentric block structure has the advantages of big exciting force, light weight, small load
bearing, etc.
2. Novel structure, advanced technical parameters, high capacity, high screening efficiency, simple structure,
convenient sieve surface systems.
3.Adopting cross shaft transmission shaft or rubber universal section and flexible connection, so the operation is
very smooth.
4. Circle vibrating screen adapts the spring steel screen or punching screen panel, screen box shaking strong,
plugging holes is not ealisly blocked.
Technical Data:
Model | Layer | Dimension Size(mm) | Max.Feed Size(mm) | Capacity(t/h) | Vibrating Frequ Ency(r/min) | Power (kw) | Double Swing (mm) |
2YK1235 | 3 | 1200*3500 | 400 | 60-180 | 870 | 5.5 | 5-9 |
2YK1545 | 2 | 1500*4500 | 400 | 120-275 | 870 | 15 | 5-9 |
3YK1545 | 3 | 1500*4500 | 400 | 120-275 | 870 | 15 | 5-9 |
3YK1548 | 4 | 1500*4800 | 400 | 120-275 | 870 | 15 | 5-9 |
4YK1548 | 2 | 1500*4800 | 400 | 200-275 | 870 | 15 | 5-9 |
3YK1848 | 3 | 1800*4800 | 400 | 200-330 | 870 | 18.5 | 5-9 |
4YK1848 | 4 | 1800*4800 | 400 | 250-330 | 870 | 18.5 | 5-9 |
3YK1860 | 2 | 1800*6000 | 400 | 250-586 | 870 | 22 | 5-9 |
4YK1860 | 3 | 1800*6000 | 400 | 300-586 | 870 | 22-30 | 5-9 |
3YK2060 | 4 | 2000*6000 | 400 | 300-720 | 730 | 37 | 5-9 |
4YK2060 | 2 | 2000*6000 | 400 | 400-720 | 730 | 30-37 | 5-9 |
3YK2460 | 3 | 2400*6000 | 400 | 400-810 | 770 | 37 | 5-9 |
4YK2460 | 1 | 2400*6000 | 400 | 450-810 | 770 | 37 | 5-9 |
My what'sapp: 15538286937
Send Inquiry to This Supplier
