Help CenterProfessional Manufacture Lowest Price Sand Washer Machine for Sand Construction Plant
Related Products
-
The Waste Tire Recycling Production Line With CE ISO SGSUS$ 20,000 - 80,000MOQ: 1 Set -
Hot Sale Wood Stump Crusher Machine With Capacity of 20-30 T/hUS$ 1,000 - 1,000MOQ: 1 Set
-
Full Automatic Rubber Granulator MachineUS$ 1,500 - 1,500MOQ: 1 Set
-
Hot Sale Briquette Machine for Wood, Metal, Coal MaterialsUS$ 2,500 - 2,500MOQ: 1 Piece
-
Large Capacity Used Small Plastic CrusherUS$ 2,500 - 2,500MOQ: 1 Set
Features of sand washing machine:
1. Sand Washing is of simple structure. The bearing device of impeller drive is separated from water and materials with water, to avoid in a large degree that the bearings are damaged by being soaked with water, sand or some polluted things.
2. When it is used for cleaning sand in quarries, it has many advantages compared with the traditional spiral one.
3. There is little loss for medium-sized and fine sand and stone powder. The grade and the fineness of the sand for construction after being washed can be up to the national standards, such as "sand for construction" and "cobble and broken stones for construction".
4. There are no other wearing parts except the screen mesh.
5. It features of long service life and few times for maintenance.
Sand Washing machine Application:
Sand Washing is widely used for cleaning materials in the following industries: Quarry, minerals, building materials, transportation, chemical industry, water conservation and hydropower, cement mixture station and so on.

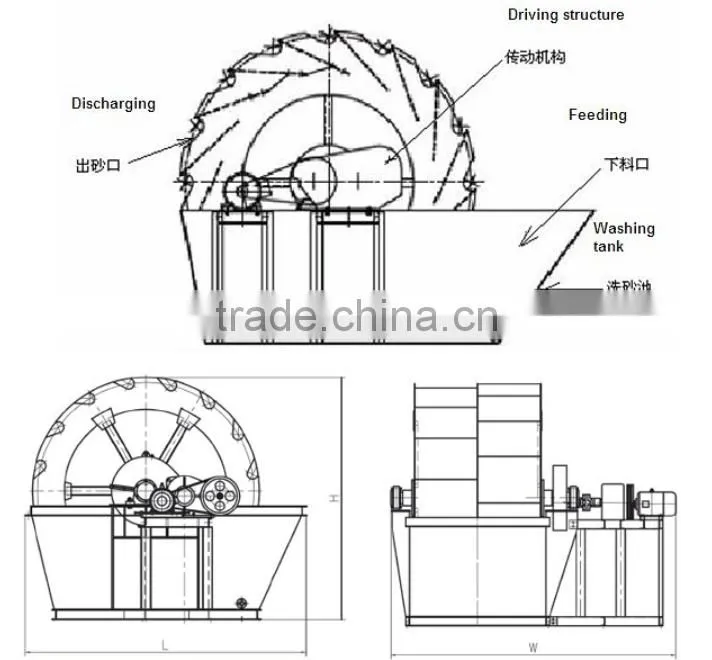

Sand Washing machine working principle:
When the washing machine is working, the motor will slowly rotate after triangle, reducer, gear reduce the speed, sand and gravel through entering to the wash tank, rolled by the impellers driven, and grinding with each other, to remove the surface impurities covered by sandrock.and destroy water layer which covered in the sandrock. so it is good for dehydration. adding water at the same time,it will form strong water flows.taking away small proportion of foreign and impurities in time. exports from the overflow of wash tank, finish cleaning effect. clean sand will be taken away by the blade, at last the sandrock pour into the discharge chute throught the rotating impeller, finished the sandrock washing effect.
Technical Data of sand washing machine:
| Model | XSD2610 | XSD2816 | XSD3016 | XSD3620 |
| Spec. of Impeller(mm) | Φ2600×1000 | Φ2800×1600 | Φ3000×1600 | Φ3600×2000 |
| Impeller Speed(r/min) | 1.178 | 1.177 | 1.179 | 1.179 |
| Capacity(t/h) | 20-50 | 30-60 | 50-120 | 60-150 |
| Input Size(mm) | ≤10 | ≤10 | ≤10 | ≤10 |
| Motor Power(kw) | 7.5 | 11 | 15 | 18.5 |
| Decelerator Model | ZQ50-50-I-Z | ZQ65-50-I-Z | ZQ65-50-I-Z | ZQ65-50-I-Z |
| Overall Dimension(mm)(L×W×H) | 3255x1982x2690 | 3540x3000x2880 | 3845x3000x3080 |
4500×3206×3480 |
