Home > Products > Rotary dryer > Automatic Running Hot Sale Biomass Rotary Drum Dryer
Automatic Running Hot Sale Biomass Rotary Drum Dryer
- 20 Set / Sets per Month
- any port in China
- T/T
Product Details
Condition: | New | Type: | Rotary Drying Equipment | Place of Origin: | Henan, China |
Brand Name: | HK | Model Number: | multi-model for biomass rotary drum dryer | Voltage: | 380V/50HZ |
Power(W): | 4-75KW | Dimension(L*W*H): | 0.6*8m | Weight: | 5.1-97 t |
Certification: | ISO9000, BV | Warranty: | 3-5 years | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
standard export packing for biomass rotary drum dryer
Product Description
Specifications
biomass rotary drum dryer1. Standard quality testing
2. Easy to operate
3. Stable working conditions
4. ISO9000, BV
Automatic Running Hot Sale Biomass Rotary Drum Dryer
Biomass Rotary Drum Dryer Description:
1. Biomass Rotary Drum Dryer is depending on the practice in sand and stone production, absorbing the leading technology home and abroad, and is widely used in sand making industry.
2. Biomass Rotary Drum Dryer is of high efficiency and has the features of reasonable structure, high capacity and low consumption.
3. Biomass Rotary Drum Dryer can make final products free from dirt and impurities and reduce the high quality sand loss.
Biomass Rotary Drum Dryer Application:
Biomass Rotary Drum Dryer is widely used in a variety of materials drying operations. As reliable operation, convenient operation, strong adaptability, large capacity, it is widely used in metallurgy, building materials, food, light industry, chemical industry, coal, medicine and mining industries.
Biomass Rotary Drum Dryer is suitable for drying granular materials in general. It can also be mixed with some materials by drying sticky paste materials or materials with higher water content. Commonly used in dry sand, slag, coal, animal waste and so on.
Biomass Rotary Drum Dryer Structure:
Biomass Rotary Drum Dryer consists of the cylinder, before and after the roller circle, a large gear, gear roll, drag roller, a small gear, a feeding device, lifting plate, reducer, motor, feeding device and other components. Furnace can be designed according to user needs, the combustion chamber, bucket elevator, belt conveyor, feeder, dust and other system equipments.
Biomass Rotary Drum Dryer Working Principle:
Biomass Rotary Drum Dryer is handling by bringing it into direct contact with a heated gas. The dryer is made up of a large, rotating cylindrical tube, the dryer slopes slightly so that the discharge end is lower than the material feed end in order to convey the material through the dryer under. Working principle: Material to be dried enters the dryer, and as the dryer rotates, the material is lifted up by a series of internal fins lining the inner wall of the dryer. When the material gets high enough to roll back off the fins, it falls back down to the bottom of the dryer, passing through the hot gas stream as it falls. This gas stream can either be moving toward the discharge end from the feed end (known as co-current flow), or toward the feed end from the discharge end (known as counter-current flow). The gas stream can be made up of a mixture of air and combustion gases from a burner, in which case the dryer is called a direct heated dryer. Alternatively, the gas stream may consist of air or another (sometimes inert) gas that is preheated. When the gas stream is preheated by some means where burner combustion gases do not enter the dryer, the dryer known as an indirect-heated type. Often, indirect heated dryers are used when product contamination is a concern.
Biomass Rotary Drum Dryer Main Technical Parameters:
Model(m) | Shell diameter(mm) | Shell length(mm) | Slope(°) | Rotary speed(r/min) | Weight(t) | Power(kW) | Volume(m³) |
0.6*8 | 600 | 8000 | 3-5 | 8 | 5.1 | 6-4 | 2.26 |
0.8*10 | 800 | 10000 | 3-5 | 7.2 | 6.9 | 6-4 | 5.02 |
1.0*1 | 1000 | 10000 | 3-5 | 6.73 | 7.5 | 6-5.5 | 7.85 |
1.2*12 | 1200 | 12000 | 3-5 | 5.8 | 13.1 | 6-11 | 13.31 |
1.5*12 | 1500 | 12000 | 3-5 | 4.8 | 22.3 | 6-15 | 21.2 |
2.2*14 | 2200 | 14000 | 3-5 | 3.2 | 52.8 | 30 | 53.22 |
2.4*18 | 2400 | 18000 | 3-5 | 3 | 73.3 | 37 | 81.43 |
2.8*24 | 2800 | 24000 | 3-5 | 2.59 | 97 | 75 | 147.8 |

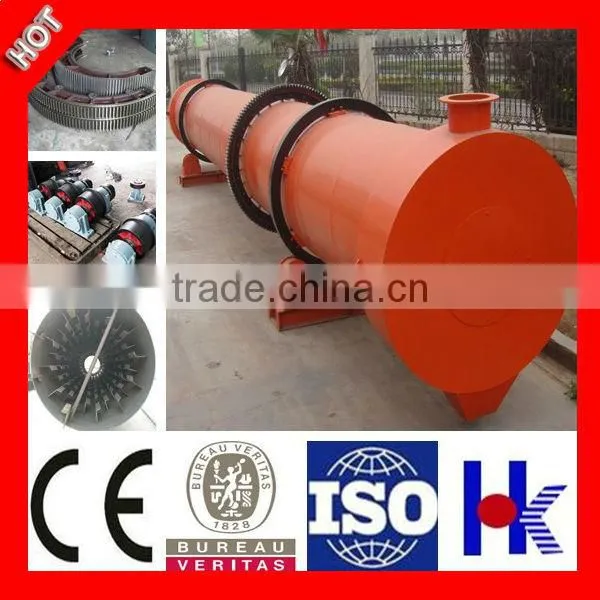

Biomass Rotary Drum Dryer Display:
Biomass Rotary Drum Dryer Warranty:
1. Three-five Years (Calculated from the goods arrived the destination port.) If any parts (excluding easily damaging parts) are found defective in quality in the first year, we shall replace it free-of-cost. After one year, parts can be replaced on favorable payment basis.We can send our engineer to provide the installation and trial run in your place. But the relevant cost shall be bear in your account (round trip air ticket, board and lodging).
2. Our professional service includes: Free training, Guidance Installation and Debugging.
3. If you have any question, please contact us freely. Our after-sales service team on-line will do the best to accomplish your sincere requirement on time.
If you want to see more products about our company, pls link our website:
Company Profile
Henan Hongke Heavy Machinery Co., Ltd. . is located in Henan Province which is the cultural base of the central area of China. We are a mining machinery manufacturing enterprise that integrates scientific research, production and marketing. We are a newly-risen dazzling star in China's machinery industry with the development of market economy.
Our manufactory is a high-tech enterprise that specializes in the research and production of rotary kilns, driers, and crushers. Our major products, for example, rotary kilns, Raymond mills, a series of crushers, stone crushers, and a series of screens, jaw crushers, hammer crushers, impact crushers, cone crushers, and sand making machines, rank highly in the domestic market and some products have reached international advanced level.
Due to decades of venture and the self-improvement of our staff, our company has developed well. Employing a large number of talents who are keen on innovation and enjoy a high level in outstanding scientific research and management in the industry, our company cultivates talents with strict disciplines and high efficiency in order to forge ahead together. In order to meet the needs of the development of our company and the market competition, we have built the first-class modern production and testing base, established a worldwide sales network, and provided considerable services for our respectable customers. We adhere to the pioneering ideas of "quality prospers our company", pursue the service tenet of "we satisfy our customers with our whole heart", and insist on the operation essential of "honest and good faith, and seek truths from facts". We have won honorable titles like Good Credibility of After-Sales Service, and our "Hongke" trademark has become a symbol of the reputation.
The quality is the life of our enterprise. Our company has modern scientific management, advanced production equipment and strict testing means to improve products. Our company will continue to uphold our concept, serve our nation sincerely, and rejuvenate our nation. We are willing to work together with friends from all over the world to create a bright future and flourish our national industry.
Contact Us
- Henan Hongke Heavy Machinery Co., Ltd.
- Contact nameKevin Wang
- Phone86-371-67816766
- AddressGongye Road and Tonghang Er Road crossing, Shangjie District, Zhengzhou City Zhengzhou,Henan
