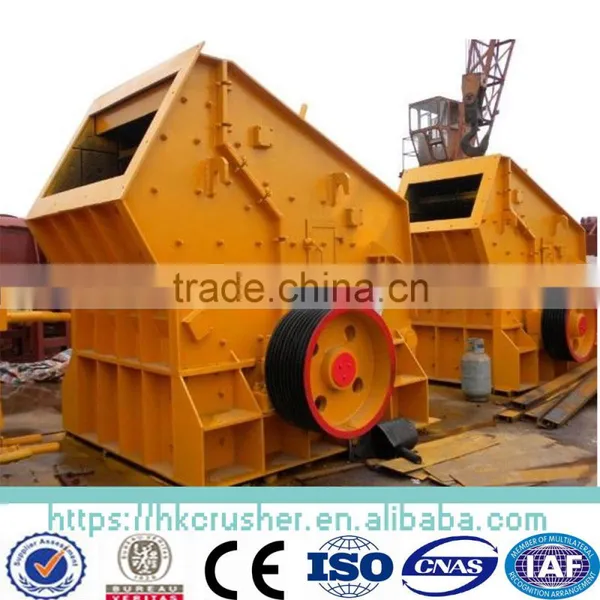

Handling Materials and Application of impact crusher
This series of impact crusher is used for the crushing of coarse, medium and fine materials such as granite, limestone and concrete with feeding granularity less than 500mm and compression strength less than 350MPa in many industries such as ore crushing, railway, highway, energy, cement, chemistry and constriction. The size of the discharging granularity is adjustable with diverse crushing specifications.
Working principle
Crush machine manufacture is a kind of crushing machine which utilizes impact energy to crush materials.
Its working principle is as follows:

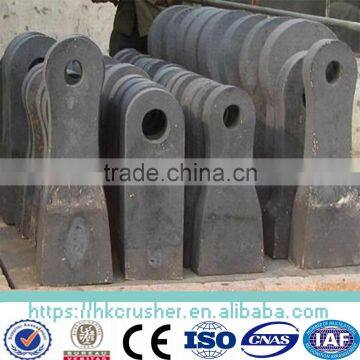

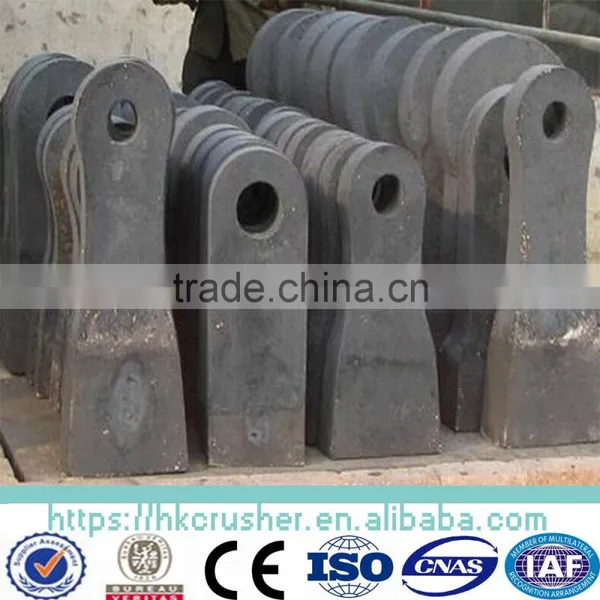

Driven by the motor, rotors rotate at a high speed. The hammers on the rotor also rotate at a high speed. When the
materials are firstly crushed by hammers, then thrown to the impact plate for secondary crushing, and then rebounded
and crushed again by hammers. This pattern is repeated until the materials are completely crushed to the desired size,
and then the materials are discharged through the outlet.
The granularities and shapes of finished materials can be changed by adjusting the gap between impact frame and rotors.
Features
2. The gap between the impacting plate and the plate hammer is convenient for adjustment so that it can effectively control the discharging granularity with good particle shape.
3. It has compact structure and strong rigidness, and the rotational inertia of rotor is very big.
4. High chromium plate is adopted so that it has shock resistance, abrasion resistance and big impacting force.
5. No key links is adopted for convenience of maintenance and repair. In addition, it is very economical and reliable.
6. It is featured with comprehensive crushing, high production ratio, small abrasion and high comprehensive benefits.
| Model | Specifications (mm) | Feed opening (mm) | Max.feeding side length (mm) | Capacity (t/h) | Power (kw) | Total weight (t) | Dimensions ( L×W×H) (mm) |
| PF-1007 | Φ1000×700 | 400×730 | 300 | 30-70 | 45 | 12 | 2330×1660×2300 |
| PF-1010 | Φ1000×1050 | 400×1080 | 350 | 50-90 | 55 | 15 | 2370×1700×2390 |
| PF-1210 | Φ1250×1050 | 400×1080 | 350 | 70-130 | 110 | 17.7 | 2680×2160×2800 |
| PF-1214 | Φ1250×1400 | 400×1430 | 350 | 100-180 | 132 | 22.4 | 2650×2460×2800 |
| PF-1315 | Φ1320×1500 | 860×1520 | 500 | 130-250 | 220 | 27 | 3180×2720×2620 |
| PF-1520 | Φ1500×2000 | 830×2040 | 700 | 300-550 | 400 | 50.6 | 3959×3564×3330 |
fixed international standard package ,by sea delivery is safe and reliable ,suitable for oversea shipping .
Henan hongke heavy machinery Co.,Ltd is located in zhengzhou city ,henan province .With about 20years experenced big machinery factory in henan province .Mainly specilized in all kinds of crusher,shredder ,rotary kiln,dryer ,grinding machine,mining machine and so on , won many domestic and foreign customer to visit and cooperate.
1,we will be at your service for 24 hours,any qustion and requirment just let us know .
2,we have technical guide and engineer help ,can give you best suggestion and help you solve your problem .
3,our after-sale service is long time for the machine ,anytime with pleasure to answer your question .
4,we provide machine sprare parts for free charge to our old customer and any new customer .
Q: Are your real manufacturer?
A: Yes,we have our own big factory ,anytime welcome your visiting .
Q: What do you have for machine installing ?
A: We have engineer for technical gudiance and oversea installing guide .
Q: How can you promise your product quality ?
A: We have about 20 years business experience,we got CE,ISO and so on for our products.but the most important we win our customer with our best quality and honest.
............
Any more question please contact with us and welcome your visiting at our factory .
