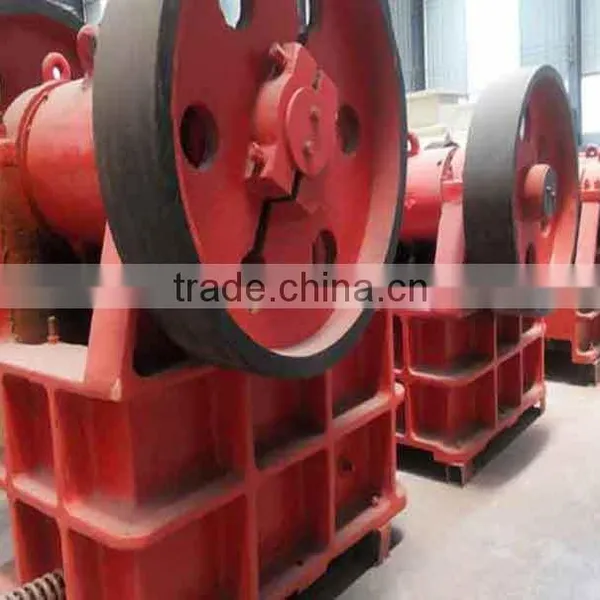

Hot Sale Mini Rock Jaw Crusher with 90-180t/h Capacity
- 500 Set / Sets per Month
- Shanghai or other
- T/T L/C D/P D/A Credit Card
- Tertiary Reversible Impact Hammer Crusher with High Chrome Blow Bar
- China Wheat and Grain Transport Vibrating Feeder Price in Shanghai
- Good Quality Heavy Hammer Crusher for Crushing All Kinds of Ores
- Sand Ore and Coal Vibrating Feeder Machinery Used in Mining Industry
- High Efficiency Stone Crushing Plant Impact Stone Crusher
- Sound Equipment Impact Crusher Machine for Stone Crushing Line
Product Details
Condition: | New | Type: | Jaw Crusher | Application: | Mining |
Power(W): | 55/57kw | Capacity(t/h): | 90-180t/h | Place of Origin: | Henan, China |
Brand Name: | GEC | Model Number: | PE-600*900 | Dimension(L*W*H): | 2305*1840*2260 |
Weight: | 15.5t | Certification: | ISO CE | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Hot Sale Mini Rock Jaw Crusher with 90-180t/h Capacity
Description of mini jaw crusher:
Jaw crusher is widely used in mining, smelting, building materials, roads, railways, water conservancy and chemical industries in a variety of ore and large pieces of material of medium size crushing. The maximum compressive strength of the crushed material is 320Mpa. Jaw crusher is mainly used for coarse crusher and medium crusher in the mining, building materials, refractories, cement, ceramics, infrastructure and other industries. In accordance with the size of the feed width, jaw crusher is divided into large, medium and small three types. Feeding width of more than 600MM is large machine, feed width of 300-600MM is the medium-sized machine, the feed width of less than 300MM is small machine.
Working principle of mini jaw crusher:
The working part of the jaw crusher is two jaw plates, one is the fixed jaw plate, another is the moving jaw plate. The moving jaw plate makes periodic reciprocating motion towards the fixed jaw plate, sometimes separated, sometimes close. When separated, the materials go into the crushing chamber, the finished product will be discharged from the outlet. When close, the material will be crushed between the two jaw plates.
Technical data of mini jaw crusher :
Model number | Feeding Opening size(mm) | Max Feeding material size(mm) | Adjustment Range of Dischage Opening(mm) | Capacity(t/h) | Eccentric shaft speed(r/min) | Electric Motor(kw) | Weight(t) | Dimension(mm) |
PE-150×250 | 150×250 | 130 | 10-40 | 1-5 | 300 | 5.5 | 0.9 | 875×756×850 |
PE-250×400 | 250×400 | 210 | 20-80 | 5-21 | 300 | 15 | 2.6 | 1450×1315×1296 |
PE-400×600 | 400×600 | 350 | 40-100 | 16-65 | 275 | 30/37 | 6.5 | 1565×1732×1586 |
PE-500×750 | 500×750 | 425 | 50-100 | 45-100 | 275 | 55 | 10.1 | 1890×1916×1870 |
PE-600×900 | 600×900 | 500 | 65-160 | 90-180 | 250 | 55/57 | 15.5 | 2305×1840×2260 |
PE-750×1060 | 750×1060 | 630 | 80-140 | 110-320 | 250 | 110 | 28 | 2450×2472×2840 |
PE-800×1060 | 800×1060 | 650 | 100-200 | 140-350 | 250 | 110 | 28.5 | 2450×2556×2800 |
PE-870×1060 | 870×1060 | 670 | 200-260 | 140-380 | 250 | 110 | 30.5 | 2660×2556×2800 |
PE-900×1200 | 900×1200 | 750 | 100-200 | 180-360 | 250 | 132 | 50 | 3335×3182×3025 |
PE-1000×1200 | 1000×1200 | 850 | 192-260 | 200-420 | 250 | 132 | 51 | 3435×3182×3025 |
PE-1200×1300 | 1200×1300 | 1000 | 180-330 | 400-800 | 220 | 200 | 62 | 4538×2984×3959 |
PE-1200×1500 | 1200×1500 | 1020 | 150-350 | 400-800 | 180 | 220 | 100.9 | 4200×3732×3025 |
PE-1500×1800 | 1500×1800 | 1200 | 220-350 | 450-1000 | 180 | 280 | 122 | 5100×4700×4300 |
PEX-250×1000 | 250×1000 | 210 | 25-60 | 16-52 | 330 | 30/37 | 6.5 | 1530×1992×1380 |
PEX-250×1200 | 250×1200 | 210 | 25-60 | 20-60 | 330 | 37 | 7.7 | 1900×2192×1430 |
PEX-300×1300 | 300×1300 | 250 | 25-90 | 20-90 | 330 | 55 | 11 | 1900×2192×1430 |
Characteristics of mini jaw crusher:
1. Low noise, less dust;
2. Large crushing ratio, uniform product size;
3. Simple structure, reliable operation, low operating costs;
4. Lubrication system is safe and reliable, easy to replace parts and maintain;
5. Deep crushing cavity and no dead zone, increasing the feeding capacity and yield;
6. Equipment energy-saving: Single machine energy saving 15% ~ 30%, system more than twice energy saving;
7. Wide adjustment range of discharge port, can meet different customers’ demand;
8. Gasket-type discharge port adjustment device, reliable and convenient, a large adjustment range, increasing the flexibility of the equipment.
Packing:
Inner Packing: Product wrapped by PP-Bubble
Outer Packing: Load container, Spare Parts in wooden case
Storage Requirement: waterproof, put in the flat ground
Shipping:
These machines are processed to be rustproof and moisture proof before shipping;
Large mainframes are in nude, while small spare parts and motors are in wooden boxes.
In order to offer you suitable type, could you please send inquiry details as below:
1. Which machine do you need?
(such as crusher, grinder, vibrating screen, vibrating feeder, belt conveyor and other benefication equipment)
2. Which kind of material you are going to process?
Soft stone (dolomite, limestone and others) or hard stone (granite, basalt, river pebble and others) ?
3. What's the production capacity you want?
How many tons or cubic meters per hour?
4. You want only a machine or a complete production line?
And please tell me your email and phone, I will give you factory price with full specification and you will know all details about machine and discount.
