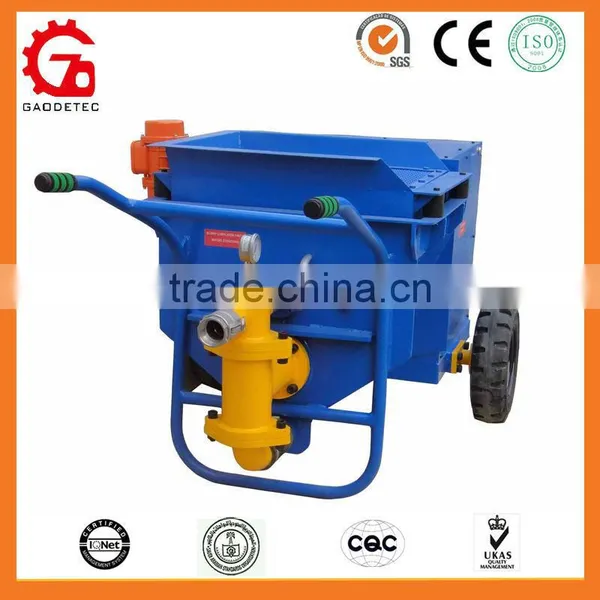

GMP50 40 with Output 50L | min Plaster Mortar Pump
Mortar Pump description
GMP50/40 Mortar Pump is a kind of piston and ball controlling pump, and the conveying line, piston and cylinder is specially designed and processed, so this machine is workable for high-pressure grouting/spraying mortar (the mixture of sand: cement: water).
GMP50/40 Mortar Pump is successfully used in sealing, strengthening, stabilizing of rock and soil, tunneling, building hydro-power project, etc, and also used for spraying mortar in construction and 3D Panel, etc.
Mortar Pump features
1. Single piston with single-acting.
2. Ball valve
3. Mechanical transmission
4. Integrate pump head and hopper
5. Prevent eduction and deposition together with the paddle agitating
Mortar Pump Technical data
Rated Output |
50L/min |
Rated Pressure |
4MPa(40bar/580PSI) |
Cylinder Dia. |
90mm |
Piston Stroke |
85mm |
Stroke/Minute |
95/min |
Inlet diameter |
75mm |
Outlet diameter |
50mm |
Max. Aggregate size |
5mm |
Water cement ratio |
1: 3 |
Power unit |
5.5KW(Electric) |
10hp(Diesel)Chassis |
Skid or Tyre |
Weight |
450kg |
Overall Dimensions |
1715x1024x900(mm) |

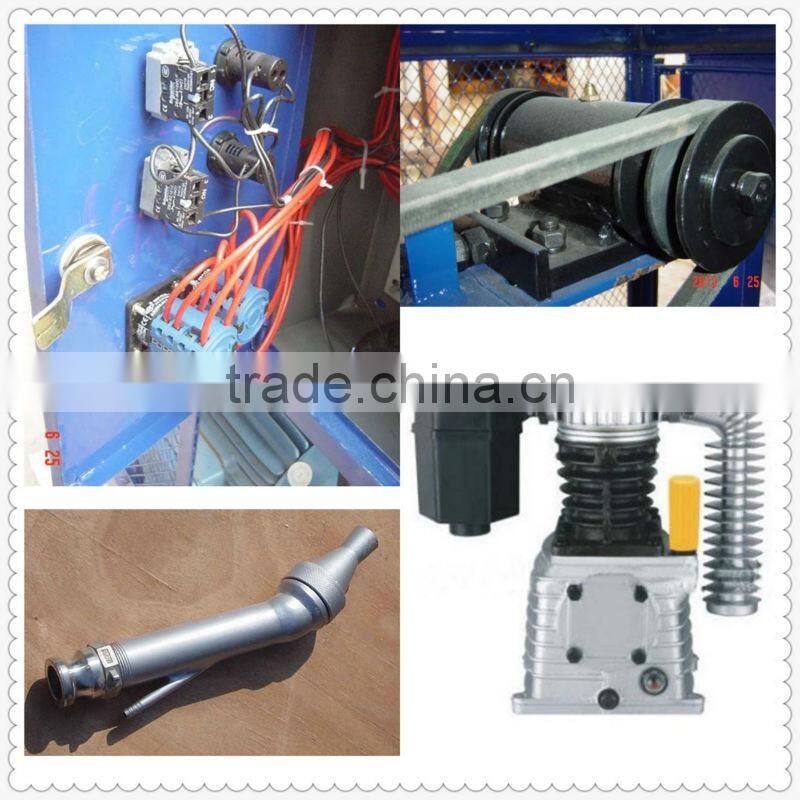

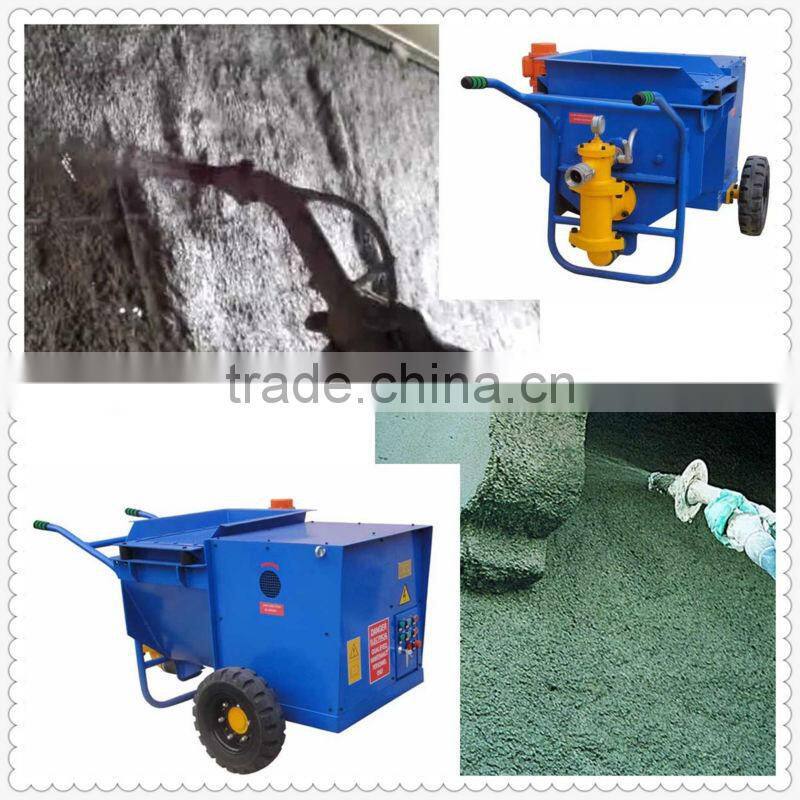

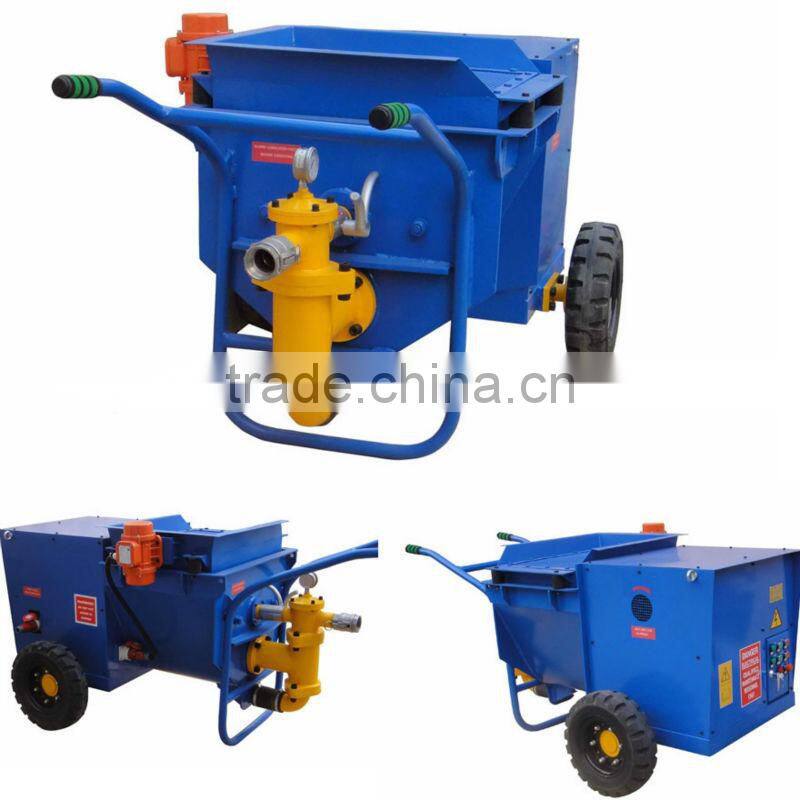

Mortar Pump Photoes
Certification of our company:

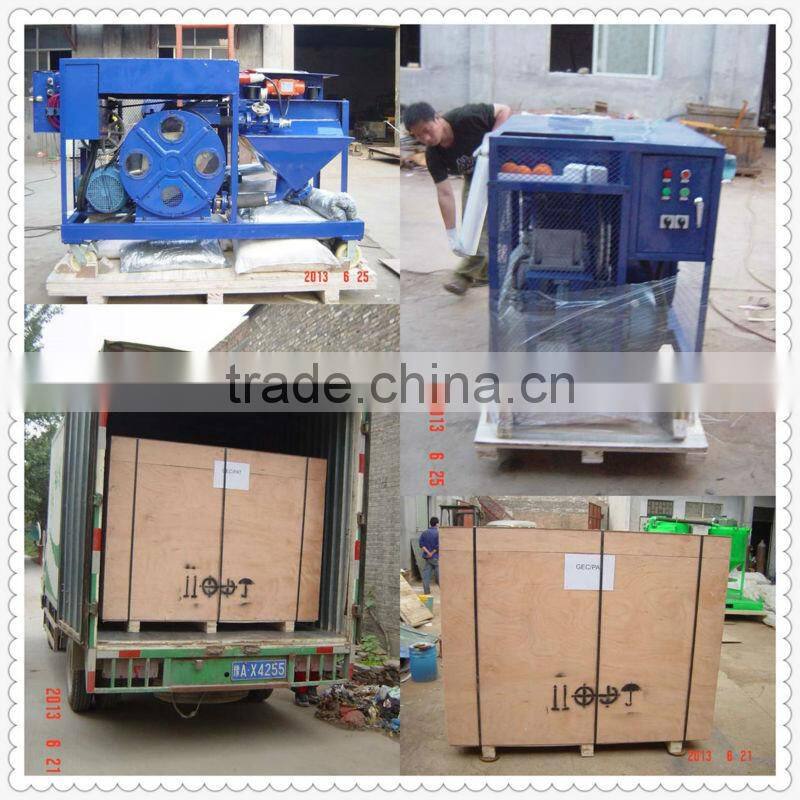

Factory:
If you have any question please feel free to contact me.
Gaode Equipment Co.,Ltd.
Tel:+86-371-55951210 Fax:+86-371-63526676
Skype: lena.liu8
Whatsapp&viber: 86-15903613994
Thank you for your time and Welcome to Visit our factory!
