GMP40 | 10-H with CE ISO Plaster Pump
- 800 Set / Sets per Month
- Shanghai Tianjin or required
- T/T L/C D/P D/A Credit Card PayPal
- outdoor Medium High pressure Portable abrasive waterjet reinforced concrete cutting machine
- 52 Meter Concrete Pump Truck
- Sany concrete pump hose reel 60031864
- Zhongyi motor concrete pump parts
- 37 Meter Concrete Pump Truck
- diesel mini concrete pump for sale Aggregate size 30mm post tension grout mortar cement pump
Product Details
Condition: | New | Power Type: | Electric | Place of Origin: | Henan, China |
Brand Name: | GEC | Model Number: | GMP40/10-H | Power(W): | 3kw |
Weight: | 440kg | Dimension(L*W*H): | 1600*800*1060mm | Certification: | CE,ISO |
Warranty: | 12months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Choose GEC,choose high quality!

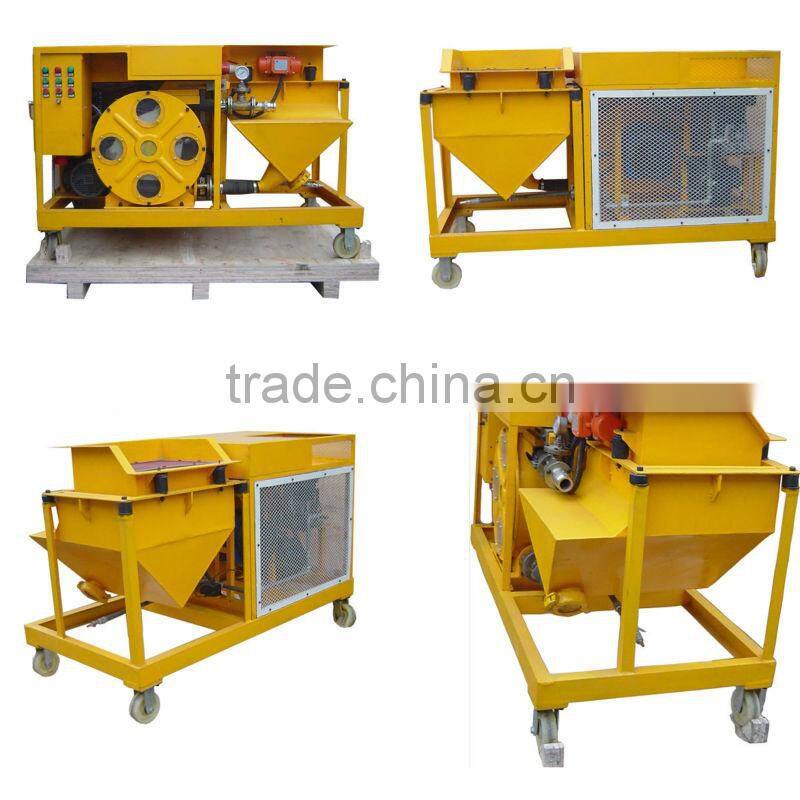

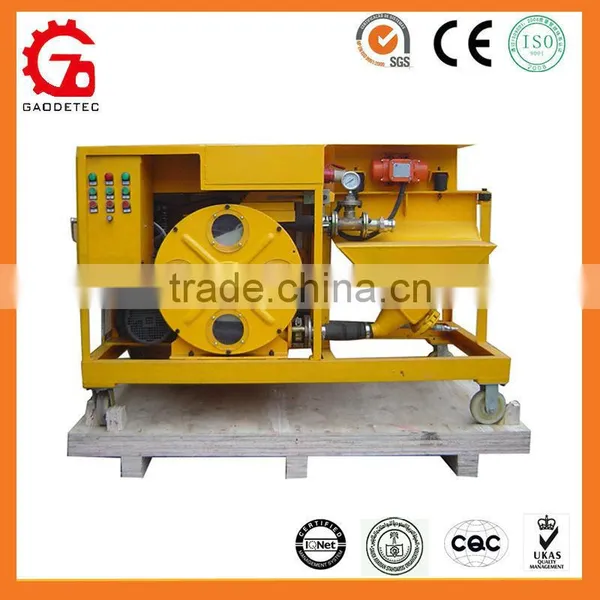

GMP40 | 10-H with CE ISO Plaster Pump
Description
This pump is designed as the combination of GH38-430 hose pump (peristaltic type), mini air compressor and frequency converter.
GH38-430 HEAVY-DUTY HOSE PUMP TECHINCAL DATA | ||
Item | Description | Remarks |
Rotor Dia.(D) | 430mm | |
Hose ID | 38mm/1.5inch | |
Rotor Rev. | 15-33rpm | |
Rated Output/Flow | 18-40L/min | |
Rated pressure | 10 bar | |
Motor Power | 3 KW /4hp, 3 phase, 380v, 50 Hz,IP55 | * |
Suck lift | 5 meter | |
Hose material | NR(Natural Rubber) | |
Overall Dimension | 1600x800x1060mm | |
Weight | 440kg | |
Note:1,the gearbox is heavy -duty Helical-bevel gear 2,*WEG or China domestic electric motor |

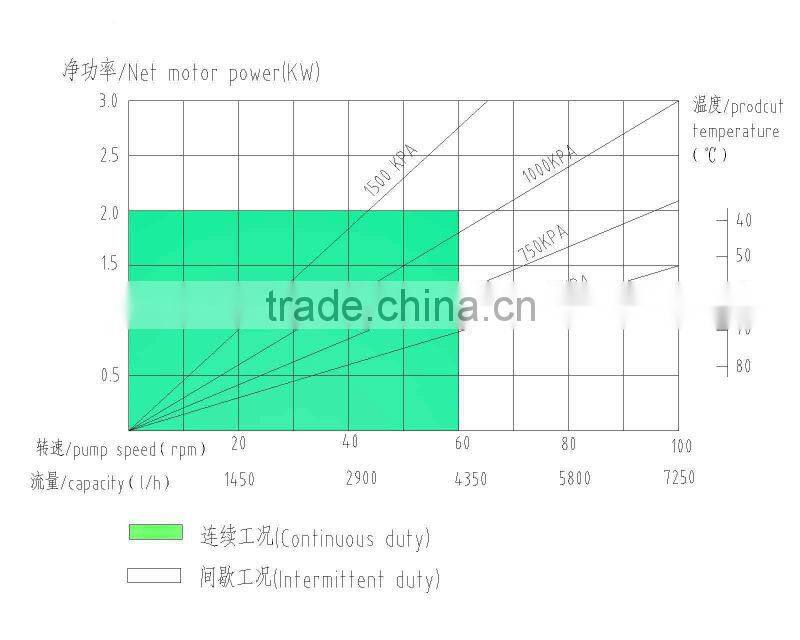

Specification
GH38-430
Feature
1. Mini air compressor
2. Rigid tooth flank helical gear
3. Nozzle specially design to get continuous spaying flow

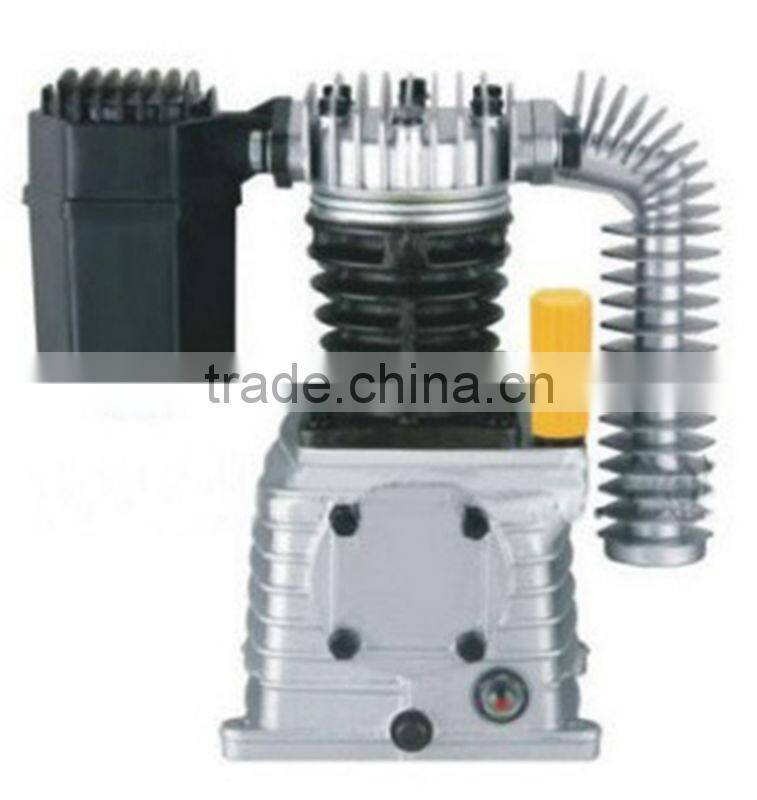

Mini Air Compressor | |
Rated output | 300L/min |
Rated pressure | 7 bar |

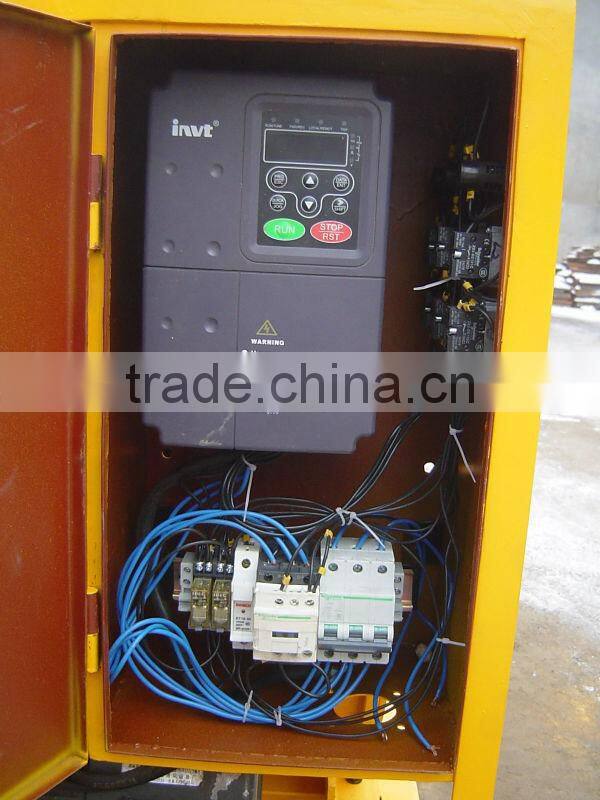

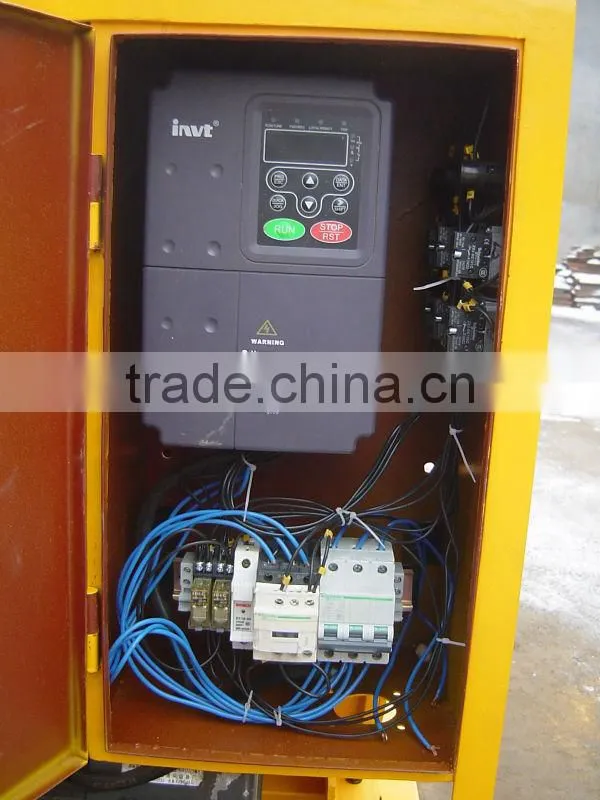

Frequency Converter |
The basic version is one made in China, if you need Siemens, SEW or ABB, please check it from us. |

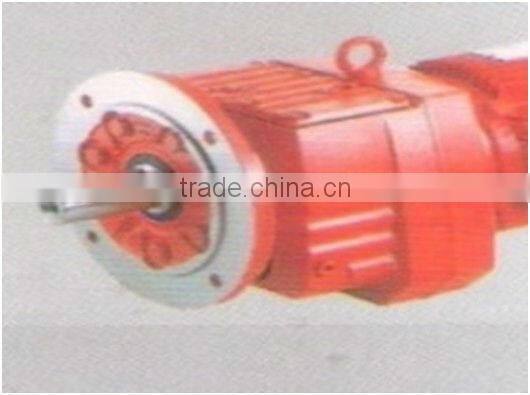

Gearbox |
Rigid tooth flank helical gear |

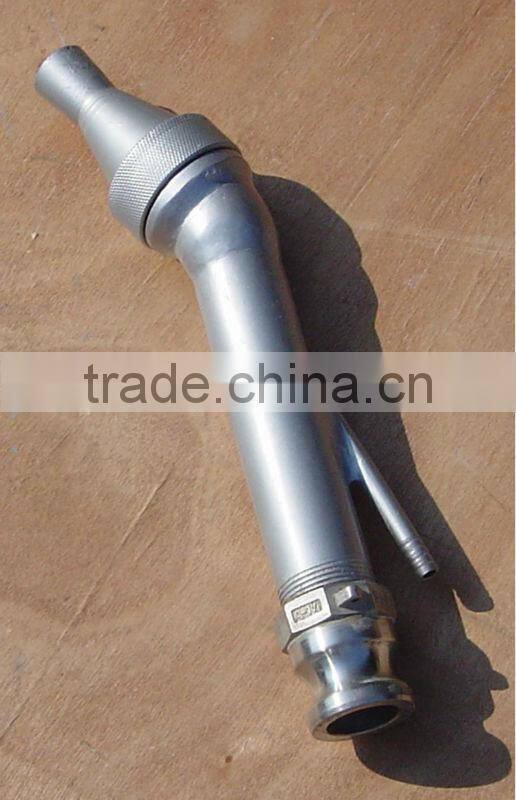

Nozzle |
Specially design to get continuous spaying flow |

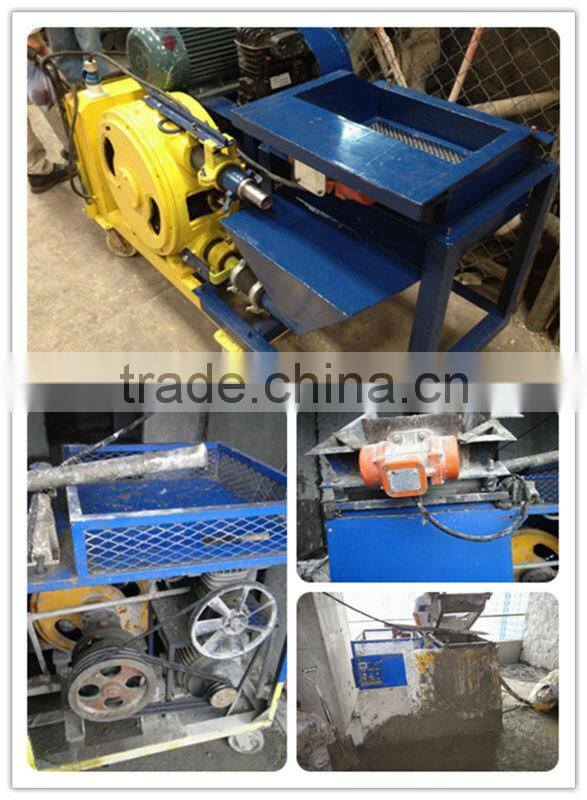

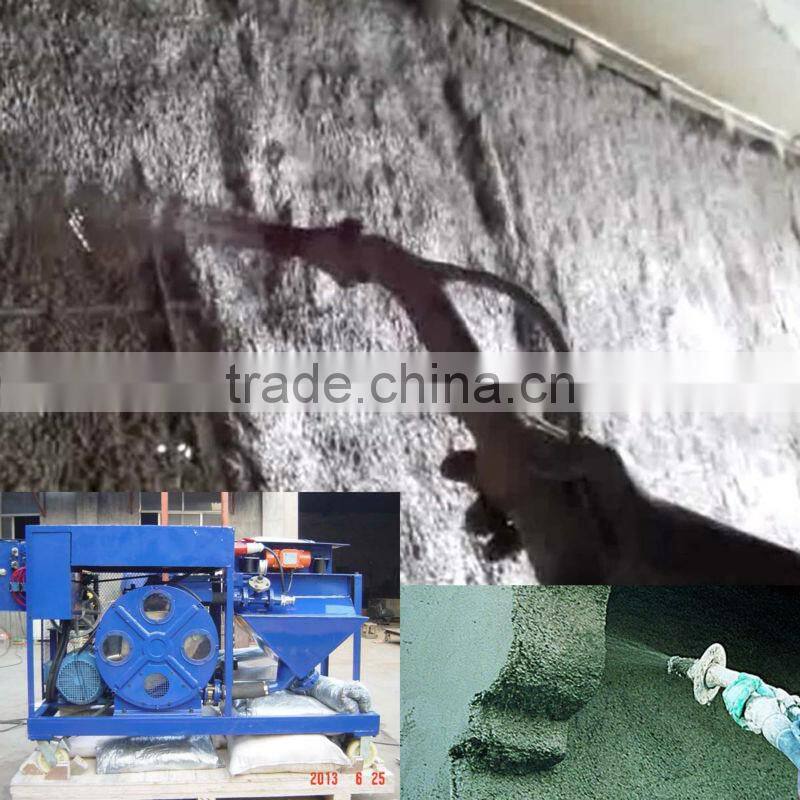

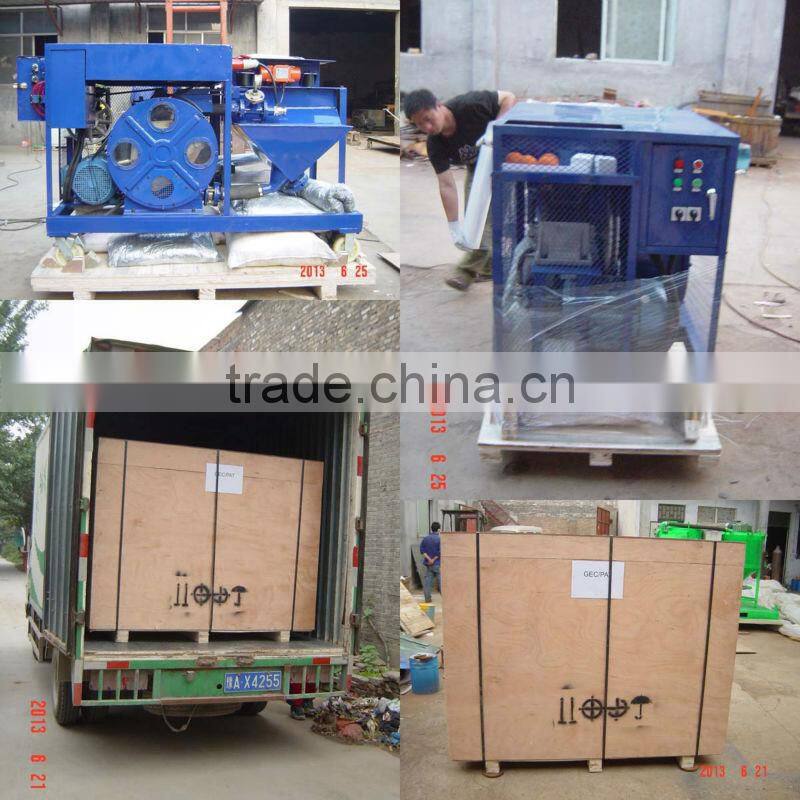

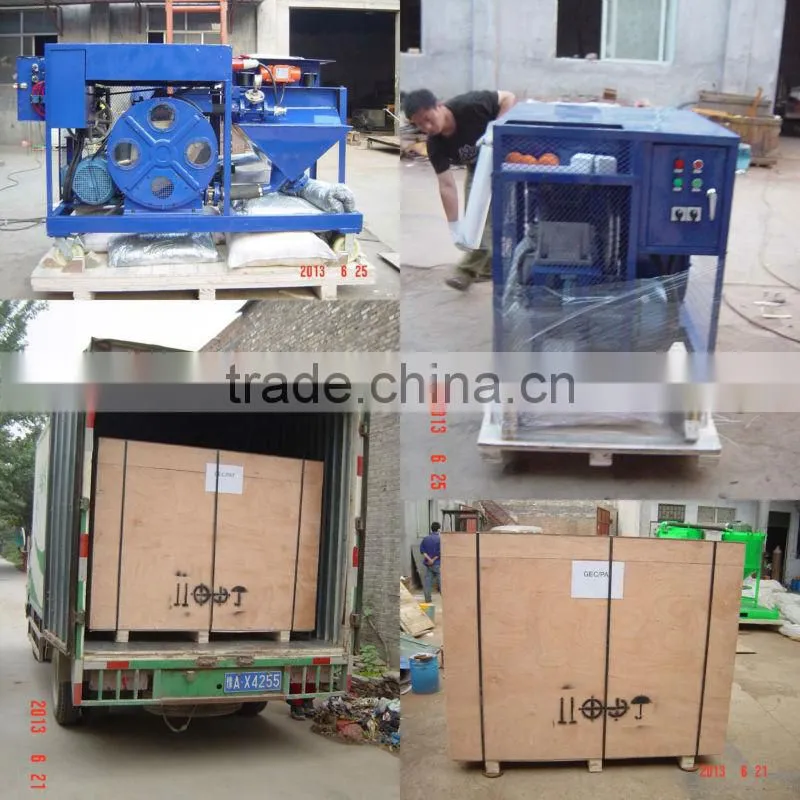

Photoes
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD78000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.

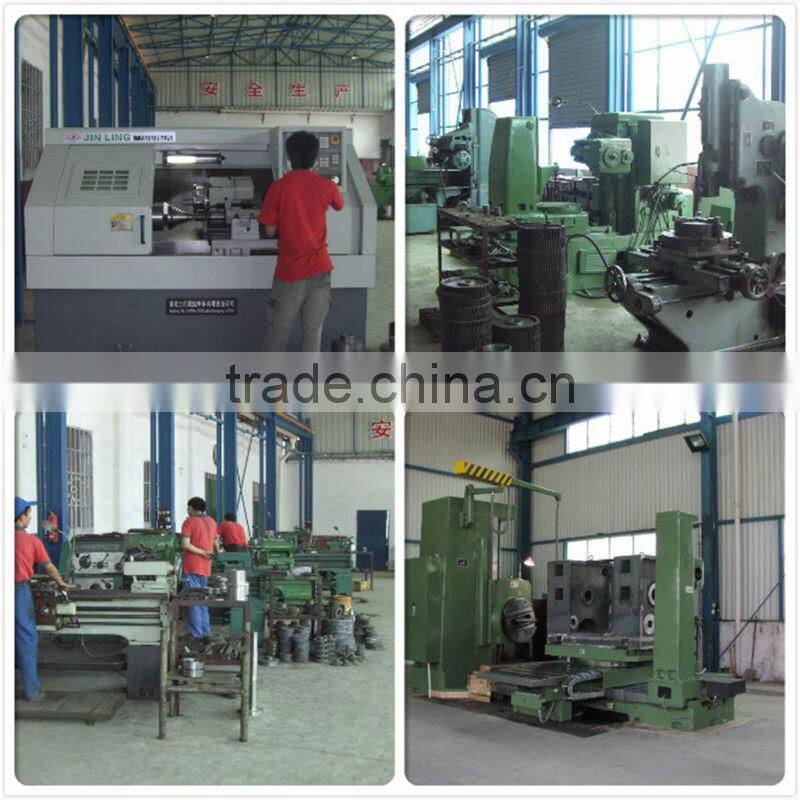

Factory:
Certification of our company:
If you have any question please feel free to contact me.
Gaode Equipment Co.,Ltd.
Tel:+86-371-55951210 Fax:+86-371-63526676
Skype: lena.liu8
Whatsapp&viber: 86-15903613994
Thank you for your time and Welcome to Visit our factory!
