GMA300-650D Good Quality Cement Grout Mixer for Ground Engineering

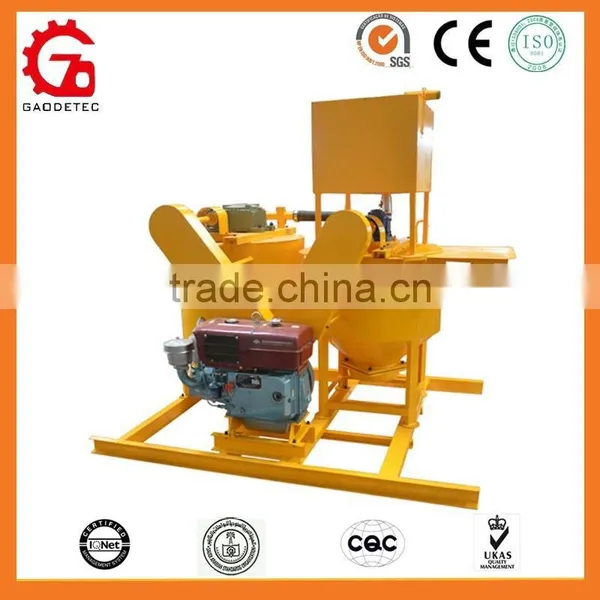

GMA300-650D Good Quality Cement Grout Mixer for Ground Engineering photo-1
GMA300-650D Good Quality Cement Grout Mixer for Ground Engineering photo-2

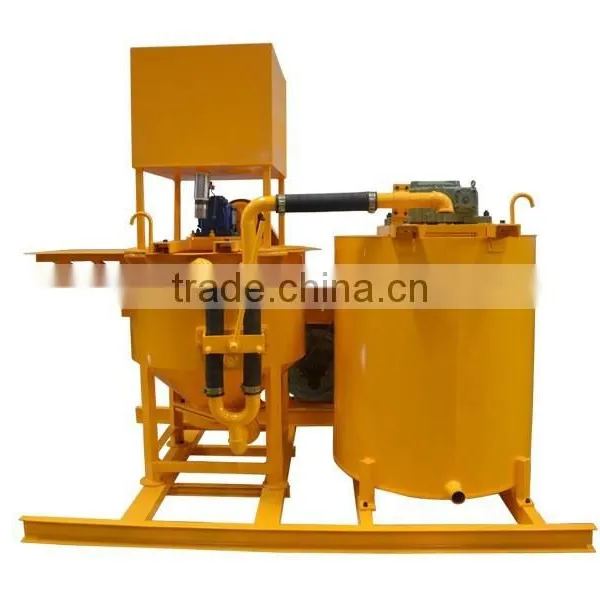

GMA300-650D Good Quality Cement Grout Mixer for Ground Engineering photo-3
US$ 1,500 - 6,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
GEC
Model Number:
GMA300-650D
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao or as your requirement
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Henan, China
Brand Name GEC
Model Number GMA300-650D
After-sales Service Provided Engineers available to service machinery overseas

Choose GEC,choose high quality!

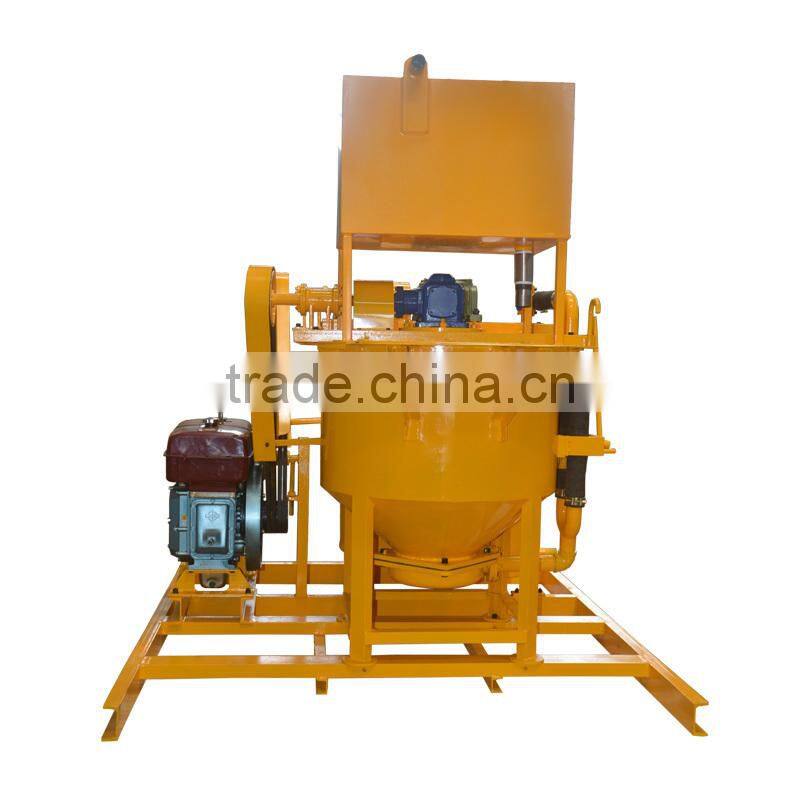

GMA300-650D good quality cement grout mixer for ground engineering



Product Description

GMA300-650D cement mixer&agitator is a combination of mixer and agitator, it is specially design for continuous cement mixing and grouting in ground/underground engineering.

It can produce various types of grout, such as water, cement, bentonite and additive could be mixed in the 300L mixer machine, then the mixed slurry can be stored into a 650 liters agitator, thus the mixing work can continuously be done.

For the power, there are diesel engine and electric motor for option

 GMA300-650D good quality cement grout mixer for ground engineering



GDM300-650D Features:

1. One-man operation

2. Extremely fast mixing

3. No seals to wear out from grout

4. Simple grout transfer from mixer to agitator



GMA300-650D technical data:



 300L MIXER

Rated capacity

300 liter

Acceptable W/C ratio

≥0.5:1

Mixing time

3 min

Max emptying speed

1200L/min

Mixing speed

1500rpm

Weight

300 kgs

Overall Dimension

850mmdiax750mm



 650L AGITATOR

Rated capacity

650 liter

Rated Rev.

30rpm

Weight

150 kgs

Overall Dimension

900mm diax1050mm

Water tank

Rated capacity

150 liter

Weight

50kg



GMA300-650 E/D grout mixer and Agitator

Power

18HP (ZS1105 Changchai diesel engine)

7.5 KW( grout mixer)+1.5KW(Agitator)

 electric motor(3 phase, 380V, 50HZ)

Weight

750kg

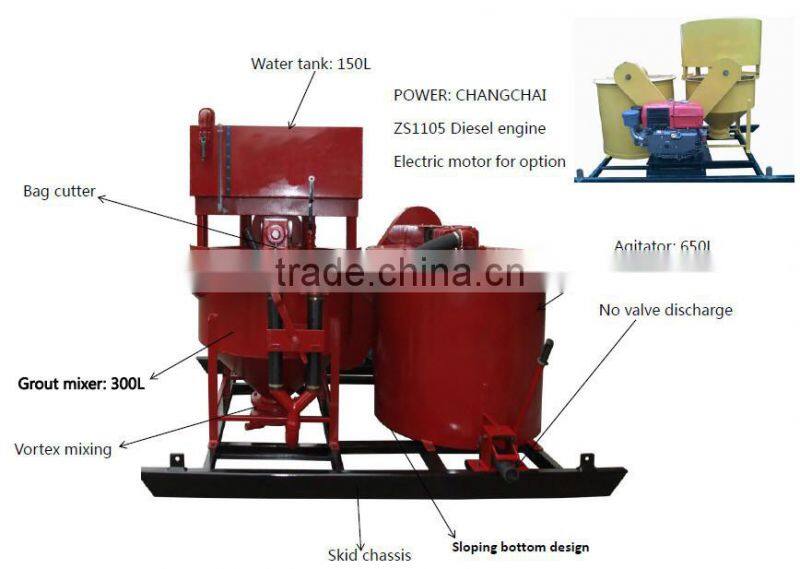

Detailed Images

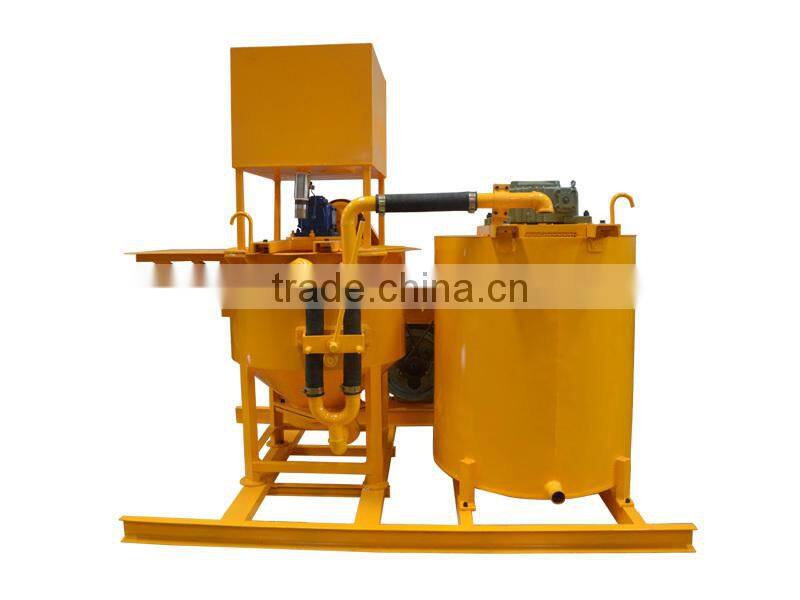

GMA300-650D good quality cement grout mixer for ground engineering

GMA300-650D good quality cement grout mixer for ground engineeringGMA300-650D good quality cement grout mixer for ground engineering

GMA300-650E grout mixer agitator with electric motor for option:

GMA300-650D good quality cement grout mixer for ground engineering

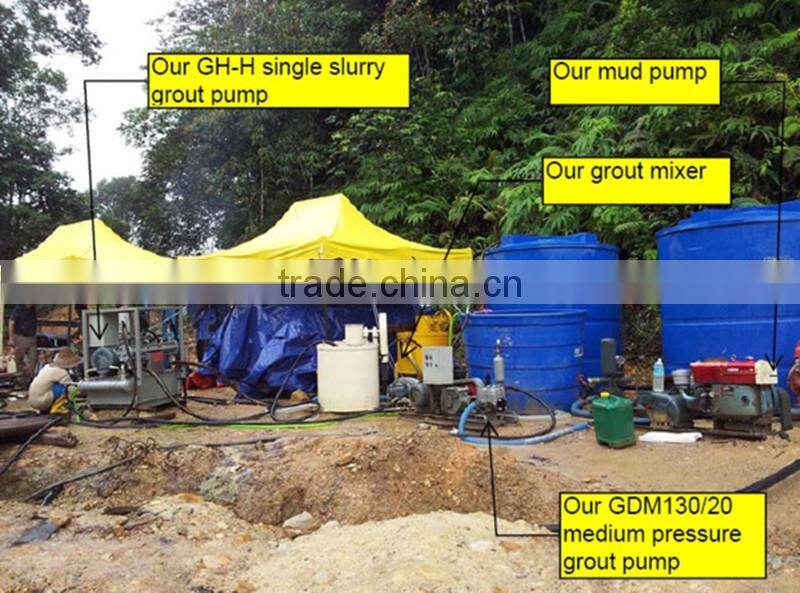

Application

GMA300-650D good quality cement grout mixer for ground engineering

Related Products

We also have the following products for option:

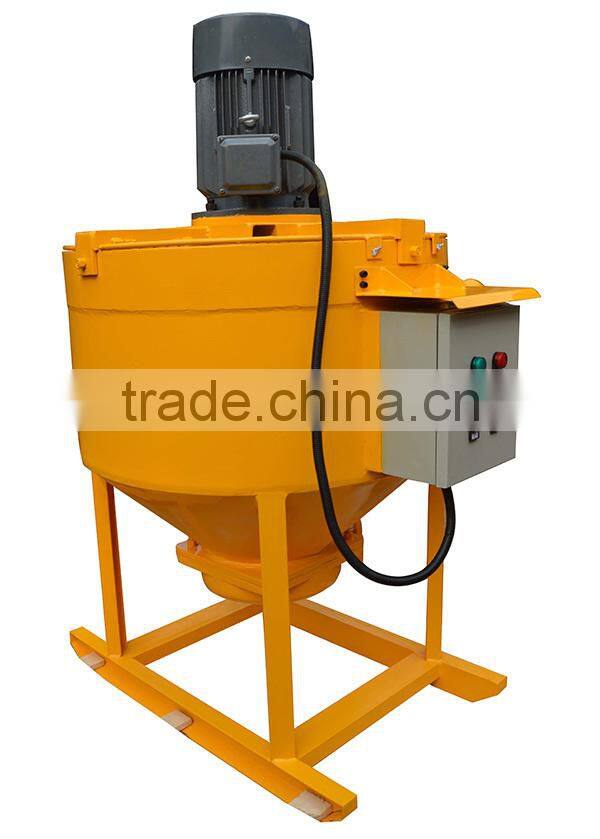

GM300E grout  cement mixer

GMA300-650D good quality cement grout mixer for ground engineering

GMA400-700 cement mixer & agitator could be matching with  GDH70&GDH90  piston type grout pump for the pressure grouting in tunnel, mining engineering etc. project

GMA300-650D good quality cement grout mixer for ground engineering









Certifications

Certification of our company:

  GMA300-650D good quality cement grout mixer for ground engineering

Our Services

Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.

We are a member of trade assurance on Alibaba, and our trade assurance amount is USD78000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.

FAQ



 1Q:How to choose suitable type grouting mixer and agitator?

      A: Suitable type will be recommend according to your project, output, pressure etc. factor.

2.   Q: What's the project of the grout pump would be used for?

       A: pressure grouting in tunnel, mining engineering, dam, foundation engineerig of bridges, building, and other different kinds of underground engineering.

3.    Q: You are factory or trading company?

        A:  Gaode Equipment is has our own factory and technology team, also could be according to your demands to offer the best  solution.

4.     Q: What's the delivery time?

        A: For common type: in one week;

            If customize: need 3-4 weeks
