Compact structure GDH75 100 vertical piston grout pump with double pump
- 100 Set / Sets per Month
- Shanghai Qingdao or as your requirement
- T/T L/C D/P D/A Credit Card PayPal
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Henan, China | Brand Name: | GEC | Model Number: | GDH75/100 |
Theory: | Rotary Pump | Structure: | Piston Pump | Usage: | Other, grout pump |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, Electric |
Pressure: | Other, Adjustable pressure | Application: | Other, Construction, marine and mining,etc. |
Product Description
Choose GEC,choose high quality!

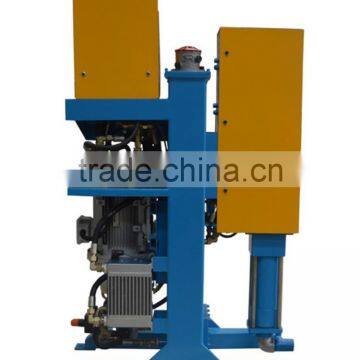

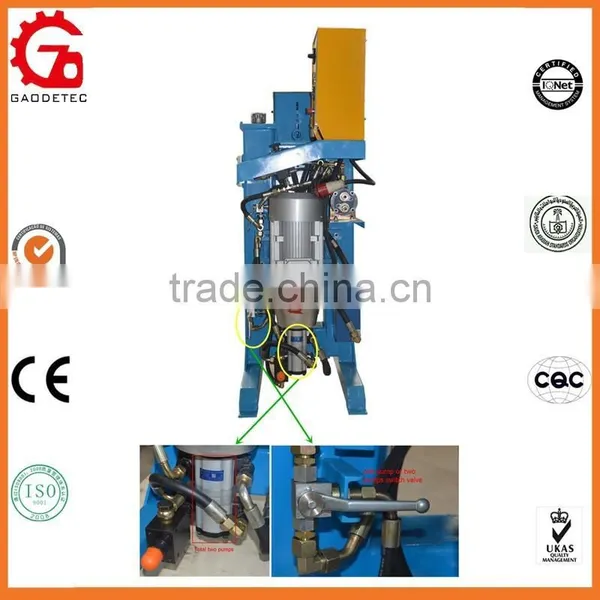

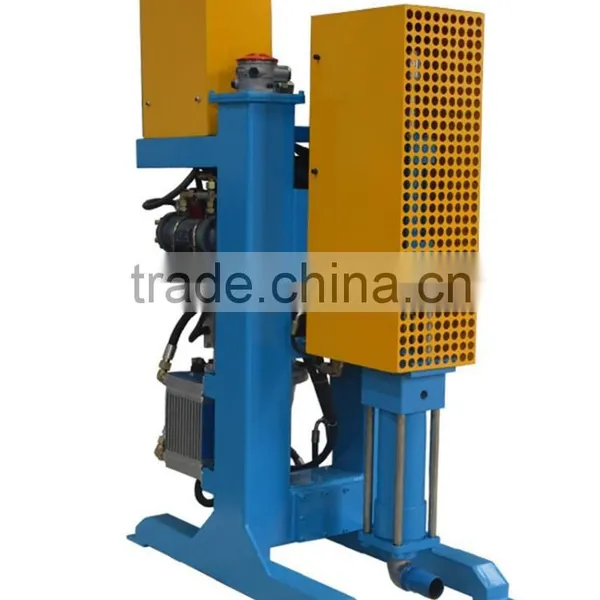

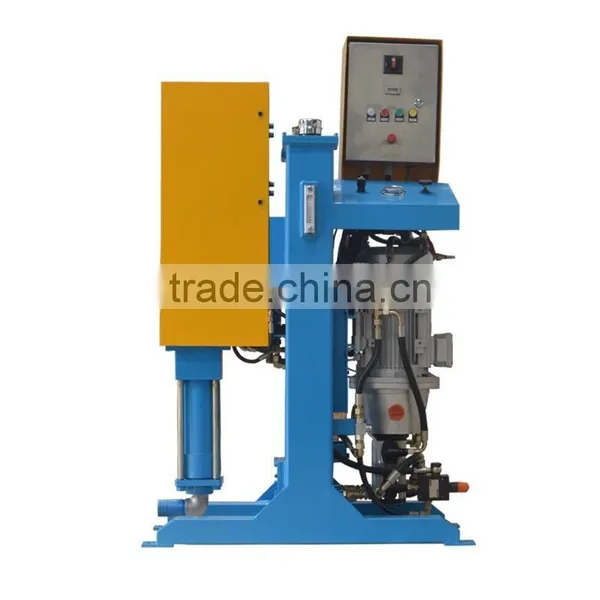

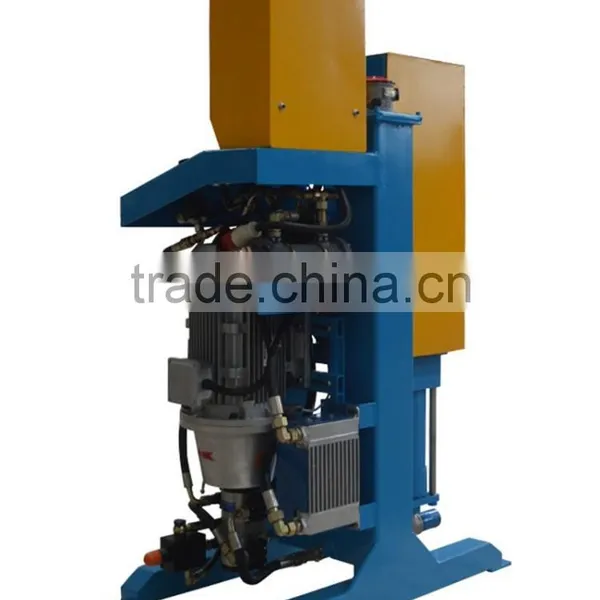

Compact structure GDH75 100 vertical piston grout pump with double pump
Description:
The GDH 75/100 high pressure vertical grouting pump is designed and made for permeation grouting, compaction grouting, backfilling grouting, curtain grouting, high pressure split grouting etc, grouting methods.
Grouting material: cement mixture, mortar/plaster, bentonite and other additive.
Specification |
|
Item | GDH75/100 PI-E grout pump |
Piston diameter | 100mm |
Piston stroke | 150mm |
Adjustable pressure ( low pressure) | 0-50Bar/725psi |
Adjustable flow rate (low pressure) | 0-75L/min |
Adjustable pressure ( high pressure) | 0-100Bar/1450psi |
Adjustable flow rate ( high pressure) | 0-40L/min |
Discharge pipe size | M27x2 |
Inlet pipe size | G2’’ |
Power Unit | 7.5kw |
Chassis | Skid |
Weight | 390Kg |
Overall Dimension | 1040x550x1650mm |
Note: Chassis: Skid or Tyre We also could according to your demands to customize |
Apllications:
1. Civil Engineering - dam foundations, tunnels, mining, soil nails, tiebacks, earth anchors, cable and rock bolts
2.Structural- building and bridge restoration, foundation stabilization, foundation raising, soil compaction grouting; soil & rock grouting
3. Construction - pavement under sealing, slab jacking and slab raising
4. Marine- underwater foundations, piers, breakers, shoreline foundations
5. Mining - tunnel lining, contact grouting, shaft waterproofing
6. Utilities - encasements, waterproofing, slope line grouting
7. Geotechnical - deep well casing, monitor wells, well sealing and abandonment
1. Compact structure, light weight, easy operate, low maintenance cost;

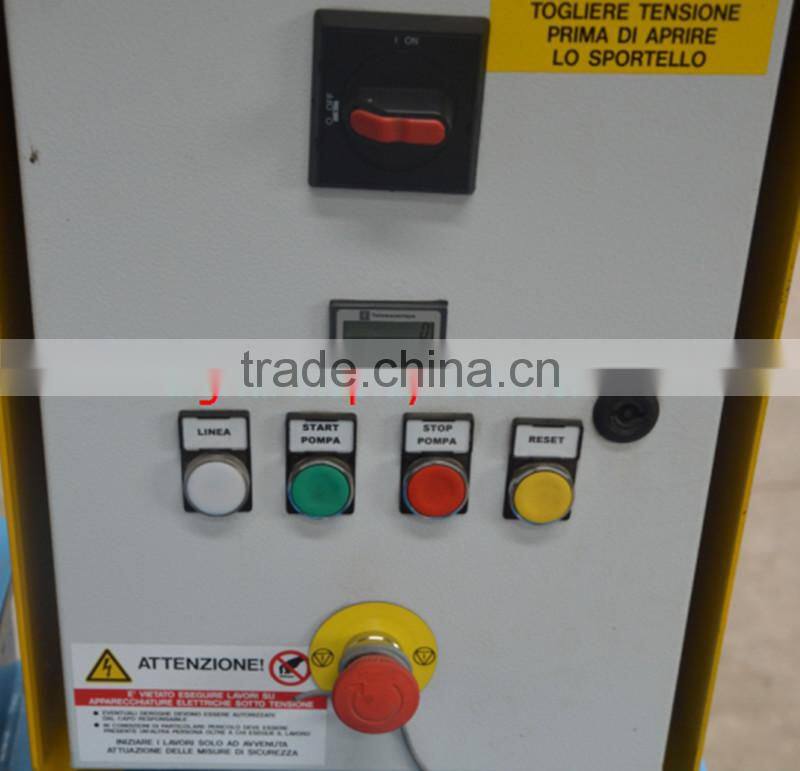

2. With digital display counter: it can display at any time, and can accumulate work times;

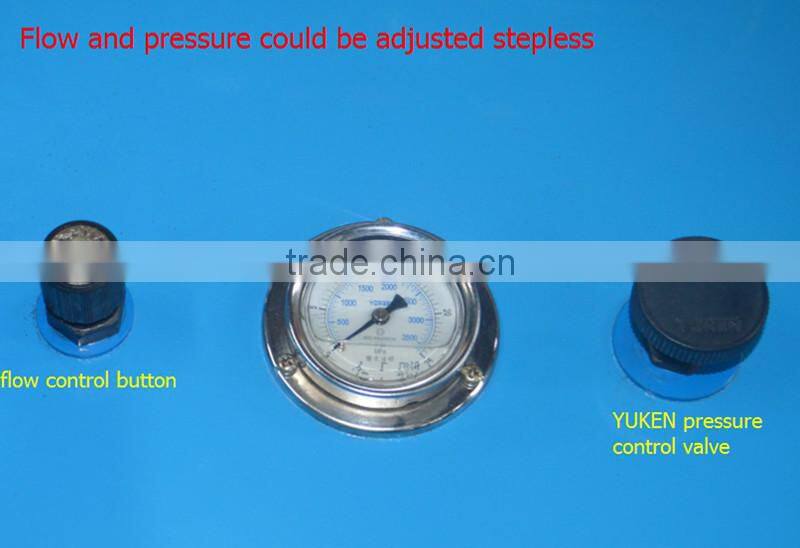

3. Flow and pressure can be adjusted step-less;

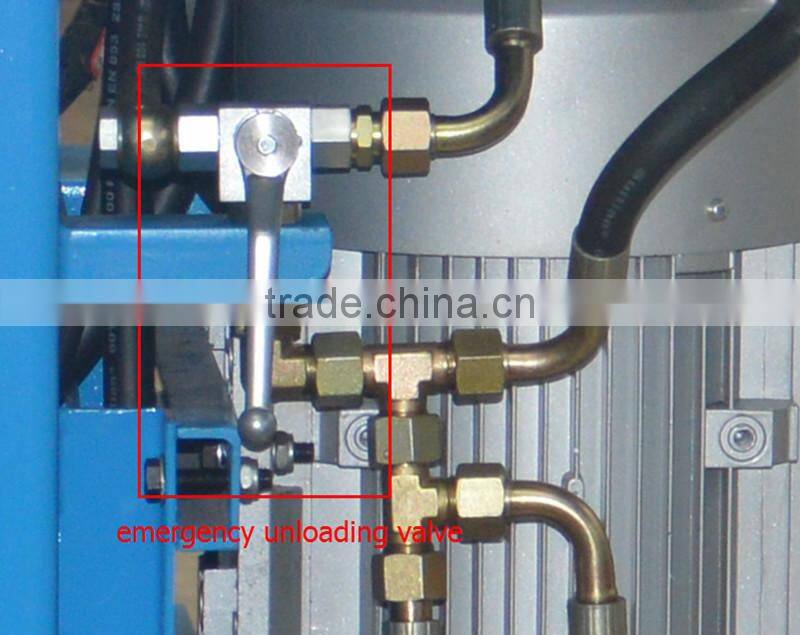

4. Equipped with emergency unloading valve: in case of an emergency, it can be load-off instantly;
5. In low pressure, it will be flow-converging of two pumps; In high pressure, there is only one pump work. Low pressure and large flow, high pressure and low output.
6. With full-hydraulic shaft device, stable and reliable operation;
7. Cooling type: water-cooling and air cooling; Suitable for hot and cold areas.
Factory:
Workshop:
Certification of our company:
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD78000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
