Gaode grouting equipment for sealing of rock and soil
- 100 Set / Sets per Month
- Shanghai Qingdao or as your requirement
- T/T L/C D/P D/A Credit Card PayPal
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Henan, China | Brand Name: | GEC | Model Number: | GDH75/100 |
Theory: | Rotary Pump | Structure: | Piston Pump | Usage: | Other, grout pump |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, Electric |
Pressure: | Other, Adjustable pressure | Application: | Other, Construction, marine and mining,etc. |
Product Description
Gaode grouting equipment for sealing of rock and soil
Gaode grouting pumps designed and made for permeation grouting, compaction grouting,
backfilling grouting, curtain grouting, high pressure split grouting etc, grouting methods.
mainly used for grouting in soil nails, earth anchors, cable and rock bolts, void fillings, dam foundations, foundation stabilization, tunnel lining, slope line grouting, grouting-process in underground and civil applications.
Grouting material: cement mixture, mortar/plaster, bentonite and other additive.
Equipment includes: GDH75/100 grouting pump, GDM130/20 grouting pump, GDM60/40 grouting pump, BW200 grouting pump, and GMA series grout mixers
GDH 75/100 high pressure vertical grouting pump
Specification |
|
Item | GDH75/100 PI-E grout pump |
Piston diameter | 100mm |
Piston stroke | 150mm |
Adjustable pressure ( low pressure) | 0-50Bar/725psi |
Adjustable flow rate (low pressure) | 0-75L/min |
Adjustable pressure ( high pressure) | 0-100Bar/1450psi |
Adjustable flow rate ( high pressure) | 0-40L/min |
Discharge pipe size | M27x2 |
Inlet pipe size | G2’’ |
Power Unit | 7.5kw |
Chassis | Skid |
Weight | 390Kg |
Overall Dimension | 1040x550x1650mm |
Note: Chassis: Skid or Tyre We also could according to your demands to customize |

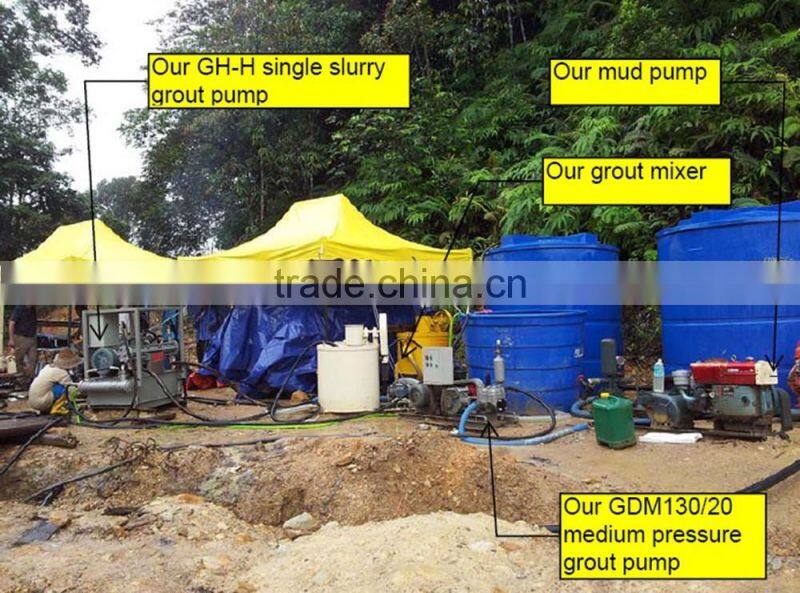

GDM 130/20 medium pressure grouting pump
Specification
Rated Output | 130L/min |
Rated Pressure | 2MPa(20bar/290psi) |
Cylinder Dia. | 75mm |
Piston Stroke | 85mm |
Stroke/Minute | 180/min |
Inlet diameter | 51mm |
Outlet diameter | 38mm |
Power unit | 5.5KW(Electric) 10hp(Diesel) |
Transmission | V-belt+gearbox |
Chassis | Skid |
Weight | 260kg |
Overall Dimensions | 1400x600x1000(mm) |
GDM 60/40 medium pressure grouting pump
Specification
Rated Output | 130L/min |
Rated Pressure | 2MPa(20bar/290psi) |
Cylinder Dia. | 75mm |
Piston Stroke | 85mm |
Stroke/Minute | 180/min |
Inlet diameter | 51mm |
Outlet diameter | 38mm |
Power unit | 5.5KW(Electric) 10hp(Diesel) |
Transmission | V-belt+gearbox |
Chassis | Skid |
Weight | 260kg |
Overall Dimensions | 1400x600x1000(mm) |

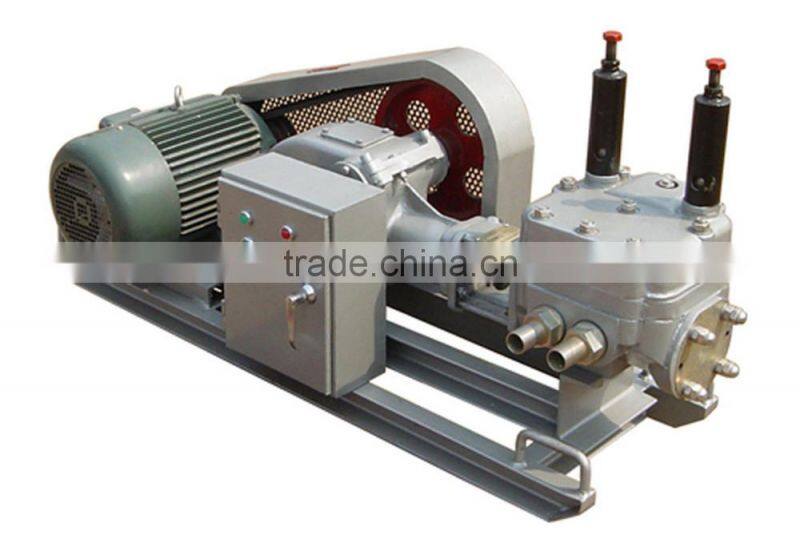

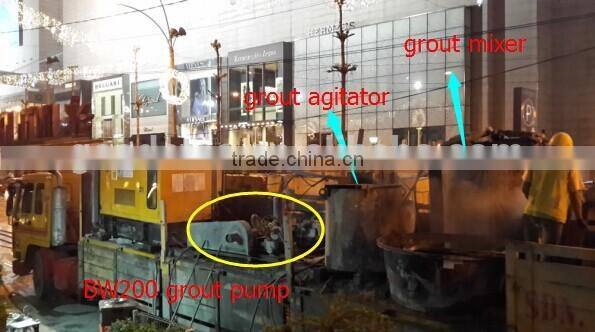

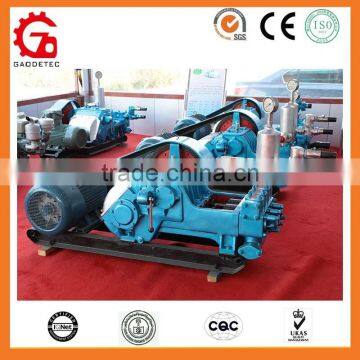

BW200 grouting pump
Specification
type | Horizontal piston pump |
Piston stroke | 85mm |
Inside diameter cylinder | 80mm;65mm |
Rated pressure(Mpa) | 4;6 |
Reciprocating piston number | 145 |
Rated Flow | 200; 125 |
Power | 15KW |
Triangle belt type specifications ,number | 385mm, B, 5 |
Suction tube diameter | 65mm |
Discharge pipe diameter | 37mm |
Dimension | 1050x630x820mm |
Weight | 300kg |
GMA series grout mixer & agitator

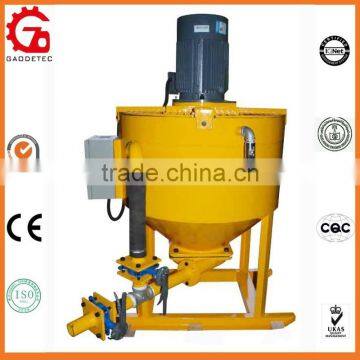

GMA400-700E electric grout mixer & agitator
Specification
400L MIXER | |
Rated capacity | 400 liter |
Acceptable W/C ratio | ≥0.5:1 |
Mixing time | 3 min |
Mixing speed | 1500rpm |
Power | 7.5kW |
Weight | 400kgs |
Overall Dimension | 1500x1100x1500mm |
700L AGITATOR | |
Rated capacity | 700 liter |
Rated Rev. | 35rpm |
Power | 3kW |
Weight | 200 kgs |
Overall Dimension | 1300x1200x1350mm |
GMA300-650D diesel grout mixer & agitator and GMA300E grout mixer for option
1. Q: What project will you use the grout pump do?
A: for permeation grouting, compaction grouting, backfilling grouting, curtain grouting,
high pressure split grouting or other ?
2. Q: What's the output and pressure do you required?
A: if need, we also ca according your demands to redesign the pump.
3. Q: Whether can according customer's demands customized?
A: Of course. But we need to make clear the following points: what's project will use the pump do? What's the output and pressure do you need?
4. Q: Whether can only offer pump head?
A: Of course. we cpould only offer pump head and also can make OEM for you.
5. Q: Payment item?
A: TT, 100%;
TT, 30% deposit ,70% before shipment.;
L/C at sight (high bank charge, not suggest , but acceptable ).
Contact:
Gaode Equipment Co.,Ltd.
Tel:+86-371-55951210 Fax:+86-371-63526676
Skype: lena.liu8
Whatsapp&viber: 86-15903613994
Thank you for your time and Welcome to Visit our factory!
