Product Details
Place of Origin: | Henan, China | Brand Name: | GEC | Model Number: | GDH 75/100 |
Theory: | Reciprocating Pump | Structure: | Piston Pump | Usage: | Other, cement or mortar |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, Electric |
Pressure: | High Pressure | Application: | Other, cement grouting pump |
Product Description

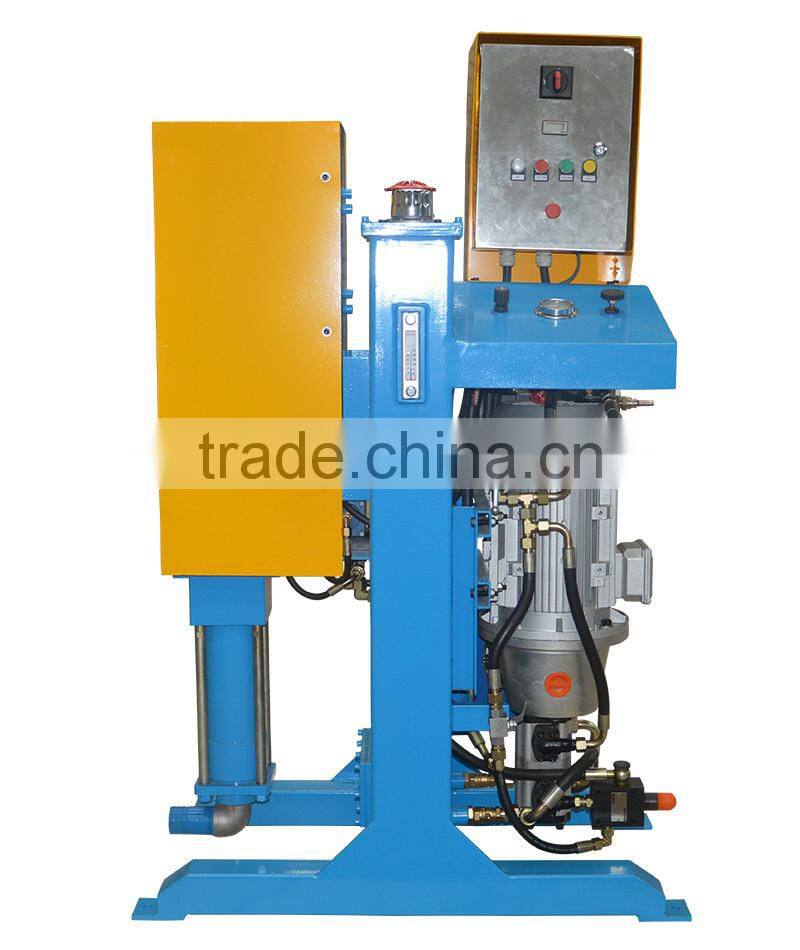

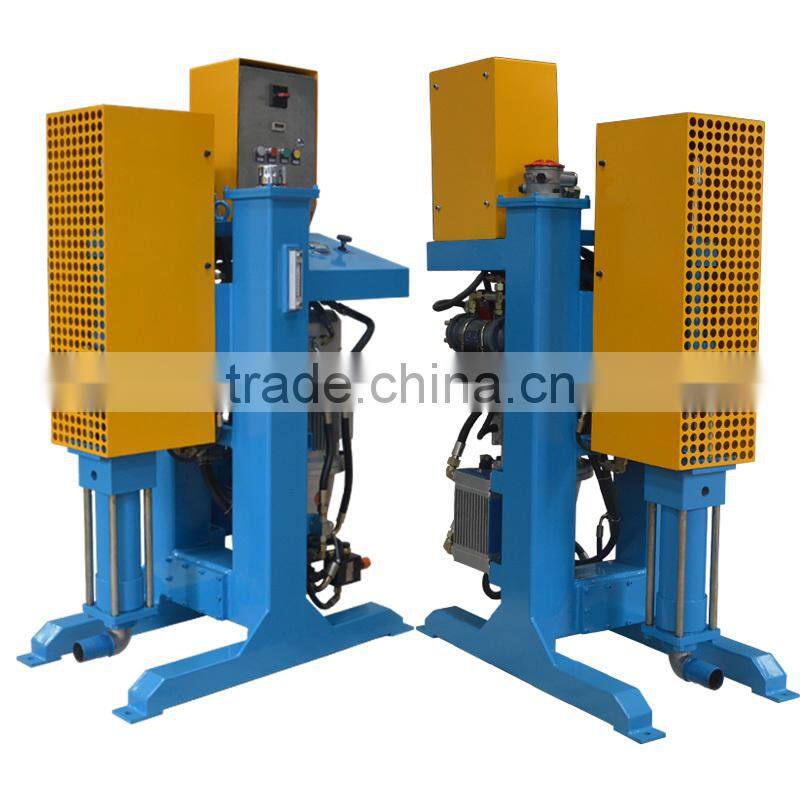

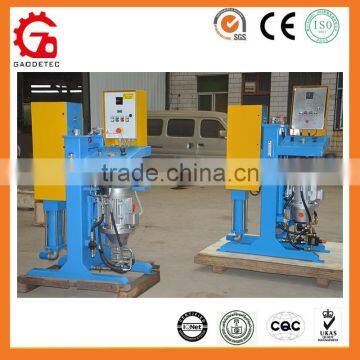

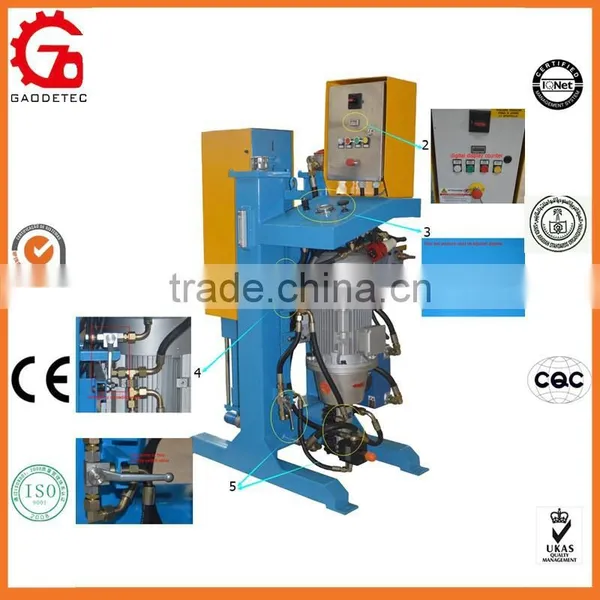

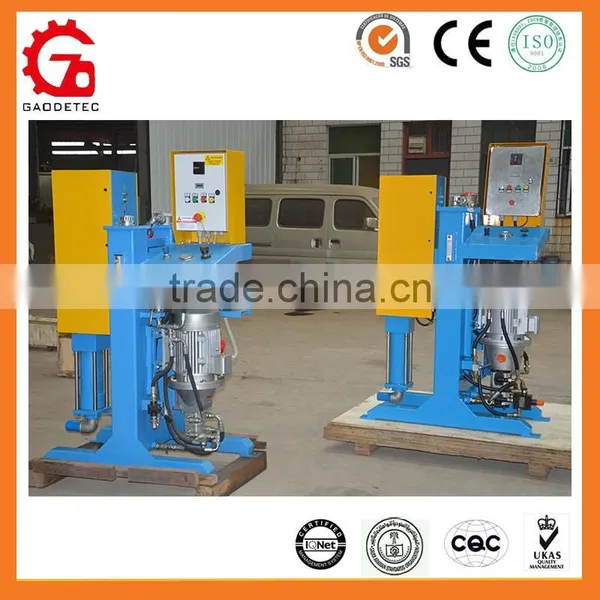

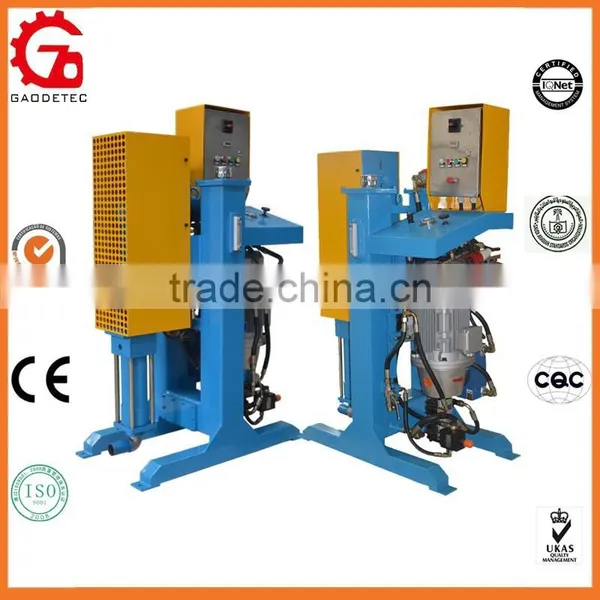

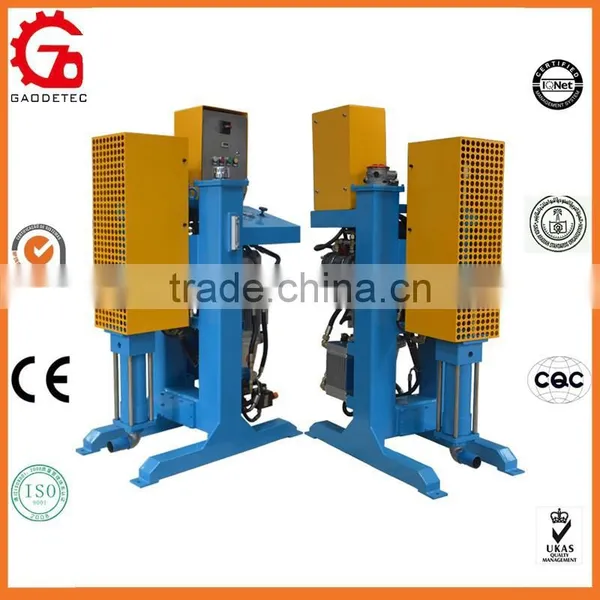

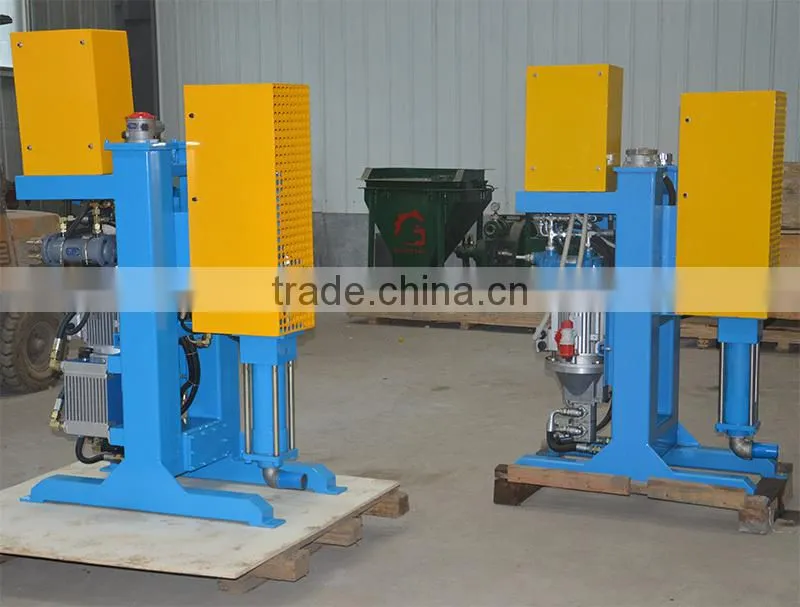

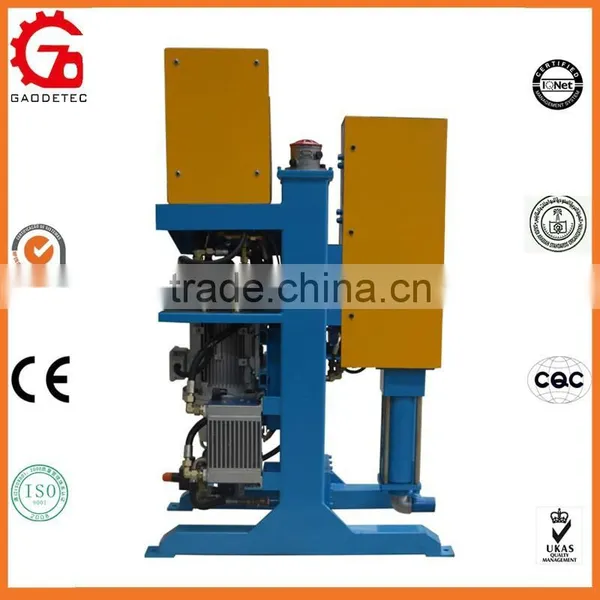

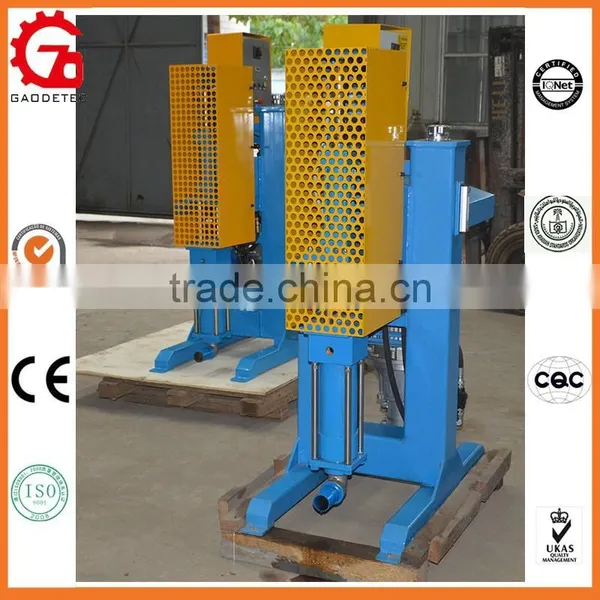

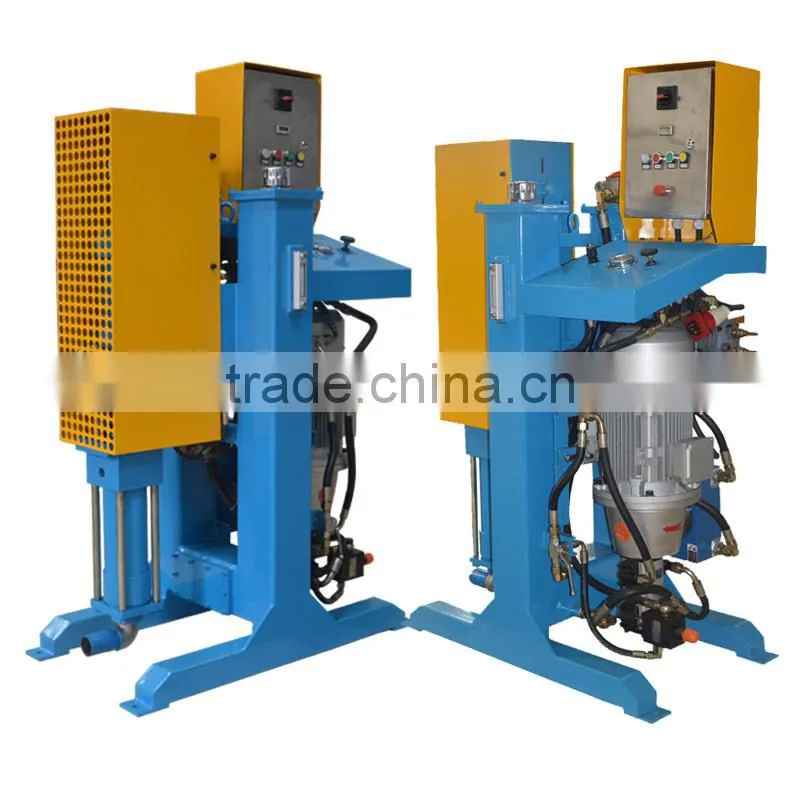

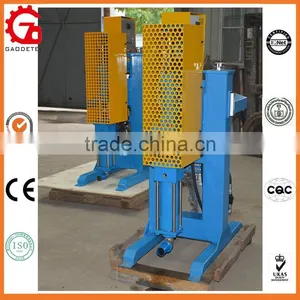

The GDH 75/100 PI-E High Pressure Vertical Grouting Pumps for sale
Description of GDH 75/100 PI-E High Pressure Vertical Grouting Pumps:
The GDH 75/100 PI-E high pressure vertical grouting pump is designed and made for permeation grouting, compaction grouting, backfilling grouting, curtain grouting, high pressure split grouting etc, grouting methods.
Grouting material: cement mixture, mortar/plaster, bentonite and other additive.
Applications:
- Ø Civil Engineering -dam foundations, tunnels, mining, soil nails, tiebacks, earth anchors, cable and rock bolts
- Ø Structural – building and bridge restoration, foundation stabilization, foundation raising, soil compaction grouting; soil & rock grouting
- Ø Construction - pavement under sealing, slab jacking and slab raising
- Ø Marine - underwater foundations, piers, breakers, shoreline foundations
- Ø Mining - tunnel lining, contact grouting, shaft waterproofing
- Ø Utilities - encasements, waterproofing, slope line grouting
- Ø Geotechnical - deep well casing, monitor wells, well sealing and abandonment
Specification |
|
|
Item | GH75/100 PI-E grout pump |
|
Piston diameter | 100mm |
|
Piston stroke | 150mm |
|
Adjustable pressure ( low pressure) | 0-50Bar/725psi |
|
Adjustable flow rate( low pressure) | 0-75L/min |
|
Adjustable pressure ( high pressure) | 0-100Bar/1450psi |
|
Adjustable flow rate ( high pressure) | 0-40L/min |
|
Discharge pipe size: | M27x2 |
|
Inlet pipe size: | G2’’ |
|
Power Unit | 7.5kW |
|
Chassis | Skid |
|
Weight | 390Kg |
|
Overall Dimension | 1040x550x1650mm |
|
Note: Chassis: Skid or Tyre We also could according to your demands to customize |
|

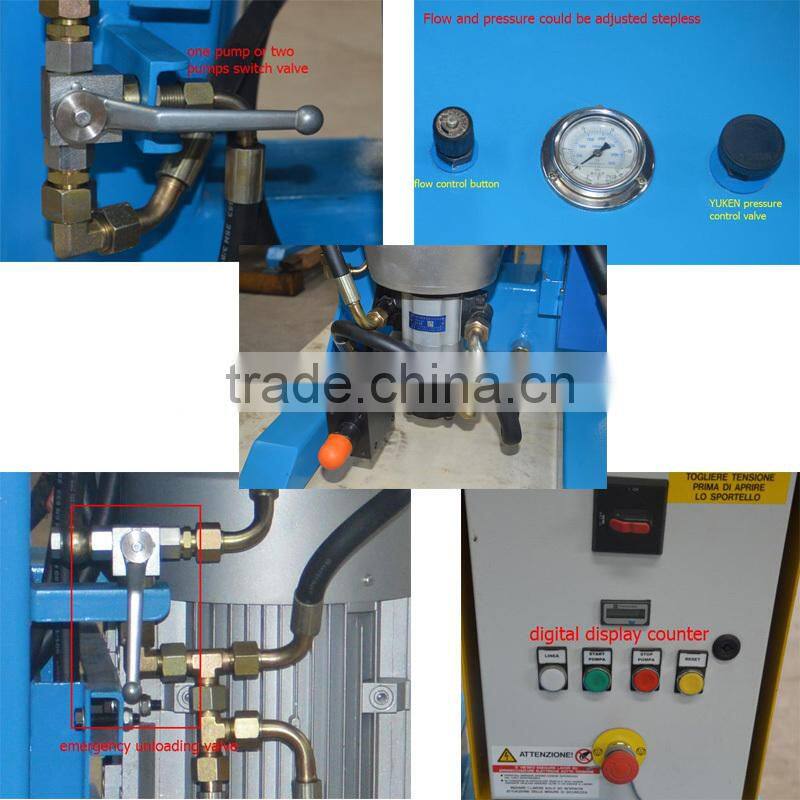

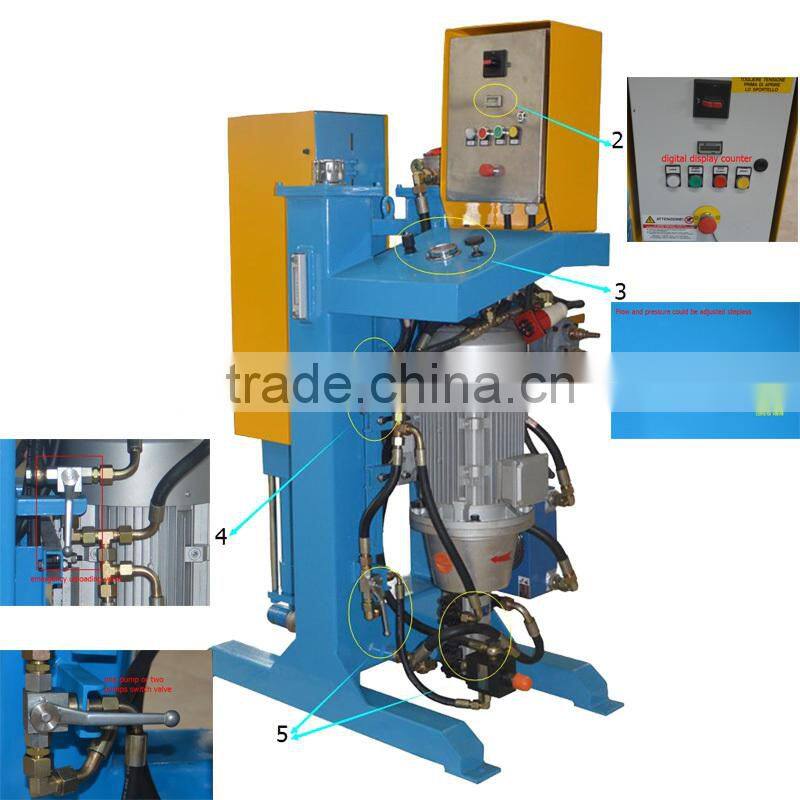

Features:
1. Compact structure, light weight, easy operate, low maintenance cost;
2. With digital display counter: it can display at any time, and can accumulate work times;
3. Flow and pressure can be adjusted step-less;
4. Equipped with emergency unloading valve: in case of an emergency, it can be load-off instantly;
5. In low pressure, it will be flow-converging of two pumps; In high pressure, there is only one pump work. Low pressure and large flow, high pressure and low output;
6. With full-hydraulic shaft device,stable and reliable operation;
7. Cooling type: water-cooling and air cooling; Suitable for hot and cold areas.
Shotcrete Spraying Machine :

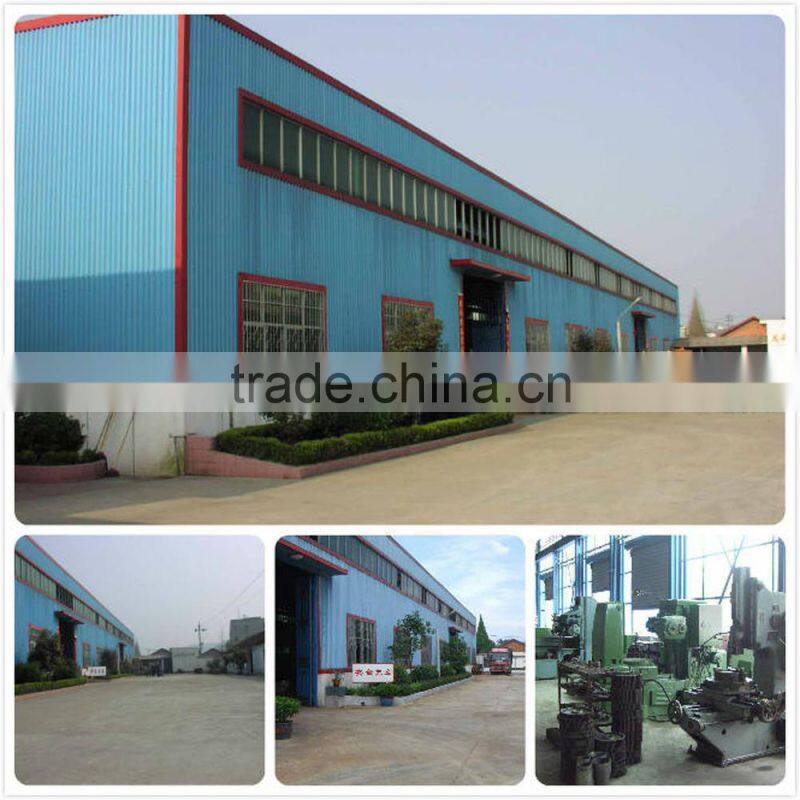

Factory
