GEC Brand Various Types of Customized Construction Gunite Shotcrete Machine for Sale
GZ-5 series is a series of these series shotcrete machine for sale in our factory.
It includes wheel type GZ-5A, GZ-5E, GZ-5D, GZ-5V and this customized rack-mounted gunite shotcrete machine for sale and other expanded gunite shotcrete machine for sale.
The rack gunite shotcrete machine for sale also have 3 driving ways, pneumatic, electric motor, diesel engine.
We can also customize the other phyletic gunite shotcrete machines, such as with variable speed and so on.
Welcome consulting!
GZ-5 shotcrete machine for sale is medium-sized dry shotcrete machine for the processing of dry mix. And it is widely used by so many contractors.
GZ-5 shotcrete machine for sale can be used for tunneling, mining operations, hydropower projects and hillside protection, etc.
GZ-5 shotcrete machine for sale is available in following versions:
Air motor driver or diesel drive combined with skid or rail-wheel.
Basic: Electric drive can be combined with tyre chassis
Extended (optional): Electric motor drive with variable speed gearbox, air motor drive or diesel drive combined with Skid or Rail-wheel.
GZ-5 gunite shotcrete machine for sale features:
1.Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
2.Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
3.Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life

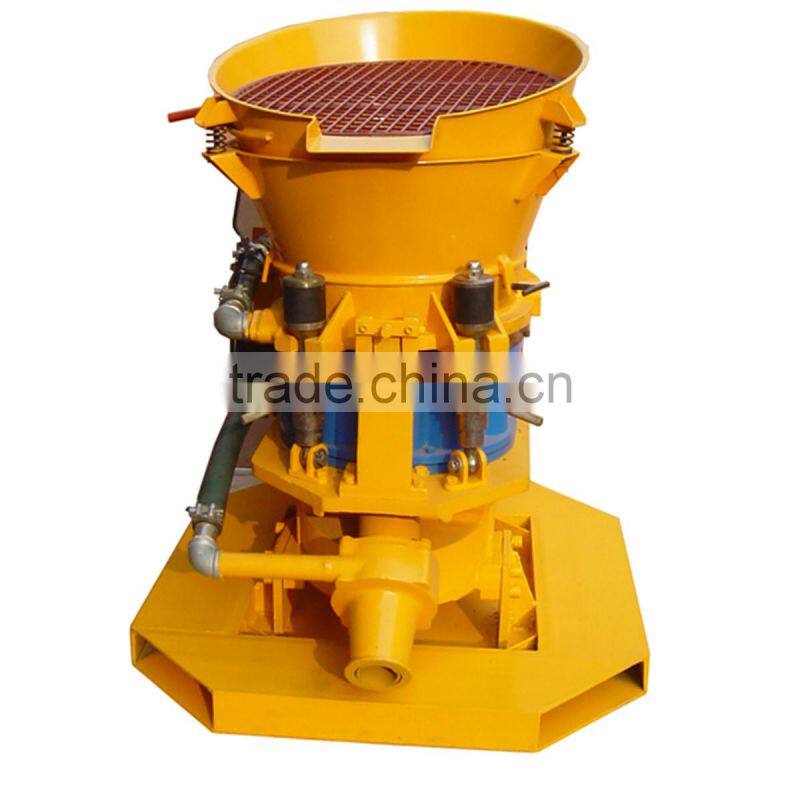

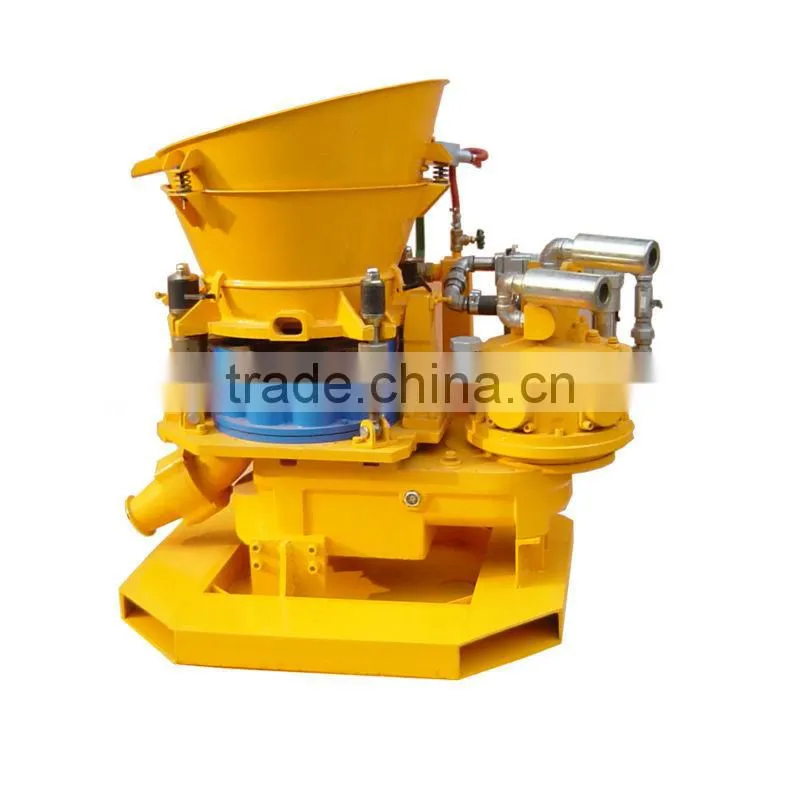

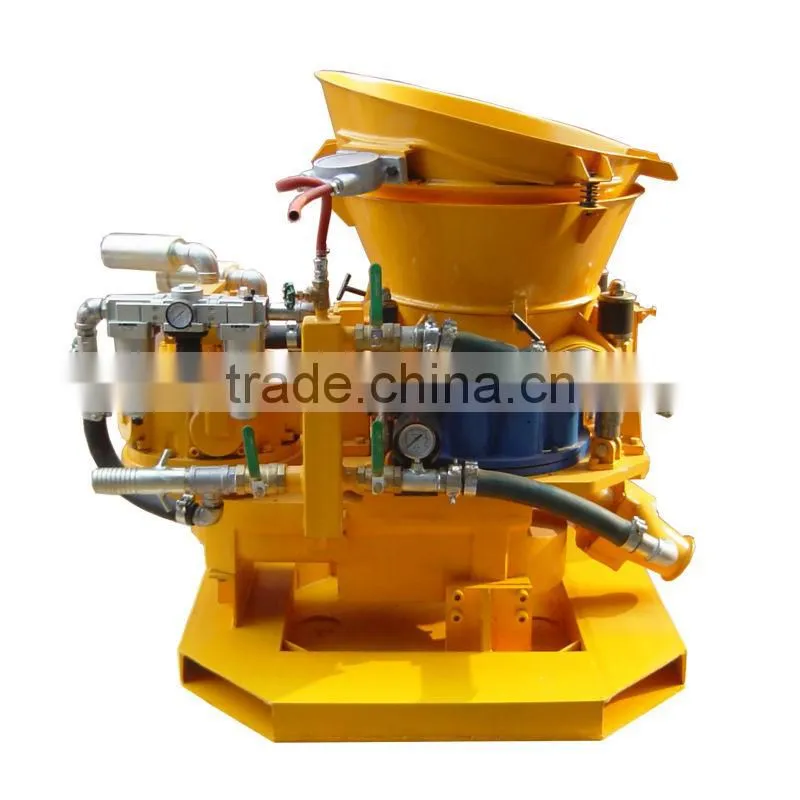

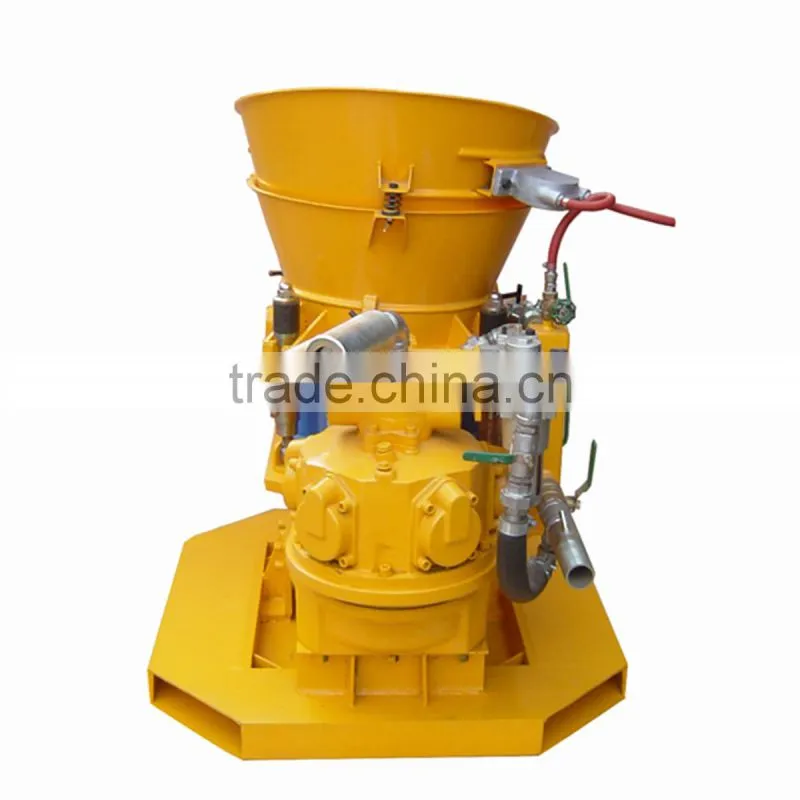

Pictures of GZ-5 rack-mounted gunite shotcrete machine for sale from different angles:
Technical Data of common GZ-5 series gunite shotcrete machine for sale:

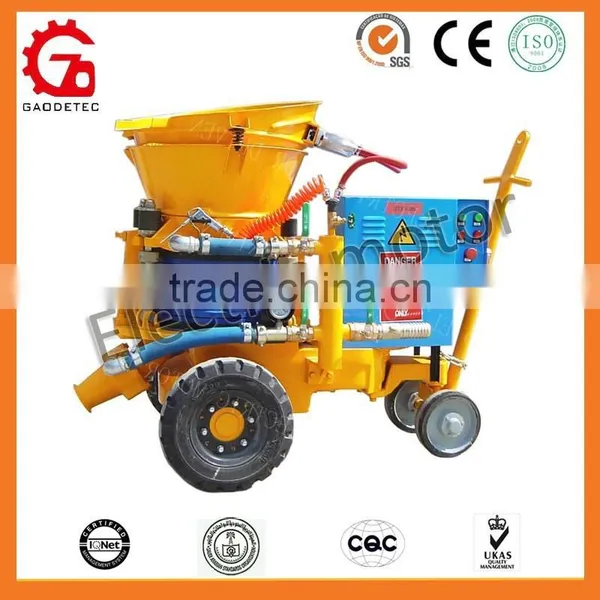

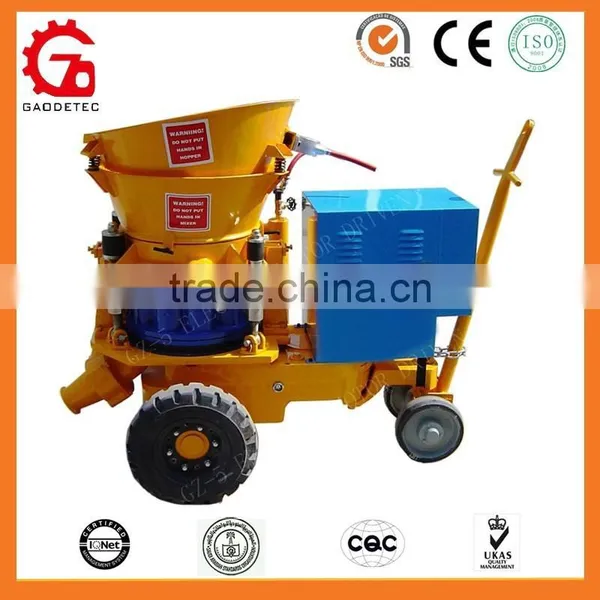

Electric motor drive:
Rated Output |
5 m³/h |
Max. Horizontal Conveying Distance |
200m |
Suitable Mix Ratio(Cement/Sand) |
≤ 1.3~5 |
Water Cement Ratio |
< 0.4 |
Max. Aggregate Size |
Φ 15 mm |
Conveying Hose Inner Diameter |
51mm |
Operating air Pressure |
0.2-0.4MPa(29-58PSI) |
Air Consumption |
8~9m 3 /min(285-325CFM) |
Motor Power |
5.5kW(7.5hp) |
Voltage |
220V, 380V, 440V, 660V, 50Hz/60Hz |
Material Charging Height |
1.1m |
Rotor Speed |
11r/min |
Overall Dimension(L× W× H) |
1.35× 0.75× 1.2m |
Net Weight |
720kg |

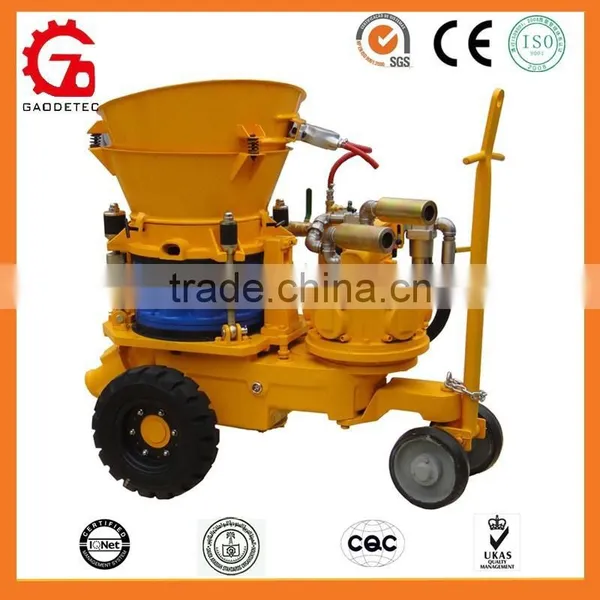

Air motor drive:
Output Capacity |
2.5-5.5m3 /h |
Max. Horizontal Conveying Distance |
200m |
Suitable Mix Ratio(Cement/Sand) |
≤1:3~5 |
Max. Aggregate Size |
Φ15 mm |
Conveying Hose Inner Diameter |
Φ51 mm |
Conveying Pressure |
0.2-0.4MPa |
Air Consumption for conveying material |
7~8m3/min |
Air Motor Air Pressure |
0.5MPa |
Material Charging Height |
1.1m |
Rotor Speed |
11rpm |
Air Motor Type |
TMH6A |
Air Motor Air Consumption |
7.5m3/min |
Overall Dimension(length×width×height) |
1.35×0.75×1.2m |
Net Weight |
720kg |

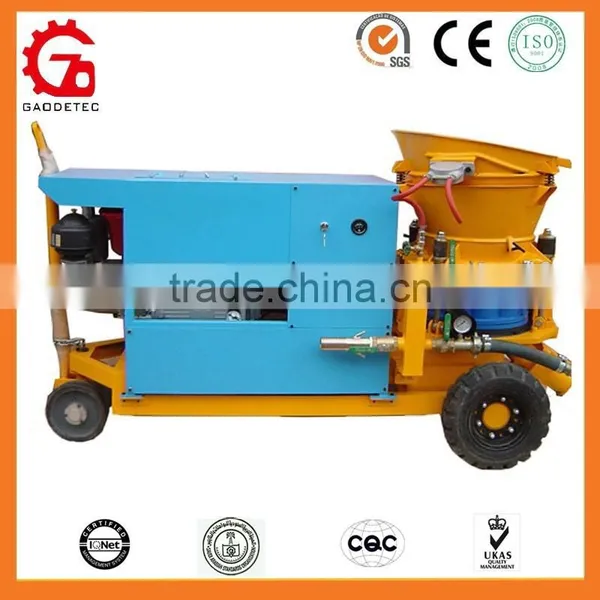

Diesel drive:
Output Capacity |
3-5.5m3 /h |
Max. Horizontal Conveying Distance |
200m |
Suitable Mix Ratio(Cement/Sand) |
≤1:4~5 |
Water cement ratio |
<0.4 |
Max. Aggregate Size |
Dia.15 mm |
Conveying Hose Inner Diameter |
Dia.51 mm |
Operating air Pressure |
0.2-0.4MPa(29-58PSI) |
Air Consumption |
9m3/min(325CFM) |
Material Charging Height |
1.1m |
Rotor Speed |
11r/min |
Diesel Type |
CF1105M |
Power |
13kw/18hp |
Overall Dimension(L× W× H) |
2.2×0.96×1.2m |
Net Weight |
850kg |

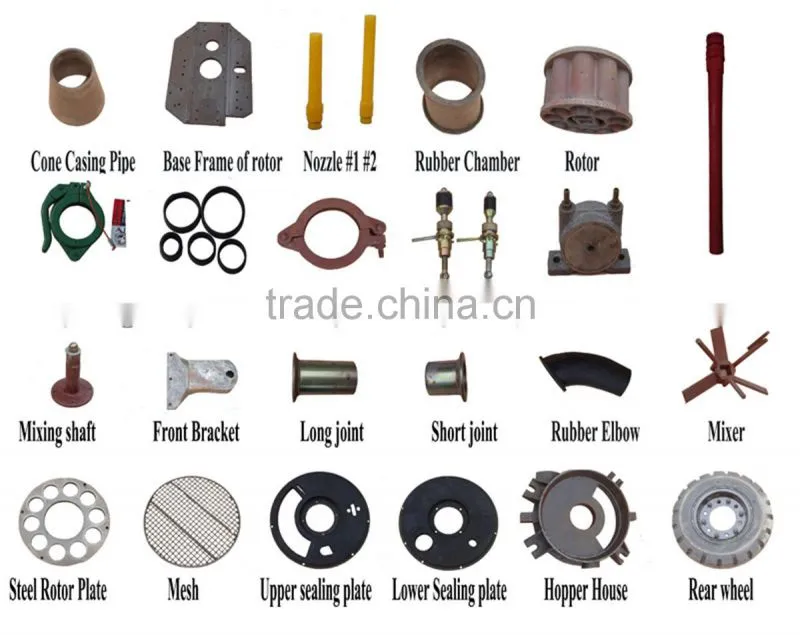

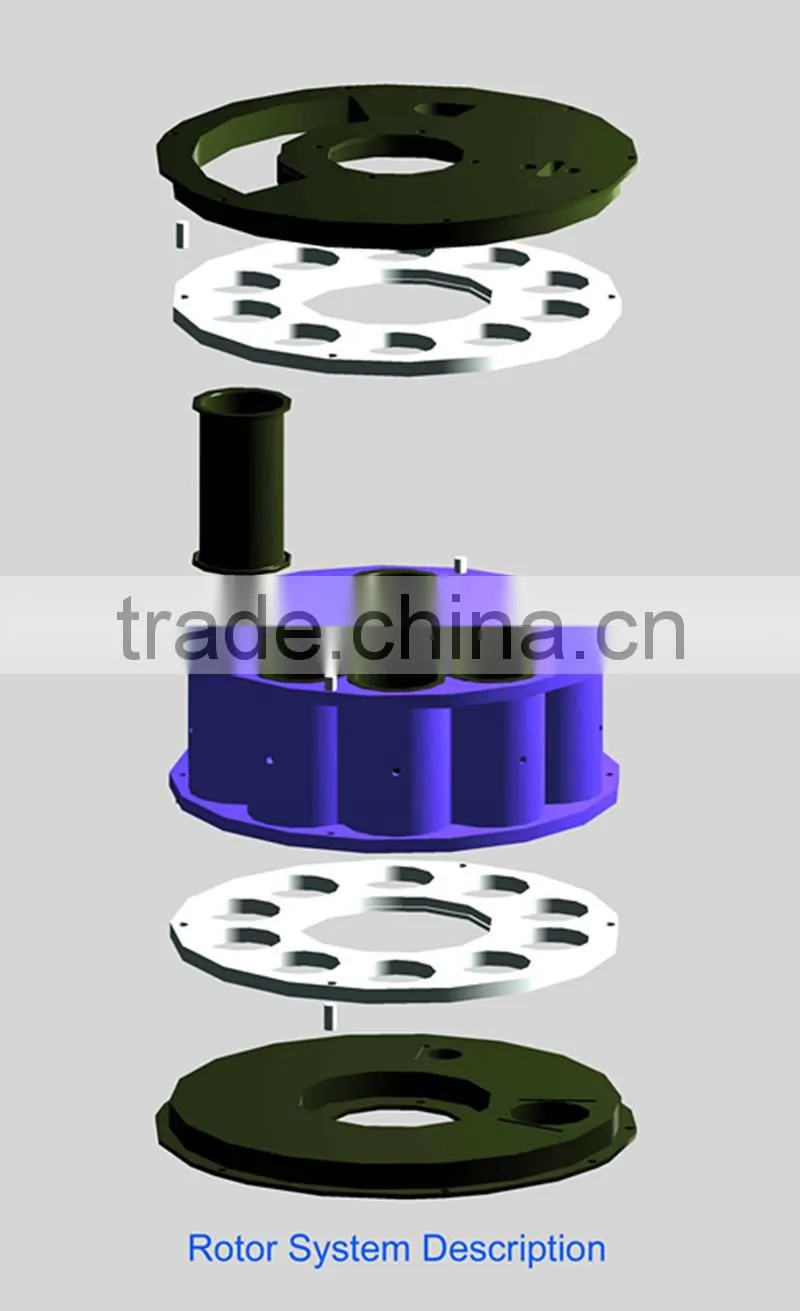

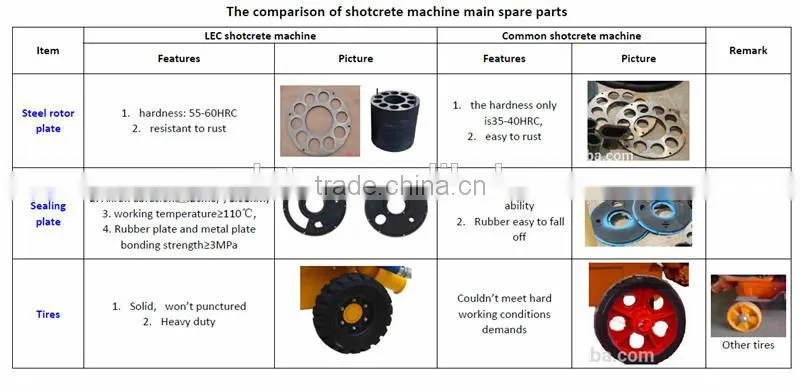

Parts of gunite shotcrete machine for sale:

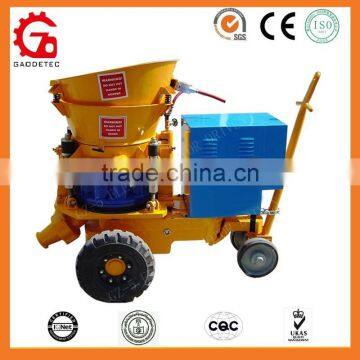

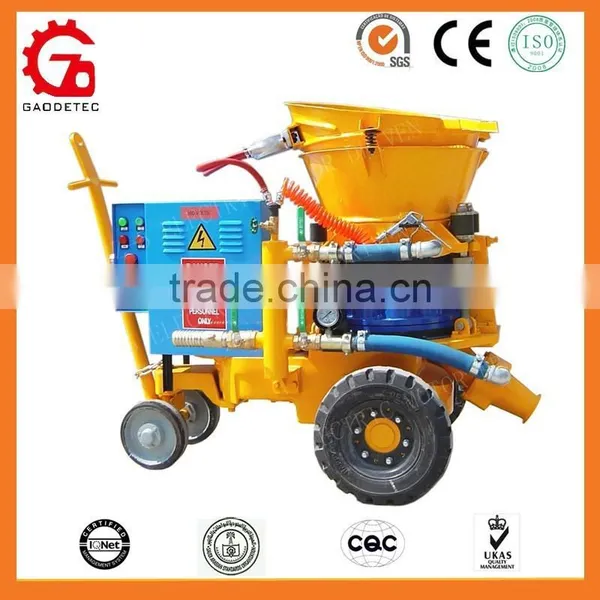

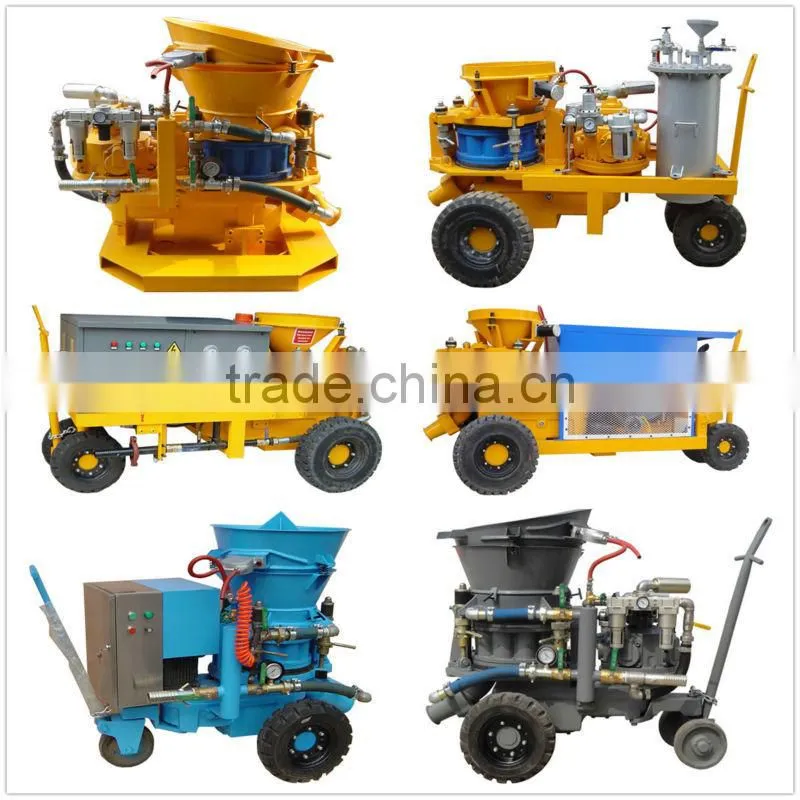

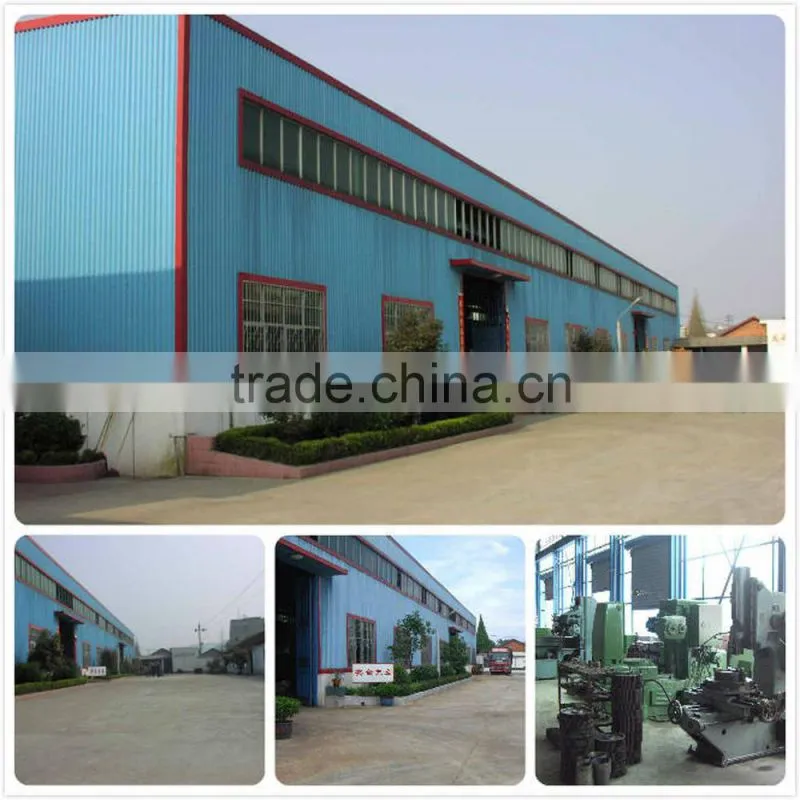

Pictures of various customized gunite shotcrete machine for sale in our factory:

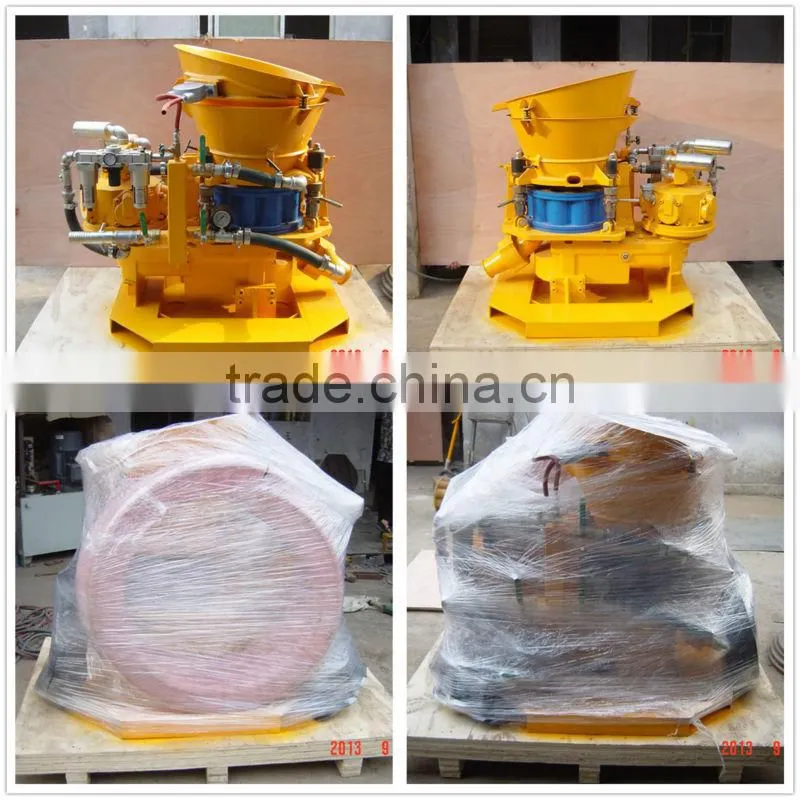

Package of GZ-5 customized rack gunite shotcrete machine for sale:

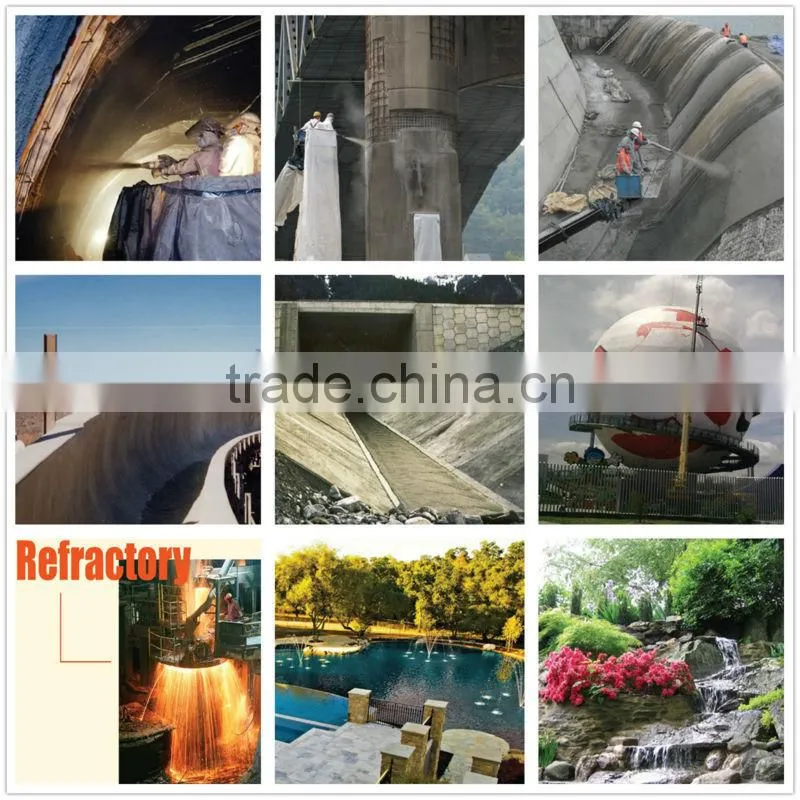

Application of shotcrete machine for sale:
More details, please feel free to contact me!
