water treatment pneumatic air drive diaphragm pump

Specifications

air drive diaphragm pump
1.without injecting water
2.deliver non fluid liquid
3.can be immersed in liquid

air drive diaphragm pump

Introduction of pneumatic air drive diaphragm pump

GEC air-operated pneumatic fep pump features in design with simplicity and high reliability, which enable the whole serial products with most reliability in any applications.



Its reversing valve is a three-dimensional pilot valve that ensures “no sticky” in a true sense. All parts can be replaced without opening the fluid cavity. Aluminum parts are treated with anodic oxidation and epoxy coating which can resist corrosion from unclear air.

Wide Application

Advantages

* Robust and compact slider with Derlin material in reversing valve makes sure it could be used in the situation of bad air source.

* Smooth air course and the sizes of air inlet range from 1/2” to 3” with absolutely no obstacle, which guarantees to change directions easily.

* 100% external maintained reversing valve.

* Less moving parts.

* No need to lubricate reversing valve.

* Long mechanical life of Pilot-type reversing valve guarantees its stable running.

* One reversing valve is suitable for various pumps.

Designation of pneumatic air drive diaphragm pump

QBY3-40 pneumatic air drive diaphragm pump
Max. Flow	40 gallon/min (151 L/min)
Max. Working Pressure	120 psi (0.84 Mpa, 8.4 bar)
Fluid Inlet Size	1- 1/2 in. npt (f)
Fluid Outlet Size	1- 1/2 in. npt (f)
Air Inlet Size	1/2 in. npt (f)
Max. Suction Height (Dry-Wet)	18 ft. (5.48 m)
Max. Permitted Grain	1/8 in. (3.2 mm)
Max. Air Consumption	60 scfm
Every Reciprocating Flow	0.15 gallon (0.57 L)
Max. Reciprocating Speed	276 cycles/min

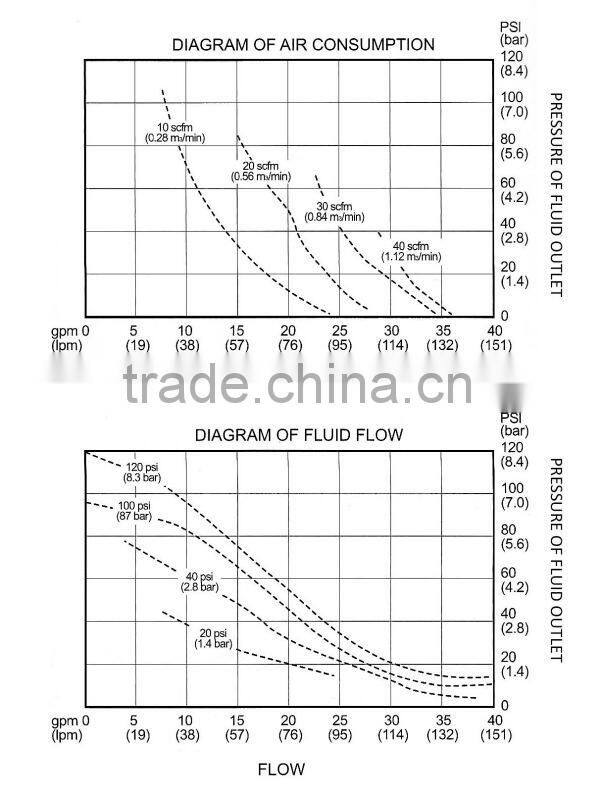

Air Consumption of pneumatic air drive diaphragm pump

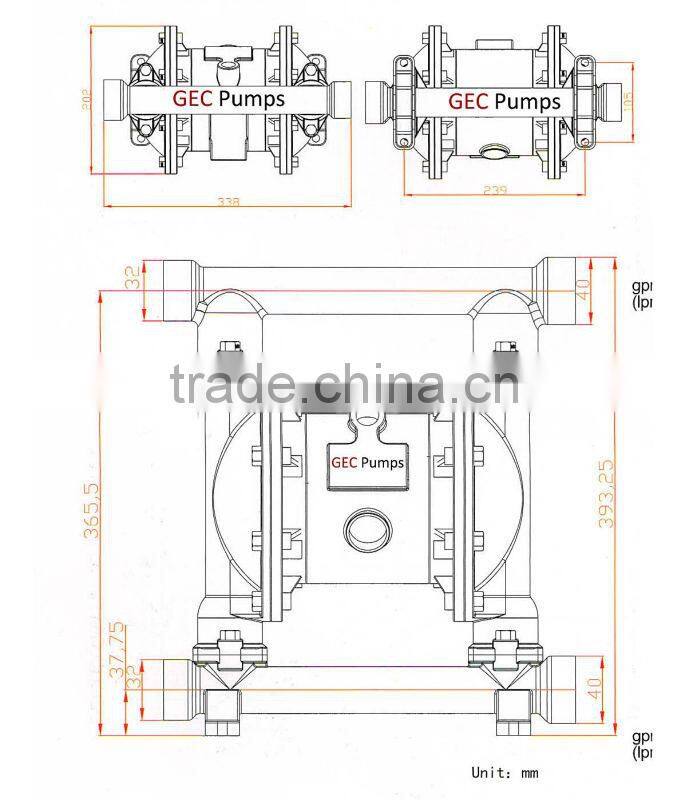

Dimention of pneumatic air drive diaphragm pump

Pump Parts Drawings of pneumatic air drive diaphragm pump

System Drawing of pneumatic air drive diaphragm pump

Working Sites of pneumatic air drive diaphragm pump



Various Serial Pumps

Packaging of pneumatic air drive diaphragm pump



Why Choose GEC Pumps?

* Unsealed design

* Anti-explosion

* Low cutting condition

* Easy to repair

* Allow for idle load running

* Light and convenient

* Start-up of self-absorption

* Multi-material option suit for various materials
