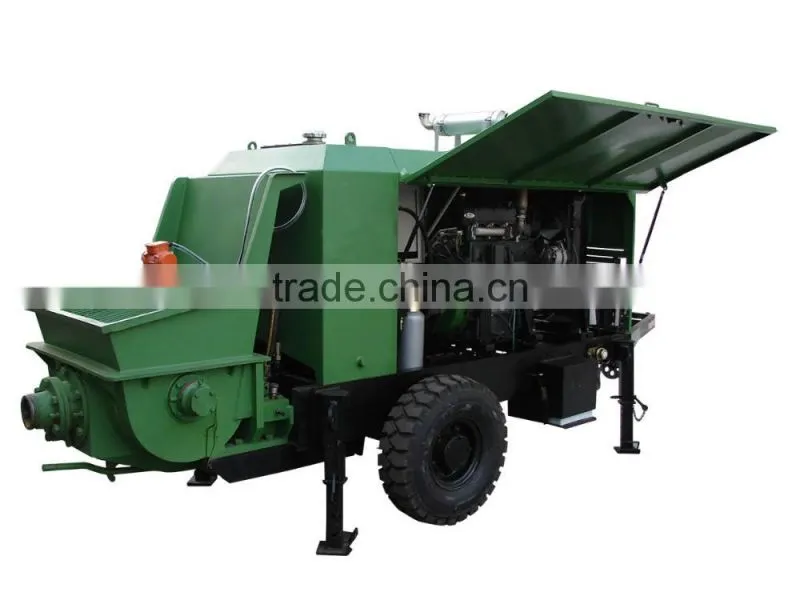

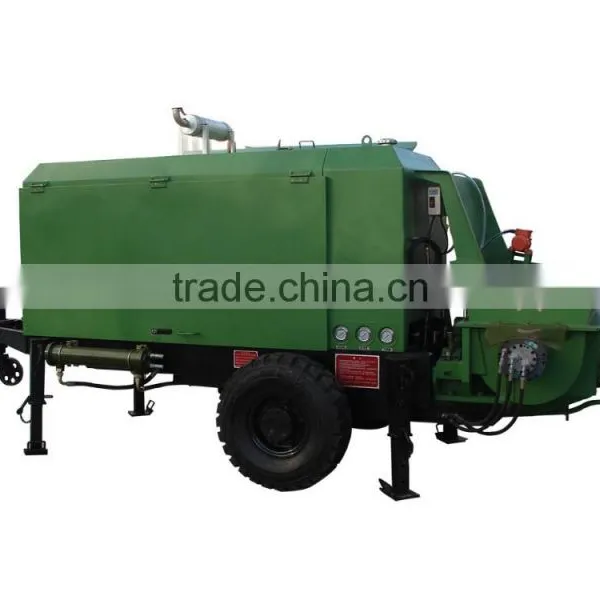

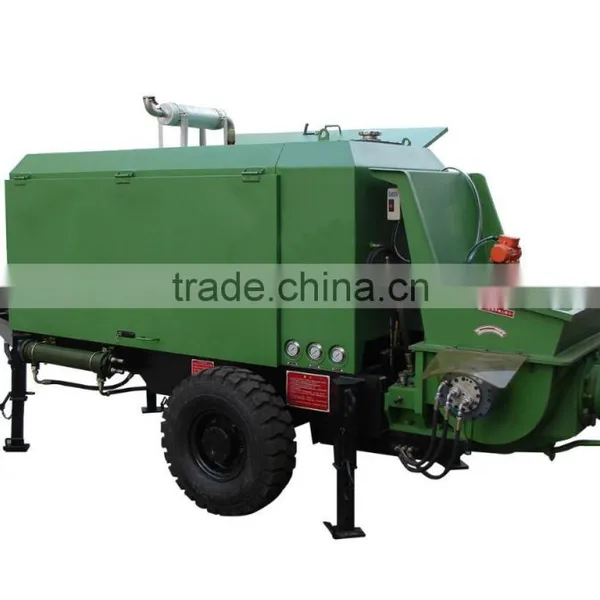

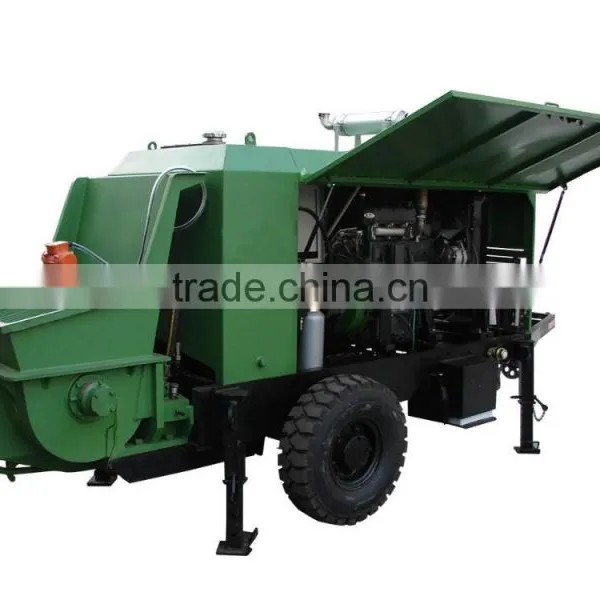

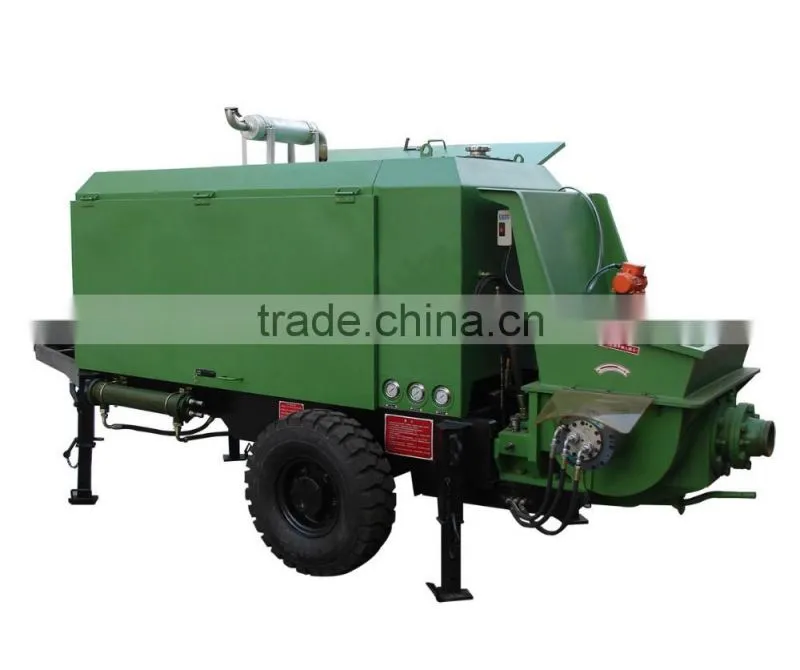

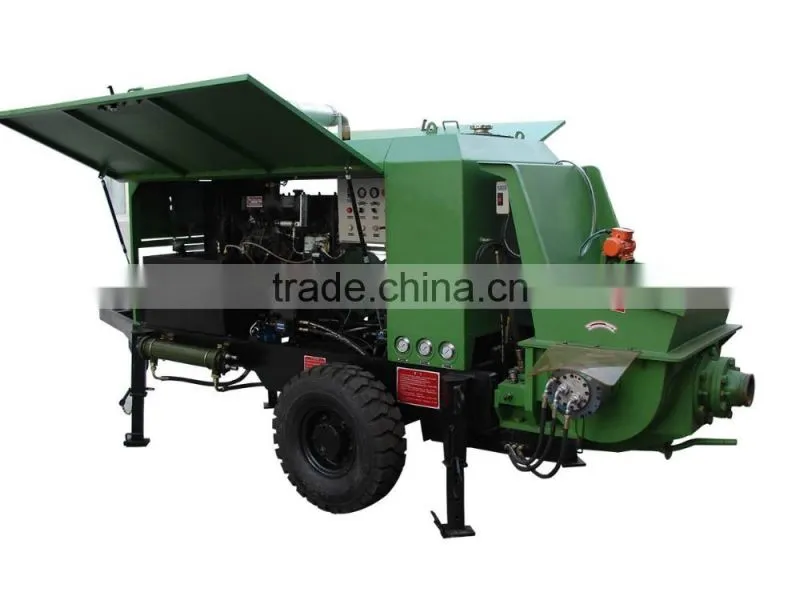

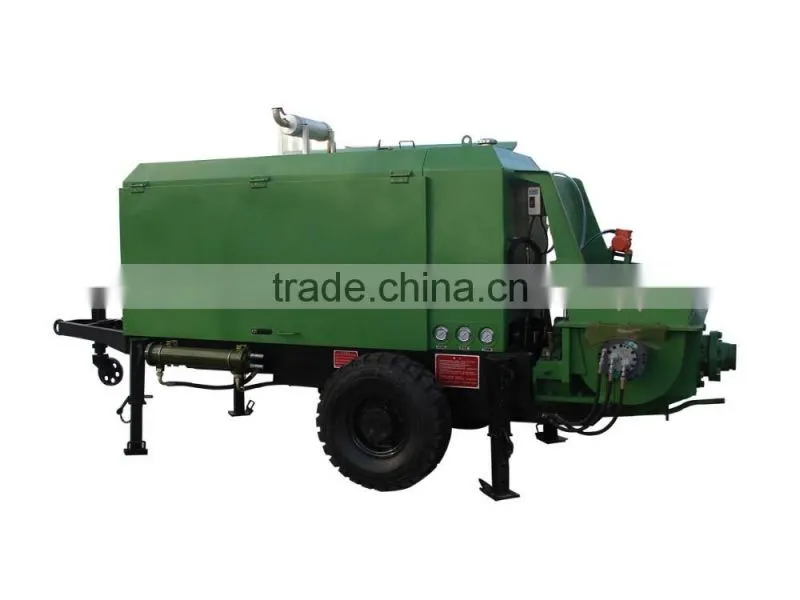

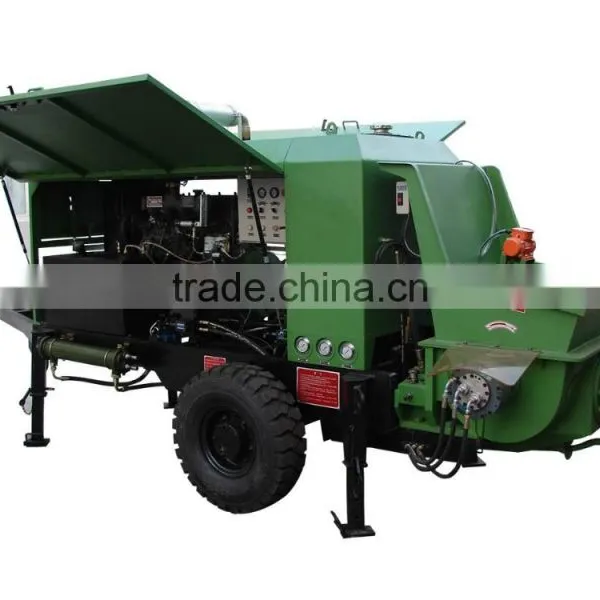

GWR wet refractory spraying gunning machine
Description:
The wet-mix refractory spraying machine insists of push mechanism, hopper, mixing system, distributing valve, rack, running gear, mechanic transmission, hood, oil tank, hydraulic system, electric system, etc. It is mainly used for refractory spraying of blast furnace or shaft furnace.
Features:
1. Hydraulic pumping method: high efficiency, reliability and stability.
2. High pressure. Variable output.
3. Low dust, low rebound, environment friendly.
4. Automatic centralized lubrication system.
5. Convenient operation, low maintain cost, durable wearing parts.
Technical data:
Parameter |
Unit |
GWR-15/11 |
GWR-25/14 |
Rated output |
m³/h |
3-15 |
3-25 |
Pressure |
MPa |
10 |
14 |
Distributing valve form |
S tube valve |
S tube valve |
|
Max. aggregate particle |
mm |
30 |
30 |
Slump |
cm |
12~20 |
12~20 |
Rebound rate |
% |
less than 15 |
less than 15 |
Dust density (near machine) |
mg/m³ |
less than 10 |
less than 10 |
Conveying cylinder ID *stroke |
mm |
dia.140*1000 |
dia.140*1000 |
Diesel engine model |
R4105D2 |
R4105ZD7 |
|
Diesel engine power |
kw |
50.6 |
61.6 |
Rated rotation |
rpm |
1800 |
1500 |
Hydraulic oil tank volume |
L |
350 |
350 |
Fuel tank volume |
L |
60 |
60 |
Charging height |
mm |
1200 |
1200 |
Overall dimension |
mm |
4550*1680*1950 |
|
Weight |
kg |
2850 |
3000 |

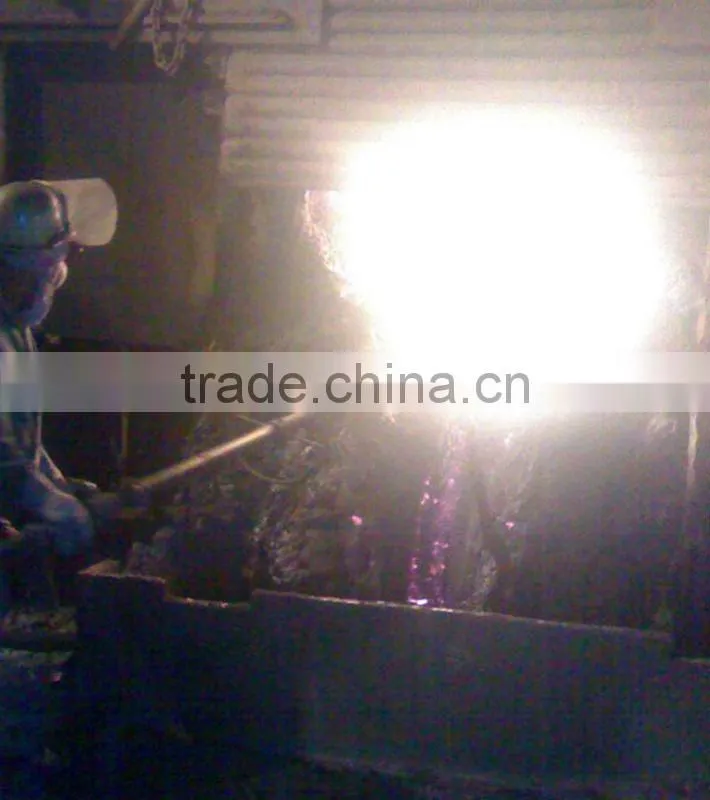

Application:
