GD320 ISO hand push Manual stainless preformed thermoplastic pavement marking equipment

                 Choose GEC,choose high quality!

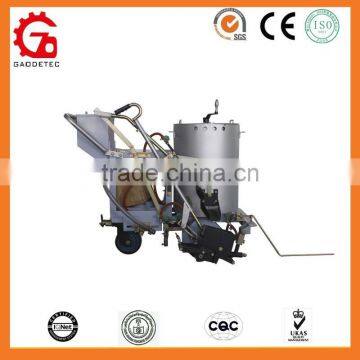

GD320 ISO hand push Manual stainless preformed thermoplastic pavement marking equipment

Thermoplastic road marking machine is mainly used for marking reflective lines(such as straight lines, dotted lines, curved lines, direction arrows, letters) on expressways, city streets and parking lots.

Technical parameter:

Driver / roll booster

Why walk while you can seat? Use vehicle booster connect the road marking machine, the work efficiency improve 2-3 times

Features:

1. High work efficiency
2.  Connect conveniently
3.  Has search light system, it is convenient for work in the evening.
4.  Easy Operate.

Application:

Mainly matched with hand push road marking machine

 Brief introduction:

Hand-push thermoplastic road marking machine is key equipment of hot melt index line construction, and it finishes the index line construction cooperating with thermoplastic kettle.

GD320 ISO CE OEM Good Quality Hand-push thermoplastic road marking machine absorbs advanced technology.This machine adopts specially designed high precision alloy steel shoe  to ensure index line’s even edge, head, thickness and tidy lines.

The grounding knife can apply to road surface of different conditions. There is timing and buffering facility in glass beading automatic broadcasting machine, which made this machine has some features such as high efficient, stable performance, easy operation, and convenient maintenance.

GD160 thermoplastic toad marking machine with glass bead dispenser .

Main components

Our components well-made, each component are used the highest specification, each process are subject to strigent monitoring, the quality reach to international standerds.

 Alloy Steel Shoe:

Indes line width 50mm 80mm 100mm,120,150mm,180mm,200mm,230mm,300mm,400mm,450mm, you can change shoe of different scales according to the project requirement

GD320 ISO CE OEM Good Quality Hand-push thermoplastic road  making machine Features:

1. Light body, compact structure, nice look.

2. Lift handgrip, operator can adjust it asrequired.

3. Automatic glass bead broadcaster.

4. Speeder and shocks of bead broadcaster equipped with 2 gears which can be adjusted as required.

5. Demountable device is designed for the heating and holding tank. The reasonable design agitator solves the problem of storing used coating in the tank.

6. The adjustable pointer improves working efficiency.

7. The shoe made by high-precision steel, board scraping structure, it has good thermo stability, resistscorrosion, transformation, and can heated easily.

8. The tire is made by cast iron and imported rubber, which make the tire lighter, stronger and more durable.

  Working site

Suitable for highway,street, factories, car parks, community , airport, etc

Check and preparations before use

1, Clear the stones and impurities on the road surface keep the road clean and reach the construction requirements.

2, Add some lubricating in the shoe and clutch to keep the flexibility of switch.

3, The operator should clean the impurities in kettle and filter, check the flexibility of rotating parts carefully.

4, Check the parts screw in case of screwing off.

5, Check the liquefied gas canister, furnace, and pipeline, whether has the oil leak.

6, Adjust the ground knife; control the width between 1.5-2.5mm.

7, Prepare the dry glass bead to broadcast uniformly. Pull the clutch driving handle of glass bead box and check the clutch gear meshes.

8,  For safety, please wear operator labor protection supplies, to prevent burns.

Other type

Thermoplastic Paint Pre-heater

1) Pre-heater and thermoplastic road marking machine relationship

Thermoplastic Paint Pre-heater is always matched with thermoplastic marking machine, is main equipment for thermoplastic paint lines marking construction.

Thermoplastic Paint Pre-heater is used for heating, melting, and stirring thermoplastic marking paints continuously, preparing hot melt paints for the thermoplastic machine during long distance road lines marking work.

Main technical parameter:

 Thermoplastic paints and glass beads

Package in plywood case& loading into     working room

Road Marking Auxiliary Machine

Certificate
