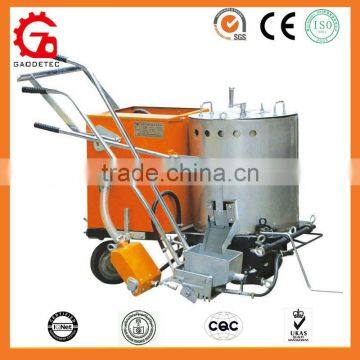

GD320 Hand-push thermoplastic road sign marking machine
Brief introduction:
Hand-push thermoplastic road sign marking machine is key equipment of hot melt index line construction, and it finishes the index line construction cooperating with thermoplastic kettle.
It is mainly used for marking reflective lines(such as straight lines, dotted lines, curved lines, direction arrows, letters) on expressways, city streets and parking lots. GD320 senior hand-push thermoplastic road sign marking machine absorbs advanced technology.
This machine adopts specially designed high precision cast iron marking bucket to ensure index line’s even edge, head, thickness and tidy lines. The grounding knife can apply to road surface of different conditions.
There is timing and buffering facility in glass beading automatic broadcasting machine, which made this machine has some features such as high efficient, stable performance, easy operation, and convenient maintenance. Main components
Hand-push thermoplastic road sign marking machine Technical parameter:
Coating capacity | 100KG |
Glass bead tank capacity | 10KG |
Marking width | 150,80,100,120,150,180,200,230,300,400,450mm,change shoe of different scales according to the project |
Marking thickness | 1.0-3.0mm, adjustable |
Heating temperature | 180-210°C |
Heating method | petroleum liquefied gas |
Dimension | 1320*850*100mm |
Weight | 135KG |
Hand-push thermoplastic road sign marking machine Features:
1. Light body, compact structure, nice look.
2. Lift handgrip, operator can adjust it asrequired.
3.Automatic glass bead broadcaster.
4. Speeder and shocks of bead broadcaster equipped with 2 gears which can be adjusted as required.
5. Demountable device is designed for the heating and holding tank. The reasonable design agitator solves the problem of storing used coating in the tank.
6. The adjustable pointer improves working efficiency.
7. The shoe made by high-precision steel, board scraping structure, it has good thermo stability, resistscorrosion, transformation, and can heated easily.
8. The tire is made by cast iron and imported rubber, which make the tire lighter, stronger and more durable.
Working room
Working site
Check and preparations before use
1, Clear the stones and impurities on the road surface keep the road clean and reach the construction requirements.
2, Add some lubricating in the shoe and clutch to keep the flexibility of switch.
3, The operator should clean the impurities in kettle and filter, check the flexibility of rotating parts carefully.
4, Check the parts screw in case of screwing off.
5, Check the liquefied gas canister, furnace, and pipeline, whether has the oil leak.
6, Adjust the ground knife; control the width between 1.5-2.5mm.
7, Prepare the dry glass bead to broadcast uniformly. Pull the clutch driving handle of glass bead box and check the clutch gear meshes.
8, For safety, please wear operator labor protection supplies, to prevent burns.
Other type
Thermoplastic Paint Pre-heater
1) Pre-heater and thermoplastic marking machine relationship
Thermoplastic Paint Pre-heater is always matched with thermoplastic marking machine, is main equipment for thermoplastic paint lines marking construction.
Thermoplastic Paint Pre-heater is used for heating, melting, and stirring thermoplastic marking paints continuously, preparing hot melt paints for the thermoplastic machine during long distance road lines marking work.
Main technical parameter:
Item | GD800 | GD1200 |
Dimension | 1800*1500*1600mm | 1900*1700*1700mm |
Coating capacity | 2*400L | 2*600L |
Hydraulic motor | BMmodel | |
Hydraulic oil tank capacity | 70L | |
Structure | Frame structure, insulation is fixed between intemal bladder and ektexine | |
Safety facility | Flooding facility of overload is designed for it to prevent maloperation | |
Engine | 15PS water-cooled electric start up diesel engine | |
Furnace | imported | |
Heating system | petroleum gas (50kg/jar recommended), diesel engine for option | |
Driver / roll booster
Why walk while you can seat? Use vehicle booster connect the road marking machine, the work efficiency improve 2-3 times
Features:
- High work efficiency
- Connect conveniently
- Has search light system, it is convenient for work in the evening.
- Easy Operate.
- Application:
- Mainly matched with hand push road marking machine
Type | LD Vehicle booster |
Largest slope allowed | 600 |
Engine | PERICOM |
Weight | 80kg |
Dimension | 1500*1200*700mm |
Package in plywood case& loading into
Certificate
Our Service
Why Us?
* Professional engineers team and Rich manufacturing experience
* Prompt reply and Timely delivery
* High quality & Competitive price
Any interests about these listed road marking machines and materials, please feel free to send us inquiry or call us directly, we will be there to serve your needs timely.
Sincerely hope to establish good business relations with you, our distinguished client !
skype:zhenhuazgz328
