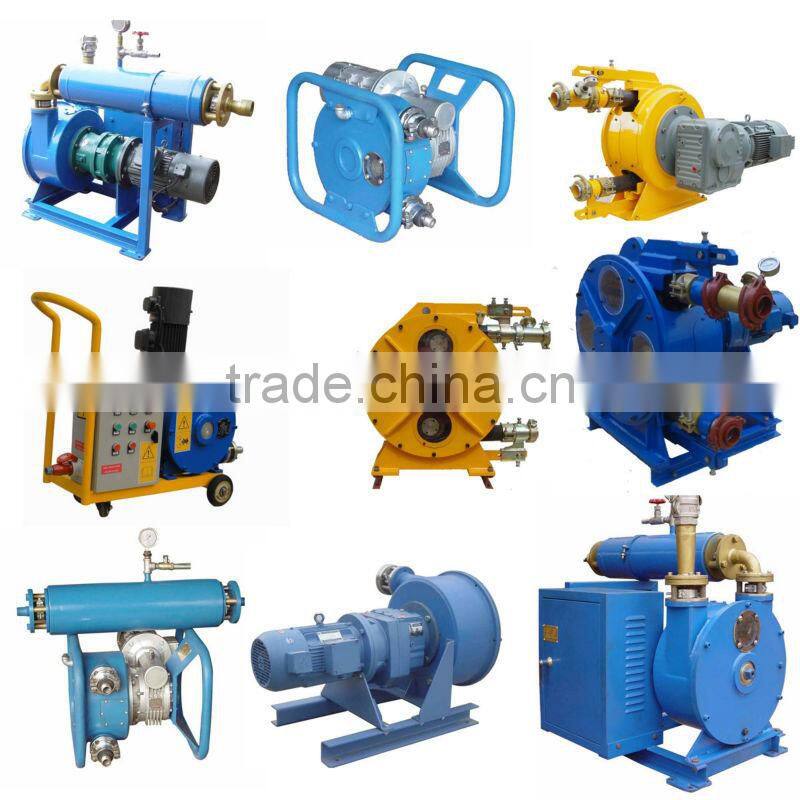

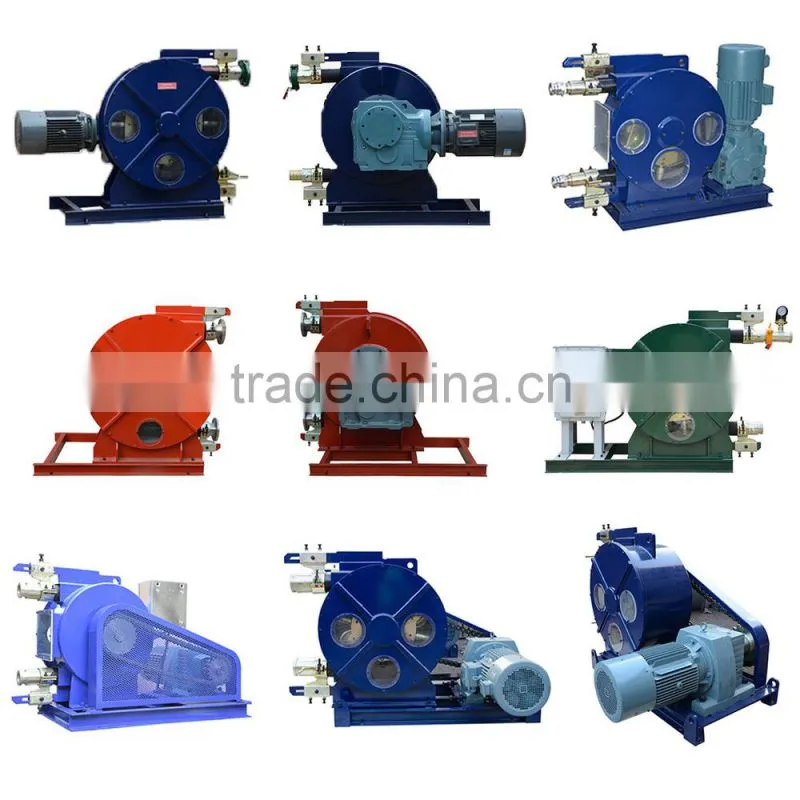

Industrial Widely used GH series peristaltic hose squeeze pump
Industrial Widely used GH series peristaltic hose squeeze pump
GEC GH Series Heavy-Duty Industries Hose Pump Is a Kind of Peristaltic Pump, Which Is Suitable for Handling Aggressive, High Viscosity, High Density Products, Such as Abrasive Slurries, Corrosive Acids, Gaseous Liquids, Sand/Cement Mortar, Liquid Accelerator, etc. And Also Is Used for Dosing Pump With 1% Repeat Precision.
GH series peristaltic hose squeeze pump structure:
1,Nature rubber outer layer
2,Nylon reinforcement layer

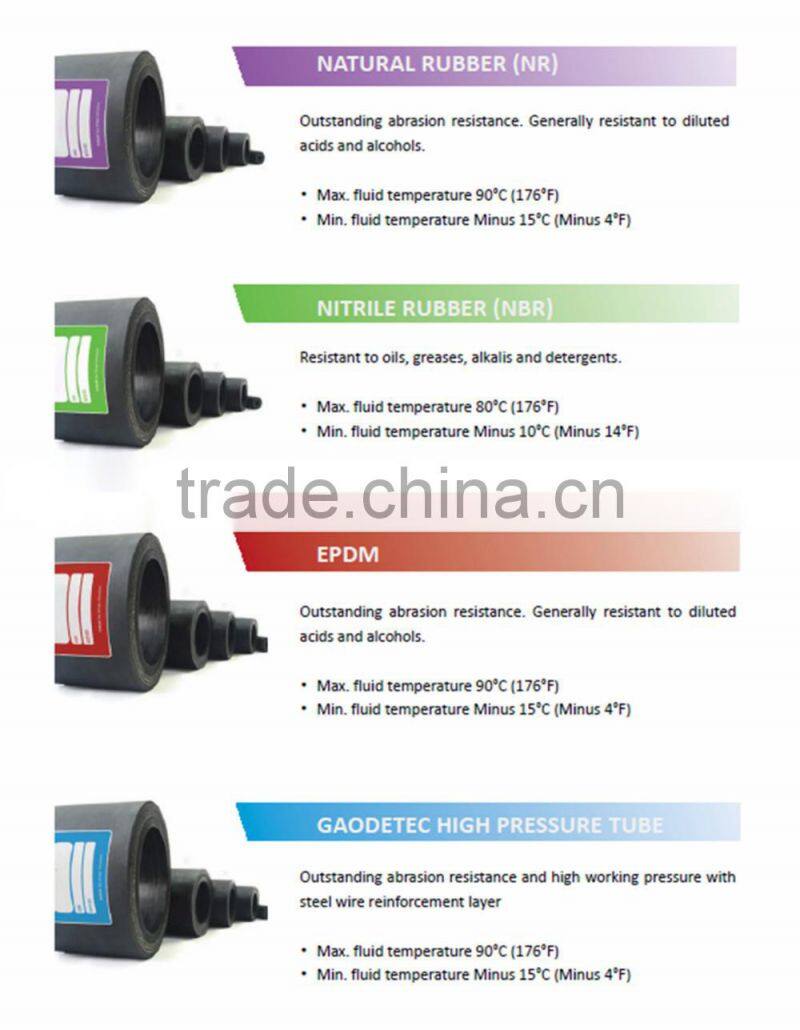

3,Inner liner material available in various chemically resistant rubber
GH series peristaltic hose squeeze pump data:
Pump mode |
Output |
Pressure |
Rev. |
Max. |
Max. |
Motor Power |
GH10 |
60 |
0.6 |
45 |
2 |
2 |
0.37 |
GH10B |
100 |
0.6 |
80 |
2 |
2 |
0.37 |
GH15 |
210 |
0.6 |
45 |
2 |
2 |
0.55 |
GH15B |
300 |
0.6 |
75 |
2 |
2 |
0.55 |
GH25 |
800 |
1.5 |
50 |
3 |
3 |
1.1 |
GH25B |
1300 |
1.5 |
80 |
3 |
3 |
1.5 |
GH32 |
1300 |
1.5 |
50 |
3 |
4 |
2.2 |
GH32B |
1800 |
1.5 |
75 |
3 |
4 |
2.2 |
GH38 |
2000 |
1.5 |
40 |
5 |
4 |
2.2 |
GH38B |
2700 |
1.5 |
55 |
5 |
4 |
3.0 |
GH38C |
3500 |
1.5 |
70 |
5 |
4 |
4.0 |
GH50-558 |
4200 |
1.5 |
35 |
6 |
5 |
4.0 |
GH50-558B |
5400 |
1.5 |
45 |
6 |
5 |
5.5 |
GH50-680 |
6300 |
1.5 |
35 |
6 |
5 |
7.5 |
GH50-680B |
8000 |
1.5 |
45 |
6 |
5 |
7.5 |
GH65-680 |
9200 |
1.2 |
40 |
8 |
5 |
7.5 |
GH65-680B |
12000 |
1.5 |
45 |
8 |
5 |
11.0 |
GH65-770 |
13500 |
1.2 |
45 |
8 |
5 |
11.0 |
GH65-770B |
16500 |
1.0 |
55 |
8 |
5 |
11.0 |
GH76-770 |
18000 |
1.0 |
45 |
10 |
5 |
11.0 |
GH76-770B |
22000 |
1.0 |
55 |
10 |
5 |
15.0 |
GH76-915 |
24000 |
1.0 |
50 |
10 |
5 |
15.0 |
GH76-915B |
28000 |
1.0 |
40 |
10 |
5 |
18.0 |
GH100 |
33500 |
1.0 |
35 |
15 |
5 |
18.0 |
GH100B |
42000 |
0.75 |
45 |
15 |
5 |
18.0 |

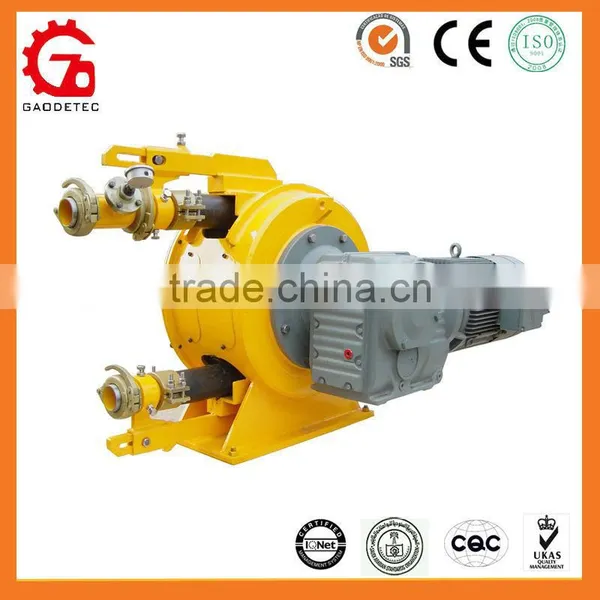

GH series industrial hose pump (squeeze pump) consists mainly of pump house, rotor, roller, idle roller, squeeze tube and driving unit. The squeeze hose is U-shape in pump house, when rotor drives roller to rotate, hose is deformed. After the roller rotate, the deformed hose recover by its elasticity. Thus the negative pressure in this hose is generated, sucking slurries, and discharging through outlet under roller’s push, finally forms pressure conveying of slurries.
GH series hose pump is equipped with adjustable point, which is convenient and accurate for user to adjust the hose gap controlling the flow rate. Besides the adjustable point is fixed on the hose pump by bolts, and it doesn't loose in the use.

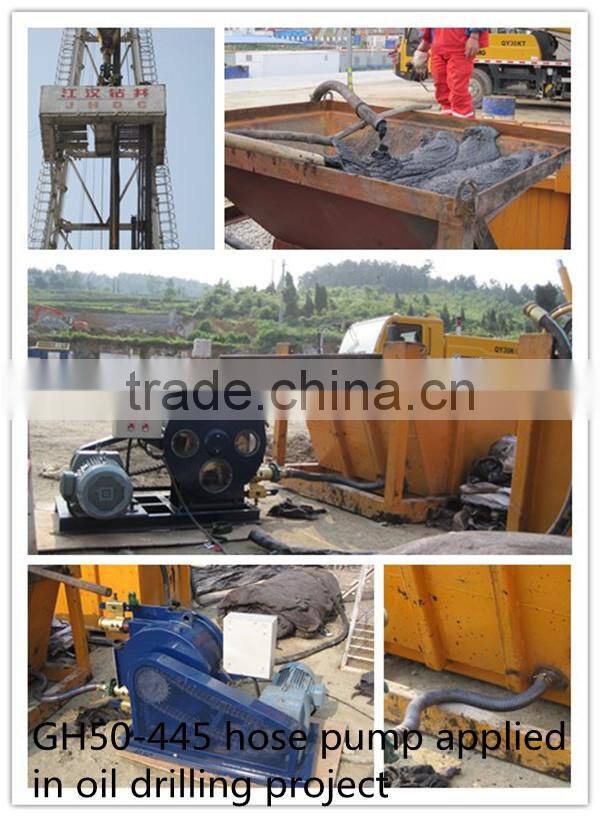

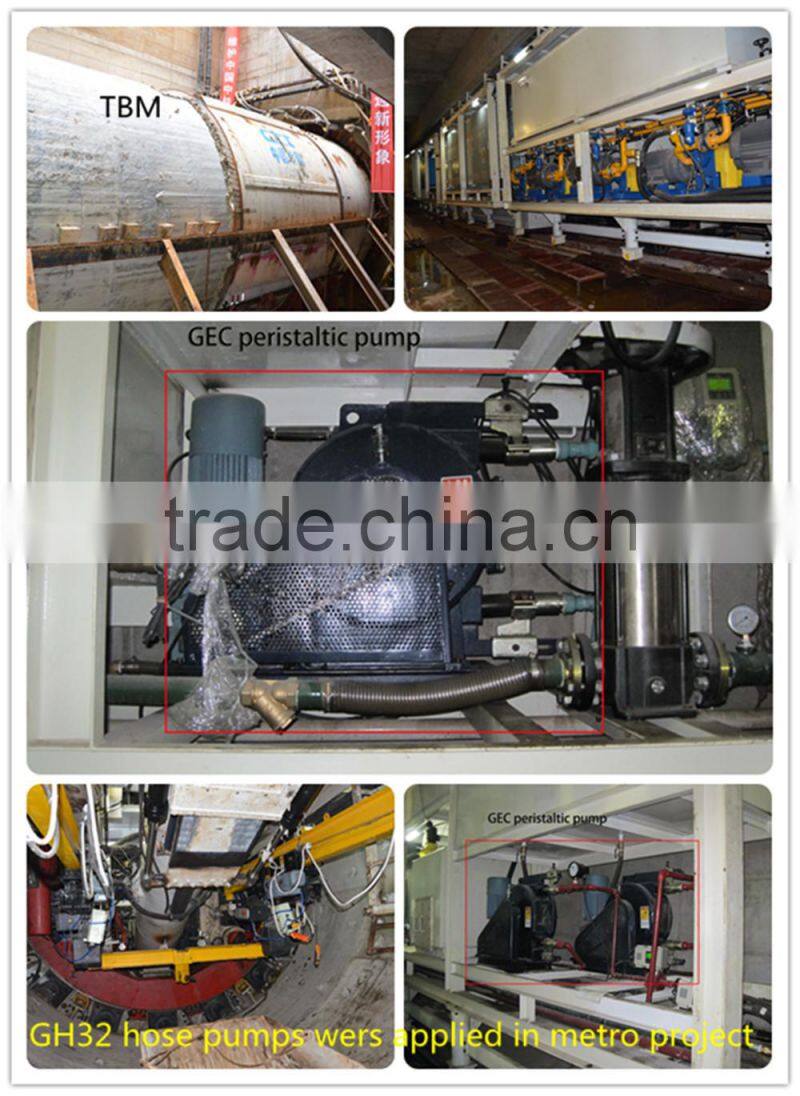

GH series industrial hose pump are mainly applied in distant conveying, grouting and dosing of viscous slurries in construction, mining, food, papermaking, ceramic, etc.
