GEC customized dry and wet shotcrete machine system for sale
Gaode Equipment Co.,Ltd, which is a manufacturer specialized in R&D, manufacture and sale of shotcrete machine.
Shotcrete machine has some obvious advantages such as advanced technology, prefect structure, stable performance, convenient operation and long service lief etc. It is widely employed in mining, tunnel, culvert, subway, hydropower engineering, underground excavation engineering etc.

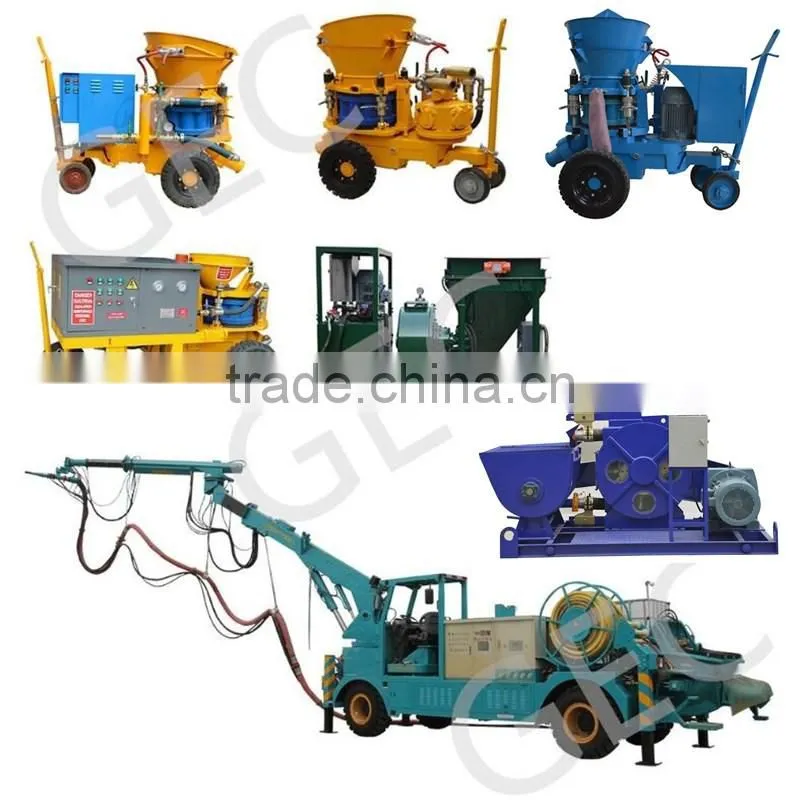

According to different process, our shotcrete have dry mix shotcrete machine, wet mix shotcrete machine and refractory spray machine, output from 1.5m3/h to 30m3/h.
Dry-mix shotcrete machine:
For dry-mix shotcrete machine, the output is from 1.5m3/h to 9m3/h. We have GZ-3 dry-mix shotcrete machine, GZ-5 dry-mix shotcrete machine and GZ-9 dry-mix shotcrete machine for your option. According to your different project demand, power drive has electric motor, air motor and diesel engine.

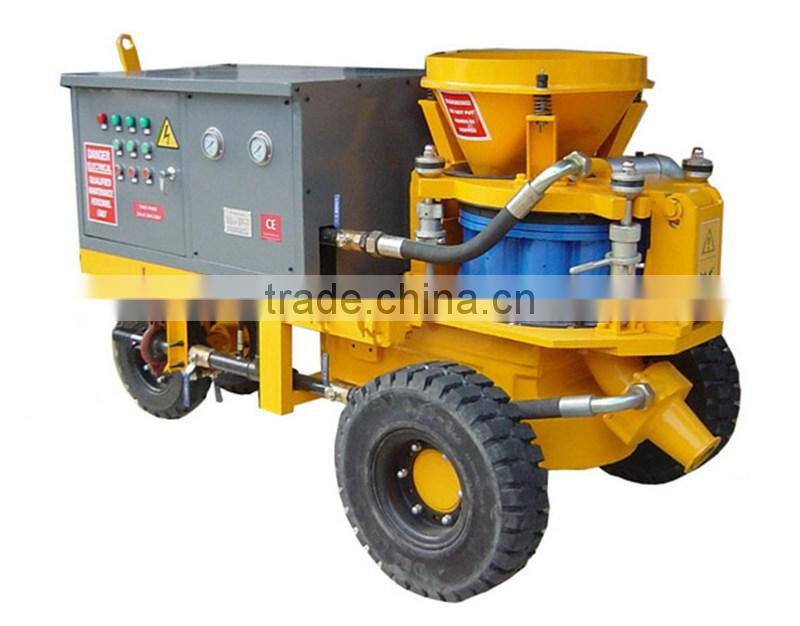

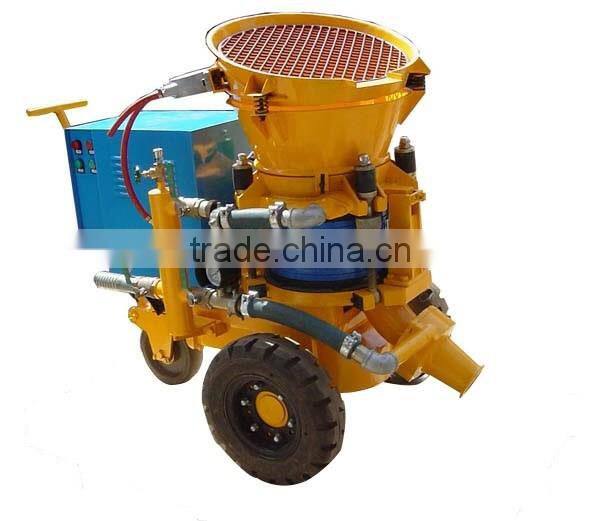

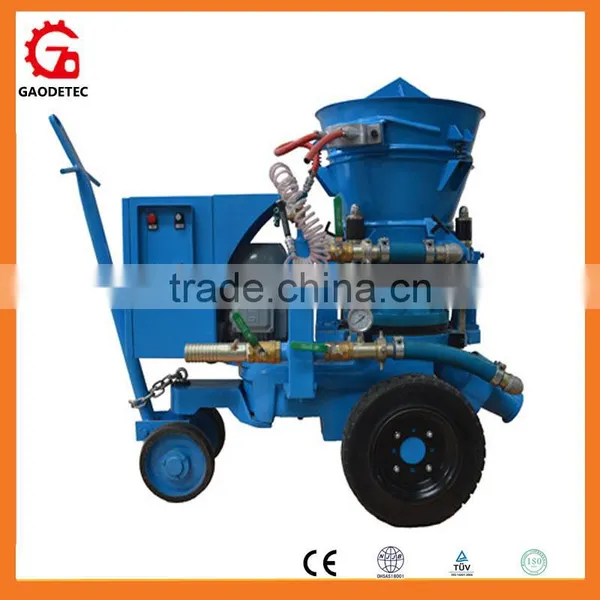

3m3/h electric motor dry-mix shotcrete machine (with electric motor drive):

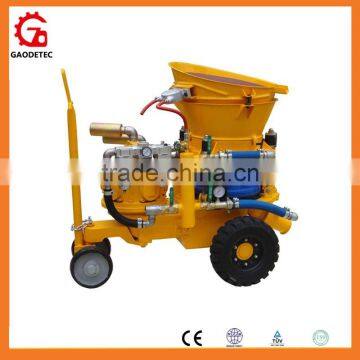

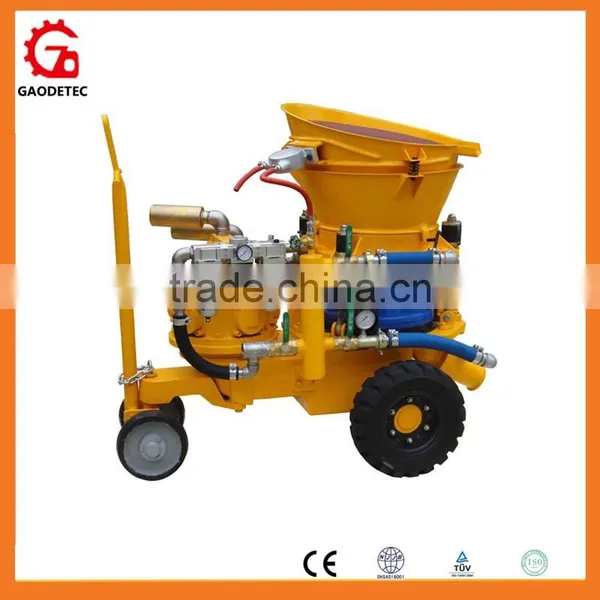

5m3/h dry-mix shotcrete machine (with air motor drive):
9m3/h dry-mix shotcrete machine (with diesel engine):
Specification:
Dry mix shotcrete machine | |||
Item | GZ-3E | GZ-5A | GZ-9D |
Output capacity | 3m3/h | 2.5-5.5m3/h | 6-9m3/h |
Max. horizontal conveying distance | 200m | 200m | 200m |
Suitable mix ratio | ≤1:3-5 | ≤1:3-5 | ≤1:4-5 |
Max. aggregate size | Ø10mm | Ø15mm | Ø20mm |
Conveying hose ID | Ø50mm | Ø51mm | Ø64mm |
Conveying pressure | 0.2-0.4MPa | 0.2-0.4MPa | 0.2-0.4MPa |
Air consumption | 5-6m3/min | 7-8m3/min | 10-12m3/min |
Motor/engine power | 3Kw | TMH6A | 20hp |
Material charging height | 0.9m | 1.1m | 1.1m |
Rotor speed | 14r/min | 11r/min | 7.5-11r/min |
Overall dimension | 1130x540x1020mm | 1350x750x1200mm | 2660x1110x1500mm |
weight | 430Kg | 720Kg | 950Kg |
Note: Every type shotcrete machine has electric motor, air motor or diesel engine drive for option | |||
Wet-mix shotcrete machine:
For wet-mix shotcrete machine, the output is from 1.5m3/h to 30m3/h. We have GCP20H-E hose type concrete pump ,GSZ3000 wet-mix shotcrete machine, GPS-7 wet-mix shotcrete machine and GDS1500 shotcrete pump and GSC concrete spray system with shotcrete arm. According to your different project demand, power drive has electric motor, air motor, diesel engine and gasoline engine.

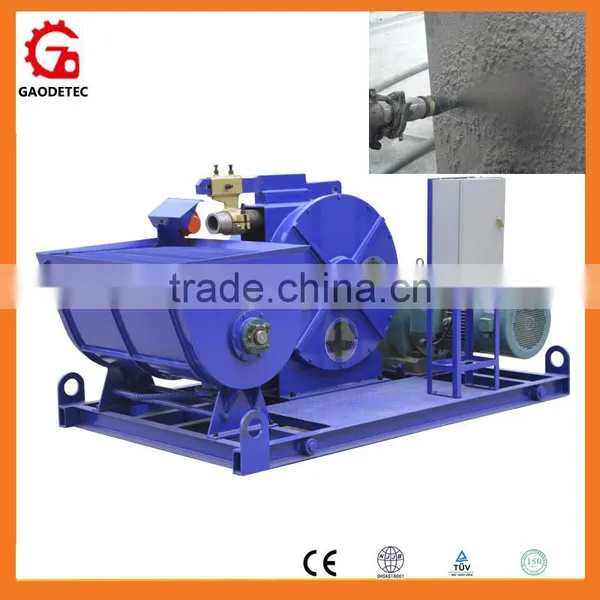

20m3/h hose type concrete spray pump
5m3/h wet-mix shotcrete machine (with electric motor drive):

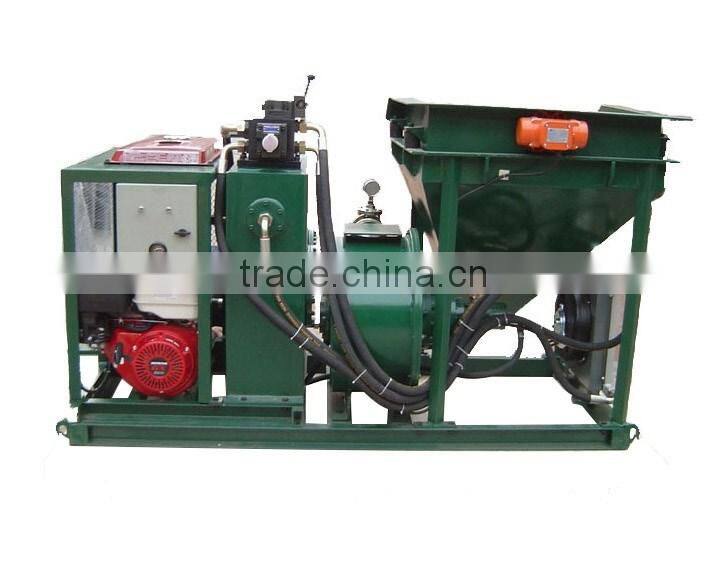

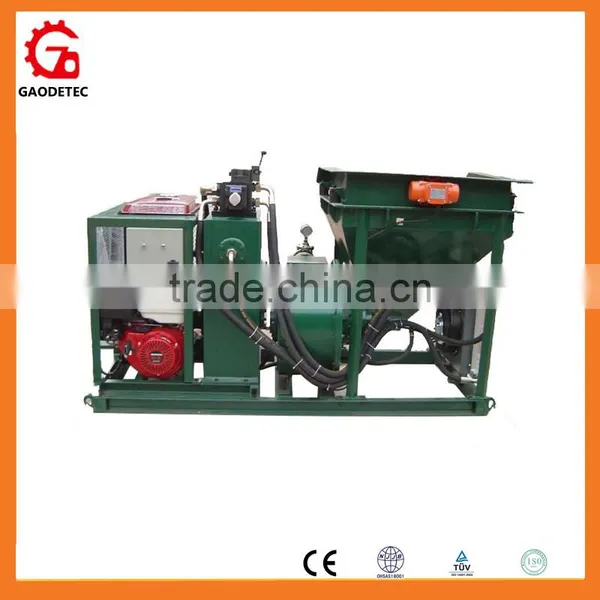

3m3/h shotcrete pump (with gasoline engine):
7m3/h wet-mix shotcrete machine (with electric motor):
Specification:
Wet mix shotcrete machine | ||||
Item | GCP20H-E | GSZ-3000E | GDS1500G | GPS-7 |
Rated output | 20m3/h | 3m3/h | 1.5-3m3/h | 7m3/h |
Max. aggregate size | Ø15mm | Ø10mm | Ø15mm | Ø20mm |
Concrete slump | 15-23cm | 8-15cm | 8-15cm | 8-15cm |
Air consumption | 6m3/min | 5-6m3/min | 7-8m3/min | 6m3/min |
Hose/dosing pump | GH76-610 | GH15-200 | GH50-455 | / |
Hose/conveying hose ID size | Pump hose:76mm | Conveying hose:51/64mm | Hose:50mm/conveying hose:38mm | Conveying hose:51mm |
Motor/engine power | 22Kw | 7.5Kw | Honda GX390 | 11Kw |
Overall dimension | 24.x1.3x1.2m | 1.13x0.54x1.02m | 1.35x0.75x1.2m | 2.66x1.11x1.5m |
Net weight | 1560Kg | 430Kg | 720Kg | 950Kg |

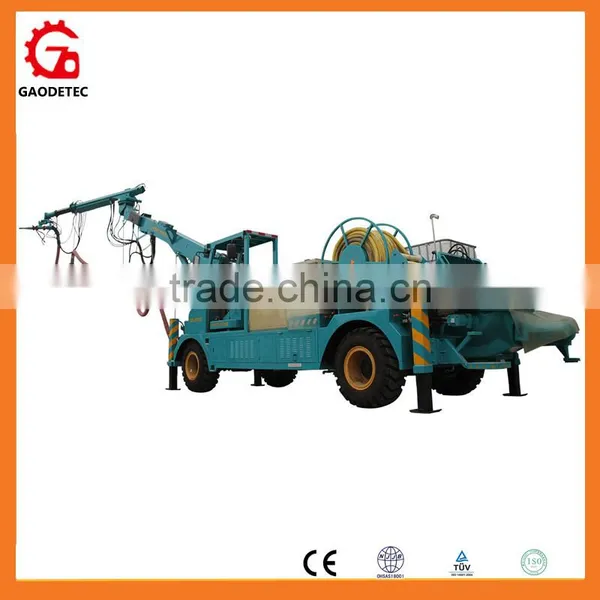

GSC shotcrete machine is wet-mix spray syetem with robot arm, The series wet shotcrete system equipments are high-end equipment with top design and manufacture. They have multi-function and can be applied widely.
Refractory gunning machine:
For refractory gunning machine, we have GZ-3ER refractory gunning machine, GD-BP refractory spray furance repair machine, and GWR spray refractory wet gunning machine for your aption.
GZ-3ER refractory spray machine 9with electric motor):
GWR refractory spray gunning machine:

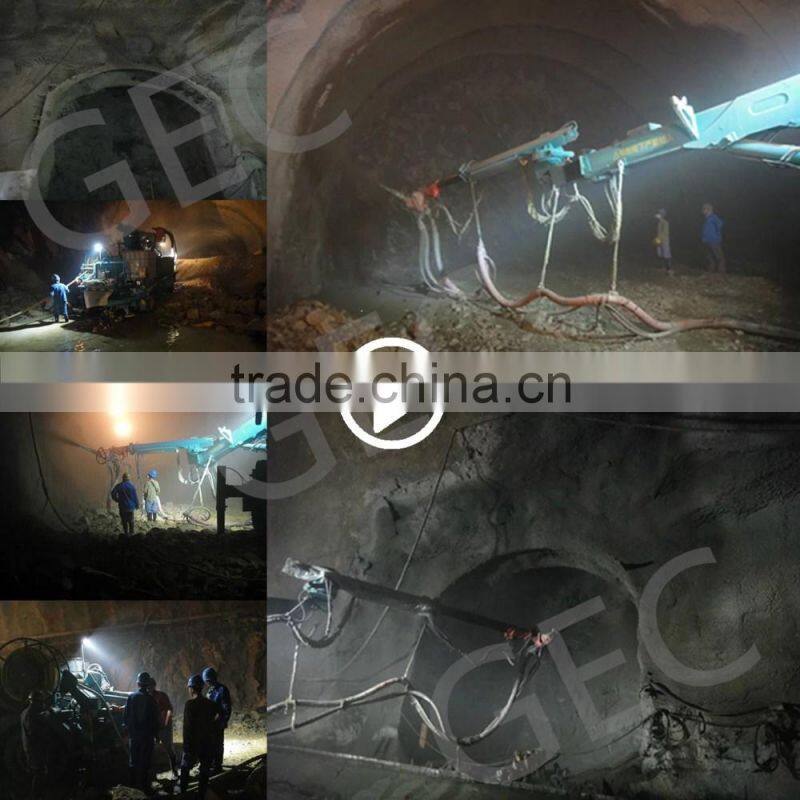

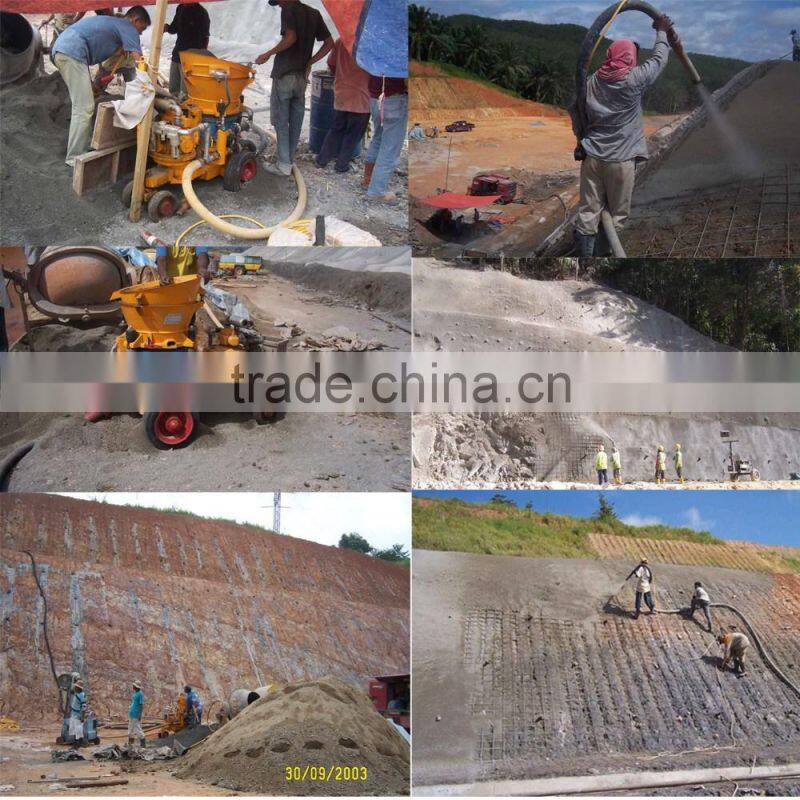

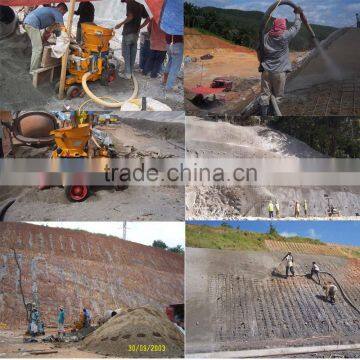

The shotcrete machine system is on the site:
