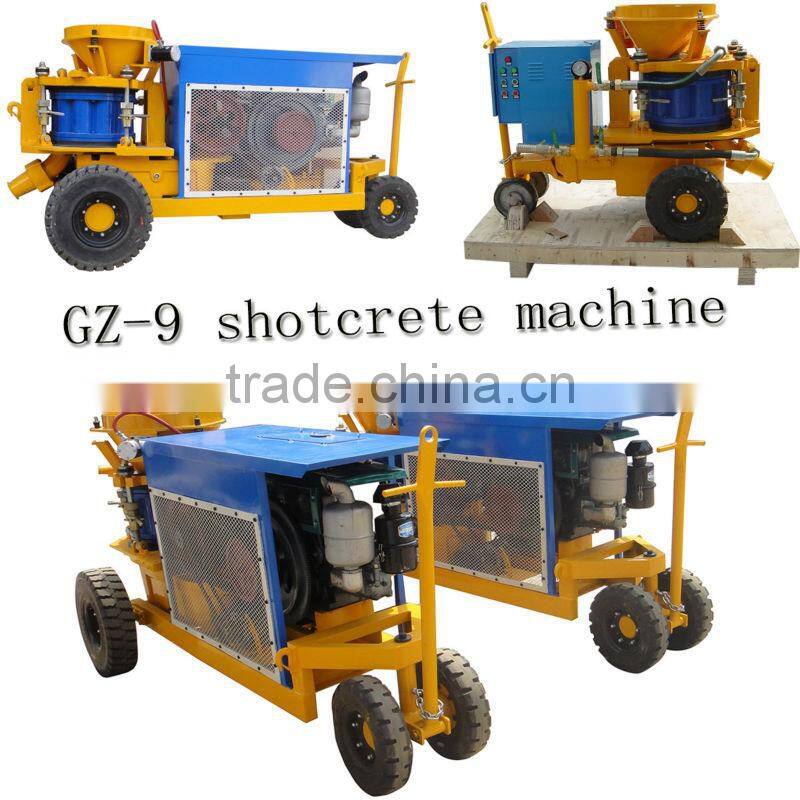

GZ-9 ISO spplier tunnel used concrete dry-mix shotcrete machine in India
GZ-9 dry-mix shotcrete machine is large-sized shotcrete machine for the spraying process.
GZ-9 dry-mix shotcrete machine can be used for large-section tunnel building, mine, etc
GZ-9 dry-mix shotcrete machine is available in following versions:
Basic: electric drive can be combined with tyre chassis
Extended (optional): Air motor drive or diesel drive combined with skid or rail-wheel.
GZ9 ISO spplier tunnel used dry-mix shotcrete machine features:
Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.
GZ9 ISO spplier tunnel used dry-mix shotcrete machine technical data:
Electric drive:
Output Capacity | 9m3 /h |
Max. Horizontal Conveying Distance | 200m |
Suitable Mix Ratio(Cement/Sand) | ≤1:4~5 |
Max. Aggregate Size | Dia.20 mm |
Conveying Hose Inner Diameter | Dia.64 mm |
Conveying Pressure | 0.2-0.4MPa(29-58PSI) |
Air Consumption | 10~12m3/min(357-430CFM) |
Material Charging Height | 1.1m |
Rotor Speed | 11r/min |
Electric Motor | 7.5kW,Y132M-4,IP55 |
Vibrator Electric Motor | 0.15kW,XVM-A1.5-2 |
Available Voltage | 220V,380V, 440V,660V 50Hz/60Hz |
Overall Dimension(length×width×height) | 1.65×0.9×1.25m |
Net Weight | 900kg |
Air motor drive:
Output Capacity | 5-9m3 /h |
Max. Horizontal Conveying Distance | 200m |
Suitable Mix Ratio(Cement/Sand) | ≤1:4~5 |
Max. Aggregate Size | Dia.20 mm |
Conveying Hose Inner Diameter | Dia.64 mm |
Conveying Pressure | 0.2-0.4MPa(29-58PSI) |
Air Consumption for conveying material | 10~12m3/min(357-430CFM) |
Material Charging Height | 1.1m |
Rotor Speed | 6-11r/min |
Air Motor | TMH8A |
Air pressure for air motor | 0.5Mpa |
Air consumption for air motor | 10 m3 /min/357CFM |
Vibrator | OR100,oil |
Overall Dimension(length×width×height) | 1.65×0.9×1.25m |
Net Weight | 900kg |
Diesel drive:
Output Capacity | 6-9m3 /h |
Max. Horizontal Conveying Distance | 200m |
Suitable Mix Ratio(Cement/Sand) | ≤1:4~5 |
Max. Aggregate Size | Dia.20 mm |
Conveying Hose Inner Diameter | Dia.64 mm |
Conveying Pressure | 0.2-0.4MPa(29-58PSI) |
Air Consumption | 10~12m3/min(357-430CFM) |
Material Charging Height | 1.1m |
Rotor Speed | 7.5-11r/min |

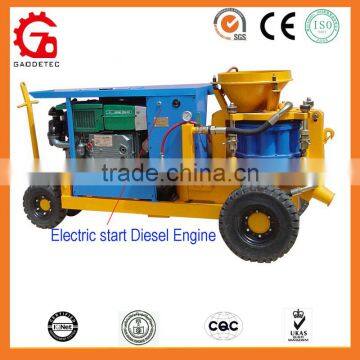

Diesel Engine | 20hp,2200rpm, Radiator Cooling |
Diesel Engine Starting | Electric start |

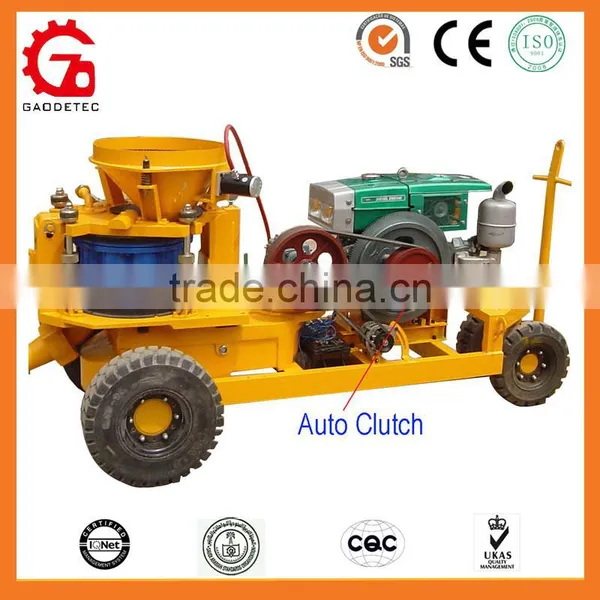

Clutch Type in Diesel Engine | Automatic Clutch |
Air Vibrator | OR100,Oli |
Overall Dimension(length×width×height) | 2.66×1.11×1.50m |
Net Weight | 950kg |
Package:
Application:
Workshop:
Customers:
Certificate:
CE AND ISO9001
