Monostrand Post Tensioning Anchor

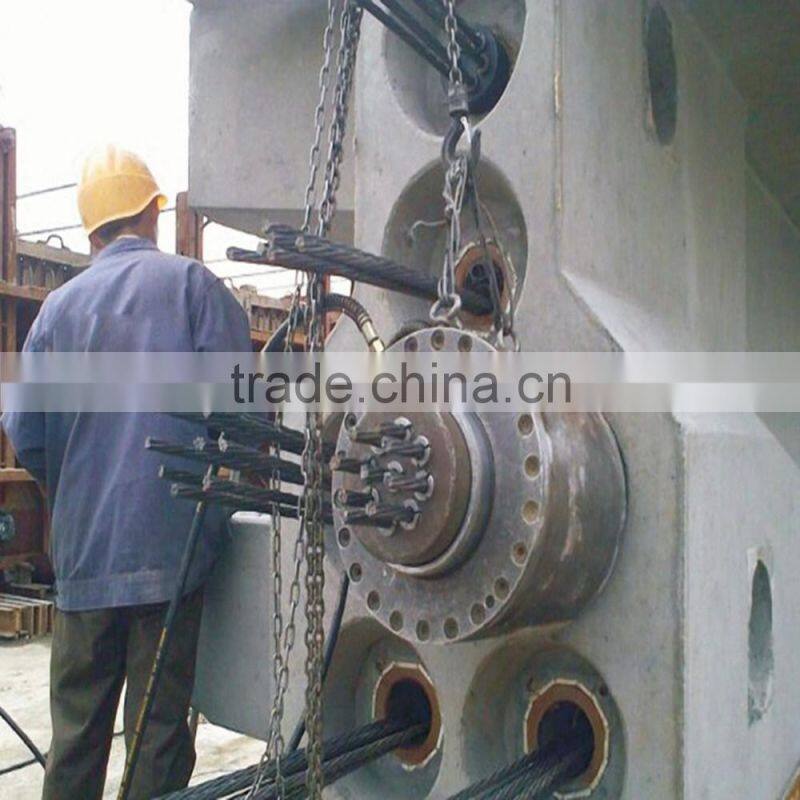

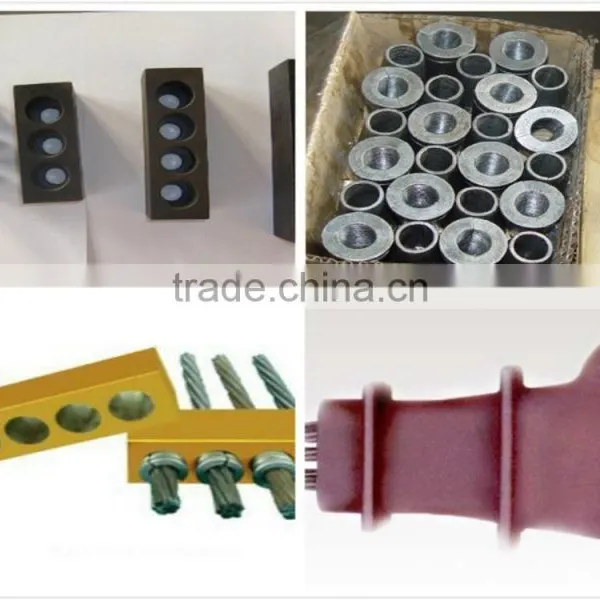

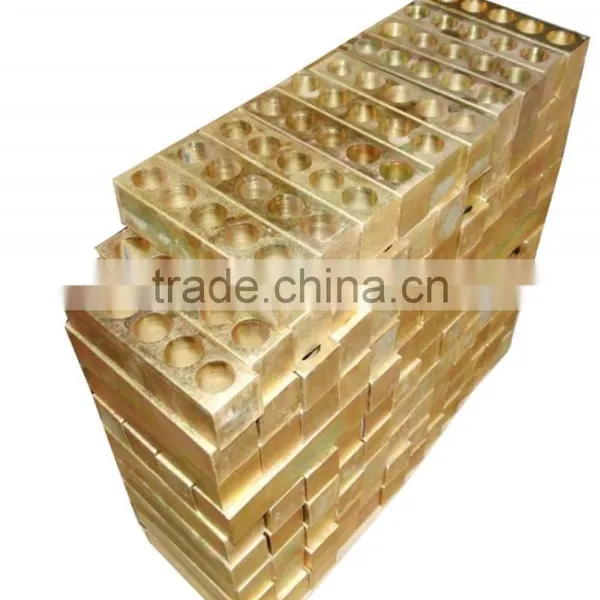

YJM Series Monostrand Slab Post Tensioning Anchor GYM System is consist of stress-end anchor, fixed-end anchor,anchor coupler and corrugated pipe. It can be divided into GYM13,GYM15,GYM18 series of round anchors and GBM13,GBM15 series of flat anchors, we also have high-strength steel wire GYM5,GYM7 series anchor. |
Our anchor system has below features: |
1. Wide range application, it can anchor with standard strength of 1570Mpa-2000Mpa, with the diameter of 8mm,9mm,11mm,12.7mm,15.2mm,18mm pc strand and the high-strength steel wire with standard strength of 1570Mpa-1670Mpa, with the diameter of 5mm,7mm. 2. Wide range of choice, GYM series anchor system is suitable for the number of pc strand from 1-55 tendons, and can be produced as per customer requirement. 3. With good stressing self-anchored function, Easy operation. 4. With high anchoring efficiency and reliable anchor. 5. The anchor structure size is reasonable, which can satisfy anchorage efficiency coefficient but also achieve anchorage of strand of short distance. |
| Complete sets of Anchor System: |
|
YJM Series Monostrand Slab Post Tensioning Anchor
Model | Anchor Head | Anchor Plate | Corrugated Pipe I.D. | Spiral Reinforcement/Bar | Matched Tension Jack Model | |||||
ØD | B | A | L | ØC | ØG | H | Ød | n | ||
GYM15(13)-1 | 48 (40) | 50 (50) | 90 (90) | 35 (35) |
| 80(85) | 30(35) | 6 | 4(4) | QYC270 |
GYM15(13)-2 | 94 (80) | 50 (50) | 135 (120) | 110 (110) | 45(40) | 120(110) | 40(50) | 8(8) | 3(3) | YDC650 (YDC650) |
GYM15(13)-3 | 94 (80) | 50 (40) | 135 (120) | 110 (120) | 50(50) | 130(130) | 50(50) | 10(8) | 4(3) | YDC1000 (YDC650) |
GYM15(13)-4 | 98 (85) | 50 (50) | 150 (135) | 120 (120) | 50(50) | 150(150) | 50(50) | 14 (10) | 4(4) | YDC1500 (YDC650) |
GYM15(13)-5 | 108 (94) | 50 (55) | 180 (150) | 130 (120) | 55(50) | 170(160) | 50(50) | 14 (14) | 4(4) | YDC1500 (YDC1500) |
GYM15(13)-6,7 | 127(108) | 50 (55) | 190 (165) | 160 (150) | 70(60) | 200(190) | 50(50) | 14 (14) | 4(5) | YDC2000 (YDC1500) |
GYM15-8 | 137 | 60 | 230 | 180 | 80 | 240 | 60 | 16 | 5 | YDC2000 |
GYM15(13)-9 | 154 (128) | 60 (60) | 240 (180) | 190 (160) | 80(60) | 240(220) | 60(50) | 16 (16) | 5(5) | YDC2500 (YDC1500) |
GYM15(13)-10 | 167 | 60 | 250 | 210 | 80 | 270 | 60 | 16 | 6 | YDC2500 |
GYM15(13)-11/12 | 167 (148) | 60 (60) | 260 (215) | 210 (190) | 90(80) | 270(240) | 60(60) | 16 (16) | 6(5) | YDC3000 (YDC2000) |
GYM15-14/15 | 187 | 65 | 270 | 220 | 90 | 310 | 60 | 18 | 6 | YDC3500 |
GYM15-16 | 207 | 65 | 290 | 250 | 90 | 330 | 60 | 18 | 6 | YDC4000 |
GYM15(13)-19 | 207 (178) | 70 (65) | 310 (270) | 265 (260) | 100(90) | 350(310) | 60(60) | 18 (18) | 7(6) | YDC5000 (YDC3000) |
GYM15(13)-22 | 227 (188) | 70 (65) | 380 (290) | 265 (260) | 120(100) | 380(330) | 60(60) | 20 (18) | 7(6) | YDC5000 (YDC3000) |
GYM15(13)-24 | 237 (208) | 75 (75) | 380 (300) | 380 (270) | 120(100) | 380(340) | 60(60) | 20 (18) | 7(6) | YDC6500 (YDC4600) |
GYM15(13)-25,27 | 247 (208) | 90 (80) | 380 (320) | 300 (280) | 120(100) | 400(360) | 60(60) | 20 (18) | 7(6) | YDC6500 (YDC4600) |
GYM15(13)-31 | 277 (238) | 90 (90) | 390 (340) | 355 (320) | 130(105) | 450(380) | 70(60) | 22 (20) | 8(6) | YDC6500 (YDC4600) |
GYM15(13)-37 | 287 (238) | 100 (100) | 430 (370) | 435 (370) | 140(120) | 500(430) | 70(70) | 22 (22) | 8(6) | YDC8000 (YDC6500) |
GYM15(13)-42 | 268 | 100 | 395 | 380 | 130 | 450 | 70 | 22 | 7 | YDC10000 |
GYM15(13)-44 | 327 | 110 | 460 | 465 | 160 | 550 | 70 | 22 | 8 | YDC10000 |
GYM15(13)-55 | 360 (298) | 120 (110) | 530 (460) | 515 (460) | 160(140) | 630(510) | 70(70) | 25 (22) | 9(7) | YDC12000 (YDC10000) |
Model | Flat anchor round | Flat corrugated Pipe I.D. | Flat anchor plate | flat Spiral Reinforcement/Bar | |||||||
A | B | C | D | E | F | L | G | H | n | t | |
GBM15L-2 GBM13L-2 | 90 | 46 | 52 | 22 | 160 | 70 | 140 | 160 | 100 | 5 | 45 |
GBM15L-3 GBM13L-3 | 120 | 46 | 65 | 22 | 180 | 70 | 150 | 180 | 100 | 5 | 45 |
GBM15L-4 GBM13L-4 | 155 | 46 | 74 | 22 | 220 | 80 | 210 | 220 | 100 | 5 | 45 |
GBM15L-5 GBM13L-5 | 190 | 46 | 90 | 22 | 260 | 80 | 270 | 260 | 100 | 5 | 45 |

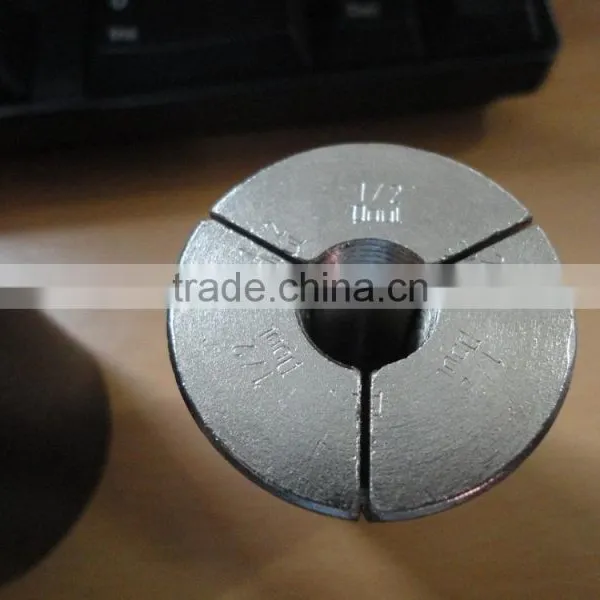

YJM Series Monostrand Slab Post Tensioning Anchor
Before send your inquiry, please attach the follow details:
1. How many holes of anchor do you need?
2. Do you need stress end anchor or dead(fixed) end anchor?
3. What is your required diameter for pc strand you use?
4. The products you need?

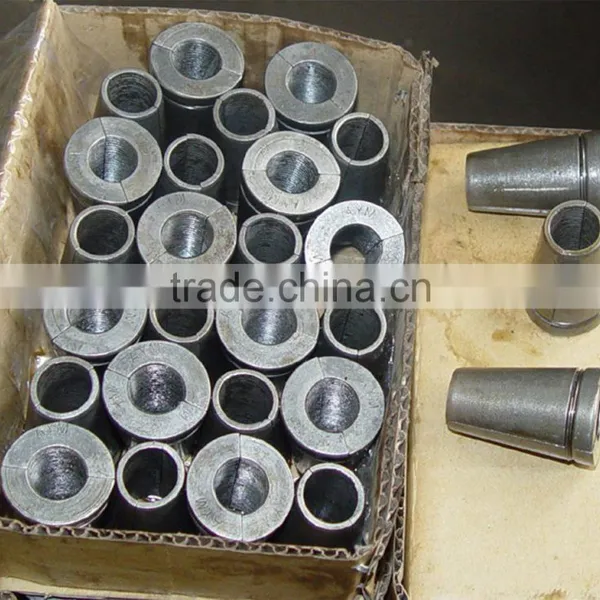

YJM Series Monostrand Slab Post Tensioning Anchor |
|
