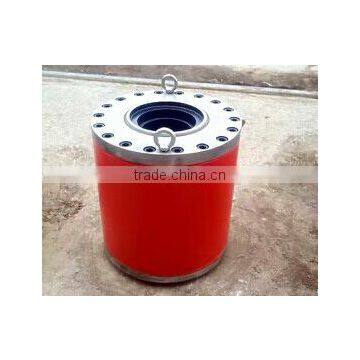

YDC Post Tension Metal Building Construction Prestressed 200 Tons Hydraulic Jack is the new designed product in our company, are the upgrades of the primary jacks.
Features:
1. Usage: It is mached with prestressed anchorage widely used in the construction of bridge and buildings, railway and subway, water conservancy and hydropower engineering .
2. It is suitable for the tension of group anchors with 1860-2000 sizes, Φ15.24, Φ12.7 strands.
3. In some certain circumstance it can be used in the working of pushig, jacking and transforming and so on.
4. Easy to use with reanosable price .
5. Jack is used for prestressing works
6. Using the new seals, to synchronous strengthen the seal-ability under great pressure.
7. Using special alloy steel with heat treatment process, reducing the cylinder's expansion ratio in the tensioning process. So that the life of seals and sealing performance can be improved about 20%.
8. In the tensioning the operating process, jacks is easily damaged under overpressure because of the jack-based pullback clinder, so we added the overpressure valve on the jacks to pressure production. Meanwhile we improved the original of commonly used structure by wire disc and flanged disc, to make the bearing capacity for oil pressure strengthen. So that enormously reduce the possibility of mechanical damage due to improper operation.
In a word, the YDC Post Tension Metal Building Construction Prestressed 200 Tons Hydraulic Jack ' performance is improved, and widely used in pre-stressing and poststressing construction.
Notice: according to users' requirement, YDC through jack can be configured.
YDC Post Tension Metal Building Construction Prestressed 200 Tons Hydraulic Jack
| model | pressure @ 700bar ton(KN) | stroke(mm) | oil pressure(Mpa) | effective area (sq. cm) | inner diameter(mm) | tool anchor diameter(mm) | limit board diameter (mm) | out diameter(mm) |
| YDC650 | 650 | 200 | 48 | 137 | 72 | 95 | 99 | 200x300 |
| YDC1000 | 1000 | 200 | 47 | 213 | 80 | 120 | 125 | 236x332 |
| YDC1500 | 1500 | 200 | 52 | 285 | 94 | 150 | 150 | 265x378 |
| YDC2000 | 2000 | 200 | 53 | 377 | 118 | 177 | 177 | 310x340 |
| YDC2500 | 2500 | 200 | 52 | 484 | 128 | 180 | 190 | 340x370 |
| YDC3000 | 3000 | 200 | 54 | 554 | 135 | 185 | 190 | 370x370 |
| YDC3500 | 3500 | 200 | 51 | 678 | 162 | 232 | 232 | 420x360 |
| YDC4000 | 4000 | 200 | 52 | 761 | 175 | 252 | 252 | 440x410 |
| YDC5000 | 5000 | 200 | 52 | 974 | 190 | 260 | 260 | 470x380 |
| YDC6500 | 6500 | 200 | 52 | 1278 | 220 | 275 | 290 | 560x650 |
| YDC8000 | 8000 | 200 | 50 | 1590 | 240 | 640x730 | ||
| YDC10000 | 10000 | 200 | 50 | 2023 | 280 | 720x850 | ||
| YDC12000 | 12000 | 200 | 50 | 2313 | 280 | 720x900 |

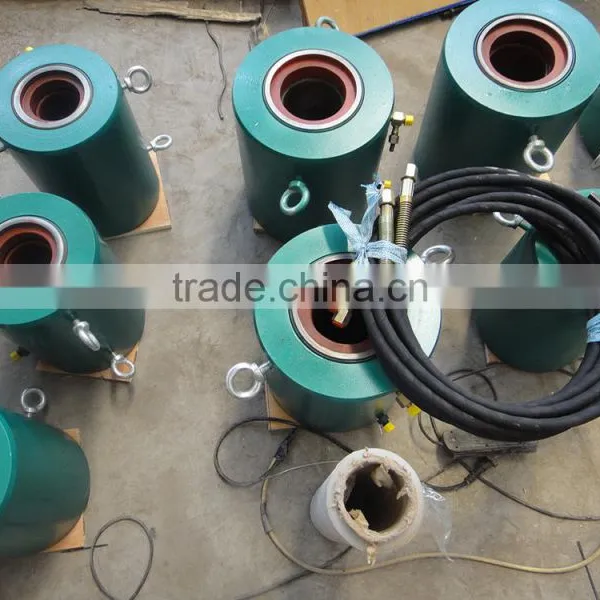

We produce many different types of hydraulic jack, anchorages and steel strand as followings:
YDC Post Tension Metal Building Construction Prestressed 200 Tons Hydraulic Jack
YDC Post Tension Metal Building Construction Prestressed 200 Tons Hydraulic Jack

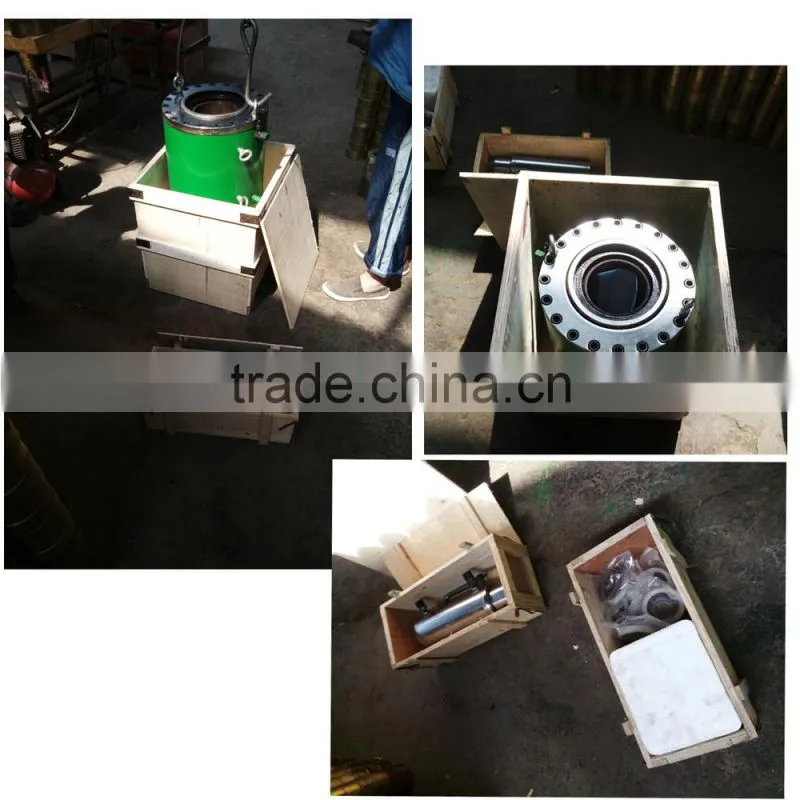

Packaging Detail: in 7 working days
Shipping Detail: in stock; out of stock(in 5 working days); customized(in 7 working days)
YDC Post Tension Metal Building Construction Prestressed 200 Tons Hydraulic Jack

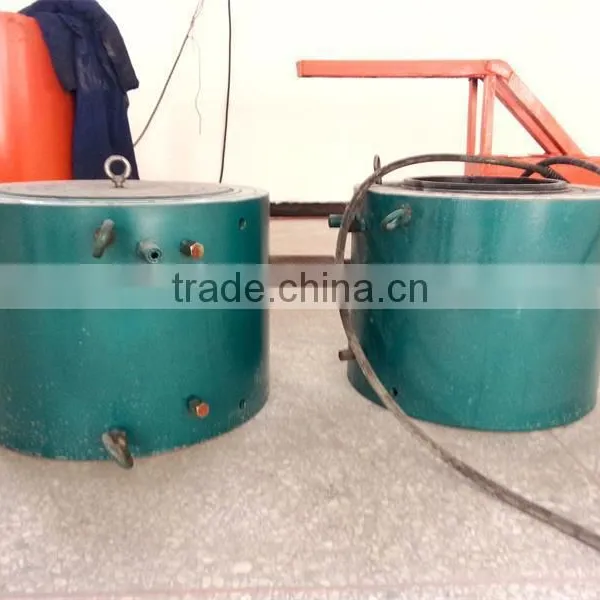

our factory and workshop
YDC Post Tension Metal Building Construction Prestressed 200 Tons Hydraulic Jack
A: What is your required maximum capacity for jack?
B: How is your required stroke?
