Hot Sale Prestressed Stress Jack and Oil Pump for Concrete
- 200 Set / Sets per Month
- Shanghai Tianjin Qingdao etc
- T/T L/C D/P D/A Credit Card PayPal
-
MONO progressive block for prefabried concrete houses
-
MONO progressive block for concrete pump spare parts
-
MONO progressive block for ready mix concrete trucks
-
MONO progressive block for concrete statue molds
-
MONO progressive block for concrete columns mold
-
MONO progressive block for gearbox for concrete mixer
Product Details
| Place of Origin: | Henan, China | Brand Name: | GAODETEC | Model Number: | YB |
| Theory: | Reciprocating Pump | Structure: | Piston Pump | Usage: | Oil |
| Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Diesel |
| Pressure: | High Pressure | Application: | Other, Submersible, Concrete work, Bridge, Railway construction |
Product Description

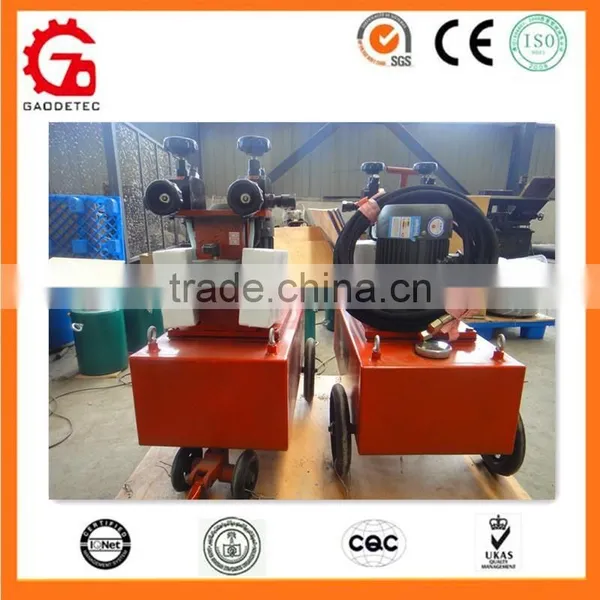

Hot Sale Prestressed Stress Jack and Oil Pump for Concrete
Specification of Hot Sale Prestressed Stress Jack and Oil Pump for Concrete

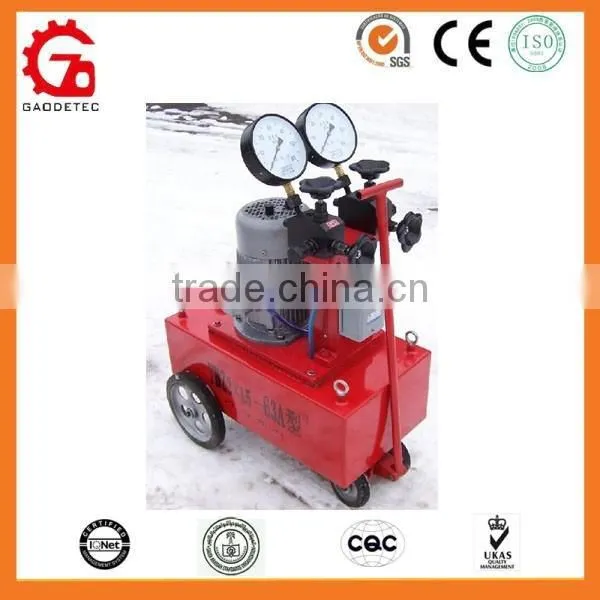

1. Oil pump is special assort used with various kinds of tonnage jack, stirring and extruding machine, as well as top tensioning machine.
2. Type: YB2×2/50A, YB2×1.5/63, YB4/80.
3. Operation: The oil pump is flexible to operate, convenient to use, safe and reliable.
4. Application: The oil pump is used for prestressing works,and it is used for kinds of anchorages in railway,bridge and building construction.
5. We can manufacture all kinds of achorages and prestressed equipments according to your requiremnts and drawings.
Parameter of Hot Sale Prestressed Stress Jack and Oil Pump for Concrete
| Model | Rated pressure(Mpa) | Rated flow(L/min) | Net weight(kg) | Power(KW) | Volume(L) | Overall Model Dimension(mm) | Purpose |
| YB2×2/50A | 50 | 2×2 | 120 | 3 | 60 | 740×450×1050 | Used with various jack,extruder,buttonhead with rated pressure less than 50 Mpa. |
| YB2×1.5/63 | 63 | 2×1.5 | 124 | 3 | 60 | 740×490×880 | Used with various jack, extruder, buttonhead with rated pressure less than 63 Mpa. |
| YB4/80 | 80 | 4 | 270 | 4 | 60 | 1090×590×1120 | Have the performance of big flow,high pressure, and can separately feed oil for two jacks. |
Hot Sale Prestressed Stress Jack and Oil Pump for Concrete
Application of Hot Sale Prestressed Stress Jack and Oil Pump for Concrete

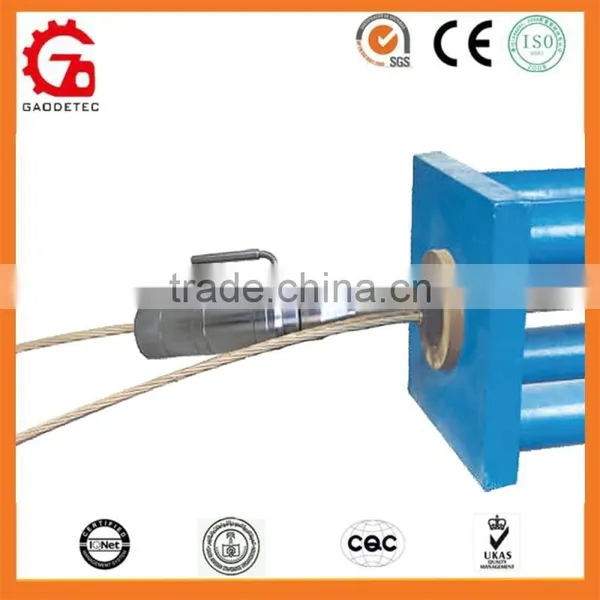

the pump is used with large tonnage hydaulic jacks, anchorages, stirring and extruding machine, as well as top tensioning machine in post tensioning and prestressing work in railway,bridge and building construction.

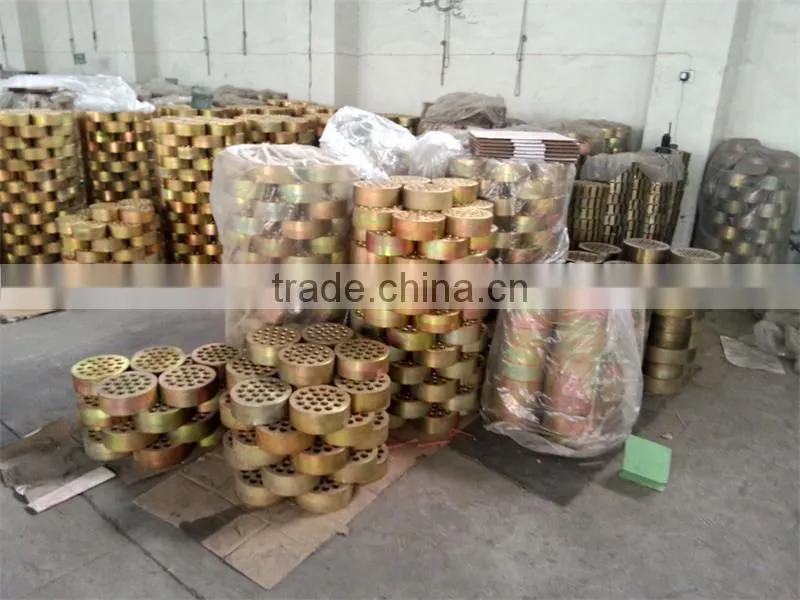

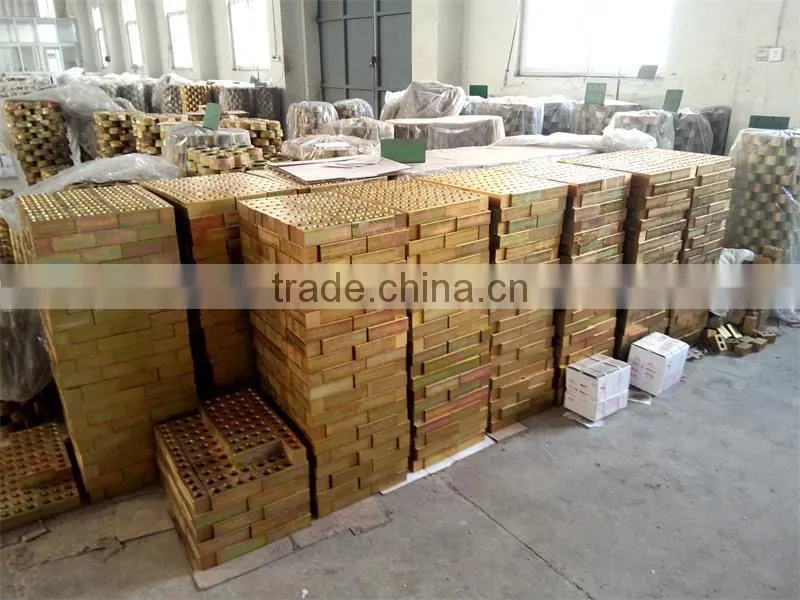

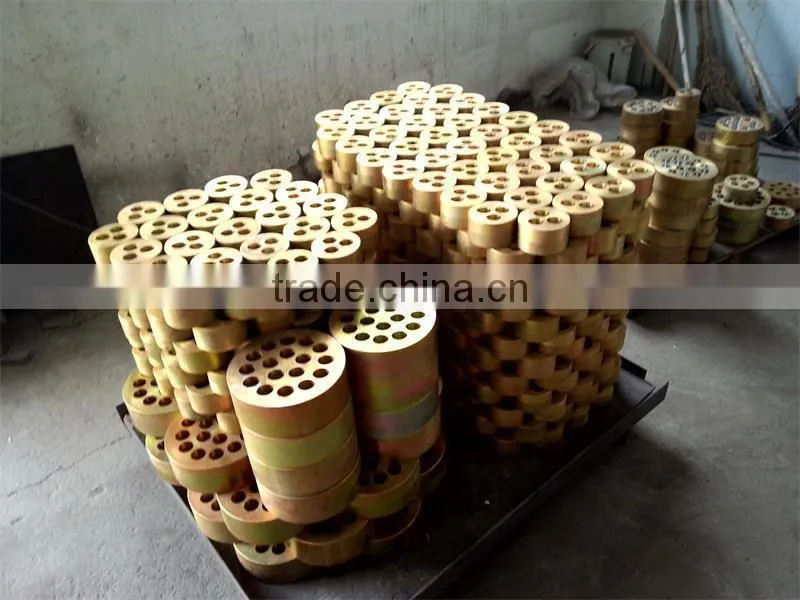

We also manufacture various prestressed anchorages:
Application of Hot Sale Prestressed Stress Jack and Oil Pump for Concrete:
Hot Sale Prestressed Stress Jack and Oil Pump for Concrete
Packaging Detail: standard export packaging; as your requirements
Shipping Detail: in stock; out of stock(5 working days); customized (7 working days)
Hot Sale Prestressed Stress Jack and Oil Pump for Concrete
we provide samples and after sale services. overseas services are available.
Hot Sale Prestressed Stress Jack and Oil Pump for Concrete
1. specification
easy operation, good performance, reliable quality, and compact design
2. application
used with large tonnage hydaulic jacks, anchorages, stirring and extruding machine, as well as top tensioning machine in post tensioning and prestressing work in railway,bridge and building construction.
Hot Sale Prestressed Stress Jack and Oil Pump for Concrete

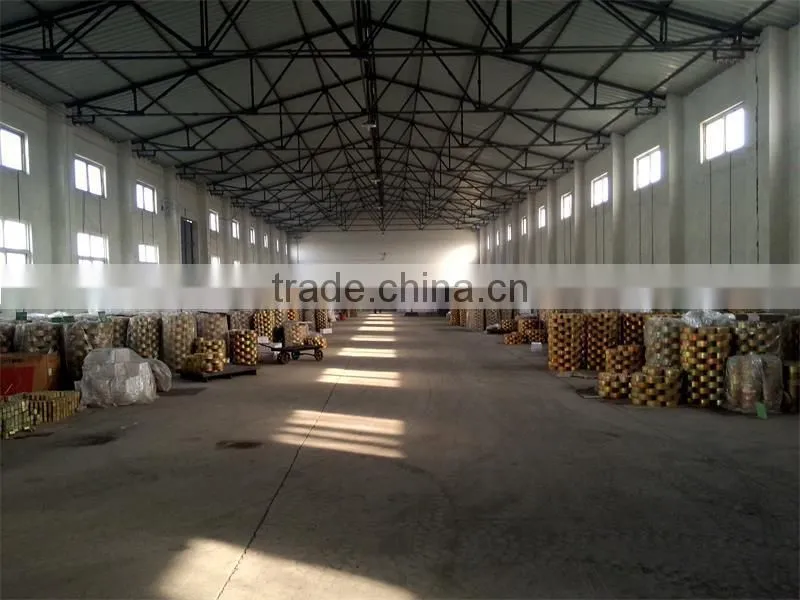

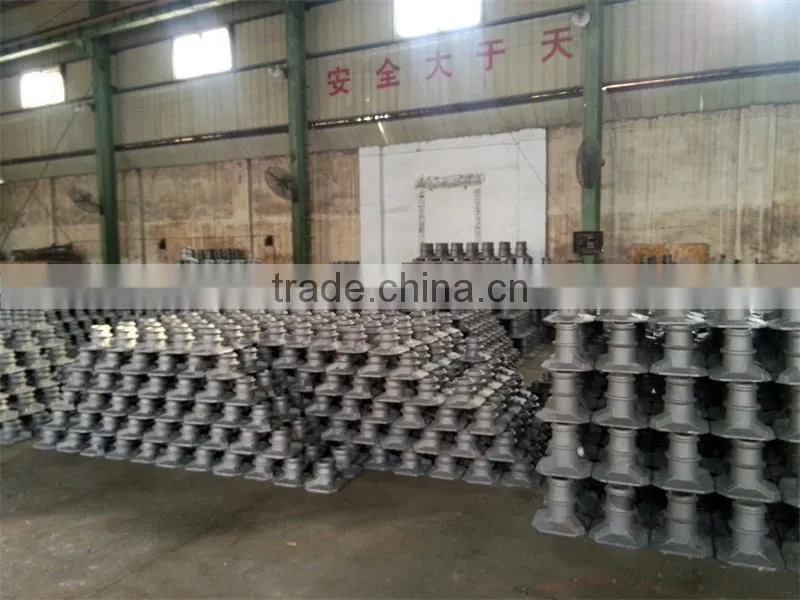

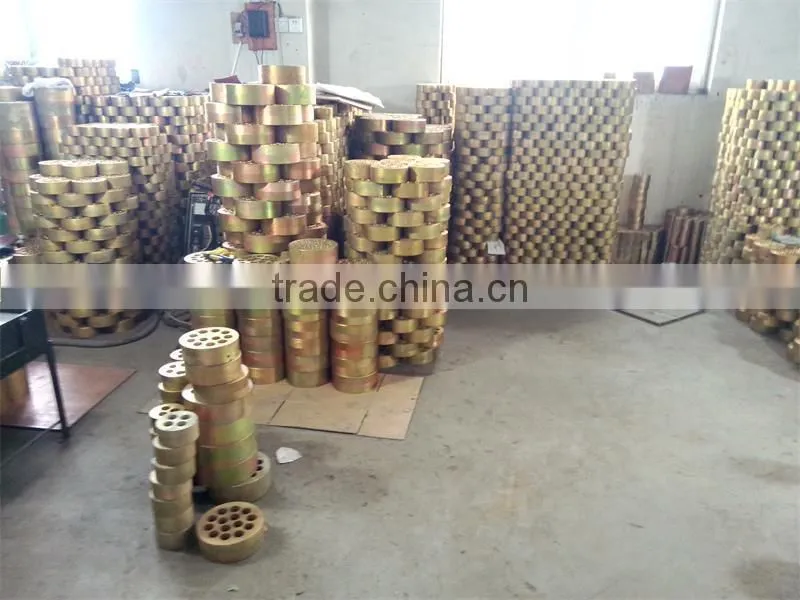

Ware house

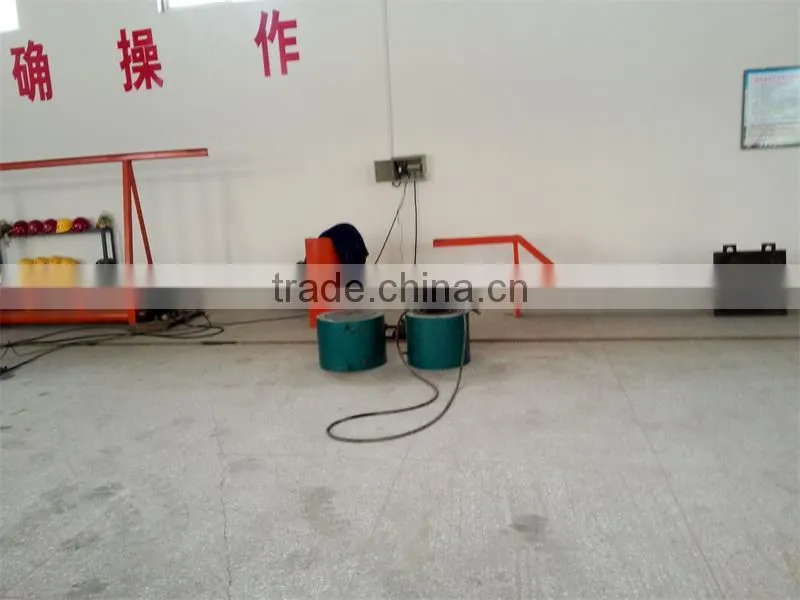

workshop
