Prestressed Hydraulic Tensile Equipment
Specification of Prestressed Hydraulic Tensile Equipment
1. Oil pump is special assort used with various kinds of tonnage jack, stirring and extruding machine, as well as top tensioning machine.

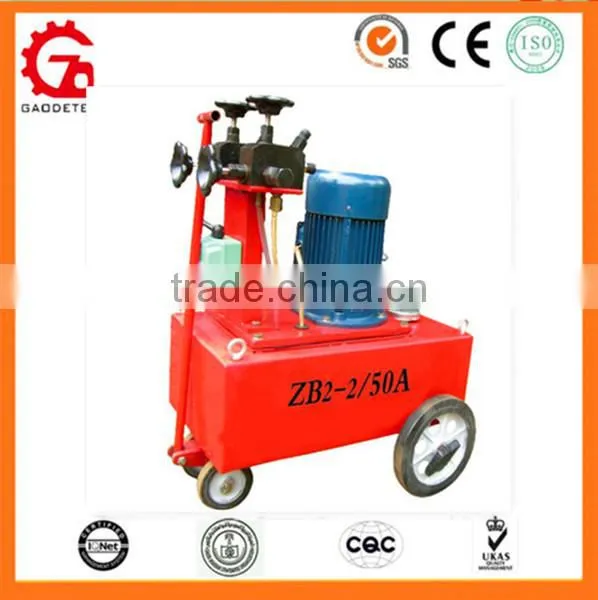

2. Type: YB2×2/50A, YB2×1.5/63, YB4/80.
3. Operation: The oil pump is flexible to operate, convenient to use, safe and reliable.
4. Application: The oil pump is used for prestressing works,and it is used for kinds of anchorages in railway,bridge and building construction.
5. We can manufacture all kinds of achorages and prestressed equipments according to your requiremnts and drawings.
Parameter of Prestressed Hydraulic Tensile Equipment
| Model | Rated pressure(Mpa) | Rated flow(L/min) | Net weight(kg) | Power(KW) | Volume(L) | Overall Model Dimension(mm) | Purpose |
| YB2×2/50A | 50 | 2×2 | 120 | 3 | 60 | 740×450×1050 | Used with various jack,extruder,buttonhead with rated pressure less than 50 Mpa. |
| YB2×1.5/63 | 63 | 2×1.5 | 124 | 3 | 60 | 740×490×880 | Used with various jack, extruder, buttonhead with rated pressure less than 63 Mpa. |
| YB4/80 | 80 | 4 | 270 | 4 | 60 | 1090×590×1120 | Have the performance of big flow,high pressure, and can separately feed oil for two jacks. |

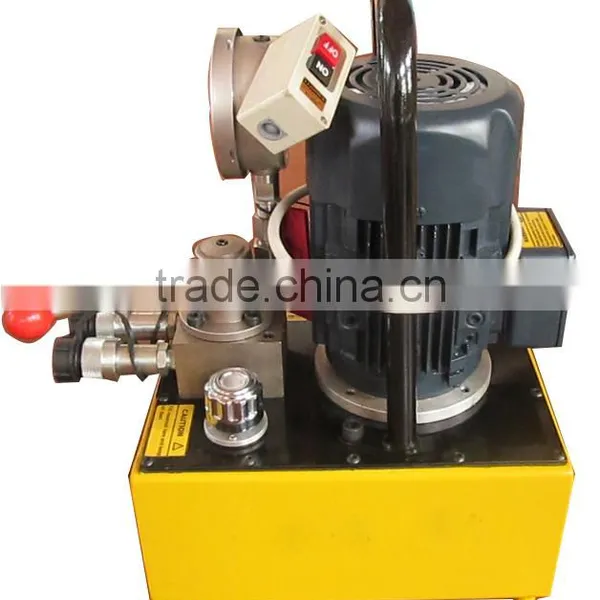

Prestressed Hydraulic Tensile Equipment
Application of Prestressed Hydraulic Tensile Equipment
used with large tonnage hydaulic jacks, anchorages, stirring and extruding machine, as well as top tensioning machine in post tensioning and prestressing work in railway,bridge and building construction.
we also manufacture anchorages:
Application of anchorages:
Prestressed Hydraulic Tensile Equipment
Packaging Detail: standard export packaging; as your requirements
Shipping Detail: in stock; out of stock(5 working days); customized (7 working days)
Prestressed Hydraulic Tensile Equipment
we provide samples and after sale services. overseas services are available.
Prestressed Hydraulic Tensile Equipment
1. specification
easy operation, good performance, reliable quality, and compact design
2. application
used with large tonnage hydaulic jacks, anchorages, stirring and extruding machine, as well as top tensioning machine in post tensioning and prestressing work in railway,bridge and building construction.
Prestressed Hydraulic Tensile Equipment
Ware house

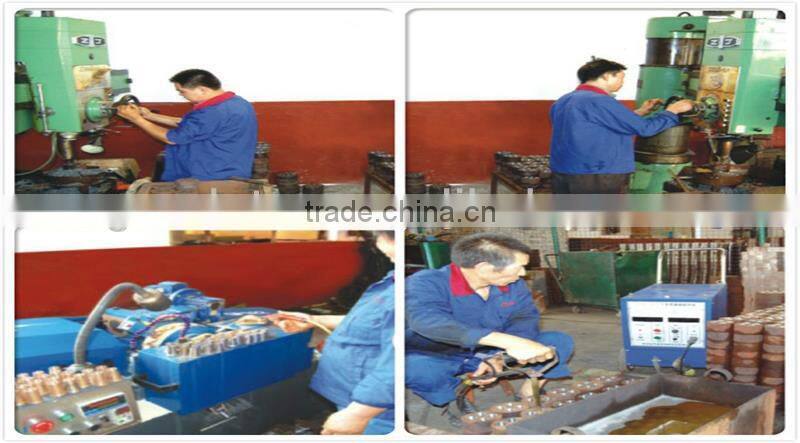

workshop
