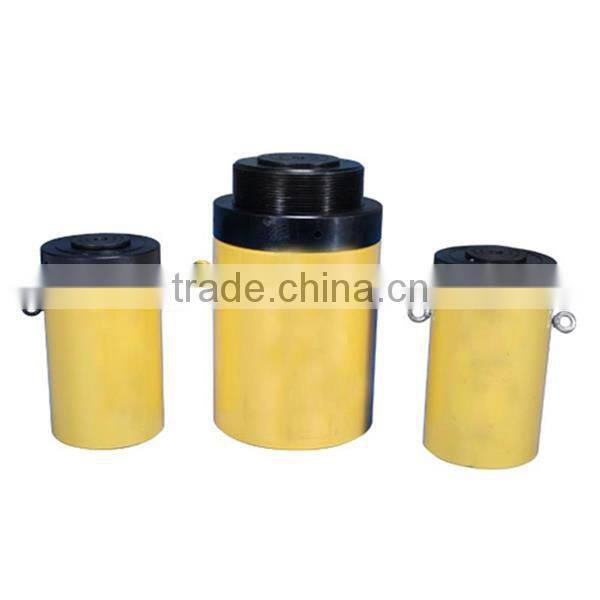

High Performance Standard Single-Acting Smart Mechanical Locking Cylinders

High Performance Standard Single-Acting Smart Mechanical Locking Cylinders thumbnail-1
High Performance Standard Single-Acting Smart Mechanical Locking Cylinders photo-1
US$ 95 - 2,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Other, cylinders, Mechanical Locking Cylinders
Model Number:
CLL
Brand Name:
GEC
Contact Supplier Request Quote Chat Now
Zhengzhou Gaode Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Tianjin etc
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, cylinders, Mechanical Locking Cylinders
Model Number CLL
Brand Name GEC
Place of Origin Henan, China

High Performance Standard Single-Acting Smart Mechanical Locking Cylinders




Product Description

Introduction of High Performance Standard Single-Acting Smart Mechanical Locking Cylinders

High Performance Standard Single-Acting Smart Mechanical Locking Cylinders

High Performance Standard Single-Acting Smart Mechanical Locking Cylinders combine all the design features of the single-acting and double-acting and the advantages of design, which improves the efficiency. The safety of the mechanical lock nut jack cylinders bearing makes it applicable to long-time consistent stretching and loading operating of piston requirements.



Some of the cylinders have collar threads,plunger threads and base mounting holes which enable easy fixturing , and it is widely used in construction, manufacturing and mainetance and some other occasions, which achieve stalling convenience.



Features of Mechanical Locking Cylinders

  • Single-acting, load return
  • Safety lock nut for mechanical load holding
  • Plunger wiper reduces contamination, extending cylinder life
  • Special synthetic coating for improved corrosion resistance and lower friction for smoother operation
  • Overflow port functions as a stroke limiter
  • Interchangeable, hardened grooved saddles are standard
  • CR-400 coupler and dust cap included on all models
  • Higher capacities: 1500 and 2000 ton models available on request

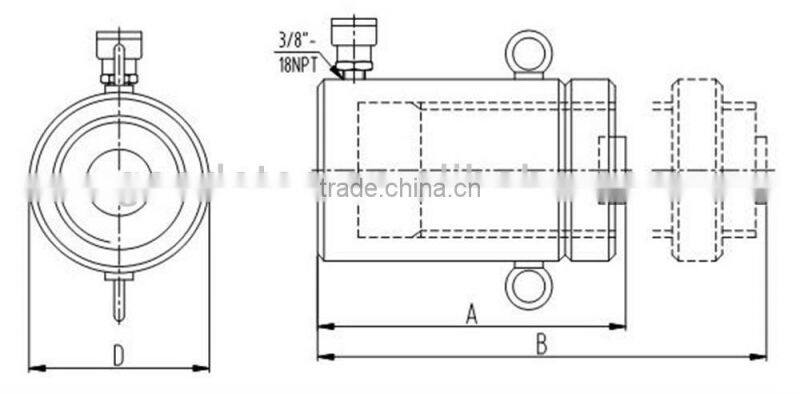

Technical data of Mechanical Locking Cylinders

 High Performance Standard Single-Acting Smart Mechanical Locking Cylinders



Model Capacity @700bar ton (KN)  Stroke(mm)

Effective area

(sq. cm)

Oil capacitY

(cubic cm)

Closed height(mm)

A

Out diameter(mm)

D

 Weight(kg)
CLL-4002 400(3919) 50 559 2795 335 350 251
CLL-4006 150 559 8385 435 350 327
CLL-40010 250 559 13975 535 350 403
CLL-5002 500(5118) 50 730 3650 375 400 367
CLL-5006 150 730 10950 475 400 467
CLL-50010 250 730 18250 575 400 568
CLL-6002 600(5983) 50 857 4285 395 430 447
CLL-6006 150 857 12855 495 430 563
CLL-60010 250 857 21425 595 430 680
CLL-8002 800(8238) 50 1179 5895 455 505 711
CLL-8006 150 1179 5895 555 505 871
CLL-80010 250 1179 29475 655 505 1031
CLL-10002 1000(10260) 50 1465 7325 495 560 951
CLL-10006 150 1465 21975 595 560 1143
CLL-100010 250 1465 36625 695 560 1335

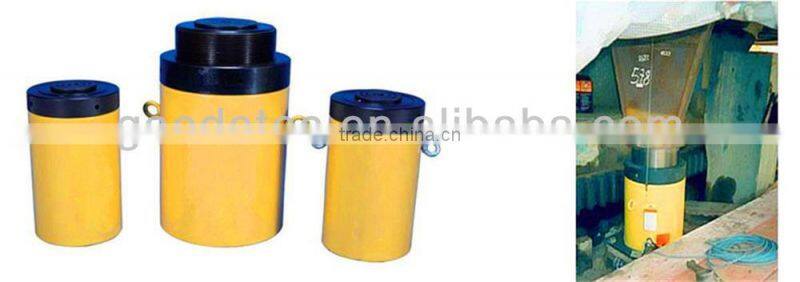

Application



High Performance Standard Single-Acting Smart Mechanical Locking Cylinders

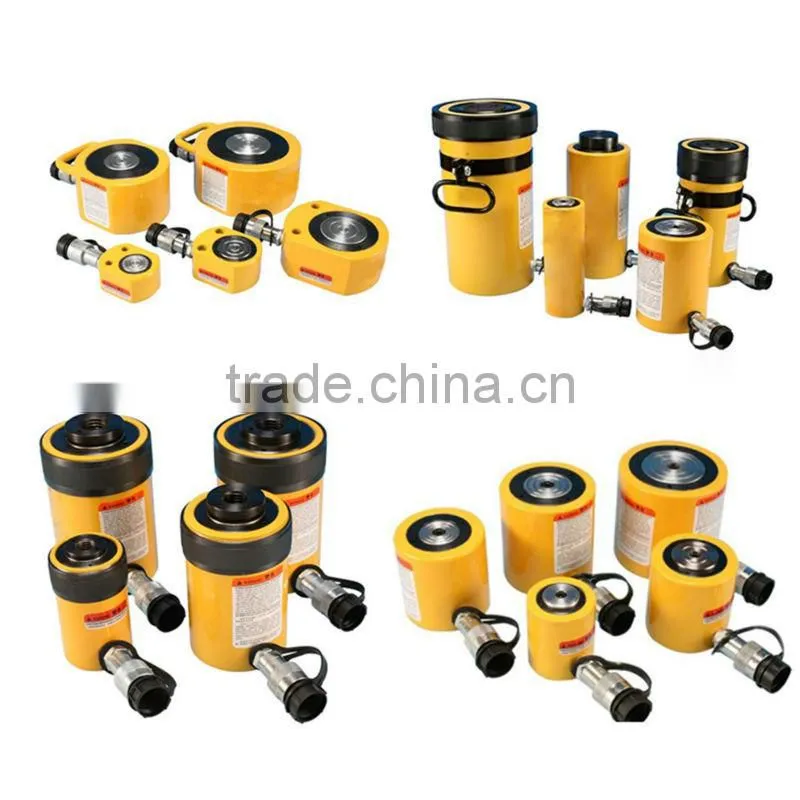

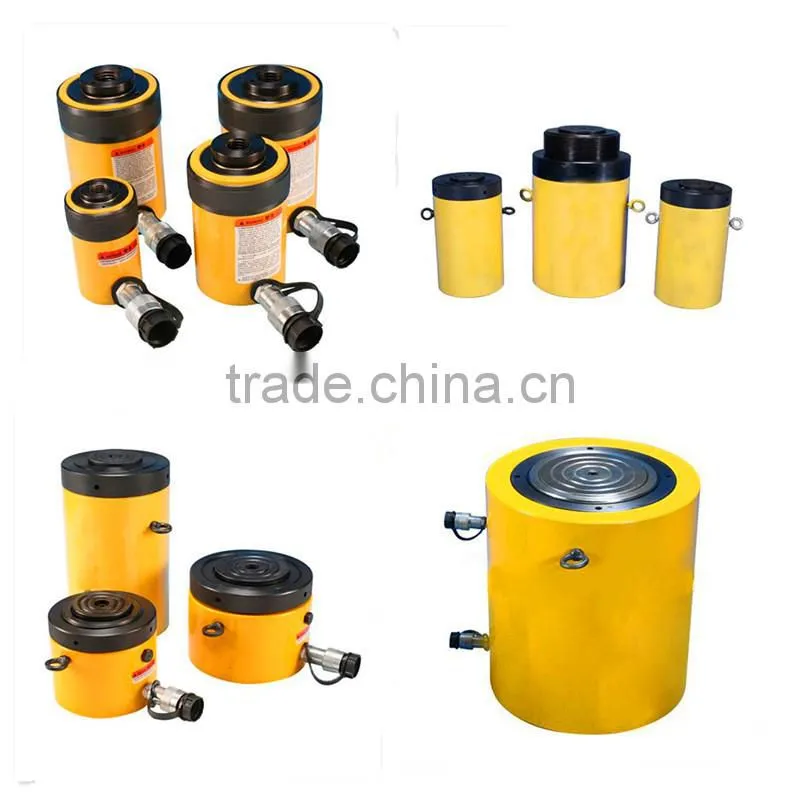

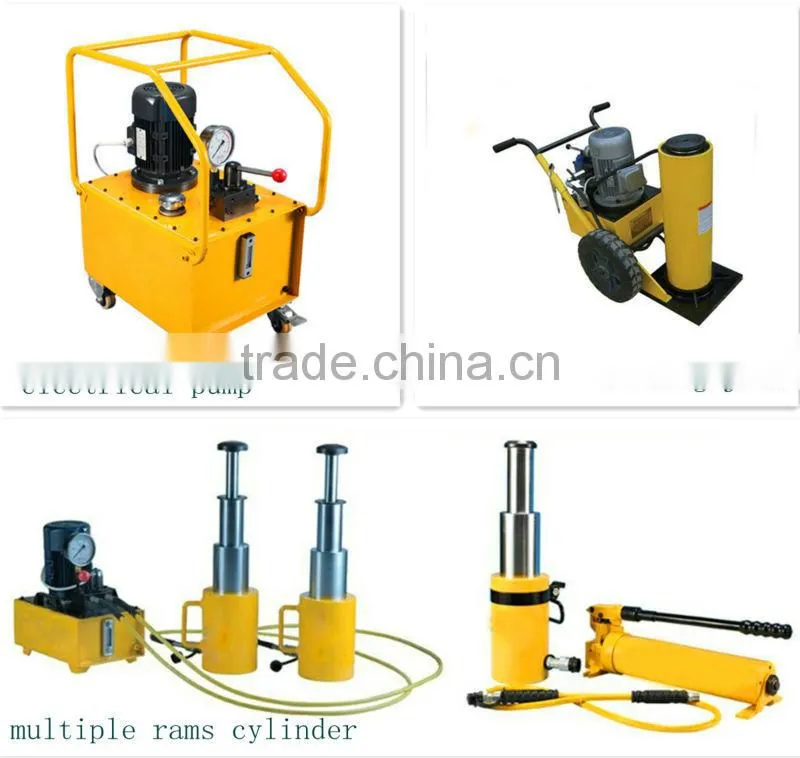

We manufacture different kinds of cylinders and pumps as follows:



High Performance Standard Single-Acting Smart Mechanical Locking Cylinders

High Performance Standard Single-Acting Smart Mechanical Locking Cylinders

High Performance Standard Single-Acting Smart Mechanical Locking Cylinders

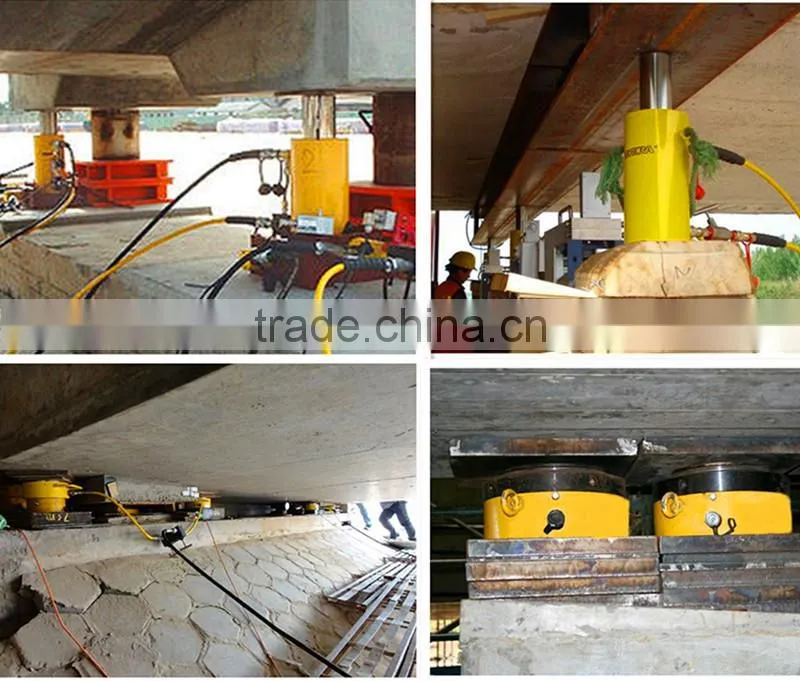

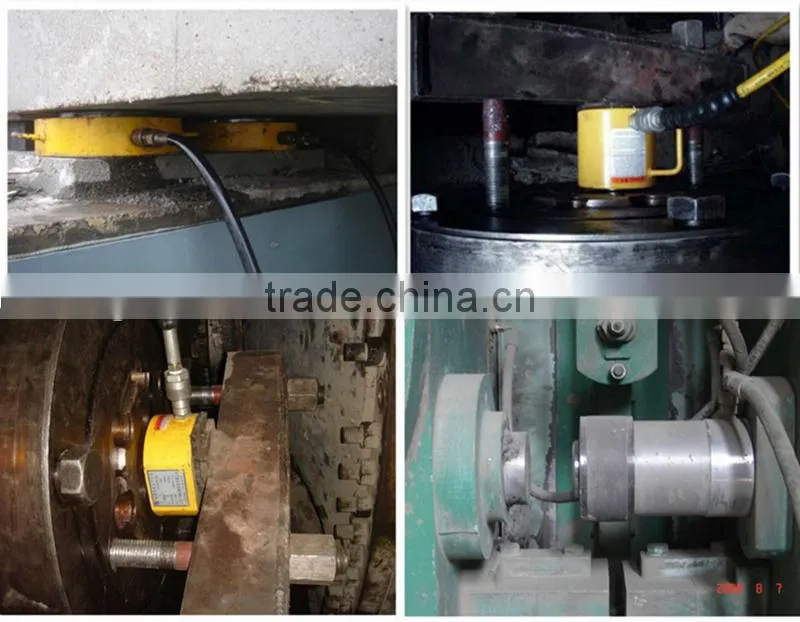

Application of cylinders:

High Performance Standard Single-Acting Smart Mechanical Locking Cylinders

High Performance Standard Single-Acting Smart Mechanical Locking Cylinders




Packaging & Shipping

Mechanical Locking Cylinders



Packaging Detail : Standard wooden cases or plywood ; according to customer's requirements



Shipping Detail : in 15 working days after receipt of order conformation




Company Information

Mechanical Locking Cylinders

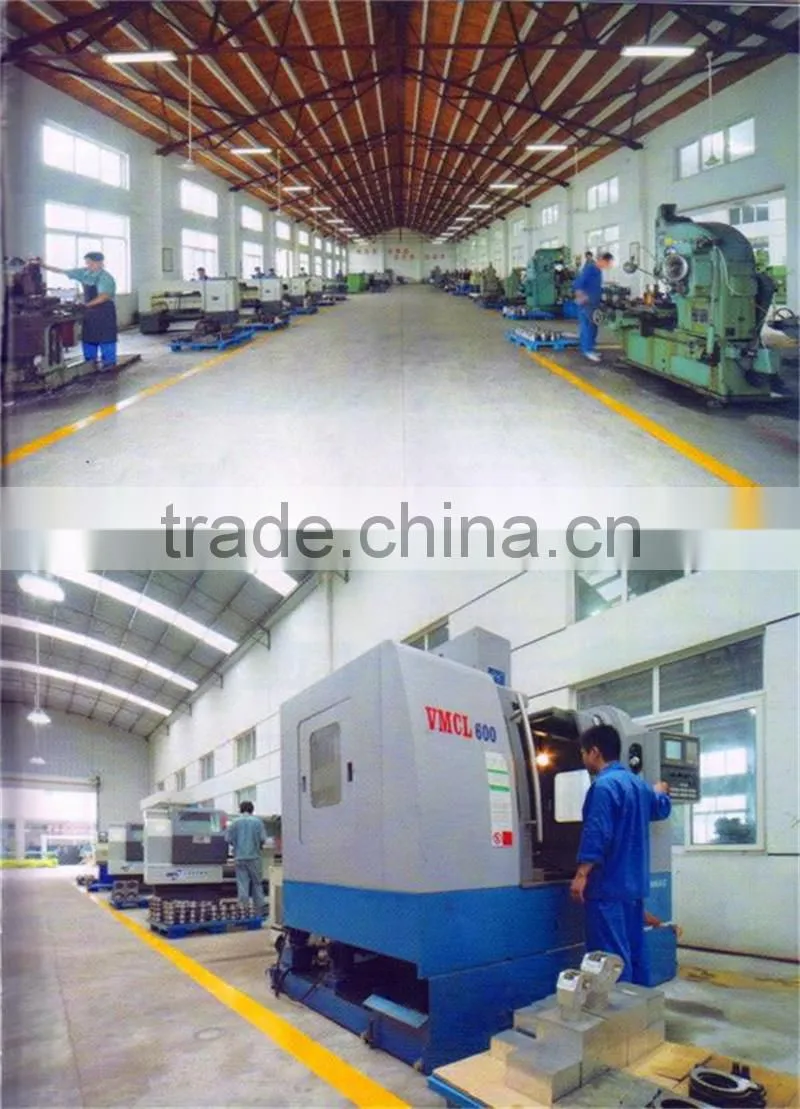

Workshop

High Performance Standard Single-Acting Smart Mechanical Locking Cylinders



Warehouse



High Performance Standard Single-Acting Smart Mechanical Locking Cylinders
