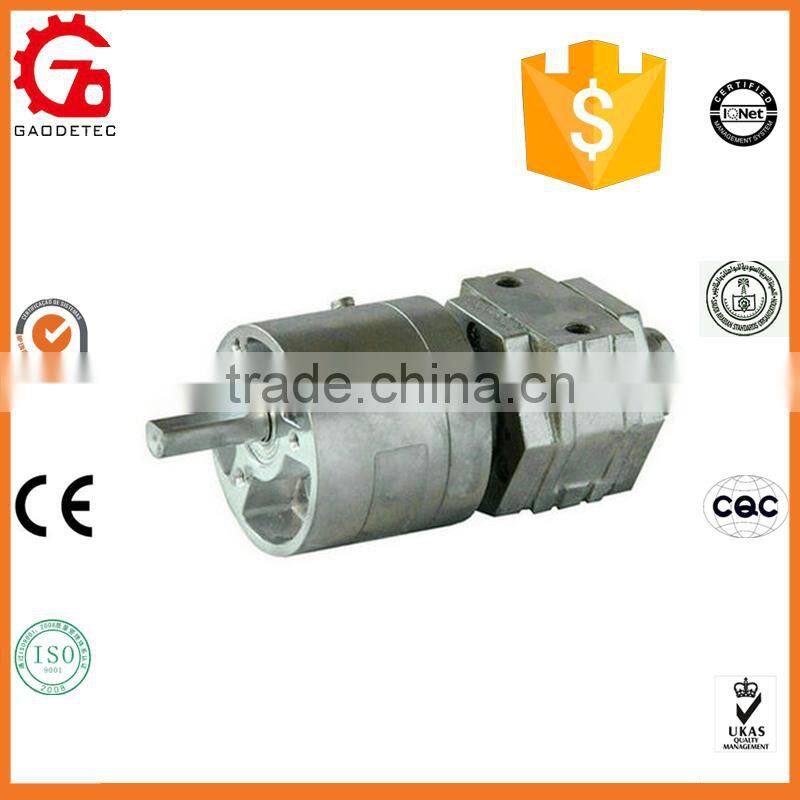

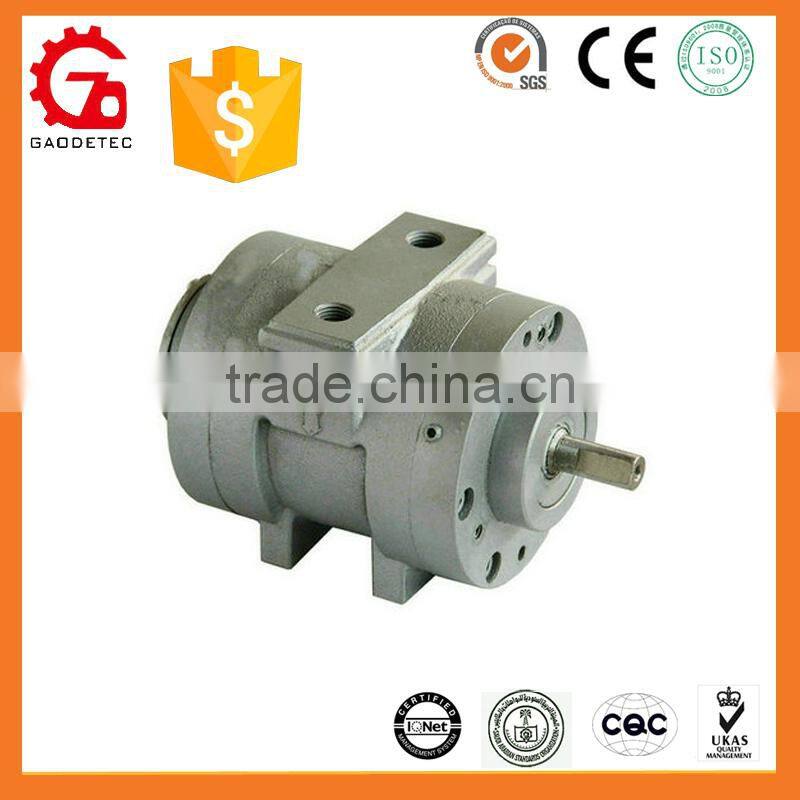

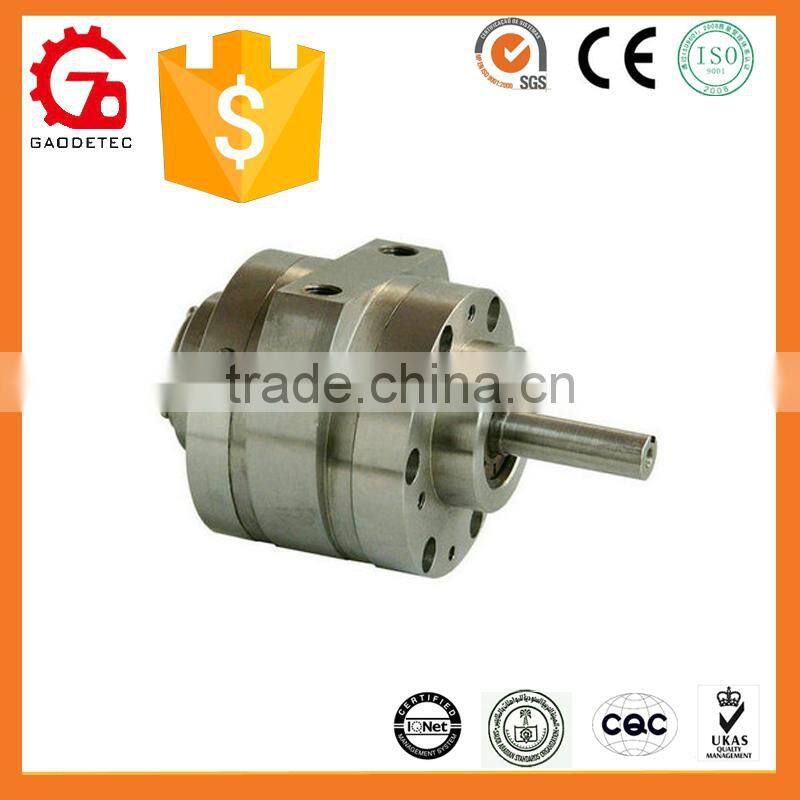

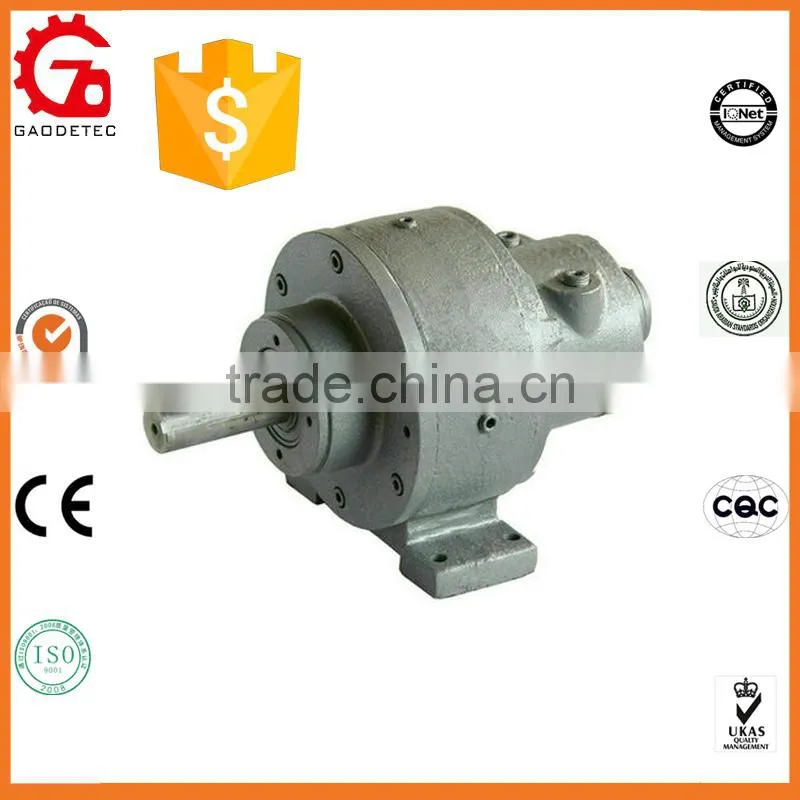

7KW high horsepower proof explosion 10hp vane pneumatic motor
- 1000 Set / Sets per Month
- Shanghai Qingdao or Tianjin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | GEC | |
| Model Number | 16AM |
Product Description
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD15,000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
7KW high horsepower proof explosion 10hp vane pneumatic motor
Working principle:With compressed air as actuating medium, vane pneumatic motor makes use of the expansion of compressed gases; convert the pressure energy into mechanical energy. Air motor has simple structure, small size, light weight, high horsepower, and easy to be operated and maintained. It also has the feature of proof water, fire, moisture and explosion.
Application:It can work in humid, high temperatures, high dust and other proof working environment. Besides mine, rock drilling and loading, it was also widely used for ships, metallurgical, chemical, paper and other industries.
Features:
- Simple structure, small size, light weight, high horsepower, and easy to be operated and maintained.
- proof water, fire, moisture and explosion
- can work in humid, high temperatures, high dust and other proof working environment
16AM-FRV-13:
16AM-FRV-2:
7KW high horsepower proof explosion 10hp vane pneumatic motor
Model | Maximum Speed | Maximum Torque | ||||||||
Power | Torque | Rotate Speed | Air consumption
| Rotate Speed | Torque | |||||
hp | kw | Nm | lb.in. | rpm | m3/h | cfm | rpm | Nm | lb.in. | |
1AM | 0.45 | 0.33 | 0.31 | 2.75 | 10000 | 35.1 | 20.5 | 650 | 0.65 | 5.6 |
1UP | 0.45 | 0.33 | 0.58 | 5.25 | 6000 | 47 | 27 | 500 | 0.68 | 6.0 |
2AM | 0.93 | 0.68 | 2.20 | 19.50 | 3000 | 49.5 | 30 | 350 | 3.05 | 26.1 |
4AM | 1.70 | 1.30 | 4.10 | 36.00 | 3000 | 132.5 | 78 | 300 | 6.3 | 56 |
6AM | 4.00 | 3.00 | 10.00 | 84.00 | 3000 | 228 | 128 | 300 | 13 | 115 |
8AM | 5.25 | 3.90 | 14.40 | 132.00 | 2500 | 293 | 175 | 300 | 21 | 185 |
16AM | 9.50 | 7.00 | 34.00 | 290.00 | 2000 | 475 | 275 | 300 | 43 | 372 |

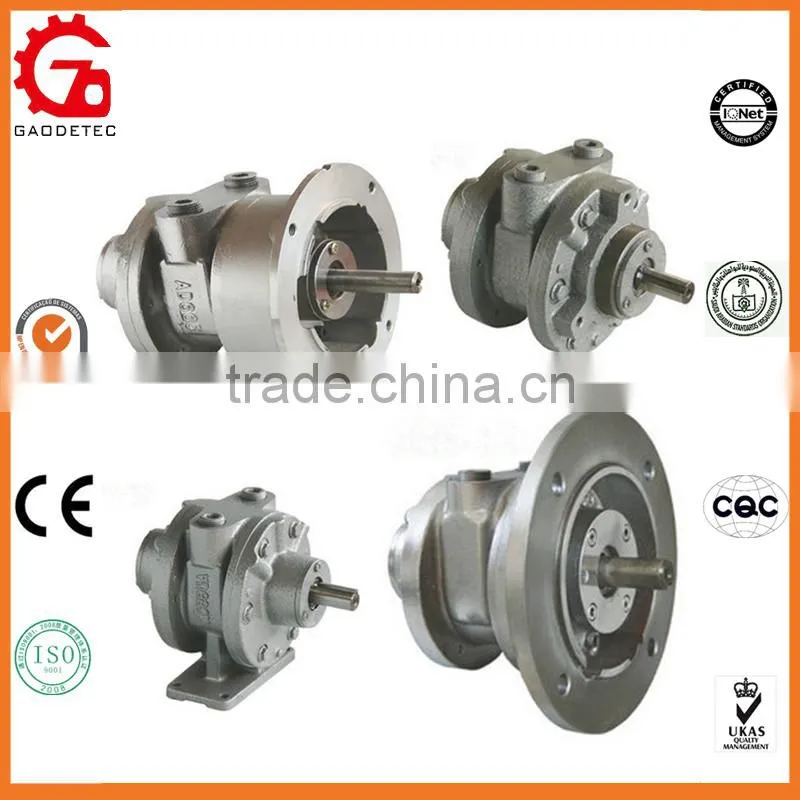

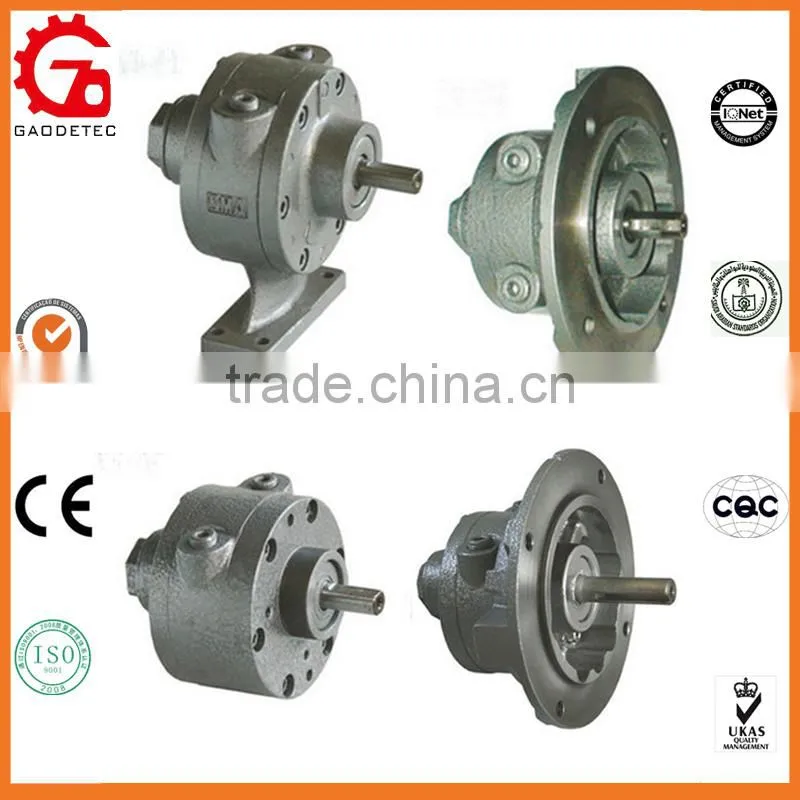

Other model vane pneumatic motor:
1AM:
1UP:
2AM:
4AM:
6AM:
8AM:
Oilless Vane Air Motor:
Stainless Steel Air Motor:

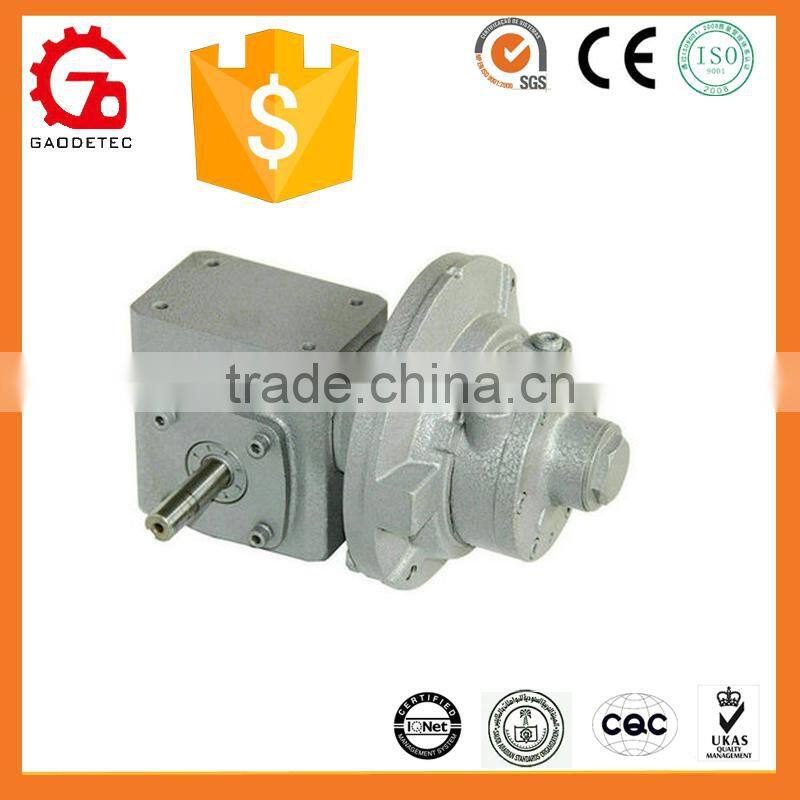

Air Gear Motor:
